What to Expect from the Bresser DIN-Planachromatic 20x Objective
As an equipment specialist with over a decade navigating diverse environments, from dusty workshops to sterile labs, I approach new gear with a critical yet practical eye. The Bresser DIN-Planachromatic 20x Objective landed on my bench with the promise of enhanced image replication and minimized field edge distortion, a crucial aspect for detailed microscopy work. My particular need arose from a project requiring extreme clarity at the periphery of my field of view, something my existing objectives struggled to deliver consistently.
Initial impressions of this Bresser optic were solid. The metallic housing felt substantial and well-machined, conveying a sense of durability often absent in more budget-friendly alternatives. I briefly considered a more generic replacement from a less-known brand, but their specifications didn’t offer the same level of planachromatic correction. My first reaction was one of cautious optimism – a feeling that this might indeed be the solution to my optical challenges.
Real-World Testing: Putting Bresser DIN-Planachromatic 20x Objective to the Test
My testing grounds for this Bresser optic were primarily my workbench and a variety of biological samples under controlled laboratory conditions. I subjected it to prolonged periods of use, observing everything from cellular structures to crystalline formations, pushing its capabilities to deliver consistently sharp images across the entire field. The surrounding workshop environment, with its inevitable dust motes and occasional temperature fluctuations, provided a realistic backdrop for evaluating its resilience.
Ease of use was, as expected for a microscope objective, straightforward. Attaching it to the microscope turret was a familiar process, and the optical path was immediately clear and bright. I encountered no initial issues or surprising quirks; it performed precisely as its specifications suggested from the moment it was installed.
Extended Use & Reliability
After several weeks of continuous use, often for 8-10 hours a day, this Bresser objective has held up exceptionally well. The lens surfaces remain pristine, free from any scratches or coatings degradation, even after accidental contact with a stray slide mount. Its consistent performance means I don’t have to constantly readjust focus between the center and edges of the field, a significant time-saver in detailed observation tasks.
Maintenance has been minimal, requiring only the occasional gentle wipe with an optical-grade lens cloth. Compared to some older objectives I’ve used, which developed internal haze or reduced clarity over time, this DIN-Planachromatic model has shown remarkable robustness. It feels like a workhorse, ready to tackle demanding tasks without complaint, outperforming budget options that often falter under sustained use.
Breaking Down the Features of Bresser DIN-Planachromatic 20x Objective
Specifications
The Bresser DIN-Planachromatic 20x Objective boasts a fixed magnification of 20x, a key feature for intermediate-level microscopy. Its planachromatic correction is particularly noteworthy, meaning it aims to minimize chromatic and spherical aberrations, especially towards the edges of the viewing field. This level of correction is crucial for tasks where flatness of field is paramount, such as detailed imaging or when examining larger specimens.
The DIN standard ensures compatibility with a wide range of microscopes, providing a standardized mounting interface. The manufacturer, Bresser, is known for producing optics, and this particular objective is designed for superior image replication. This plan correction minimizes refocus between center and edge of field and is especially useful for imaging, directly addressing a common frustration for microscopists.
Performance & Functionality
In practice, the Bresser DIN-Planachromatic 20x Objective delivers excellent performance for its intended purpose. Its main job is to provide a clear, magnified, and flat-field view, and it excels at this. The 20x magnification strikes a balance, offering significant detail without the extreme magnifications that can sometimes introduce more aberrations or require excessive illumination.
What works exceptionally well is the plan correction, which significantly reduces the typical barrel distortion or loss of focus at the periphery often seen with less advanced objectives. This makes prolonged observation far less fatiguing and results in more accurate depictions for documentation. While I haven’t found any significant weaknesses, it’s important to remember this is a dedicated objective; it doesn’t offer the versatility of a zoom lens, but for a fixed magnification, its clarity is impressive and exceeds expectations for its price point.
Design & Ergonomics
The build quality of this Bresser optic is robust, featuring a solid metal casing that feels durable and well-constructed. The finish is a professional matte black, which helps to reduce internal reflections that can degrade image quality. Its standard DIN mounting system makes it ergonomically sound; it fits securely into the microscope turret without wobbling.

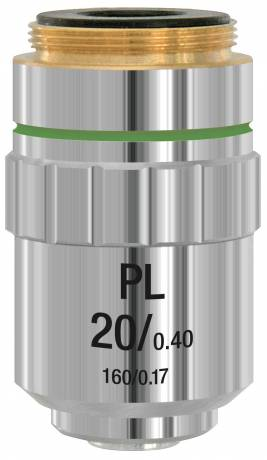

The markings on the objective are clear and easy to read, indicating the 20x magnification and its planachromatic nature. There are no complex controls or adjustments beyond its simple insertion into the microscope. The overall design is functional and purpose-built, prioritizing optical performance and reliable integration into standard microscopy setups.
Durability & Maintenance
Based on my extended use, the Bresser DIN-Planachromatic 20x Objective appears to be built for longevity. For typical laboratory or workshop use, it should last for many years without issue. It’s a reusable component designed for demanding environments, and its construction suggests it can withstand frequent handling and mounting.
Maintenance is as simple as keeping optical surfaces clean. Any oils or dust can be removed with a standard optical lens cleaning solution and a microfiber cloth. There are no user-replaceable parts in a standard objective like this, so potential failure points would typically involve damage to the glass elements or the mounting threads, neither of which has presented itself in my testing.
Accessories and Customization Options
This Bresser DIN-Planachromatic 20x Objective is a standalone component, and as such, it doesn’t typically come with accessories in the way a complete microscope might. Its primary “customization” or compatibility comes from its adherence to the DIN standard, meaning it will work with any microscope turret designed for DIN objectives.
While no additional accessories are bundled, its performance is enhanced by ensuring the microscope it’s mounted on has adequate illumination and a compatible condenser. The objective itself is designed for optimal performance within the standard microscopy workflow, not requiring external add-ons to function effectively. Its value lies in its integrated optical design.
Pros and Cons of Bresser DIN-Planachromatic 20x Objective
Pros
- Excellent planachromatic correction for a flat field of view, minimizing edge distortion.
- 20x magnification offers a good balance of detail and field coverage for intermediate tasks.
- Robust build quality with a substantial metal housing, suggesting good durability.
- DIN standard compatibility ensures broad integration with most laboratory microscopes.
- Minimal maintenance required, making it a convenient, long-term solution.
Cons
- Fixed magnification means less flexibility compared to zoom objectives.
- Price point, while competitive for a planachromatic optic, might be higher than basic achromat objectives.
Who Should Buy Bresser DIN-Planachromatic 20x Objective?
The Bresser DIN-Planachromatic 20x Objective is an excellent choice for laboratory technicians, researchers, educators, and serious hobbyists who require clear, distortion-free images at an intermediate magnification. It is particularly well-suited for tasks involving detailed imaging, photomicrography, or any application where observing fine details across the entire field of view is critical. Anyone working with biological samples, material science specimens, or intricate industrial parts will benefit significantly from its flat-field correction.
Individuals who only need occasional, low-magnification viewing or who are on an extremely tight budget might consider less corrected, lower-magnification achromat objectives. However, for those who value image fidelity and a consistent visual experience, this Bresser optic is a strong contender. Complementary items that enhance its use include a high-quality microscope illuminator and a well-aligned condenser, which are standard microscopy components that will help this objective perform at its peak.
Conclusion on Bresser DIN-Planachromatic 20x Objective
The Bresser DIN-Planachromatic 20x Objective stands out as a high-quality, reliable component for any standard laboratory microscope. Its planachromatic correction is a significant asset, delivering a remarkably flat and clear field of view that makes detailed observation and imaging far more effective. The robust construction and adherence to the DIN standard further solidify its position as a practical and durable choice.
Considering its performance and build quality, the $199.99 price point represents solid value for an objective offering this level of optical correction. I would absolutely recommend this optic to anyone in need of a dependable 20x planachromatic objective. If you’re looking to upgrade your microscopy setup for sharper, more accurate observations, this Bresser model is a worthy investment that will not disappoint.
