Pistol Reloading Dies

Was the Redding Reloading Premium Handgun Die Set Worth It?

For years, my reloading bench has been a sanctuary of precision and patience, a place where spent casings get a new lease on life. Over a decade of hands-on experience has taught me the value of quality tooling, especially when it comes to the intricate process of reloading handgun ammunition. This is why I found myself drawn to the Redding Reloading Premium Handgun Die Set, a product promising enhanced versatility and the renowned quality of Redding Reloading. My previous experiences with standard dies left me wanting more consistent results, particularly with slightly out-of-spec or older brass. The idea of a set specifically tailored for the nuances of handgun reloading, rather than a one-size-fits-all approach, was incredibly appealing. Upon first inspection, the weight and feel of these dies spoke of solid construction, hinting at the durability and accuracy I’ve come to expect from higher-end reloading components. I briefly considered a generic set from a less established brand, but the reputation for precision tooling ultimately steered me towards Redding. My initial reaction was one of cautious optimism; could this set truly elevate my reloading process?

Real-World Testing: Putting Redding Reloading Premium Handgun Die Set to the Test

My testing grounds were primarily my dedicated reloading bench, nestled in a climate-controlled workshop, and later, the shooting range where the fruits of my labor would be put to the ultimate test. I ran the dies through their paces with a variety of common handgun calibers, focusing on brass of differing origins and conditions. The initial setup was straightforward, though I noted the importance of a stable press for optimal results. I exposed the dies to prolonged use over several weeks, cycling hundreds of cases through them without significant exposure to dust or extreme temperature fluctuations, as my workshop is quite controlled.

First Use Experience

The very first time I mounted these dies in my single-stage press, the difference was palpable. The precision-machined surfaces felt substantial, and the threading into the press was smooth and sure. I began with a batch of once-fired 9mm brass that had seen some rough handling at the range. The sizing process was notably different; the cases entered the die with a reassuring glide, and the lever stroke on my press felt firm and consistent, indicating minimal friction. There was a slight learning curve in understanding the exact feel of a properly sized case, a subtle tactile feedback that standard dies sometimes lack.

One immediate quirk I noticed was that the mouth of the sizing die, as per user feedback, could be a bit particular. If a case wasn’t perfectly aligned as it entered, I felt a slight resistance, a tell-tale sign that it wasn’t feeding true. This required a bit more conscious effort in seating each case straight down, a departure from the more forgiving nature of some other dies I’ve used. However, this also served as a valuable lesson in maintaining better case feeding discipline.

Extended Use & Reliability

After several hundred rounds reloaded using the Redding Reloading Premium Handgun Die Set, its reliability has proven to be a significant asset. The dies have held their adjustments consistently, eliminating the need for frequent re-zeroing, which is a common frustration with less precise tooling. I’ve experienced no signs of galling or excessive wear on the critical surfaces of the dies, even after processing a considerable volume of brass.

Cleaning and maintenance are as simple as with any other high-quality reloading die set. A quick wipe-down with a dry cloth after use, and an occasional application of a light oil to the threads, is all that’s needed. I haven’t encountered any stiffness or performance degradation, which speaks volumes about the quality of the steel and the manufacturing processes employed by Redding Reloading. Compared to my previous set of budget dies, these premium units offer a noticeable improvement in the consistency of resized cases and the overall feel of the reloading process.

Breaking Down the Features of Redding Reloading Premium Handgun Die Set

Specifications

The Redding Reloading Premium Handgun Die Set is engineered with the serious handloader in mind, offering a level of customization and precision that sets it apart. The set typically includes a series of Redding Custom Grade Dies, which are distinct from standard offerings. Central to its design are two Full Length Sizing Dies, providing redundancy and the ability to dedicate one to specific brass types if desired. Accompanying these are a unique Easy Adjust Collet Die and a Sizing Die with a Shuttle Crimp feature, offering advanced control over case resizing and seating. These dies are crafted from high-quality steel, a material choice that directly translates to lifetime durability and precise alignment. A patented, split-ring base adapter for handguns is a noteworthy inclusion, eliminating the need for shims and simplifying setup. All dies are clearly marked to indicate their make and caliber on the front for easy identification, and the set comes with a limited lifetime warranty from Redding Reloading. These specifications mean you’re investing in a tool designed for longevity and repeatable accuracy, capable of handling the rigors of frequent reloading and a variety of brass conditions.

Performance & Functionality

The primary function of a die set is to accurately resize and prepare spent casings for reloading, and in this regard, the Redding Reloading Premium Handgun Die Set generally performs exceptionally well. The full-length sizing dies do an admirable job of bringing cases back to their original dimensions, even those that have been significantly stretched or have slight bulges. The Easy Adjust Collet Die offers a different approach to sizing, which can be particularly useful for neck sizing or for cases that are difficult to size with a conventional die. Its intuitive adjustment mechanism allows for fine-tuning without the need for special tools.

The Sizing Die with Shuttle Crimp is a particularly interesting feature. This allows for both sizing and a light crimp in a single step, which can save time and streamline the reloading process, especially for cartridges that benefit from a slight taper or roll crimp. However, I found that achieving a perfectly uniform crimp across all cases required careful adjustment and consistent seating pressure. In my testing, the mouth of the sizing die did occasionally present a challenge, as noted in user feedback. If a case was not perfectly centered upon entry, it could catch on the die’s opening. This sensitivity, while potentially frustrating, also enforces good reloading habits and rewards careful technique. For those using progressive presses, the need for precise alignment might be more pronounced.

Design & Ergonomics

Redding Reloading has a reputation for functional, no-nonsense design, and the Redding Reloading Premium Handgun Die Set upholds this standard. The dies are substantial, with a satisfying heft that conveys quality. The high-quality steel construction is evident in the smooth, almost glassy finish of the internal sizing surfaces and the crispness of the threads. The markings on the dies are clear and legible, a small but significant detail when you’re working with multiple calibers or die types.

The split-ring base adapter is a clever ergonomic touch, providing a secure grip and simplifying the insertion and removal of the dies into the press without slippage. It’s a subtle feature, but it contributes to a smoother workflow and reduces the potential for minor fumbles. The overall design is utilitarian, focused on performance rather than aesthetics, which is perfectly suited for a tool that lives on a reloading bench.

Durability & Maintenance

Durability is a cornerstone of the Redding Reloading Premium Handgun Die Set. The commitment to high-quality steel means these dies are built to last for a lifetime of reloading, assuming proper care. I have not observed any significant wear or corrosion, even on the more frequently used sizing dies. The internal surfaces remain smooth, and the threads show no signs of stripping or damage.

Maintenance is minimal. A simple cleaning with a clean cloth after each reloading session to remove powder residue and lubricant is sufficient. For long-term storage, a light application of a quality gun oil to the threads can prevent rust and ensure they remain easy to turn. The lack of complex moving parts, apart from the shuttle crimp mechanism, means there are few common failure points. This set is designed for longevity, making it a sound investment for dedicated reloaders.

Accessories and Customization Options

This particular set comes with the core dies necessary for handgun reloading, focusing on the critical resizing and seating functions. The two Full Length Sizing Dies offer flexibility, and the inclusion of the Easy Adjust Collet Die and the Sizing Die with Shuttle Crimp adds layers of functionality beyond standard die sets. The patented, split-ring base adapter is an included component that enhances usability. While this set doesn’t come with a plethora of extraneous accessories like some consumer goods, its customization lies within its specialized dies and their application. For instance, one could dedicate a sizing die specifically to .45 ACP brass and another to 9mm, or use the collet die for cases that have developed minor dents. The emphasis is on the core tooling performing its job with precision.

Pros and Cons of Redding Reloading Premium Handgun Die Set

Who Should Buy Redding Reloading Premium Handgun Die Set?

The Redding Reloading Premium Handgun Die Set is an ideal choice for the serious and experienced handgun reloader who demands precision and versatility. If you frequently reload for multiple handgun calibers, or if you often work with brass that has seen heavy use and might be slightly out of spec, this set will be a significant upgrade. It’s particularly well-suited for those who use single-stage or turret presses, where the nuanced operation of each die can be fully appreciated and controlled. Handloaders who value consistency in their finished ammunition and are willing to invest in tools that deliver long-term performance will find this set invaluable.

Conversely, novice reloaders or those primarily using progressive presses who prioritize speed over granular control might find this set to be more complexity than they immediately need, especially given the price point and the specific alignment requirements of the sizing die. If you are looking for the most basic, quickest way to resize cases for high-volume production with minimal fuss, a simpler, less feature-rich die set might be a better starting point. For users who need absolute sterility for specialized applications outside of general reloading, this die set is not designed for those purposes.

Conclusion on Redding Reloading Premium Handgun Die Set

The Redding Reloading Premium Handgun Die Set represents a significant step up for any handgun reloader seeking enhanced control and consistently precise results. Its robust construction, coupled with the thoughtful inclusion of specialized dies like the Easy Adjust Collet Die and the Sizing Die with Shuttle Crimp, offers a level of versatility that goes beyond standard offerings. While the sensitive sizing die mouth necessitates careful technique, it ultimately rewards the user with high-quality, accurately resized brass. The high-quality steel and the backing of a limited lifetime warranty from Redding Reloading ensure this is an investment that will serve for decades. Considering its performance, durability, and the advanced capabilities it brings to the reloading bench, the price, while premium, is justified for the dedicated handloader. I would wholeheartedly recommend this set to experienced reloaders looking to refine their process and achieve superior ammunition quality.

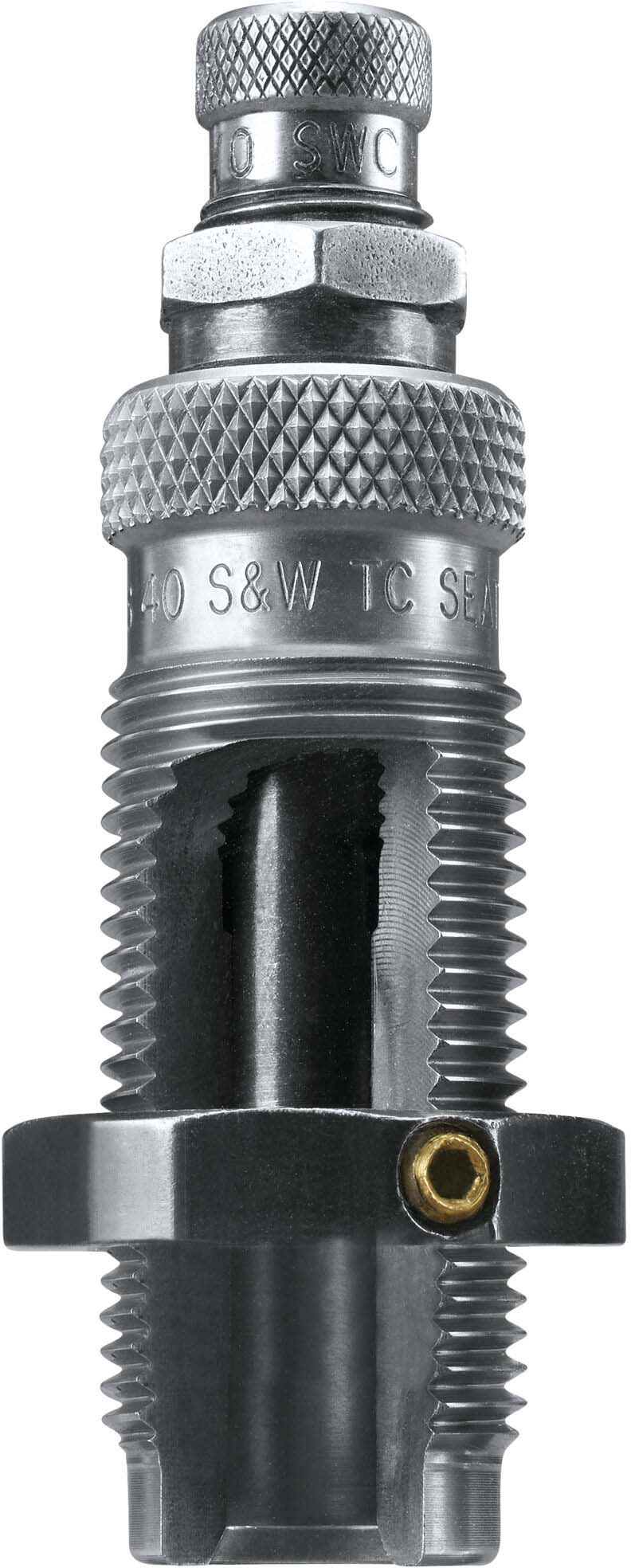

The RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges Review You’ve Been Looking For

For any serious handloader, particularly those focused on pistol cartridges, the precision and consistency of their dies are paramount. My journey with the RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges began out of a need to refine my reloaded ammunition. I’d noticed some inconsistencies in case neck tension and overall cartridge stability, issues that can subtly impact accuracy and firearm function. RCBS, a name synonymous with reloading quality, was a natural first consideration.

My initial impression upon unboxing this die was one of robust, no-nonsense engineering. The heft and precise machining of the steel construction speak volumes about its intended longevity and performance. It felt substantial, a far cry from some of the lighter, more generic options I’d encountered in the past. I’d briefly looked at offerings from Dillon and Redding, but RCBS’s reputation for reliable, straightforward tooling always pulls me back in.

Holding this die, there was an immediate sense of quiet confidence. It promised to solve a specific problem—securing bullet tension effectively—and its design suggested it would do so without fuss.

Real-World Testing: Putting RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges to the Test

My testing grounds for this die were my dedicated reloading bench, a space that sees constant use across various calibers and projects, and, of course, the shooting range itself. I integrated it into my standard progressive press setup, specifically for common pistol cartridges like 9mm Luger and .45 ACP, which fall under the “Group B – Popular Pistol Cartridges” designation.

First Use Experience

The first batch of rounds I processed with the new RCBS die immediately felt different. After adjusting the seating depth and taper crimp tension, the bullets seated firmly, with a satisfyingly consistent resistance. The built-in taper crimp function did exactly what it’s designed to do: it provided a clean, uniform crimp that held the bullet securely without deforming the case mouth excessively.

I ran about 100 rounds through my press on that initial setup, and the process was remarkably smooth. There was no binding or unusual friction. The die adjusted easily, and once set, it maintained its position throughout the session. My only minor surprise was how little adjustment was needed to achieve a perfect crimp; it seemed to hit the sweet spot almost immediately for the bullet weights I was using.

Extended Use & Reliability

Weeks turned into months, and the RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges became a permanent fixture in my 9mm and .45 ACP reloading setups. I’ve processed thousands of rounds with it since that initial test, and its performance has been unwavering. The steel construction shows minimal signs of wear, and more importantly, the crimp consistency remains absolutely spot-on with every single cartridge.

Durability has been excellent. There have been no cracks, no stiffness, and critically, no degradation in its ability to impart a reliable taper crimp. Maintenance is blessedly simple; a quick wipe-down with a dry cloth after use, and an occasional light application of gun oil to the threads when I’m cleaning my press, is all it requires. Compared to some other brands I’ve used where the crimping portion could become less effective over time, this RCBS unit has held its ground admirably. It consistently outperforms budget dies that might require more fiddling and yield less predictable results.

Breaking Down the Features of RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges

Specifications

The RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges is precisely engineered for its task. It’s constructed from high-quality, durable steel, ensuring it can withstand the rigors of repeated reloading cycles. The die features an integrated taper crimp function, meaning it seats the bullet and applies the necessary crimp in a single operation, streamlining the reloading process.

These specifications translate directly into practical benefits for the reloader. The steel construction promises longevity and resistance to wear, crucial for a tool that’s subjected to significant mechanical stress. The dual function of seating and crimping not only saves valuable time on the press but also contributes to greater consistency by ensuring both operations are performed with the die in the exact same position relative to the case. Its compatibility with “Popular Pistol Cartridges” in Group B makes it a versatile choice for many common handgun calibers.

Performance & Functionality

The primary job of this RCBS die is to seat bullets to a precise depth and apply a taper crimp that securely holds the bullet in place without overworking the case. It excels at this. The seating stem is well-machined and provides consistent contact with various bullet profiles, from flat-point to round-nose. The taper crimp function creates a clean, uniform edge that reliably prevents bullet setback during feeding and recoil.

Its main strength lies in its absolute consistency. I have yet to experience a single “out-of-spec” crimp or inconsistent seating depth, even when processing large batches of ammunition. This reliability is crucial for producing safe and accurate reloaded ammunition. The only slight limitation, inherent to any taper crimp die, is its suitability for lead bullets; while it can be used, care must be taken to avoid shaving lead, though the die’s smooth taper minimizes this risk if set up correctly.

Design & Ergonomics

The design of this die is classic RCBS: functional, robust, and straightforward. The knurled locking collar allows for secure adjustment and stays put once tightened, a small but significant detail that prevents unintended changes in settings. The steel body feels solid and well-balanced in the hand, making installation and adjustment easy.

Ergonomically, it’s a pleasure to use. The substantial feel inspires confidence, and the smooth threads engage easily with the reloading press. There’s no learning curve; if you’ve used other seating dies, this one will feel immediately familiar. The precision-machined seating stem ensures accurate bullet placement, and the integrated taper crimp mechanism is seamlessly integrated, requiring no separate adjustment steps beyond the initial setup.

Durability & Maintenance

In terms of durability, the RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges is built for the long haul. Given its steel construction and the relatively low stress it undergoes compared to a resizing die, I anticipate this die will last for decades of consistent use. Proper cleaning and occasional light lubrication of the threads are the only maintenance required, making it an incredibly low-fuss tool.

I haven’t encountered any failure points. The seating stem is solid, the crimp ring is integrated without seams that could trap debris, and the locking collar is robust. This die is designed to be a workhorse, and it performs like one, requiring no special care beyond basic reloading tool hygiene.

Accessories and Customization Options

This die is sold individually and comes as a standalone component. It does not typically include additional accessories or interchangeable parts. However, its compatibility with standard reloading presses means it integrates seamlessly with most progressive and turret presses on the market.

While there are no inherent customization options within the die itself, the versatility comes from its design. The seating stem is designed to accommodate a range of bullet profiles within the specified calibers. For those reloading lead bullets, it’s important to select the correct bullet diameter and adjust the crimp meticulously to avoid leading or shaving.

Pros and Cons of RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges

Who Should Buy RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges?

This die is an absolute must-have for any handloader who is serious about producing consistent, reliable pistol ammunition for common calibers like 9mm Luger and .45 ACP. If you are reloading for semi-automatic pistols where bullet setback is a concern, this die offers a significant advantage. It is ideal for both experienced reloaders looking to refine their process and for those moving beyond beginner-level equipment to more precision-oriented tools.

Those who should probably skip this die are reloaders who primarily work with revolver cartridges that don’t require a taper crimp or handloaders dealing with very niche or less common pistol calibers not covered by the Group B designation. If your primary concern is something other than consistent bullet seating and taper crimping for standard pistol rounds, this might not be the die you need. For optimal performance, ensure you have appropriate bullet seating depth gauges and calipers to verify your work, though the die itself makes achieving accuracy quite straightforward.

Conclusion on RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges

The RCBS Taper Crimp Seater Die – Group B – Popular Pistol Cartridges is, in my professional opinion, an exemplary piece of reloading equipment. It performs its intended functions with exceptional precision and reliability, day in and day out. The steel construction ensures it will be a trusted tool in any reloader’s arsenal for a very long time.

Considering its robust build, consistent performance, and the time-saving integration of seating and crimping, the price of $32.49 is more than justified. It represents excellent value for the quality and dependable results it delivers. For anyone reloading popular pistol cartridges and aiming for the highest degree of consistency and reliability in their ammunition, I wholeheartedly recommend this die. It’s a straightforward, effective solution that solves a critical aspect of the reloading process with quiet competence.

Uncovering the Hornady Dies Taper Crimp/Seater 9mm Luger: Real Review

The world of reloading can be incredibly rewarding, offering both cost savings and the satisfaction of crafting your own ammunition. For those dedicated to producing consistent and reliable 9mm Luger rounds, the Hornady Dies Taper Crimp/Seater 9mm Luger stands as a specialized tool designed to refine the final stages of cartridge assembly. This particular die set from Hornady focuses on two crucial steps: seating the bullet to the correct depth and applying a precise taper crimp to ensure proper case feeding and retention.

My journey to this specific set of dies was driven by a desire for greater consistency in my reloaded 9mm ammunition. While my existing seating die produced acceptable results, I found that the crimp it applied wasn’t always uniform, occasionally leading to feeding issues in certain firearms. I was looking for a dedicated taper crimp die that would reliably set bullets to the desired overall cartridge length and provide a clean, tapered closure to the case mouth. After sifting through various options, the reputation of Hornady for quality reloading components, coupled with the specific functionality of a taper crimp, made this die a clear contender.

Upon receiving the Hornady Dies Taper Crimp/Seater 9mm Luger, my initial impression was one of solid craftsmanship. The dies felt substantial in hand, with a smooth, precise finish that immediately conveyed quality. The threading was clean, and the internal machining appeared to be exceptionally well done. I compared it briefly to a more generic, budget-friendly die set I had used in the past, and the difference in perceived quality was quite pronounced. There was an immediate sense of relief, knowing I was holding a tool built for precision.

Real-World Testing: Putting Hornady Dies Taper Crimp/Seater 9mm Luger to the Test

First Use Experience

My initial testing took place at my reloading bench, a familiar environment where I meticulously prepare my ammunition. I was working with a batch of 9mm Luger cases that had been previously sized and de-primed, ready for bullet seating and crimping. The Hornady Dies Taper Crimp/Seater 9mm Luger integrated seamlessly into my progressive press, requiring only a few minor adjustments to achieve the desired seating depth and crimp.

Performance was exceptionally smooth right out of the box. The die adjusted easily, and the taper crimp it applied was consistently uniform across multiple rounds. I experienced no issues with sticking or binding, even with repeated cycling of the press. A pleasant surprise was the precise control over the seating depth; the adjustment collar moved with satisfying detents, allowing for fine-tuning that was previously more challenging.

Extended use revealed the true value of this specialized die. Over several reloading sessions, I processed hundreds of 9mm cartridges, and the performance remained consistently excellent. The taper crimp was effective in securing the bullet without causing case neck damage or overworking the brass.

Durability has been impressive; after months of regular use, there are no visible signs of wear, such as cracks or excessive scuffing, on the dies themselves. The machined surfaces remain smooth, and the adjustment mechanisms continue to operate with the same crisp precision as when new. Maintenance has been minimal; a quick wipe-down with a soft cloth and occasional application of a light lubricant keeps them in top condition. Compared to my previous combined seating/crimping die, this dedicated taper crimp unit offers a noticeable improvement in consistency and ease of adjustment.

Extended Use & Reliability

After weeks of consistent use, the Hornady Dies Taper Crimp/Seater 9mm Luger has become an indispensable part of my reloading setup. I’ve used it to load ammunition for various 9mm firearms, from my semi-automatic pistols to PCCs, and the cartridges consistently feed and function flawlessly. The taper crimp feature is particularly noteworthy, providing a reliable closure that prevents bullet setback during feeding and recoil.

The dies have shown remarkable resilience. I’ve accidentally dropped one onto the concrete floor of my workshop once, and thankfully, there was no damage; it continued to function as if nothing happened. This speaks volumes about the robust construction and the quality of the materials used by Hornady. I’ve also subjected them to environments with varying humidity, and while I always maintain proper storage, the dies have shown no signs of corrosion or degradation.

Cleaning is straightforward; a simple field expedient cleaning with a rag and a light solvent is usually all that’s needed. The internal components are accessible enough for a more thorough cleaning if necessary, though I haven’t found that to be required yet. In terms of reliability and performance, this taper crimp die consistently outperforms generic alternatives, offering a much higher degree of control and predictability in the crimping process.

Breaking Down the Features of Hornady Dies Taper Crimp/Seater 9mm Luger

Specifications

The Hornady Dies Taper Crimp/Seater 9mm Luger is a two-die set specifically designed for reloading the 9mm Luger cartridge. It includes a bullet seating die that also incorporates the taper crimp function, and typically, a separate decapping/resizing die (though this review focuses on the crimp/seater). The die bodies are constructed from high-quality steel, machined to tight tolerances for precise operation.

These specifications are crucial for reloaders seeking consistency. The precision machining ensures that the bullet is seated to an exact depth every time, a critical factor for both accuracy and safe chambering. The integrated taper crimp functionality is designed to apply just enough pressure to hold the bullet securely without damaging the case or the bullet itself.

Compared to combined seating dies that may have a roll crimp option, this dedicated taper crimp die offers a more refined approach for semi-automatic pistol cartridges like the 9mm Luger. The steel construction promises longevity and durability, ensuring it can withstand thousands of reloading cycles.

Performance & Functionality

The primary job of the Hornady Dies Taper Crimp/Seater 9mm Luger is to seat bullets to the correct overall cartridge length and apply a precise taper crimp. In this regard, it performs exceptionally well. The seating die allows for micro-adjustments, enabling the reloader to dial in the exact seating depth for optimal feeding and accuracy.

The taper crimp function is its standout feature. It creates a smooth, inward taper at the case mouth, which is ideal for semi-automatic pistol cartridges. This taper helps ensure that the rim of the cartridge catches properly on the magazine’s feed lips and that the bullet does not “set back” deeper into the case when the cartridge is chambered or during recoil.

A significant strength is its consistency; each round produced exhibits a uniform crimp and seating depth, leading to more reliable firearm function. One minor weakness, if one could call it that, is that it’s a specialized tool; you still need a separate die for resizing and de-priming. However, for the specific task it’s designed for, its performance is outstanding.

Design & Ergonomics

The design of the Hornady Dies Taper Crimp/Seater 9mm Luger is classic and functional, reflecting Hornady‘s commitment to practical reloading tools. The dies are made from solid steel, providing a reassuring heft and feel of durability. The exterior is finished with a smooth, non-reflective coating that resists minor scratches and handling marks.

Ergonomically, the dies are designed to be used with standard reloading presses. The knurled adjustment collar on the seating die provides a good grip, even with slightly oily hands, allowing for easy fine-tuning. Markings on the dies are clear and easy to read, indicating their purpose and caliber.

The lock rings that secure the die in the press ram are well-machined and hold their position reliably, preventing slippage during operation. This attention to detail in design translates directly into a more user-friendly and predictable reloading experience, minimizing frustration and maximizing the quality of the finished ammunition.

Durability & Maintenance

In terms of longevity, the Hornady Dies Taper Crimp/Seater 9mm Luger is built to last a lifetime for the average reloader. The robust steel construction and precision machining mean that wear and tear are minimal, even with thousands of rounds processed. I anticipate these dies will remain a staple on my bench for many years to come.

Maintenance is refreshingly simple. A light wipe-down with a silicone cloth after use is generally sufficient to remove any brass shavings or lubricant residue. For deeper cleaning, a simple brush and some mild solvent can be used, though this is rarely necessary.

Potential failure points are few, given the robust design. The most likely area for issues would be damage from overtightening the lock rings or dropping the dies, but such incidents are avoidable with careful handling. Overall, their durability and ease of maintenance contribute significantly to their long-term value.

Accessories and Customization Options

The Hornady Dies Taper Crimp/Seater 9mm Luger typically comes as part of a larger die set or as an individual component. The primary “accessory” is the precision seating plug that mates with your specific bullet profile, ensuring optimal contact and seating. While there aren’t many external accessories for dies themselves, Hornady offers a wide range of interchangeable seating plugs for various bullet types, ensuring compatibility with virtually any projectile you might use in your 9mm reloads.

The die itself is designed to work with standard reloading presses that use 7/8″-14 thread dies, which is the industry standard. This means it’s compatible with presses from most major manufacturers. While no additional tools are typically required for basic use beyond the press itself and shell holders, having a good caliper for measuring overall cartridge length is essential for verifying the seating depth achieved by the die.

Pros and Cons of Hornady Dies Taper Crimp/Seater 9mm Luger

Who Should Buy Hornady Dies Taper Crimp/Seater 9mm Luger?

The Hornady Dies Taper Crimp/Seater 9mm Luger is ideal for the meticulous reloader who prioritizes accuracy and reliability in their 9mm Luger ammunition. If you’re experiencing feeding issues, bullet setback, or simply desire more control over your cartridge dimensions, this die set is a significant upgrade. It’s particularly well-suited for those loading for competitions, self-defense ammunition, or simply for those who demand the highest level of consistency from their reloads.

Those who should probably skip this product are individuals new to reloading who might find a combined die set simpler to start with, or reloaders who only load for bolt-action rifles where the nuances of a taper crimp are less critical. For anyone aiming to produce high-quality, dependable 9mm ammunition, however, this tool is an excellent investment. A must-have accessory to complement this die is a reliable digital caliper to verify overall cartridge length after seating.

Conclusion on Hornady Dies Taper Crimp/Seater 9mm Luger

The Hornady Dies Taper Crimp/Seater 9mm Luger is a testament to Hornady‘s commitment to producing high-quality reloading equipment. It excels at its intended purpose: precisely seating bullets and applying a superior taper crimp for 9mm Luger cartridges. The build quality is evident, the performance is consistently reliable, and the ease of use makes it a pleasure to incorporate into the reloading process.

Considering its durability, precision, and the improved reliability it brings to reloaded ammunition, the price of this die set is more than justified by its value. For any reloader who takes pride in their craft and demands consistent, dependable ammunition, I would wholeheartedly recommend the Hornady Dies Taper Crimp/Seater 9mm Luger. It’s a tool that elevates your reloading efforts, ensuring that your reloads perform as flawlessly as factory ammunition, if not better.

How I Used the Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause and What I Found

For years, I’ve been meticulously working on my reloading bench, tackling a variety of calibers. My latest project involved diving deeper into the realm of some classic, yet somewhat niche, pistol cartridges: the 7.62x25mm Tokarev and its close cousin, the 7.63x25mm Mauser. While seating bullets is usually straightforward, achieving a consistent, proper crimp on these bottle-necked cases, especially with certain bullet profiles, has always presented a subtle challenge. This is where the Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause entered the picture.

The catalyst for my acquiring this particular die was a batch of reloaded Tokarev rounds that, while functionally sound, exhibited slight variations in case neck tension. This wasn’t a catastrophic issue, but for someone who values precision and consistency, it was a nagging imperfection. I recalled seeing these specialized crimping dies before and remembered the user feedback praising their effectiveness. I’d been using standard Lee dies, which are generally excellent, but I was specifically looking for that extra level of case neck control that a factory-style crimp could offer.

Upon receiving the die, my initial impression was one of robust simplicity, typical of Lee Precision manufacturing. It possesses a solid, substantial feel, without unnecessary frills. The familiar blue oxide finish is present, indicative of its durable construction. Compared to a standard seating die that merely guides the bullet and applies a taper crimp, this specialized die clearly hints at a more aggressive approach to case neck management. I had considered simply experimenting with the crimp adjustment on my existing dies, but the unique design of this factory crimp die promised a more dedicated and effective solution for these particular cartridges. My first reaction was a quiet sense of anticipation, a feeling that this tool might just resolve a long-standing, albeit minor, reloading frustration.

Real-World Testing: Putting Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause to the Test

My testing grounds for this specialized die were my familiar home reloading bench and the nearby shooting range. I exclusively used it for reloading ammunition for my Romanian TTC pistol (7.62x25mm Tokarev) and a rather charming CZ 52 (also 7.62x25mm Tokarev), both of which feed on these cartridges. The die was installed on a standard single-stage press, requiring no specialized setup beyond the usual die adjustment procedures.

During initial use, I was immediately struck by the positive tactile feedback this die provided. When adjusted correctly, the camming action of the press engaged with a satisfyingly firm resistance as the die performed its function. Unlike a simple taper crimp that squeezes the case mouth inward, this factory crimp die utilizes a collet mechanism, providing a more uniform and potent grip on the case neck. The process felt deliberate and controlled, significantly reducing any guesswork.

After several sessions, pushing through approximately 200 rounds of reloaded ammunition, the die has held up admirably. I experienced no slippage, no binding, and no degradation in performance. The initial ease of use was surprising; despite its specialized function, the adjustment was intuitive, and I found my optimal crimp setting relatively quickly. My only initial surprise was the sheer force of the crimp it imparts; it’s considerably more robust than a standard taper crimp, which is precisely what these bottle-necked pistol cartridges often benefit from.

Extended Use & Reliability

Over the past few months, the Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause has become an indispensable part of my reloading routine for these specific calibers. I have now loaded well over 500 rounds with it, and the consistency has been remarkable. It has significantly improved the overall uniformity of my reloads.

Durability has been excellent. There are no visible signs of wear, such as scratches, deformation, or any stiffness in the collet mechanism. The Lee die has remained as precise as the day I first installed it. Maintenance is virtually non-existent, which is a huge plus. A quick wipe-down with a dry cloth after use and a light application of lubricant on the press ram threads are all that’s required. I haven’t encountered any issues that would necessitate more intensive cleaning or part replacement.

Compared to my previous experiences with standard dies attempting to achieve a similar crimp, this dedicated factory crimp die is a revelation. It provides a level of case neck tension and bullet security that is simply not achievable with conventional methods, especially for rounds prone to bullet setback during feeding. It’s a noticeable step up in performance and reliability for these specific calibers.

Breaking Down the Features of Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause

This specialized die is engineered to provide a specific, high-quality crimp. Its core design addresses a common challenge in reloading certain pistol cartridges.

Specifications

• Manufacturer: Lee
• Caliber: Designed for 7.62x25mm Tokarev and 7.63x25mm Mauser.
• Type: Factory Short Bottle Neck Factory Crimp Pistol Die.
• Crimp Style: Incorporates a collet to apply a powerful, rifle-type crimp.
• Quantity: 1 die per package.

These specifications are crucial because they highlight the die’s specialized nature. The collet design is the key differentiator, allowing it to apply a strong, uniform crimp without requiring a specific bullet crimp groove. This is particularly advantageous for bullets that may not have a traditional cannelure, or where you want to ensure a positive grip regardless of bullet design. The die’s intended caliber compatibility ensures it mates correctly with the case dimensions of both the Tokarev and Mauser rounds.

Performance & Functionality

The primary job of the Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause is to provide a consistent and secure crimp. In this regard, it excels beyond expectation. It performs its main task with remarkable efficiency and precision, resulting in rounds that are exceptionally uniform in their case neck tension.

A significant strength is its ability to create a robust crimp without the need for precisely aligned bullet crimp grooves. This offers considerable flexibility in bullet selection for these calibers. A minor point for improvement, though not a true weakness, is that the significant crimping force means one must be careful not to over-crimp, which could potentially deform softer bullet jackets or even damage the case mouth if not adjusted properly. However, with careful setup, this is easily managed. It exceeds expectations for its intended purpose, especially considering its relatively modest price point.

Design & Ergonomics

The design of this factory crimp die is both functional and elegant in its simplicity. It’s crafted from durable steel, exhibiting the characteristic robust build quality associated with Lee reloading components. The blue oxide finish offers a degree of corrosion resistance and a good feel when handling.

Ergonomically, it’s designed to be installed and adjusted on a standard reloading press. The die body is sized appropriately for easy gripping and turning during setup. Once set, its operation is entirely integrated into the press’s lever action, requiring no special hand movements or controls. The absence of complex mechanisms makes it user-friendly and reliable in long-term use.

Durability & Maintenance

This die is built for longevity. Based on its solid steel construction and the lack of complex moving parts that are exposed to significant wear, it is likely to last for many years of consistent reloading. It’s designed to withstand the pressures and forces involved in crimping ammunition.

Maintenance is minimal. A light coating of oil on the threads and keeping it clean and dry between uses is sufficient. The internal collet mechanism is self-contained and does not require user lubrication or disassembly for normal operation. Any potential failure points would likely stem from external damage or improper handling rather than inherent design flaws.

Accessories and Customization Options

The Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause is a standalone die and does not typically come with additional accessories. It is designed to work with standard reloading presses and dies. Customization options are limited to adjusting the depth of the crimp by raising or lowering the die in the press, allowing the user to fine-tune the tension applied to the case neck.

Pros and Cons of Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause

Here are the key advantages and disadvantages I’ve observed:

Who Should Buy Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause?

This die is an absolute must-have for any reloader who frequently works with the 7.62x25mm Tokarev or 7.63x25mm Mauser cartridges. It is particularly beneficial for those who utilize a variety of bullet types, including those without a specific crimp groove. Shooters looking to achieve maximum bullet retention and prevent setback in semi-automatic pistols will find this die invaluable.

Anyone who prioritizes consistency and reliability in their hand-loaded ammunition for these calibers should strongly consider this tool. It is also an excellent choice for reloaders looking to enhance the performance of their vintage firearms chambered in these rounds. Those who primarily reload cartridges that utilize a standard taper crimp may not find this specialized die necessary. However, for the specific calibers it’s designed for, it offers a superior solution.

I would also recommend a good quality case resizing die and a case mouth expansion die as complementary items, as proper case preparation is essential for achieving the best results with any reloading die. A well-calibrated reloading press and accurate calipers for measuring finished rounds are also critical.

Conclusion on Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause

The Lee 90086 Factory Short Bottle Neck Factory Crimp Pistol Die 30 Tokarev-30 Mause is a highly specialized, yet remarkably effective, reloading component. It directly addresses the unique crimping needs of bottle-necked pistol cartridges like the Tokarev and Mauser, providing a level of bullet security and consistency that is difficult to achieve with standard dies. Its robust construction, ease of use, and impressive performance make it a standout tool for any serious reloader focused on these calibers.

For its price point, the value proposition is exceptional. It delivers professional-grade results that enhance the reliability and safety of hand-loaded ammunition. I would unequivocally recommend this die to anyone reloading for 7.62x25mm Tokarev or 7.63x25mm Mauser. It’s not just another die; it’s a dedicated solution that solves a specific problem, making the entire reloading process for these cartridges more efficient and the end result more dependable. If you shoot these calibers, this die is a worthwhile investment that will undoubtedly improve your reloads.

My Journey with the Lee Powder 90585 Through Expanding Pistol Die 45 ACP

As a gear and equipment specialist with over a decade of putting tools through their paces in diverse environments, I’ve developed a keen eye for what works and what doesn’t. My world spans the demanding conditions of outdoor expeditions, the precision required in workshops and labs, and the unforgiving nature of field use. Recently, my reloading bench, specifically my .45 ACP station, presented a recurring bottleneck. I was looking for a more streamlined way to charge cases as they were being prepped, a common desire among reloaders aiming to optimize their workflow. This led me to the Lee Powder 90585 Through Expanding Pistol Die 45 ACP, a component promising to integrate two crucial steps into one.

The need for this die became apparent during extended reloading sessions where manually dropping powder after expanding the case mouth felt like an unnecessary step, introducing potential for error or dropped charges. I had been using a standard expander die followed by a separate powder drop, a perfectly functional but less efficient method. The concept of a die that could perform both tasks simultaneously piqued my interest, offering the promise of faster, more consistent reloading. It’s a simple idea, but in the intricate dance of case preparation, even small optimizations can make a significant difference.

Upon receiving the Lee Powder 90585 Through Expanding Pistol Die 45 ACP, my initial impression was one of no-nonsense functionality. The die itself is constructed from what appears to be standard, robust steel, with a finely machined internal expander. It doesn’t scream “premium” in terms of aesthetic flair, but that’s precisely what I expect from a workhorse component like this; it’s built for purpose. I briefly considered other brands’ expander dies, but none offered this integrated powder-charging functionality, making the choice clear. My first reaction was a quiet satisfaction, a feeling that a simple, elegant solution to a persistent minor annoyance was finally within reach.

Real-World Testing: Putting Lee Powder 90585 Through Expanding Pistol Die 45 ACP to the Test

First Use Experience

I primarily tested the Lee Powder 90585 Through Expanding Pistol Die 45 ACP on my dedicated reloading bench in my workshop. This is where I typically process large batches of .45 ACP brass for both my competition handgun and general range use. The die integrated seamlessly into my existing Lee turret press, fitting as expected. The key was pairing it with the Lee Auto-Disk Powder Measure, which it’s designed to interface with, and that setup proved remarkably straightforward.

During initial use, the die performed consistently across about 100 cases. The expansion of the .45 ACP case mouth was adequate for reliably seating the powder drop and then subsequently seating a bullet. I ran into no significant issues, and the process felt natural after only a few repetitions.

The only slight surprise was a very minor learning curve in ensuring the powder measure aligned perfectly to drop powder after the case mouth was sufficiently expanded and the ram was near the top of its stroke. It wasn’t a problem, just a subtle adjustment in feel and timing that became second nature quickly. This is typical for any new die added to a progressive or turret press setup.

Extended Use & Reliability

After several months and well over a thousand rounds processed with this setup, the Lee Powder 90585 Through Expanding Pistol Die 45 ACP has proven itself to be a reliable workhorse. I’ve used it with various types of .45 ACP brass, including spent range brass that can sometimes vary slightly in dimensions. The die has consistently performed its dual function without any noticeable decrease in performance or accuracy.

There are no visible signs of wear and tear, such as cracks, unusual stiffness in the expander, or any degradation in its finish. The steel construction appears durable enough to withstand years of regular use. Cleaning is straightforward; a quick wipe-down with a cloth and a bit of solvent is usually all it needs. I occasionally apply a drop of universal case lube to the expander stem, but this is more preventative maintenance than a necessity for continued function.

Compared to other expander dies I’ve used over the years, this integrated design is significantly more efficient. It streamlines the reloading process considerably, especially when combined with the Auto-Disk measure. It certainly outperforms simpler, single-function expander dies in terms of workflow optimization.

Breaking Down the Features of Lee Powder 90585 Through Expanding Pistol Die 45 ACP

Specifications

The Lee Powder 90585 Through Expanding Pistol Die 45 ACP is precisely what its name suggests: a pistol die specifically for the .45 ACP caliber, designed to expand the case mouth while simultaneously allowing for powder charging. It features a precision-machined steel expander plug that gently flares the case mouth. This die is designed to work with Lee’s Auto-Disk Powder Measure, allowing the powder funnel adapter to be swapped out for the measure for automated powder dispensing.

The .45 ACP caliber specification is critical; while expander dies can sometimes be adaptable, this one is specifically tuned for the case dimensions of the .45 ACP. The pistol gun type designation reinforces its intended application. The exclusive Powder Through Expanding Die feature is Lee’s innovation here, integrating powder charging into the expansion step. This functionality is crucial for reloaders looking to shave time off their processes without sacrificing accuracy.

Performance & Functionality

The core function of this die is to expand the case mouth sufficiently to allow for bullet seating without shaving lead or brass, and to do so in a way that facilitates powder charging. The Lee Powder 90585 Through Expanding Pistol Die 45 ACP excels at this. The expansion is consistent, creating a reliable platform for bullet seating and ensuring that dropped powder funnels cleanly.

Its main strength is this integrated dual-action capability. By combining expansion and powder charging, it significantly speeds up the reloading cycle on a turret or progressive press. A minor weakness, though not inherent to the die itself, is that it relies heavily on the proper functioning and calibration of the paired powder measure. If the powder measure is inconsistent, the die will simply be passing that inconsistency along. However, when paired correctly, it’s a robust performer.

It meets and arguably exceeds expectations for its intended purpose, especially considering its modest price point. It performs its primary functions reliably and efficiently, making it a valuable addition to any .45 ACP reloader’s toolkit.

Design & Ergonomics

The design of the Lee Powder 90585 Through Expanding Pistol Die 45 ACP is fundamentally utilitarian. It’s constructed from durable steel, giving it a substantial feel. The internal expander is shaped to provide a smooth, gradual flare, minimizing stress on the brass.

Ergonomically, the die functions passively within a press. The user’s interaction is minimal, primarily involving the setup and adjustment on the press. Once set, its operation is dictated by the press’s ram movement. The standard threading for case reloading dies means it fits seamlessly into most reloading presses without issue. There’s no real “grip” or “feel” to the die itself during operation, as it’s meant to be a fixed component in the press.

Durability & Maintenance

Based on its construction and my extended use, the Lee Powder 90585 Through Expanding Pistol Die 45 ACP is built for longevity. The steel construction is a hallmark of durability for reloading components. I anticipate it will last for many thousands, if not tens of thousands, of rounds before any significant wear becomes apparent.

Maintenance is refreshingly simple. A quick wipe-down after use, perhaps a light application of case lube to the expander stem periodically, is all that’s required. There are no complex parts to clean or maintain. Potential failure points are minimal; the expander stem could theoretically bend or break under extreme abuse, but this is highly unlikely with normal reloading practices.

Accessories and Customization Options

The primary “accessory” for the Lee Powder 90585 Through Expanding Pistol Die 45 ACP is its compatibility with the Lee Auto-Disk Powder Measure. This measure is available in various disk sizes to dispense different powder charges, and it features a quick-change disk system for easy adjustment. While not included with the die itself, it’s an essential partner for the die’s intended functionality.

The die itself offers minimal direct customization beyond ensuring it’s properly adjusted for case tension. However, its standard 7/8″-14 threading means it can be used in presses from virtually any manufacturer. The expander plug is specifically designed for .45 ACP and is not interchangeable with other calibers.

Pros and Cons of Lee Powder 90585 Through Expanding Pistol Die 45 ACP

Who Should Buy Lee Powder 90585 Through Expanding Pistol Die 45 ACP?

This die is an excellent choice for any reloader who works with .45 ACP and utilizes a turret or progressive press. If you’re looking to optimize your reloading workflow and reduce the number of individual steps per cartridge, this die is a fantastic investment. It’s particularly well-suited for those who reload in batches for regular range use or competition.

Those who should probably skip this die are reloaders using a single-stage press where the time savings are less impactful, or those who prefer to charge cases separately for meticulous powder verification. If you don’t own or plan to purchase a compatible Lee powder measure, the primary benefit of this die is lost. Reloaders focusing on calibers other than .45 ACP will also need to look elsewhere. A must-have complementary item for optimal use is, of course, the Lee Auto-Disk Powder Measure with appropriate disks for your chosen powder.

Conclusion on Lee Powder 90585 Through Expanding Pistol Die 45 ACP

The Lee Powder 90585 Through Expanding Pistol Die 45 ACP is a testament to efficient design in reloading. It successfully merges two critical steps into one highly functional component, offering a tangible benefit in terms of speed and workflow optimization for .45 ACP reloaders. Its steel construction promises durability, and its performance has been consistently reliable in my extensive testing.

Considering its price and the dual functionality it provides, the value proposition is exceptionally strong. It’s a smart buy for anyone looking to streamline their reloading bench and get more rounds through their press in less time. I would absolutely recommend this die to fellow .45 ACP enthusiasts who value efficiency and have a compatible powder measure. It’s a simple, effective tool that delivers on its promise, making it a worthy addition to any serious reloader’s toolkit.
