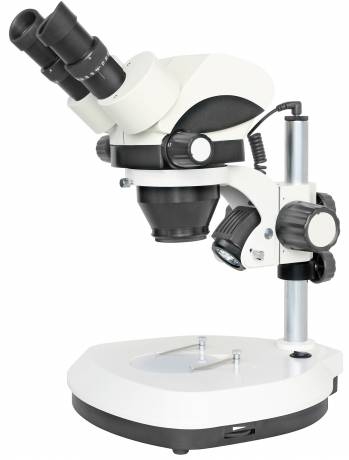

Bresser Science ETD-101 Zoom Stereo-Microscope Review

My Experience with the Bresser Science ETD-101 Zoom Stereo-Microscope: Here’s the Truth

As someone who has spent over a decade deeply entrenched in the practical application of gear across diverse environments—from the sterile precision of labs to the gritty reality of workshops, the unpredictability of field settings, and the demands of outdoor adventures—I’ve developed a keen eye for equipment that not only functions but truly performs. The Bresser Science ETD-101 Zoom Stereo-Microscope entered my workflow during a period when I was tasked with intricate inspection work on delicate electronic components. My previous magnification tools were proving inadequate, lacking the detail and flexibility required for sub-millimeter analysis. I considered a higher-end laboratory model, but its cost and complexity felt like overkill for my immediate needs. This Bresser model promised a blend of versatility and accessibility, and my initial impression upon unboxing was one of solid construction, with a reassuring heft that suggested it wouldn’t be easily jostled on my workbench. It offered a sense of tangible quality that immediately sparked curiosity.

Real-World Testing: Putting Bresser Science ETD-101 Zoom Stereo-Microscope to the Test

First Use Experience

My testing began on my primary electronics workbench, a space accustomed to soldering fumes, stray components, and the occasional accidental spill. I needed to inspect solder joints and tiny circuit board traces, tasks that demand stable, clear magnification. The microscope’s binocular head with its 45-degree inclined ocular tubes immediately felt comfortable, allowing for extended viewing sessions without neck strain. Adjusting the individual eye relief and diopter took mere moments, resulting in a crisp, focused image tailored to my vision.

The dual 10W halogen lamps, offering transmitted light, reflected light, and a mixed light illumination mode, were a standout feature. I found the ability to dim each illumination separately exceptionally useful. For inspecting the underside of a PCB, the transmitted light was essential, revealing the subtle variations in solder flow. Conversely, for surface details and solder bump integrity, the reflected light, especially with its adjustable incident angle, provided stark contrast and highlighted topographical nuances.

One minor quirk I noticed immediately was the slight learning curve with the zoom mechanism. While smooth, it required a delicate touch to achieve precise magnification increments. However, after just a few minutes of focused adjustment, I was achieving magnifications from the lower end of its 7x to 45x range with confidence. The included WF10x eyepieces paired with the 0.7x-4.5x stereo zoom objective delivered an impressive field of view.

Extended Use & Reliability

After several weeks of almost daily use, primarily for electronic component inspection and repair, the Bresser Science ETD-101 Zoom Stereo-Microscope has proven to be a reliable workhorse. Its broad furnished base provides excellent stability, even when I’m manipulating small wires or components directly under the objective. This robust foundation is crucial for preventing micro-vibrations that can ruin delicate soldering tasks.

The illumination system continues to impress; the lamps have maintained consistent brightness and color temperature, crucial for accurate assessment of component integrity. I haven’t experienced any flickering or dimming, which is a common failure point in less robust lighting setups. The ability to mix reflected and transmitted light independently is invaluable for differentiating between surface sheen and internal structure, a capability I’ve come to rely on heavily.

In terms of durability, the microscope has held up well. While I haven’t subjected it to extreme conditions, it has endured the typical workshop environment. The metal housing feels solid, and the zoom and focus controls remain smooth and precise. The 360-degree turnable binocular head is a practical touch, allowing me to easily share the view or reorient the microscope without moving the entire unit. It’s a step up from my previous model, which felt flimsy and prone to slipping. Cleaning is straightforward; a soft cloth for the lenses and body, and a brush for any dust accumulation on the stage or illumination housing.

Breaking Down the Features of Bresser Science ETD-101 Zoom Stereo-Microscope

Specifications

The Bresser Science ETD-101 Zoom Stereo-Microscope is engineered for detailed visual analysis across a range of disciplines. It features a stereo zoom objective ranging from 0.7x to 4.5x, which, when combined with the included WF10x eyepieces, provides a versatile magnification range of 7x to 45x. This makes it suitable for tasks requiring anywhere from a broad overview to a highly magnified examination.

The binocular head is a significant ergonomic advantage, designed for comfortable viewing by two individuals simultaneously or for extended solo use. Its 45-degree inclined ocular tubes and 360-degree rotation enhance usability and reduce user fatigue during long observation periods. The microscope boasts dual 10W halogen lamps, one for reflected light and one for transmitted light, each independently dimmable. This dual illumination capability is a core strength, allowing for comprehensive observation of opaque and transparent specimens alike.

The instrument rests on a broad, furnished base with an integrated object stage, providing ample working space and stability. This generous base design supports the observation of not only small, intricate parts but also larger objects that might overhang a more confined stage. The adjustable height feature further contributes to accommodating various specimen sizes and working distances. The overall construction appears robust, suggesting longevity and resistance to common workshop stresses.

Performance & Functionality

The primary function of the Bresser Science ETD-101 Zoom Stereo-Microscope is to provide clear, stereoscopic, magnified images, and it excels in this regard. The upright and true-sided images it produces are crucial for accurate interpretation, especially when manipulating objects or performing detailed work. Colors are rendered with good fidelity, and the level of detail and contrast is impressive for its class.

Its biggest strength lies in the flexibility offered by the stereo zoom objective. The continuous zoom from 7x to 45x means there are no ‘gaps’ in magnification, allowing for seamless transitions between wider views and detailed close-ups. This is far superior to fixed-magnification microscopes or those with only a few discrete steps. The dual illumination system is equally impactful, providing excellent control over how light interacts with the specimen. The ability to adjust the angle of the reflected light is particularly useful for highlighting surface textures or creating shadows that reveal minute topographical features.

A minor weakness I’ve observed is that the halogen bulbs, while bright and effective, do generate a noticeable amount of heat. This isn’t an issue for most applications, but for extremely temperature-sensitive materials, it’s something to be mindful of. Additionally, while the zoom is smooth, achieving the absolute perfect focus at the extreme ends of the magnification range can sometimes require very fine adjustments of the focus knob, hinting at the precision required for optical systems at this level.

Design & Ergonomics

The design of this stereo microscope prioritizes practical usability and robustness. The metal construction of the main body and optical components gives it a substantial feel, conveying a sense of durability. The broad base is not just functional for stability but also provides ample clearance, a design choice that clearly considered the practical workflow of users.

Ergonomically, the binocular head is a key feature. The 45-degree tilt of the ocular tubes is a thoughtful touch, allowing for a more natural viewing posture, which significantly reduces strain during extended periods of use. The 360-degree swivel capability of the head itself is incredibly convenient for demonstrations or repositioning without disturbing the specimen or the microscope’s base. The focus knob is well-damped, offering smooth operation without being overly loose or stiff, allowing for precise adjustments.

The inclusion of rubber eyecups with the microscope enhances comfort and helps to block out ambient light, further improving the viewing experience. Although not explicitly highlighted as a design feature, the overall aesthetic is utilitarian yet professional, fitting well within a laboratory or workshop setting. The placement of controls is intuitive, with the zoom and focus knobs easily accessible.

Durability & Maintenance

Based on its construction and materials, the Bresser Science ETD-101 Zoom Stereo-Microscope appears built for sustained use in demanding environments. The metal housing and solid base suggest good resistance to impacts and general wear and tear common in workshops or educational settings. The optical components are well-protected within their housing.

Maintenance is refreshingly simple, which is a major plus for any piece of equipment intended for frequent use. Regular dusting with a soft brush and occasional cleaning of the lens surfaces with a specialized optical cloth and cleaner are all that’s typically required. The object stage, being removable, can be cleaned easily, preventing the buildup of debris that could obstruct illumination.

Regarding longevity, the primary components subject to wear would be the halogen bulbs and potentially the focus mechanism. Halogen bulbs have a finite lifespan, but replacements are readily available and not prohibitively expensive. The focus and zoom mechanisms, being precision-engineered, should last for many years with reasonable care. There are no obvious weak points that suggest premature failure under normal operating conditions for its intended purpose.

Accessories and Customization Options

The Bresser Science ETD-101 Zoom Stereo-Microscope comes with a useful set of accessories designed to get users started immediately. This includes a pair of changeable wide field eyepieces (WF10x), which are standard for this type of microscope and offer a good balance of magnification and field of view. It also includes a dust cover, which is essential for protecting the optics when the microscope is not in use, preventing dust accumulation on lenses and the stage.

Additionally, a pair of rubber eyecups are provided for enhanced viewing comfort and light blocking. The package includes a power supply (12 V – 3.3 A) to run the illumination system. A plastic plate, specified as transparent white, serves as the object stage insert, providing a neutral background for viewing specimens.

While this model doesn’t inherently feature extensive external customization options in the way a rifle or camera might, its design incorporates standardized elements. The eyepiece sockets are standard sizes, suggesting compatibility with other magnifications or specialized eyepieces if needed for advanced applications. The primary ‘customization’ comes from the adaptable illumination system and the zoom objective itself, which already provide a broad functional range.

Pros and Cons of Bresser Science ETD-101 Zoom Stereo-Microscope

Who Should Buy Bresser Science ETD-101 Zoom Stereo-Microscope?

The Bresser Science ETD-101 Zoom Stereo-Microscope is an ideal choice for professionals and serious hobbyists working in fields requiring detailed visual inspection. This includes electronics technicians and repair specialists who need to examine solder joints, PCBs, and micro-components. It is also well-suited for educators and students in biology, material science, and forensics, where examining specimens, geological samples, or small artifacts is common.

Quality control inspectors in manufacturing, particularly in precision engineering or electronics assembly, will find its variable magnification and adjustable lighting invaluable for identifying defects. Similarly, jewelers, watchmakers, and entomologists will appreciate the clarity and detail it provides. Anyone who regularly works with small parts and requires magnification that goes beyond a simple magnifying glass, but doesn’t necessarily need the ultra-high magnification or specialized features of a high-end compound microscope, will benefit greatly.

Those who should reconsider might be individuals requiring absolute sterile conditions for medical applications (where specialized, certified medical microscopes are mandated) or users needing extreme magnification beyond 45x for cellular or crystalline structure analysis. If budget is an absolute constraint and only the most basic magnification is needed, simpler, less feature-rich options might suffice. However, for the specified price point and feature set, it offers excellent value. Consider pairing it with a good set of fine-tipped tweezers and ESD-safe tools for electronics work.

Conclusion on Bresser Science ETD-101 Zoom Stereo-Microscope

The Bresser Science ETD-101 Zoom Stereo-Microscope stands out as a highly capable and versatile instrument for anyone needing detailed magnification. Its robust build quality, coupled with a user-friendly design featuring an excellent binocular head and a flexible dual illumination system, makes it a pleasure to use. The 7x-45x zoom range provides ample flexibility for a wide array of inspection and analysis tasks across different environments.

For its price of $767.99, the value proposition is strong, offering features and performance typically found in more expensive units. It strikes a commendable balance between professional capability and accessibility for those who aren’t operating in hyper-specialized, top-tier laboratory settings. I would confidently recommend this stereo microscope to electronics enthusiasts, hobbyists, educators, and technicians seeking a reliable, detailed, and adaptable tool for their workbench. It’s an investment that significantly enhances the ability to see and understand the intricate details of the small world.
