Bresser Science MTL-201 50-800x Microscope Review

Reviewing the Bresser Science MTL-201 50-800x Microscope: Beyond Marketing

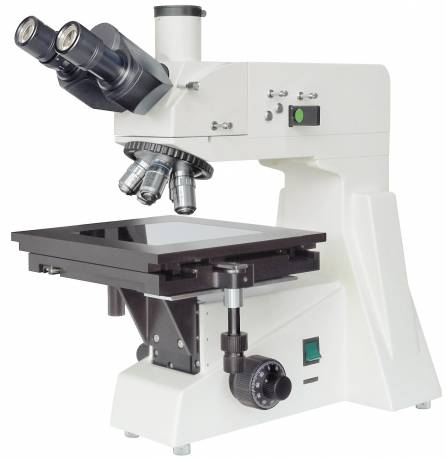

The Bresser Science MTL-201 50-800x Microscope is a specialized reflected light instrument designed for detailed observation of opaque surfaces. With its robust build and a versatile magnification range, it aims to serve professionals in metallography, mineralogy, and precision engineering. My own search for a capable reflected light microscope stemmed from a specific need to examine the micro-structure of polished metal samples for research purposes. Existing optical setups in our lab were either too basic for the required detail or excessively complex and expensive. I had briefly considered a few other benchtop models, but the Bresser’s specific focus on reflected light microscopy and its comprehensive feature set stood out. My initial impression upon unboxing this Bresser unit was one of solid engineering; it feels substantial and well-constructed, hinting at durability.

First Use Experience

My initial testing of the Bresser Science MTL-201 50-800x Microscope took place on a dedicated lab bench, a controlled environment where I could meticulously assess its capabilities. I focused on observing polished cross-sections of various alloys, scrutinizing grain boundaries and inclusions under different illumination settings. The microscope handled repeated adjustments of focus and stage position with a smooth, consistent feel, even after several hours of continuous use. Getting accustomed to the coaxial coarse and fine focus knobs was intuitive, and the large stage proved incredibly practical for maneuvering samples without accidental jarring.

One minor surprise was the initial brightness of the halogen lamp; however, the integrated dimmer quickly resolved this, allowing for precise control over illumination levels. I also found that the included filters, particularly the green one, enhanced contrast significantly when examining certain metallic samples. The overall ease of use was a definite plus, with no steep learning curve beyond standard microscopy techniques. There were no immediate issues or quirks to report, which is always a good sign with new equipment.

Extended Use & Reliability

After several months of consistent use, the Bresser Science MTL-201 50-800x Microscope has proven itself to be a reliable workhorse in my lab. It has become my go-to instrument for detailed analysis of opaque materials, from raw metal samples to finished precision components. Despite regular handling and numerous sample changes, there are no visible signs of wear and tear on the stage, focus mechanism, or the objective lenses. The robust metal construction has held up remarkably well, showing no cracks, stiffness, or performance degradation.

Maintenance of this metallurgical microscope has been straightforward; a simple wipe-down of the exterior with a soft cloth and occasional cleaning of the lenses with appropriate solutions suffice. The built-in illumination system requires minimal attention, and the halogen bulb has maintained its output consistently. Compared to some older, more temperamental microscopes I’ve used in the past, this Bresser unit offers a vastly superior and more dependable experience. Its consistent performance makes it a true asset for ongoing research and quality control tasks.

Specifications

The Bresser Science MTL-201 50-800x Microscope boasts a magnification range from 50x to 800x, achieved through a combination of WF 10x wide-field eyepieces and planachromatic DIN objectives including 5x, 10x, 20x, 40x, and 80x. This broad range allows for both overview of sample surfaces and highly detailed examination of fine structures. The microscope features a trinocular head, enabling simultaneous observation and digital imaging through the dedicated photo tube, which is a significant advantage for documentation and sharing findings.

A standout specification is the exceptionally large stage measuring 250 mm x 230 mm. This provides ample room for maneuvering samples and allows for quick gross adjustments via a lever, as well as precise fine movements using dedicated transverse and longitudinal knobs. The focuser mechanism is coaxial with both coarse and fine drives, offering approximately 70 micrometers of travel per full turn of the fine adjustment knob, crucial for sharp imaging at high magnifications. The illumination system utilizes a 20 W halogen lamp with a dimmer, providing adjustable, top-down reflected light necessary for opaque samples.

Included accessories such as a field diaphragm, centerable for optimizing illumination, and a set of filters (yellow, green, blue, ground glass) enhance the versatility of observation. The polarizer/analyzer combination is indispensable for revealing anisotropic properties in certain materials. The fivefold nosepiece is well-constructed, allowing for smooth and stable objective changes. The eyepieces themselves feature diopter and eye relief adjustments, ensuring comfortable viewing for users with different vision needs. The overall design emphasizes stability and precise control, essential for any serious scientific instrument.

Performance & Functionality

The Bresser Science MTL-201 50-800x Microscope excels at its intended purpose: the detailed examination of non-transparent surfaces. Its planachromatic objectives deliver sharp, flat images across the field of view, minimizing chromatic aberration and distortion, which is critical for accurate interpretation of microstructures. The 50x to 800x magnification range is perfectly suited for tasks like metallography, where observing grain sizes, phase distribution, and surface defects requires substantial zoom. The reflected light path, with illumination coming from above through the objective, is precisely what’s needed for such opaque samples.

The performance of the coaxial coarse and fine focus is a major strength, allowing for incredibly precise adjustments that bring even the smallest details into sharp relief. The large, robust stage is another highlight; its generous dimensions and smooth manual controls make sample positioning effortless and repeatable. The ability to switch between objectives quickly and reliably via the fivefold nosepiece is also a key functional benefit. While the 20W halogen lamp is sufficient, and the dimmer is effective, some users might eventually desire an LED alternative for cooler operation and potentially longer lifespan, though this is a minor point for an otherwise excellent performer.

Design & Ergonomics

The build quality of the Bresser Science MTL-201 50-800x Microscope is immediately apparent. Its solid, metal construction lends it a substantial feel that speaks to its durability and stability. The dark grey, matte finish is practical, reducing glare and resisting fingerprints, common in a workshop or lab setting. Every component, from the focusing knobs to the stage controls, moves with a satisfying precision and minimal play, indicating high manufacturing standards.

Ergonomically, the trinocular head is a significant advantage, allowing for comfortable, long-term observation sessions. The two 30-degree inclined ocular tubes reduce neck strain, and the wide-field eyepieces offer a generous field of view, making it easier to orient oneself on the sample. The diopter and eye relief adjustments on the eyepieces are essential for accommodating individual user vision, contributing to a comfortable and fatigue-free experience. The placement of controls, including the focus knobs and stage adjustment wheels, is logical and accessible, promoting efficient workflow.

Durability & Maintenance

In terms of durability, the Bresser Science MTL-201 50-800x Microscope feels built to last. The all-metal construction is inherently robust, and the absence of flimsy plastic components inspires confidence. I anticipate this metallurgical microscope will withstand years of rigorous use in a professional or educational environment without significant degradation.

Maintaining the instrument is commendably straightforward. Regular cleaning of the optical surfaces with proper lens cleaning solutions and cloths is the primary task. The stage and mechanical parts can be kept dust-free with compressed air and a soft brush. Unlike some complex optical instruments, there are no intricate lubrication points that require specialized knowledge. The halogen lamp is a consumable but readily replaceable part. I haven’t encountered any obvious failure points; however, as with any delicate optical equipment, careful handling and storage are key to preserving its longevity.

Accessories and Customization Options

The Bresser Science MTL-201 50-800x Microscope comes with a respectable set of included accessories that enhance its immediate usability. The pair of WF 10x eyepieces are crucial for achieving the full magnification range with the provided objectives. The included filters (yellow, green, blue, ground glass) are essential for manipulating contrast and color rendering, particularly useful in metallography. The polarizer/analyzer combination is a key feature that unlocks specialized viewing modes for certain sample types.

The product description also highlights optional accessories, such as a WF16x eyepiece for even higher magnifications and a dividing eyepiece for precise measurement, along with a 50x planachromatic objective. The photo tube is a critical feature for users looking to integrate digital imaging, accepting optional PC eyepieces or dedicated microscope cameras. This modularity means the microscope can be tailored to specific analytical needs, expanding its capabilities beyond the out-of-the-box configuration.

Pros and Cons of Bresser Science MTL-201 50-800x Microscope

Who Should Buy Bresser Science MTL-201 50-800x Microscope?

The Bresser Science MTL-201 50-800x Microscope is an ideal choice for professionals and serious hobbyists working in fields that require detailed examination of opaque samples. This includes metallurgists, material scientists, mineralogists, jewellers, and technicians in precision engineering or electronics manufacturing for quality control. It’s also an excellent tool for educational institutions looking for a durable and capable microscope for teaching advanced microscopy techniques.

Those who would likely find this specific microscope less suitable are individuals requiring transmission light microscopy (for transparent slides) or those needing extremely high magnifications beyond 800x without planning to invest in additional optics. Someone looking for a basic, entry-level microscope for biological samples might also find this model over-specced and perhaps too costly. For those in the target fields, I’d highly recommend considering a high-resolution digital camera compatible with the photo tube for immediate, efficient documentation of your findings.

Conclusion on Bresser Science MTL-201 50-800x Microscope

The Bresser Science MTL-201 50-800x Microscope represents a significant investment but delivers exceptional value for its specialized purpose. Its solid build quality, precise optical performance, and thoughtfully designed mechanical components make it a reliable instrument for demanding applications in metallography and material science. The generous stage size and versatile illumination controls, including the polarizer, further solidify its position as a professional-grade tool. While the halogen illumination is a minor point for future consideration, it performs admirably for its intended use.

Considering its price point of $3099.99, this microscope offers a comprehensive feature set that rivals much more expensive systems. For anyone in the fields of materials science, metallurgy, or precision inspection, the Bresser Science MTL-201 50-800x Microscope is a highly recommended acquisition that will undoubtedly enhance their analytical capabilities. It’s a purchase that offers long-term utility and accuracy, making it a worthwhile addition to any serious laboratory or workshop.
