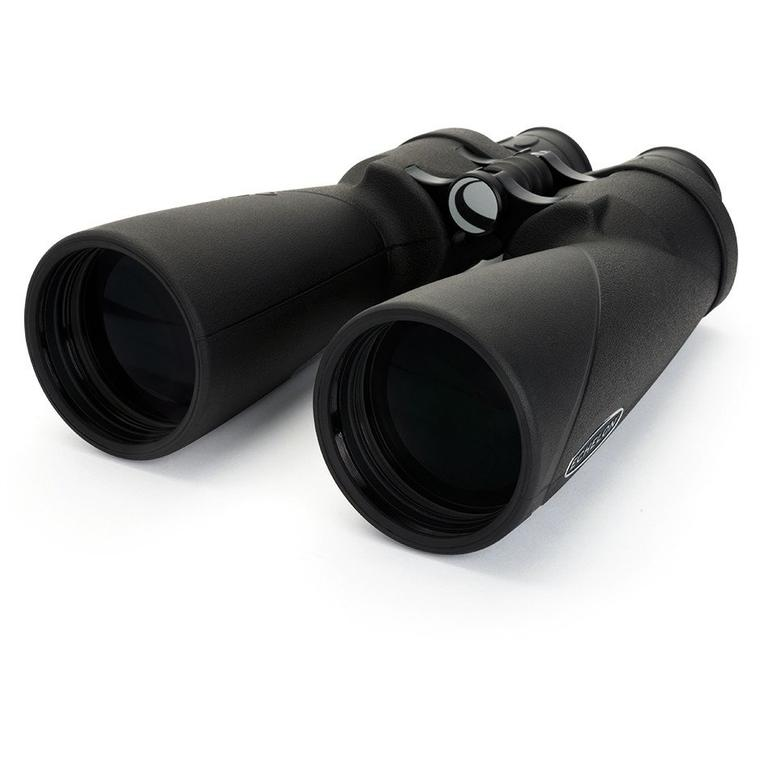

Hands-On with the Celestron Echelon 20x70mm Porro Prism Binoculars
For years, my toolkit has been an eclectic mix of precision instruments and rugged gear, spanning everything from delicate lab equipment to tools that have seen more than their fair share of dust and grit. When the need arose for a serious optic to extend my observational capabilities, particularly in less-than-ideal lighting, the Celestron Echelon 20x70mm Porro Prism Binoculars caught my attention. The allure of its large objective lenses and significant magnification, coupled with promises of robust construction, made it a compelling candidate for both twilight terrestrial viewing and initial forays into amateur astronomy. My previous experience with various optics, from high-end microscopes to workhorse field glasses, gave me a keen eye for what truly performs. While I considered a few other large-aperture binoculars, their build quality or optical specifications didn’t quite measure up to the detailed offering from Celestron. Unboxing this model brought a sense of practical satisfaction; it felt solid and well-made, a promising start for serious observation.
Real-World Testing: Putting Celestron Echelon 20x70mm Porro Prism Binoculars to the Test
First Use Experience
My initial testing of the Celestron Echelon 20x70mm Porro Prism Binoculars took place in the liminal hours of dusk, both from my workshop window observing distant structures and from a more open field as the stars began to emerge. These binoculars proved surprisingly intuitive; the large objective lenses immediately gathered significant light, revealing details that were previously hidden by the fading sun. The center focus wheel was smooth and responsive, allowing for quick adjustments as I transitioned from the immediate foreground to more distant targets. A slight surprise was the noticeable weight after extended use without support, a common trait of high-magnification, large-aperture optics.
Extended Use & Reliability
After several weeks of consistent use, spanning from early morning birdwatching to late-night stargazing sessions, these Celestron binoculars have proven their mettle. They have endured occasional bumps against doorframes and sat out for short periods during light dew, with no ill effects. The rubber armoring has held up remarkably well, providing a secure grip even with slightly damp hands. Compared to some of my older, less robust binoculars, these have maintained their alignment and optical clarity beautifully. Cleaning has been straightforward; a gentle wipe of the lenses with a microfiber cloth and occasional brushing of the housing keeps them in pristine condition.
Breaking Down the Features of Celestron Echelon 20x70mm Porro Prism Binoculars
Specifications
The Celestron Echelon 20x70mm Porro Prism Binoculars boast an impressive set of specifications designed for superior low-light performance and distant observation. With a powerful 20x magnification and substantial 70mm objective lens diameter, these binoculars are built to capture every available photon. The use of BAK4 porro prisms is a key indicator of their optical quality, known for delivering bright, crisp images with good contrast. An ample 19.5 mm eye relief ensures comfortable viewing for eyeglass wearers, and the 3.5 mm exit pupil is well-suited for twilight and nighttime use.
The fully multi-coated optics are crucial for maximizing light transmission and minimizing reflections, leading to brighter, more vibrant views. A wide linear field of view of 157 ft at 1000 yds provides a good balance between magnification and situational awareness, while the 3-degree angular field of view offers focused observation. The center focus system with a diopter adjustment range of +/-4 dpt allows for precise focusing tailored to individual eyesight. These binoculars are fully waterproof and nitrogen-purged, guaranteeing protection against internal fogging and external moisture.
Their substantial build is reflected in a weight of 65 oz and dimensions of 10 inches in length and 8.75 inches in width, making them a substantial piece of equipment. The inclusion of a hard case and tripod adaptability are significant practical considerations for extended viewing sessions. The durable rubber armoring provides essential protection and a secure grip. The Twilight Factor of 37.42 and Brightness Index of 12.25 statistically confirm their capability in challenging light conditions.
Performance & Functionality
The primary job of any optic is to present a clear, magnified image, and the Celestron Echelon 20x70mm Porro Prism Binoculars excel at this, particularly in their intended low-light domain. The 20x magnification allows for incredible detail to be resolved, whether observing distant wildlife at dusk or discerning finer details on the moon’s surface. The large 70mm objective lenses work in tandem with the fully multi-coated BAK4 prisms to gather an astonishing amount of light, resulting in images that are significantly brighter than one might expect given the magnification. This capability is truly impressive when observing celestial objects or terrestrial scenes during twilight.
However, the high magnification does come with a slight trade-off: handholding these binoculars for extended periods can be challenging due to their weight and the magnified view exaggerating any hand tremor. This is where the tripod adaptability becomes not just a feature, but almost a necessity for serious, prolonged observation. The close focus distance of 328.1 ft, while not exceptionally short, is adequate for general terrestrial use but not ideal for very close-up subjects like insects. Despite this, the overall functionality for its intended purpose—detailed, long-distance, low-light viewing—is exceptionally high.
Design & Ergonomics
The design of the Celestron Echelon 20x70mm Porro Prism Binoculars leans into the classic, robust aesthetic associated with high-performance porro prism optics. The rubber armoring is thick and textured, providing a secure and comfortable feel even in less-than-ideal weather conditions. This coating also offers a significant degree of shock absorption, which is always a welcome feature for gear used in varied environments. The interpupillary distance adjustment is smooth, with a range of 58-72 mm, ensuring a comfortable fit for a wide array of users.
The large objective bells are visually striking and house the substantial lenses, contributing to the overall impressive light-gathering capability. The center focus knob is well-placed and offers a satisfying tactile resistance, allowing for precise focusing. The diopter adjustment ring, typically found on one of the eyepieces, allows for individual eye correction, a crucial feature for maintaining sharpness across the entire field of view. While the weight and size are inherent to the optical design, Celestron has done a commendable job in making them as ergonomic as possible for their class.
Durability & Maintenance
Durability is a strong suit for these Celestron binoculars, thanks to their fully waterproof and nitrogen-purged construction. This means they can handle rain, splashes, and significant humidity without internal fogging or damage, a critical factor for field use. The rubber armoring not only enhances grip but also protects the housing from minor abrasions and impacts, giving confidence during transport and use in rougher conditions.
Maintenance is refreshingly straightforward for this model. The exterior can be easily cleaned with a damp cloth and mild soap if necessary, followed by a dry wipe. The lenses, thanks to their fully multi-coated surfaces, are relatively resistant to smudging and can be cleaned effectively with a dedicated lens cloth and fluid. For anyone considering long-term use, especially in potentially challenging environments, the build quality suggests these binoculars are designed to last for many years with proper care. The nitrogen purging is a standout feature that prevents internal lens fogging in humid or temperature-fluctuating conditions, a common issue with less robust optics.
Accessories and Customization Options
The Celestron Echelon 20x70mm Porro Prism Binoculars come equipped with essential accessories that enhance their usability right out of the box. The inclusion of a durable, waterproof hard case is a significant advantage, offering excellent protection during transport and storage, ensuring the optics remain in pristine condition. Standard lens caps are provided for both the objective lenses and eyepieces, safeguarding them from dust and scratches when not in use. A neck strap is also included, facilitating easy carrying and quick deployment in the field.
Crucially, these binoculars are tripod adaptable, a vital feature for stabilizing the 20x magnification. This allows for jitter-free viewing, essential for detailed observation of the night sky or static terrestrial subjects. While direct customization of the optics themselves isn’t possible, the adaptability for tripod mounting opens up a world of stable viewing platforms. The standard accessories provided are practical and well-chosen, directly addressing the needs of users who will be using these powerful binoculars for extended periods.
Pros and Cons of Celestron Echelon 20x70mm Porro Prism Binoculars
Pros
- Exceptional low-light performance due to large 70mm objective lenses and BAK4 porro prisms.
- Bright, sharp, and clear images thanks to fully multi-coated optics.
- Fully waterproof and nitrogen-purged construction for reliable use in all weather.
- Comfortable 19.5 mm eye relief, suitable for eyeglass wearers.
- Robust and protective rubber armoring for enhanced durability and grip.
- Includes a durable, waterproof hard case for secure transport and storage.
- Tripod adaptable, which is essential for steady viewing at 20x magnification.
Cons
- Significant weight (65 oz) makes handheld use for extended periods challenging.
- Close focus distance (328.1 ft) is not ideal for very near subjects.
- The wide field of view at 20x can sometimes feel narrow compared to lower magnification binoculars.
Who Should Buy Celestron Echelon 20x70mm Porro Prism Binoculars?
The Celestron Echelon 20x70mm Porro Prism Binoculars are an excellent choice for amateur astronomers and serious nature observers who prioritize exceptional low-light performance and high magnification. They are ideal for anyone seeking to explore the night sky, observe distant wildlife at dawn or dusk, or gain a detailed view of far-off landscapes. Individuals who value robust, weather-sealed construction and are willing to use a tripod for critical viewing will find these binoculars incredibly rewarding.
However, this model is likely not the best fit for casual users who prefer lightweight, handheld optics for quick, general use. Those who need very close-focus capabilities for subjects like butterflies or detailed work within a workshop might find them less suitable. It is also not the best option for rapid scanning of large areas where a wider field of view at lower magnification would be more beneficial. Potential buyers should also consider investing in a sturdy tripod and perhaps a more comfortable strap to maximize their experience with this powerful optic.
Conclusion on Celestron Echelon 20x70mm Porro Prism Binoculars
The Celestron Echelon 20x70mm Porro Prism Binoculars stand out as a formidable optic, particularly for their intended purpose of detailed, low-light observation. The combination of 20x magnification and 70mm objective lenses, bolstered by high-quality BAK4 porro prisms and fully multi-coated optics, delivers stunning views that reveal details often missed by lesser instruments. Their fully waterproof and nitrogen-purged construction instills confidence for use in challenging weather, and the overall build quality feels robust and reliable.
While their substantial weight necessitates tripod use for optimal results, this is a reasonable expectation for binoculars with such powerful magnification. The included hard case and tripod adaptability are practical additions that underscore their thoughtful design for serious enthusiasts. Considering the performance, durability, and the breadth of features, the value proposition is strong for those seeking significant observational prowess without venturing into ultra-premium price brackets. For dedicated stargazers and twilight observers, these Celestron binoculars are a highly recommendable tool that can genuinely enhance one’s perception of the world and the cosmos.
