Celestron Off-Axis Guider Review

Using the Celestron Off-Axis Guider in the Real World

For anyone serious about long-exposure astrophotography, particularly with refractors or SCTs, the need for accurate guiding is paramount. I found myself at a point where my nebula and galaxy shots were suffering from subtle but noticeable trailing, and I traced it back to my telescope’s tracking and any slight flexure in the optical train. This is precisely why I turned to the Celestron Off-Axis Guider.

My previous guiding setup involved a separate, smaller telescope piggybacked onto my main imaging scope. While functional, it added considerable weight and complexity, and still didn’t entirely eliminate the issues I was facing. The concept of an off-axis guider (OAG) promised a more integrated and precise solution, ensuring the guide star and main sensor experienced the exact same movements.

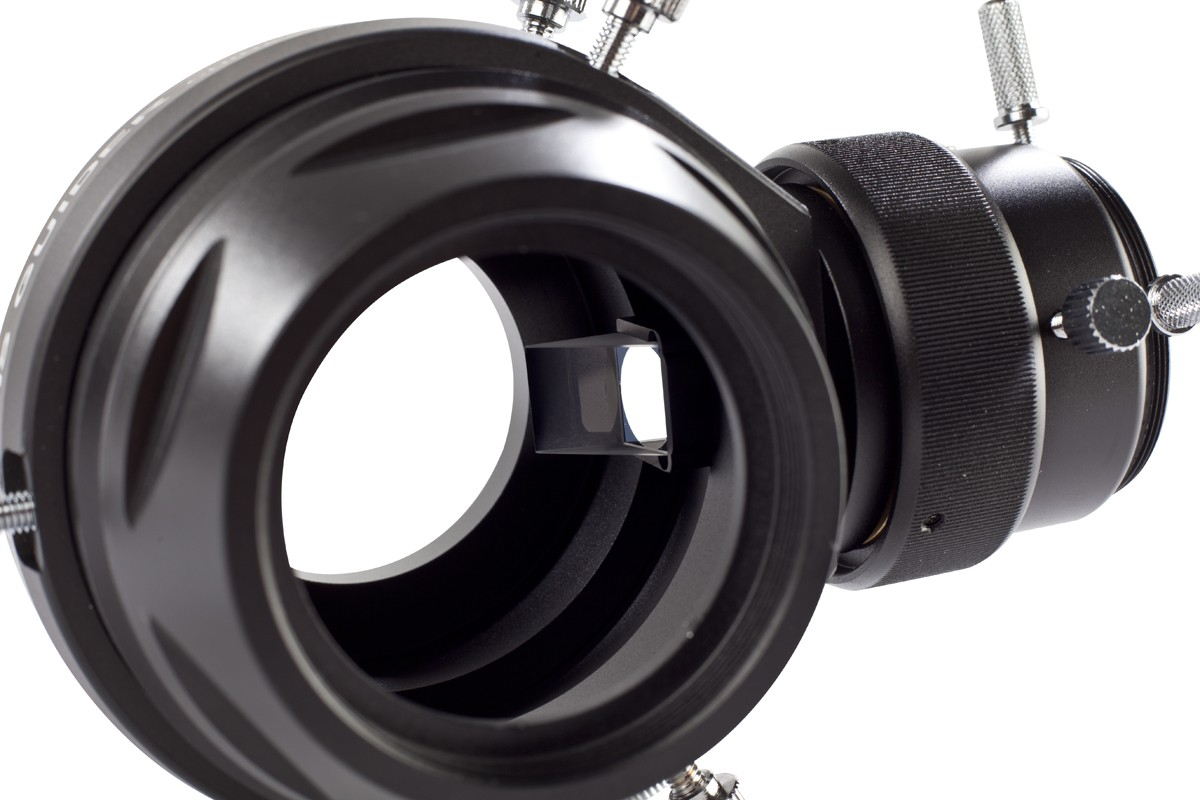

Upon first inspection, the build quality of this OAG felt robust. The metal casing seemed durable, and the helical focuser operated with a satisfying smoothness. It presented itself as a no-nonsense piece of astro-imaging equipment, built for purpose.

I briefly considered a more expensive, integrated OAG with a built-in filter wheel, but for my current setup and budget, the Celestron Off-Axis Guider offered a more straightforward and cost-effective path to improved guiding. My initial reaction was a sense of quiet optimism, a feeling that this might be the missing piece to unlock sharper, more detailed astrophotographs.

Real-World Testing: Putting Celestron Off-Axis Guider to the Test

My testing grounds were primarily my backyard observatory under moderately light-polluted skies and during occasional trips to darker rural locations. The primary goal was to capture deep-sky objects with long exposures, where guiding accuracy is most critical. I mounted the OAG between my main imaging camera and my Celestron SCT telescope.

Performance in varying conditions was a key focus. I used it on nights with slight temperature shifts and even a bit of dew forming, and the unit held up well without any noticeable degradation in guiding precision. The OAG’s design effectively kept the prism in place, ensuring consistent star acquisition.

Initially, there was a slight learning curve in positioning the prism just right to capture a suitable guide star without encroaching on my main imaging field. However, the helical focuser made achieving sharp focus on the guide star surprisingly intuitive. After a few initial adjustments, the process became smooth and predictable.

A minor quirk I noticed was ensuring all the adapter threads were properly seated to avoid any light leaks or mechanical play. Once I got the hang of it, though, this became a routine part of the setup.

Extended Use & Reliability

After several months of consistent use, averaging 2-3 nights a week during clear skies, the Celestron Off-Axis Guider has proven to be a reliable workhorse. It’s become an integral part of my astrophotography rig, and I rarely image without it now.

Durability has been excellent. Despite being occasionally bumped during setup or packed and unpacked for field trips, there are no visible signs of wear like cracks or significant scuffs. The internal prism mechanism remains stiff and precise, and the helical focuser continues to operate with that same satisfying smoothness as day one.

Maintenance is minimal, which is a huge plus for any astronomer. A gentle wipe-down with a microfiber cloth to remove any dust or fingerprints from the exterior is all that’s usually required. I haven’t experienced any issues with stiffness or degradation in performance over time.

Compared to my previous piggyback guide scope setup, this OAG is significantly more stable and easier to manage. It has completely eliminated the flexure issues I battled before, leading to noticeably sharper final images.

Specifications

The Celestron Off-Axis Guider boasts a clear aperture of 48mm (1.89 in), which is ample for most popular guide cameras. Its weight is 18 oz (510 g), adding a manageable amount of mass to the optical train.

The 48mm clear aperture is crucial as it ensures that a sufficient amount of light from the guide star can reach the autoguider’s sensor. This directly translates to brighter guide stars and a greater selection of stars to choose from, especially under challenging sky conditions. The 18 oz weight is well within the load capacity of most modern equatorial mounts, especially when balanced correctly.

Performance & Functionality

The primary function of this OAG – to provide accurate guiding – is where it truly shines. By placing the guide camera directly in the light path of the main telescope, it eliminates differential flexure between the imaging and guiding systems. This results in significantly improved tracking accuracy, leading to round stars even during long exposures.

Its main strength lies in its integrated design, providing a unified solution for guiding. The large, adjustable 12.5mm prism is a standout feature, allowing for greater flexibility in placing the guiding sensor to capture a brighter star. This is particularly important when imaging fainter deep-sky objects or when dealing with limited guide star availability.

One minor area that could be improved is the range of motion for the prism; while adjustable, I found myself wishing for just a bit more fine-tuning capability on occasion, especially when targeting very faint guide stars near the edge of the field. However, for the vast majority of use cases, it performs exceptionally well.

Design & Ergonomics

The build quality of the Celestron Off-Axis Guider feels solid and dependable. The predominantly metal construction gives it a premium feel that inspires confidence. The finish is a matte black, which helps to minimize reflections.

The high-quality, fixed-orientation Helical focuser is a real highlight in terms of ergonomics. It allows for extremely smooth and precise focusing of the guide camera without twisting the camera itself, which can be a major annoyance with some guiding setups. This greatly simplifies the process of locking onto a guide star.

The inclusion of all the needed spacers and adapters is a significant ergonomic advantage. Having the right fittings for common cameras like DSLRs and dedicated CCD cameras straight out of the box drastically reduces setup frustration.

Durability & Maintenance

This OAG is built to last. I anticipate it will hold up for many years of regular use in my observatory and during portable astronomy sessions. Its robust construction suggests it can withstand the rigors of being transported and set up repeatedly.

Maintenance is refreshingly simple. Beyond the occasional dusting, there’s not much to do. The internal prism mechanism and the focuser are sealed well enough that dust ingress is not a major concern.

I haven’t encountered any specific failure points. The only potential concern, as with any precision optical instrument, is handling it with care to avoid impacts or scratches on the optical surfaces.

Accessories and Customization Options

The Celestron Off-Axis Guider comes with a comprehensive set of adapters, making it incredibly versatile. This includes: SCT/EdgeHD, female M48, female M42 (T-thread), male M48, male M42 (T-thread), and 3 T-thread spacers.

These included adapters are essential for connecting to a wide range of imaging cameras and telescopes. The female M48 and M42 (T-thread) ports are standard, allowing easy connection to most modern astronomical cameras. The SCT/EdgeHD adapter is particularly useful for direct mounting onto Celestron’s popular telescope lines. The inclusion of 3 T-thread spacers provides flexibility in achieving the correct back focus for different camera sensor depths.

Pros and Cons of Celestron Off-Axis Guider

Who Should Buy Celestron Off-Axis Guider?

The Celestron Off-Axis Guider is an excellent choice for serious amateur astrophotographers who are experiencing tracking issues or flexure problems with their current guiding setup. It’s particularly beneficial for those using longer focal length telescopes where even minor errors are amplified. Anyone who has graduated from simple guiding and wants to achieve consistently round stars in their deep-sky images will benefit immensely.

Individuals who should probably skip this product might be those with very short focal length refractors where piggyback guiding is easily manageable, or those who are just starting out in astrophotography and haven’t yet encountered the need for such precise guiding. If your budget is extremely limited, a simpler alternative might be necessary, though the value offered here is strong.

For optimal use, I highly recommend pairing this OAG with a sensitive guide camera like a ZWO ASI174MM Mini or a similar model. Ensuring your mount is well-balanced and polar aligned is, of course, crucial for any guiding success.

Conclusion on Celestron Off-Axis Guider

The Celestron Off-Axis Guider delivers on its promise of providing a stable and accurate guiding solution for astrophotography. Its robust build, user-friendly helical focuser, and comprehensive adapter set make it a highly practical and effective accessory. The improvements in image quality and consistency after incorporating this OAG have been substantial, justifying its price point for dedicated astro-imagers.

For anyone looking to elevate their astrophotography beyond basic tracking, I would wholeheartedly recommend this model. It’s a well-engineered piece of equipment that solves a common and frustrating problem, ultimately leading to better, sharper images of the night sky. If you’re serious about capturing detailed nebulae and galaxies, this off-axis guider is a worthwhile investment.
