Extech Instruments Test Lead Kit, 16 piece Review

A Close Look at the Extech Instruments Test Lead Kit, 16 piece

For anyone who spends significant time diagnosing electrical issues, whether in a workshop, a lab, or a field setting, reliable test leads are not just tools; they are essential extensions of your diagnostic capabilities. The Extech Instruments Test Lead Kit, 16 piece positions itself as a comprehensive solution for these needs. Extech Instruments, a name generally associated with quality test and measurement equipment, offers this kit with the promise of versatility and durability.

My personal journey to this particular kit was born out of a recurring frustration with a motley collection of aging, frayed, and often incompatible test leads scattered across my workbench. I found myself constantly searching for the right adapter or a lead with the correct tip configuration, wasting precious diagnostic time. A specific incident involving a tricky intermittent fault in a piece of industrial automation equipment highlighted the need for a standardized, high-quality set. I considered assembling a custom kit, but the sheer variety of components and the potential for mismatched quality made that route seem daunting and costly. The idea of a pre-packaged, professionally curated collection like this 16-piece kit offered a compelling shortcut to organized efficiency. My initial impression upon receiving it was one of organized potential; the sturdy pouch held a variety of tools that felt robust and well-constructed.

Real-World Testing: Putting Extech Instruments Test Lead Kit, 16 piece to the Test

First Use Experience

My initial foray with the Extech TL841 kit was on my main electrical workbench, tackling a variety of low-voltage control circuits and some higher-power AC appliance diagnostics. I specifically focused on testing continuity, voltage levels, and resistance across various connection points. The straight probes were particularly handy for accessing tight terminals on circuit boards, and the alligator clips provided a secure grip on larger screw terminals in control panels.

The slim design of the included TL743 slim reach test probe set was a standout feature, allowing me to probe points that were previously difficult to reach without disassembling more of the equipment. Throughout these initial tests, conducted over several hours, I experienced no issues with connectivity or signal integrity. The components felt solid in hand, and the connections to my multimeter were snug and reliable.

Extended Use & Reliability

Over the course of several weeks, this 16-piece kit became my go-to for a wide range of tasks. I used it for routine maintenance checks on HVAC control systems, troubleshooting faulty wiring in a custom-built electronic device, and even for some basic automotive electrical diagnostics. The variety of tips and connectors included meant I rarely had to switch back to my old, less reliable leads.

The CAT III-1000V rating on the primary leads provided a crucial layer of confidence when working with mains voltage, and I appreciated the 16A capacity for those situations where higher current draw needed to be assessed. The spade lugs proved surprisingly useful for connecting to bus bars and terminal blocks that often accept ring or spade connectors, simplifying connections significantly. After multiple sessions of being tossed into my tool bag and being handled in dusty workshop environments, the leads have shown minimal signs of wear. The insulation remains flexible, and the probe tips are still sharp and clean.

Maintenance has been straightforward; a quick wipe-down with a damp cloth is usually sufficient to keep them looking presentable. I haven’t experienced any fraying or internal wire breaks, which have been common issues with cheaper alternatives I’ve used in the past. Compared to some of the generic test lead sets I’ve encountered, the build quality here feels a significant step up, justifying the investment for anyone who relies on their equipment daily.

Breaking Down the Features of Extech Instruments Test Lead Kit, 16 piece

Specifications

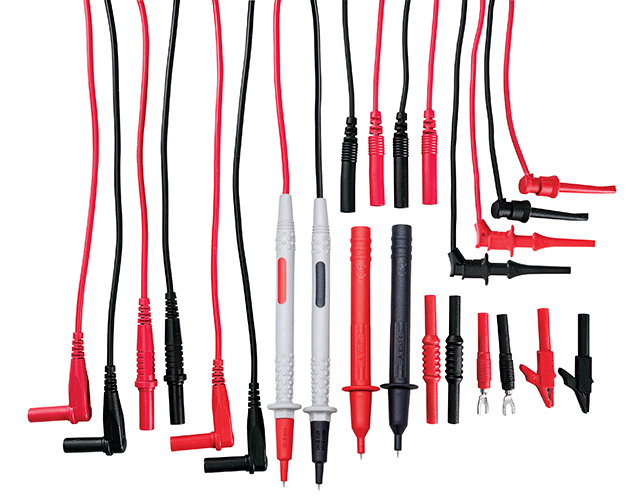

The Extech Instruments Test Lead Kit, 16 piece is a carefully assembled collection designed for versatility and safety across a broad spectrum of electrical testing applications. At its core are the primary test leads, featuring straight probes and a CAT III-1000V rating with a robust 16A capacity. These are complemented by a set of alligator clips, rated for CAT III-300V and a 5A capacity, offering secure clamping for less demanding applications.

A standout inclusion is the TL743 slim reach test probe set, which allows for precise probing in confined spaces. The kit also includes spade lugs with a 0.16 inch (4mm) opening, suitable for 30VAC/60VDC and 5A applications, ideal for connecting to terminal blocks. The test leads themselves boast right-angle and straight-end configurations, both carrying the CAT III-1000V and 16A ratings for high-voltage versatility. This comprehensive set is thoughtfully organized within a durable pouch case, ensuring all components are protected and easily accessible.

Performance & Functionality

In practice, the performance of the Extech Instruments Test Lead Kit, 16 piece is exceptionally good, meeting and often exceeding the demands of professional electrical work. The primary straight probes offer excellent tactile feedback and stability when making contact, crucial for accurate readings. The 16A capacity of the main leads proved more than adequate for typical workshop and field tasks, including testing power circuits and motor loads without concern for overloading the leads.

The alligator clips, while rated lower at 300V and 5A, provided a surprisingly firm grip on various terminal sizes, making quick continuity tests and temporary connections a breeze. The TL743 slim reach probes truly shine in dense wiring harnesses or control cabinets, where standard probes would be too bulky. The spade lugs were a welcome addition, simplifying connections to screw terminals and bus bars that often have specific lug requirements. Overall, this kit performs its main job – facilitating safe and accurate electrical measurements – with remarkable proficiency.

Design & Ergonomics

The design of the Extech Instruments Test Lead Kit, 16 piece prioritizes both functionality and user comfort. The materials used, particularly the insulation on the test leads and probes, feel durable and flexible, resisting kinking or cracking even with frequent bending. The straight probes have a comfortable grip area, and the right-angle connectors are particularly useful for working in tight spaces where straight plugs might obstruct access.

Ergonomically, the kit is well-thought-out. The 16-piece assortment means you have the right tool for most jobs without needing to carry a separate, unwieldy collection of accessories. The inclusion of a dedicated pouch case is a significant ergonomic advantage, keeping everything organized and preventing the loss of smaller components like the couplers or specialized tips. The tactile feel of the connectors and probes is substantial, conveying a sense of quality that inspires confidence during use.

Durability & Maintenance

Durability is a strong suit for this Extech kit, built for the rigors of demanding environments. The CAT III-1000V rated leads, in particular, appear constructed to withstand significant electrical stress and physical handling. I’ve inadvertently tugged on a few connections during troubleshooting, and the leads held firm without any apparent damage to the internal wiring or the insulation.

Maintenance is refreshingly simple. The silicone or PVC insulation on the leads is easy to wipe clean of grease, dust, and other workshop grime. The probe tips remain sharp after repeated contact with various metal surfaces. Given the 16-piece nature of the kit, ensuring all components are present and accounted for after use is key. The pouch case aids greatly in this, and I haven’t encountered any specific points of failure that would suggest a short lifespan for any of the included components.

Accessories and Customization Options

The true strength of the Extech Instruments Test Lead Kit, 16 piece lies in its comprehensive set of accessories. The kit includes a variety of probe tips and connection accessories that significantly expand its utility beyond basic straight probes. The straight probes are the default, but the inclusion of hook tips allows for easier attachment to wires or component leads, especially in crowded circuit boards.

The pincer tip offers a more secure, self-retaining connection for certain types of test points. Furthermore, the couplers enable the extension or modification of existing leads, adding an extra layer of adaptability. While this kit is a complete package, its standard banana plug connectors mean it’s highly compatible with most multimeters and other test equipment that use this common interface. This universality ensures that the Extech Instruments Test Lead Kit, 16 piece integrates seamlessly into an existing toolset.

Pros and Cons of Extech Instruments Test Lead Kit, 16 piece

Who Should Buy Extech Instruments Test Lead Kit, 16 piece?

This Extech Instruments Test Lead Kit, 16 piece is an ideal choice for a variety of professionals and serious hobbyists. Electricians, industrial maintenance technicians, HVAC specialists, and electronics repair professionals will find immense value in its comprehensive nature and high safety ratings. It’s also perfect for advanced DIY enthusiasts who frequently tackle complex electrical projects and require reliable, safe, and versatile tools.

Anyone who needs to perform detailed diagnostics on control systems, power supplies, or general electrical equipment will benefit greatly from this kit. However, individuals who only perform occasional, very low-voltage continuity checks or who require highly specialized probes for a niche application might find it to be overkill and opt for a more targeted solution. For those who regularly work with voltages up to 1000V and currents up to 16A, this kit provides an excellent foundation. Complementary items like a quality multimeter, a non-contact voltage tester, and a good set of insulated screwdrivers would round out a professional diagnostic toolkit.

Conclusion on Extech Instruments Test Lead Kit, 16 piece

The Extech Instruments Test Lead Kit, 16 piece stands out as a truly professional-grade collection of essential electrical testing accessories. Its thoughtful design, robust build quality, and comprehensive array of components, including the valuable TL743 slim reach probes and high-rated primary leads, make it a highly effective and safe tool for a multitude of diagnostic tasks. The inclusion of a durable pouch case further enhances its practicality by ensuring organization and portability.

Considering its capabilities, safety certifications, and the sheer versatility it brings to the workbench, the price point feels justified for the serious user. It’s a kit that not only simplifies the process of electrical testing but also instills a significant degree of confidence in the safety and accuracy of the measurements being taken. I would confidently recommend this Extech Instruments Test Lead Kit, 16 piece to any professional or dedicated enthusiast who demands reliability and comprehensive functionality from their electrical testing gear. If you’re looking to upgrade from basic leads or consolidate a collection of disparate tools, this kit offers an excellent, all-in-one solution that’s built to last.
