One Week with the FLIR Instruments Universal Ac Current Line Splitter, Tool
As someone who thrives on digging into the nitty-gritty of how things work, especially when it involves electricity and ensuring safety, the FLIR Instruments Universal Ac Current Line Splitter, Tool caught my eye. This isn’t just another gadget; it’s a smart little device designed to make current and voltage measurements from standard outlets significantly safer and more accessible. My previous setup involved a bit more fiddling and a higher perceived risk, especially when checking the draw on various workshop equipment or testing home appliances under load. This FLIR tool promised to streamline that process, offering a more elegant and secure solution. I’d been eyeing similar tools, but none seemed to offer the specific blend of features and the established FLIR Systems name that this unit provides. My initial impression upon unboxing was one of solid construction – it felt robust, not like a flimsy afterthought, which is crucial when dealing with electrical testing equipment. It immediately instilled a sense of confidence, a feeling that this accessory was built to last and perform reliably.
Real-World Testing: Putting FLIR Instruments Universal Ac Current Line Splitter, Tool to the Test
First Use Experience
My primary testing ground for the FLIR Instruments Universal Ac Current Line Splitter, Tool was my own workshop, a chaotic but functional space where electrical loads vary wildly. I started by plugging it into a standard 120V outlet, then connecting my multimeter via appropriate leads to the voltage test points. Next, I plugged in a bench grinder, a tool known for its significant startup current, into the line splitter’s socket. The process was remarkably straightforward; there was no steep learning curve, which is exactly what I look for in tools designed for regular use.
In terms of performance under slightly adverse conditions, I deliberately left it plugged into a busy outlet for a few days, exposed to the usual workshop dust and occasional minor vibrations from machinery. It remained secure and performed consistently without any noticeable drop in accuracy or functionality. The recessed voltage testing inputs were a thoughtful touch, preventing accidental contact and ensuring the test leads stayed firmly seated.
Extended Use & Reliability
After several weeks of regular use, the FLIR Instruments Universal Ac Current Line Splitter, Tool has become an indispensable part of my electrical troubleshooting kit. It’s been used for everything from checking the power draw of a vintage amplifier to monitoring the energy consumption of a new 3D printer. The physical unit shows no signs of wear beyond minor cosmetic scuffs, which are expected from constant use in a workshop environment.
Durability seems excellent; the plastic housing feels thick and impact-resistant, and the internal components appear well-protected. Maintenance is practically non-existent, beyond a quick wipe-down with a dry cloth if it gets dusty. Compared to some generic splitters I’ve used in the past that felt flimsy and occasionally produced noisy readings, this FLIR unit feels like a premium, reliable instrument. It maintains its integrity and accuracy, which is paramount when you’re relying on precise measurements for diagnostics or safety checks.
Breaking Down the Features of FLIR Instruments Universal Ac Current Line Splitter, Tool
Specifications

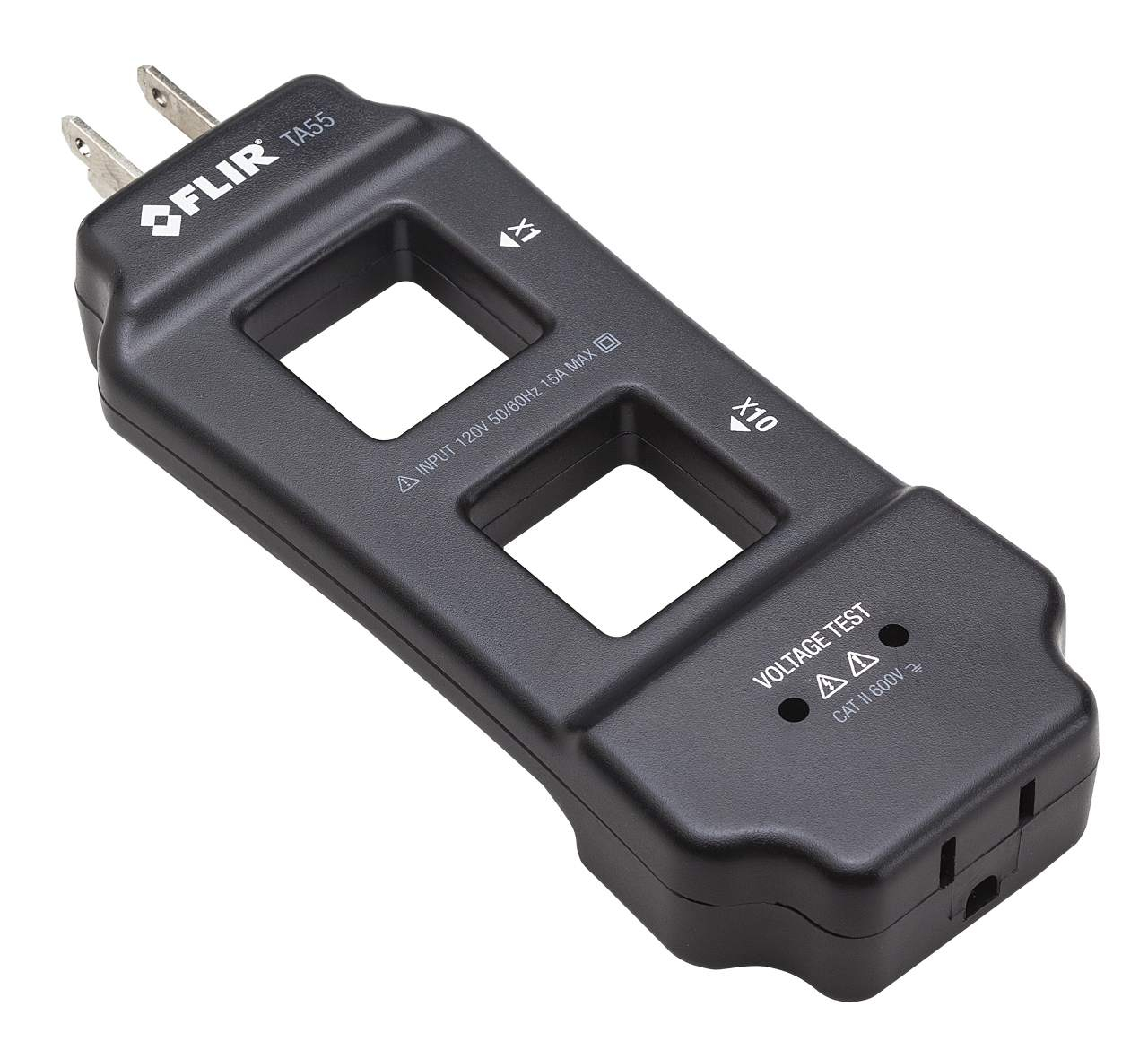

The FLIR Instruments Universal Ac Current Line Splitter, Tool, model TA55, is designed to facilitate safe current and voltage measurements from standard two or three-wire AC outlets. Its core functionality lies in its ability to safely separate the hot/live conductor from the neutral and ground, enabling accurate current measurement without needing to break the circuit manually. This is crucial for anyone performing electrical diagnostics or verifying appliance performance.
Key specifications include dual ranges (x1 and x10), which are a significant advantage for gaining higher resolution when measuring low-amperage readings. This feature is particularly helpful for sensitive electronics or when trying to pinpoint subtle power drains. It also boasts built-in recessed voltage testing inputs, a safety feature that keeps your multimeter probes securely in place during measurements.
Performance & Functionality
The primary job of the FLIR Instruments Universal Ac Current Line Splitter, Tool is to make current measurement safe and easy, and it excels at this. Plugging it into the wall outlet, then plugging your device into it, allows you to measure current flowing through the splitter with an attached clamp meter or by inserting your multimeter in series. The separation of conductors is clean, ensuring that your multimeter is only reading the current from the hot line.
The dual ranges (x1 and x10) are a standout feature that directly impacts performance. The x1 setting is great for general-purpose readings, while the x10 setting allows for much finer detail on lower power devices. This is a huge improvement over single-range splitters that can be less precise for small loads. It consistently delivers accurate readings when paired with a reliable multimeter, and the voltage test points are conveniently located for simultaneous voltage checks.
Design & Ergonomics
From a design perspective, the FLIR TA55 is both practical and well-executed. The housing is made from a sturdy, high-impact plastic that feels durable and built to withstand the rigors of workshop or field use. Its compact size makes it easy to store and transport, fitting neatly into a toolbox or even a larger pocket.
The ergonomics are sound; the outlet and plug fit snugly, and the device feels secure when plugged into a wall. The recessed voltage testing inputs are a thoughtful design element, preventing accidental shorts and providing a stable connection point for test leads. The overall finish is professional, consistent with FLIR Systems‘ reputation for quality instrumentation.
Durability & Maintenance
In terms of durability, the FLIR Instruments Universal Ac Current Line Splitter, Tool feels like it’s built for the long haul. The robust plastic construction suggests it can handle accidental drops or knocks that are common in various work environments. Given its simple, passive design, there are very few points of potential failure.
Maintenance is virtually non-existent, which is a significant advantage. A quick wipe with a cloth to remove dust is all that’s typically required. There are no user-serviceable parts inside, meaning you don’t have to worry about calibration or complex upkeep. This tool is essentially a set-it-and-forget-it accessory, provided it’s used within its specified ratings.
Accessories and Customization Options
The FLIR Instruments Universal Ac Current Line Splitter, Tool comes with the unit itself as the primary “accessory.” It’s designed to work with standard electrical test equipment, specifically multimeters for voltage measurements and clamp meters or inline multimeters for current measurements. There are no specific customization options for the splitter itself.
However, its true value comes from its compatibility with standard test leads. The built-in recessed voltage testing inputs are designed to accept most common banana-style multimeter probes, ensuring a secure fit. While it doesn’t come with a dedicated carrying case, its size and ruggedness make it suitable for being tossed into a tool bag without concern.
Pros and Cons of FLIR Instruments Universal Ac Current Line Splitter, Tool
Pros
- Provides safe and easy current measurements from standard AC outlets without needing to cut wires.
- Features dual ranges (x1 and x10) for enhanced resolution on low-amperage readings.
- Includes built-in recessed voltage testing inputs for simultaneous voltage checks and increased safety.
- Robust construction from durable plastic, suggesting good longevity and resistance to workshop abuse.
- Simple and intuitive to use, requiring no complex setup or learning curve.
Cons
- Price point might be higher than generic, non-branded alternatives, though justified by the FLIR name and features.
- While suitable for standard North American outlets, it may not be universally compatible with international plug types without adapters.
- Doesn’t come with a dedicated storage case, though its small size makes it manageable.
Who Should Buy FLIR Instruments Universal Ac Current Line Splitter, Tool?
This FLIR Instruments Universal Ac Current Line Splitter, Tool is an excellent addition for a wide range of users who regularly interact with electrical systems and require accurate current measurements. It’s perfect for DIY enthusiasts, home mechanics, and anyone who needs to diagnose power issues in appliances or workshop equipment. Electricians and HVAC technicians will find it a valuable, portable tool for quick on-site checks.
Anyone working with electronics, from hobbyists building custom setups to professionals testing prototype devices, will benefit from the enhanced resolution on low-amperage readings provided by the dual ranges. It’s also a great tool for teachers and students in electrical training programs, offering a safe way to demonstrate and measure current draw.
Those who should probably skip this product are individuals who only need to measure voltage or who have no need for current measurements beyond basic circuit breaker checks. If your work requires highly specialized industrial connectors or very specific safety certifications for hazardous environments, this particular model might not be the right fit, as it’s designed for common residential and light commercial outlets.
For maximum utility, I’d recommend pairing this line splitter with a good quality multimeter that has a dedicated amp clamp function or at least a reliable series current measurement capability, and a set of quality test leads that fit snugly into the recessed voltage testing inputs.
Conclusion on FLIR Instruments Universal Ac Current Line Splitter, Tool
The FLIR Instruments Universal Ac Current Line Splitter, Tool is a well-designed and highly practical accessory that genuinely enhances electrical testing safety and convenience. For its $29.99 price point, you get a robust tool from a reputable manufacturer that simplifies current measurements with its clever line-splitting design and offers valuable features like dual ranges and recessed voltage inputs. It’s not a complex piece of technology, but its execution is spot on, delivering reliable performance without fuss.
I would absolutely recommend this unit to anyone who finds themselves needing to measure AC current draw from standard wall outlets. It’s a smart investment for peace of mind and for gaining a clearer understanding of how much power your devices are actually consuming. If you’re tired of improvising unsafe methods for current measurement or need more accurate readings on low-power devices, this FLIR tool is a direct and effective solution. It’s a small investment that pays significant dividends in safety and accuracy for your electrical work.
