Frankford Arsenal 220V Case Trimmer Review

The Road Test: Frankford Arsenal 220V Case Trimmer

As someone who spends a considerable amount of time meticulously preparing spent brass for reloading, I’m always on the lookout for tools that can streamline the process without sacrificing accuracy. My workshop environment, a blend of precision lab equipment and rugged field gear, demands reliability and efficiency. The Frankford Arsenal 220V Case Trimmer caught my eye with its promise of automated trimming and preparation. I’d been managing with a manual trimmer, which, while accurate, was becoming a significant bottleneck in my reloading workflow. Alternatives like the Hornady Cam-Lock trimmer and a few other electric models were considered, but the Frankford Arsenal’s integrated preparation tools seemed particularly appealing for consolidating bench space. My initial impression upon unboxing this unit was one of solid construction; the aluminum and steel build felt substantial and well-finished, hinting at a tool designed for longevity and heavy use. There was a definite sense of relief mixed with anticipation, hoping this electric trimmer would finally conquer the tedious task of case trimming.

Real-World Testing: Putting Frankford Arsenal 220V Case Trimmer to the Test

My testing grounds were varied, ranging from my well-lit workshop bench to a slightly less controlled garage setting. I specifically focused on processing a large batch of .223 Remington brass, a caliber I reload in significant quantities. The environment involved typical workshop dust and the occasional accidental brush against other tools, simulating real-world conditions rather than a pristine laboratory.

First Use Experience

The initial setup was straightforward, plugging into a 220V outlet. I fitted the appropriate collet and bushing for .223 brass, a process that was well-documented by the included instructions. The unit felt surprisingly stable on my workbench thanks to its non-skid feet, even when running at full speed.

Performance was impressive right out of the gate; the adjustable collet and bushing system gripped the case shoulder precisely, and the trimming action was remarkably fast. What truly stood out was the integrated VLD inside chamfering tool, which made loading subsequent bullets significantly easier and prevented any potential damage. I did encounter a minor quirk initially with aligning the case for trimming, but this was quickly overcome with a little practice.

Extended Use & Reliability

After processing several hundred cases over a few weeks, the Frankford Arsenal 220V Case Trimmer has proven to be a reliable workhorse. I haven’t noticed any significant wear on the ultra-hard HSS cutters, which continue to make trimming quick and easy. The unit’s aluminum and steel construction has held up well, with no signs of strain or structural fatigue.

Maintenance has been minimal. A quick brush to remove brass shavings from the cutter area and the internal storage box is usually all that’s required. Compared to the manual trimmer I used previously, this electric model has dramatically reduced my case preparation time, and the consistent results are a significant improvement. There’s a noticeable difference in the ease of use and the sheer volume of brass I can process in a single session.

Breaking Down the Features of Frankford Arsenal 220V Case Trimmer

Specifications

The Frankford Arsenal 220V Case Trimmer boasts a robust feature set designed for efficiency and accuracy in case preparation. Its 220 Volt operation signifies its intended use in workshops or reloading stations with higher power availability, ensuring consistent performance. The included series of three collets and five bushings are a significant advantage, accommodating a wide range of shouldered cases from .17 Remington to .460 Weatherby.

This versatility means a single unit can handle a broad spectrum of reloading needs, eliminating the need for multiple specialized trimmers. The aluminum and steel construction contributes to its extreme durability, suggesting it can withstand the rigors of frequent use. The inclusion of an Ultra-Hard HSS Cutter is a critical specification, promising longevity and sharpness for thousands of rounds, which directly translates to less downtime and consistent results.

Performance & Functionality

In terms of its primary function, the Frankford Arsenal 220V Case Trimmer excels at delivering precise case lengths. The innovative Case Holder with Adjustable Collet and Bushing System is the key to its accuracy; by indexing on the case shoulder, it ensures each case is trimmed to the exact desired length, a crucial step for consistent reloads. This system makes trimming and chamfering cases fast and easy, eliminating the need for separate shell holders which simplifies the process.

The integrated VLD Inside Chamfering Tool is a standout feature, making bullet seating easier and preventing damage to bullet noses. The Outside Chamfer Tool and Large and Small Primer Pocket Cleaning tools further enhance its utility, consolidating multiple preparatory steps into one machine. The three output shafts are designed to accept all common case trimming accessories with 8-32 threads, offering excellent compatibility.

Design & Ergonomics

The design of this case trimmer prioritizes both functionality and ease of use. It can be operated in a variety of positions, either vertically or laid flat, thanks to the included adjustable stand and non-skid feet, allowing it to fit into virtually any workshop configuration. This flexibility is invaluable for optimizing bench space and workflow.

A particularly convenient aspect is the built-in storage box, which neatly holds spare collets, bushings, and tools, keeping everything organized and readily accessible. This thoughtful detail prevents lost parts and speeds up caliber changes. The overall construction feels solid, with smooth operation of the rotating parts and a secure grip provided by the collet system.

Durability & Maintenance

The Frankford Arsenal 220V Case Trimmer is built for the long haul. The use of aluminum and steel construction provides a foundation of extreme durability, capable of withstanding the pressures of consistent reloading cycles. The ultra-hard HSS cutters are a testament to its design philosophy, engineered to stay sharp for thousands of rounds, which means less frequent replacement and reliable performance over time.

Maintenance is commendably straightforward. After use, a simple wipe-down of the cutter head and accessible components is sufficient to keep it in prime condition. The internal storage box also helps prevent dust and debris from accumulating in critical areas. Given its robust build, it’s reasonable to expect this trimmer to last for many years of dedicated reloading.

Accessories and Customization Options

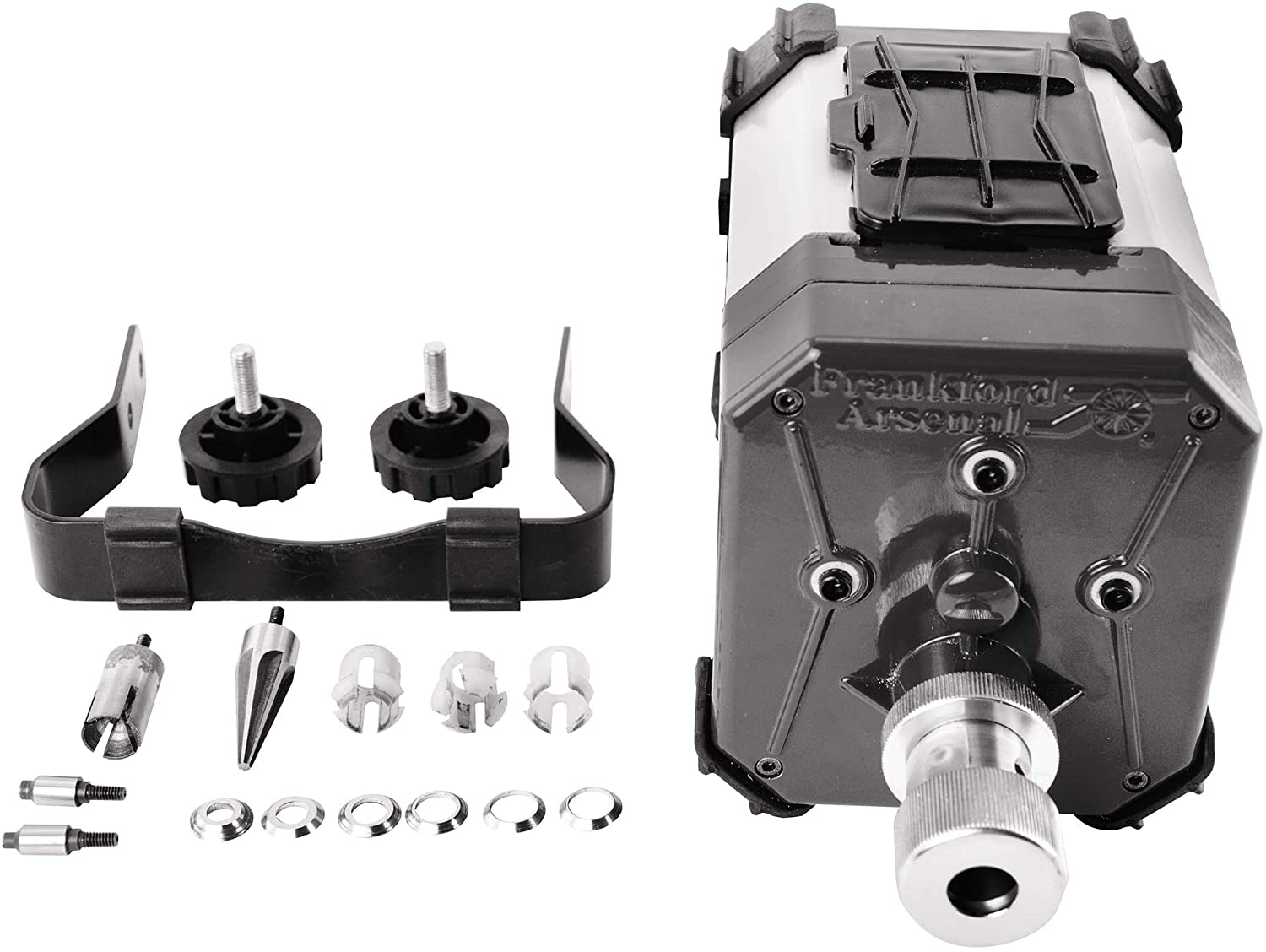

This case trimmer comes well-equipped for immediate use right out of the box. It includes a set of three collets and five bushings, offering significant versatility for various cartridge types. Furthermore, the package contains an Inside Chamfering Tool (VLD), an Outside Chamfer Tool, and both Large and Small Primer Pocket Cleaning tools.

The three output shafts are a key design element, accepting all standard case trimming accessories that utilize 8-32 threads. This broad compatibility allows users to integrate their existing favorite trim pilot systems or other thread-mounted accessories, offering a degree of customization beyond the included tools. This focus on compatibility ensures that the trimmer can adapt to a wide range of reloading preferences and setups.

Pros and Cons of Frankford Arsenal 220V Case Trimmer

Who Should Buy Frankford Arsenal 220V Case Trimmer?

This trimmer is an absolute game-changer for serious handloaders who process large volumes of brass, particularly those reloading for rifle cartridges with shoulders. If you’re a reloader who finds manual case trimming to be a tedious and time-consuming chore, this electric unit will likely transform your workflow. It’s ideal for individuals with dedicated reloading benches and access to a 220V outlet.

Those who load for multiple calibers requiring precise case lengths will appreciate the versatility offered by the included collets and bushings. However, if you only reload for a single, simple pistol caliber and are content with manual trimming, or if you lack a 220V power source, this particular model might be overkill. For optimal use, ensuring you have the correct collet and bushing for each specific shoulder type you reload is essential.

Conclusion on Frankford Arsenal 220V Case Trimmer

The Frankford Arsenal 220V Case Trimmer delivers on its promise of efficient and accurate case preparation. The combination of speed, precision, and integrated tools makes it a compelling option for dedicated handloaders. Its robust construction and the inclusion of ultra-hard HSS cutters suggest a long service life, justifying its price point.

For those who spend significant time prepping brass and have the necessary power supply, this unit offers excellent value by drastically cutting down on labor. I would wholeheartedly recommend it to any serious reloader looking to optimize their workflow and achieve consistent, reliable results with their ammunition. It’s a well-thought-out piece of equipment that genuinely makes a tedious task significantly more manageable and enjoyable.
