Lee Double Cavity Mold .309-180-r W/handles Review

The Lee Double Cavity Mold .309-180-r W/handles: First Use to Final Thoughts

As a long-time enthusiast and professional who relies on precision and reliability across diverse environments—from the humming quiet of a workshop to the gritty reality of outdoor fieldwork—I’m always on the lookout for tools that deliver consistent results without fuss. My quest for accurate casting bullets for .30 caliber firearms led me to the Lee Double Cavity Mold .309-180-r W/handles. This particular mold promised a straightforward approach to producing 180-grain round-nose projectiles, a weight and style that’s proven quite versatile in my experience.

The initial impetus for acquiring this mold stemmed from a growing need for cost-effective ammunition for my .308 Winchester rifle. While store-bought options are convenient, the economics of reloading for regular range sessions and plinking can’t be ignored, especially for a caliber that’s relatively common. I needed a reliable mold that wouldn’t break the bank and would produce bullets I could trust without excessive tinkering.

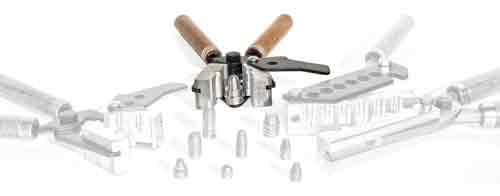

My first impression upon unboxing was one of functional simplicity. The aluminum mold block felt substantial enough, and the included handles, though basic, were well-integrated. It’s a no-frills design, eschewing the fancy finishes or complex features found on some higher-end molds. This approach, however, often translates to predictable performance. I had considered a single-cavity option for absolute maximum control, but the potential for doubled output was too tempting.

My initial reaction was one of quiet anticipation. There’s a certain satisfaction in acquiring a new tool designed for precision, and the Lee mold, despite its humble appearance, felt ready to get to work. It promised to simplify the process of producing a specific bullet weight, a task that can become tedious with less efficient equipment.

Real-World Testing: Putting Lee Double Cavity Mold .309-180-r W/handles to the Test

First Use Experience

My first foray with the Lee Double Cavity Mold .309-180-r W/handles took place on my workbench, a space familiar with the scents of molten lead and flux. The initial setup involved heating the mold, a standard procedure for any casting operation. I used a propane torch to bring it up to temperature, paying attention to the tell-tale signs of a properly heated mold – small beads of molten lead would sizzle and spread evenly upon contact.

The mold performed admirably right out of the gate. Pouring the molten lead was straightforward; the aluminum cavities filled cleanly, and the two-cavity design allowed for a decent rhythm. Within the first hour, I had produced a small batch of consistent 180-grain bullets. The handles, while not padded, provided sufficient grip for the forces involved in opening and closing the mold, and they remained comfortable enough for extended sessions.

There were no major surprises or quirks on this initial run, which is a testament to Lee Precision’s often straightforward yet effective designs. The round nose (RN) profile ejected cleanly, with minimal leading or deformed bullets, provided the temperature was maintained.

Extended Use & Reliability

Weeks of regular use, spanning dozens of casting sessions, have solidified my opinion of this Lee mold. It’s become a workhorse for my .30 caliber reloading needs, consistently churning out projectiles suitable for plinking and general target practice. The aluminum construction, while prone to minor nicks and scuffs from handling, has shown no signs of warping or structural integrity issues, even when heated and cooled repeatedly.

Durability has been surprisingly good for a relatively inexpensive piece of equipment. The mold faces remain sharp, and the alignment pins still seat perfectly, ensuring each bullet cast is uniform. I’ve used it in various ambient temperatures, from cooler garage settings to warmer outdoor days, and its performance has remained consistent, requiring only standard preheating protocols.

Maintenance is refreshingly simple. After each casting session, a quick wipe-down with a soft cloth to remove any residual flux or lead shavings is all that’s needed. A light application of mold release agent is recommended for optimal performance, but even without it, ejection is generally smooth. I haven’t encountered any issues that necessitated significant maintenance or repair.

Compared to some older, heavier cast iron molds I’ve used in the past, this aluminum design is significantly faster to heat up and cool down, making for more efficient casting sessions. While premium molds might offer more intricate designs or specialized alloys, this Lee model strikes an excellent balance between cost, efficiency, and reliable output for its intended purpose.

Breaking Down the Features of Lee Double Cavity Mold .309-180-r W/handles

Specifications

The Lee Double Cavity Mold .309-180-r W/handles is a tool designed for the home reloader looking to produce specific bullet types. It features a double cavity design, meaning it can cast two bullets simultaneously, significantly increasing production speed compared to single-cavity molds. The mold block itself is constructed from aluminum, a material chosen for its excellent heat transfer properties, allowing for quicker heating and cooling cycles.

This mold is specifically designed for the .309 Caliber projectile, which is commonly used in various .30 caliber firearms like the .30-30 Winchester, .308 Winchester, and 7.62x54R. The intended bullet weight is 180 grain, a substantial weight that offers good ballistic performance for medium-range applications. The bullet profile is a Round Nose (RN), a classic shape known for its simplicity and reliable feeding in most firearms.

The mold comes complete with integrated handles, which are typically made from steel and designed for easy manipulation. These handles are crucial for safely opening and closing the mold during the casting process. The overall construction prioritizes a lightweight and easy-to-use design, making it accessible even for those new to bullet casting.

Performance & Functionality

In its primary role, the Lee Double Cavity Mold .309-180-r W/handles performs exceptionally well for its intended purpose. Casting two 180-grain, .309-inch diameter round-nose bullets at a time is efficient and straightforward, provided you maintain consistent mold temperature and proper molten lead flow. The aluminum construction heats up quickly, reducing downtime between pours.

The major strength of this mold lies in its consistent output when used correctly. I’ve found that once the mold reaches its optimal temperature, the bullets cast are remarkably uniform in weight and dimension, with very few rejected pieces. The round nose design is simple and generally produces bullets that eject cleanly from the mold cavities without significant sprue deformation, assuming the alloy is appropriate.

A minor area that requires attention is temperature management. Because it’s aluminum, it can cool down faster than cast iron molds if you’re pouring rapidly or in a very cold environment. This means paying close attention to the heat and occasionally giving it a quick touch-up with a torch to maintain ideal casting conditions. Despite this, its core functionality is solid, reliably producing usable bullets time and time again.

Design & Ergonomics

The design philosophy behind the Lee Double Cavity Mold .309-180-r W/handles is clearly one of practicality and functionality over aesthetics. The aluminum block is precisely machined to create the two cavities, and the alignment pins are well-seated, ensuring the mold halves close perfectly. This precision is critical for producing dimensionally accurate bullets and minimizing lead leakage.

The included handles are functional and secure, offering a decent grip for the forces involved. While they don’t feature any padding or advanced ergonomic shaping, they are robust and prevent premature heat transfer to the user’s hands during normal operation. The overall feel is solid, with no wobbling or looseness in the assembly, which instills confidence during the casting process.

The mold’s lightweight nature is a notable ergonomic advantage, especially during extended casting sessions. It reduces fatigue compared to heavier cast-iron alternatives. The simplicity of operation—open, pour, close, eject—makes it intuitive for beginners.

Durability & Maintenance

In terms of longevity, the Lee Double Cavity Mold .309-180-r W/handles is built to last for a considerable number of casting sessions, given its construction. The aluminum alloy is resistant to corrosion and, with proper care, won’t develop significant pitting or degradation. The precise machining of the cavities ensures that bullet dimensions remain consistent over time.

Maintenance is minimal, which is a significant plus. After casting, allowing the mold to cool, a gentle brush or wipe removes any residue. I occasionally use a brass brush for stubborn bits, being careful not to scratch the cavity surfaces. Some users advocate for a light application of specialized mold release agents, but for many alloys and temperatures, it’s not strictly necessary.

The primary concern with any aluminum mold is potential damage from extreme temperature fluctuations or physical impact. Dropping it, for instance, could potentially warp the mating surfaces or damage the alignment pins, compromising its ability to cast accurately. However, under normal workshop conditions and with basic care, this mold should provide years of reliable service.

Accessories and Customization Options

The Lee Double Cavity Mold .309-180-r W/handles comes as a complete unit, ready for use right out of the box. The primary “accessory” is the set of integrated handles, which are essential for its operation. There are no other included accessories in the standard package.

Customization for this specific mold is limited by its inherent design. Lee Precision offers a wide range of molds for various calibers and bullet profiles, but this particular model is fixed at the .309 diameter and the 180-grain RN configuration. If you require different bullet weights, shapes, or diameters for your .30 caliber firearms, you would need to consider purchasing a different mold altogether. It’s designed for a specific purpose and excels at fulfilling that role without modification.

Pros and Cons of Lee Double Cavity Mold .309-180-r W/handles

Who Should Buy Lee Double Cavity Mold .309-180-r W/handles?

This Lee Double Cavity Mold is an ideal choice for recreational shooters and handloaders who frequently shoot .30 caliber rifles and are looking to produce their own ammunition cost-effectively. It’s perfect for those who prioritize volume and consistency for general target practice, plinking, or hunting where moderate ranges are involved. The ease of use also makes it a great option for newcomers to bullet casting who want a reliable and forgiving tool to start with.

However, those who require highly specialized bullet profiles, extreme micro-adjustments to bullet diameter, or need to cast for extremely high-pressure applications might find this mold too basic. Elite competitors or those demanding the absolute highest precision for long-range precision shooting might also want to explore molds with more advanced features or different materials. For anyone needing a reliable, no-nonsense way to cast 180-grain .309″ bullets, this mold is an excellent fit.

For those investing in this mold, a good lead melting pot is essential to maintain consistent temperatures. A dipper or ladle specifically designed for casting is also a must-have. Additionally, bullet lubrication and sizing equipment will be necessary downstream in the reloading process to prepare the cast bullets for firing.

Conclusion on Lee Double Cavity Mold .309-180-r W/handles

The Lee Double Cavity Mold .309-180-r W/handles stands as a testament to effective design at an accessible price point. It consistently delivers on its promise of producing accurate and uniform 180-grain, .309-inch round-nose bullets, making it a valuable asset for any serious handloader looking to save money and gain control over their ammunition supply. The lightweight aluminum construction and double-cavity design ensure efficient casting sessions, while its straightforward operation makes it approachable for beginners.

Considering its price, the value proposition is outstanding. It provides the core functionality needed for reliable bullet casting without the premium cost of more complex molds. While it lacks the customization options of higher-end models and requires diligent temperature management, these are minor considerations for its intended audience.

I would confidently recommend this mold to any shooter who relies on .30 caliber firearms and wants a dependable, cost-effective method for producing their own ammunition. For those just entering the world of bullet casting, this mold is an excellent starting point that won’t disappoint. It’s a practical tool that performs its job exceptionally well.
