Maretron Temperature Sensor Module, NMEA 2000 Review

What Led Me to Try the Maretron Temperature Sensor Module, NMEA 2000

As someone who has spent over a decade wrestling with gear across every imaginable environment – from the dust and grime of workshops to the sterile precision of laboratories, and out into the unforgiving wilds – I understand the critical importance of reliable data. It was this pursuit of accurate, real-time information that led me to investigate the Maretron Temperature Sensor Module, NMEA 2000. My existing system, while functional for basic monitoring, was reaching its limits in terms of sensor scalability and integration. I needed a solution that could handle multiple temperature points without becoming a spaghetti junction of wires and proprietary interfaces. The prospect of a single module capable of monitoring up to six distinct temperature sensors, especially with the flexibility for different probe types, was incredibly appealing. While I briefly considered a more piecemeal approach involving multiple single-sensor units from different manufacturers, the inherent complexity and potential compatibility headaches steered me towards a consolidated, purpose-built solution like this Maretron offering. My initial impression upon unboxing was one of solid construction; it felt precisely engineered, a promising sign for its intended role in demanding applications.

Real-World Testing: Putting Maretron Temperature Sensor Module, NMEA 2000 to the Test

First Use Experience

My initial testing grounds for this temperature sensor module were firmly within a marine electronics workshop and subsequently on a moderately equipped vessel. The primary scenario involved integrating it into an existing NMEA 2000 network to monitor several key temperature points: engine coolant, exhaust manifold, and bilge water. Connecting it to the network backbone was straightforward, leveraging standard NMEA 2000 drop cables and terminators. The real learning curve, however, came with selecting and attaching the external temperature probes themselves, as these are not included with the module. Once the appropriate thermistor and thermocouple probes were sourced and securely wired, the module powered up without a hitch, immediately broadcasting temperature data onto the network.

During this initial setup and testing phase, I was impressed by how seamlessly it integrated with my existing MFD (Multi-Function Display). The module itself appears robust; its enclosure feels sturdy and well-sealed, suggesting it can handle the occasional splash or damp environment without issue. There were no immediate quirks or surprises, which, in the world of marine electronics, is often the highest praise one can give to a new piece of equipment.

Extended Use & Reliability

Following that initial successful integration, this Maretron module has been a permanent fixture, running continuously for several months. It’s been instrumental in monitoring various engine parameters during extended cruising periods, as well as tracking ambient and component temperatures in the workshop during diagnostics and modifications. The module has performed admirably, consistently providing accurate and stable readings across all connected sensors.

In terms of durability, the unit has shown no signs of degradation. Its compact, sealed design has successfully shrugged off minor spray and fluctuating humidity levels common on a boat. Maintenance has been virtually non-existent; beyond ensuring the NMEA 2000 connections remain secure, there’s little to do. This is a significant advantage over more complex systems that might require frequent calibration or cleaning of individual components. Compared to older, more analog temperature monitoring systems I’ve used, the data provided by this NMEA 2000 module is vastly superior in terms of accessibility and the sheer number of points it can cover simultaneously.

Breaking Down the Features of Maretron Temperature Sensor Module, NMEA 2000

Specifications

The Maretron Temperature Sensor Module, NMEA 2000 is designed for serious environmental monitoring, boasting a capacity for six external temperature probes. This is a key differentiator, allowing for comprehensive data acquisition from a single point on your network. It cleverly splits this capacity into two types of inputs: four channels are dedicated to thermistor probes, which are ideal for general-purpose temperature sensing in moderate ranges, such as engine coolant or ambient air. The remaining two channels are reserved for high-temperature thermocouple probes, making them suitable for applications where extreme heat is a concern, like exhaust systems or machinery components operating at elevated temperatures.

The module communicates via the industry-standard NMEA 2000 protocol, ensuring broad compatibility with a vast array of marine electronics and industrial monitoring systems. This standardized communication is crucial; it means that data from this module can be displayed on virtually any compatible chartplotter, display unit, or data logger without proprietary software or complex gateways. The unit is powered directly from the NMEA 2000 network, simplifying installation and reducing the need for separate power wires. Its compact form factor allows for discreet installation in tight spaces, a common requirement in both marine and industrial settings.

Performance & Functionality

The core function of the Maretron Temperature Sensor Module, NMEA 2000 is to accurately translate raw temperature sensor data into NMEA 2000 messages. In this primary role, it excels. The data it provides is consistently reliable, mirroring readings from standalone digital thermometers and thermocouples used for cross-verification. Its ability to manage six sensors simultaneously without introducing significant network load is a testament to efficient design.

The flexibility offered by the mixed probe types is a significant strength. Being able to monitor cooler, more common applications with thermistors while simultaneously keeping tabs on critical high-temperature points with thermocouples from a single module streamlines installations considerably. The primary weakness, if one could call it that, is that the probes themselves are not included; this adds to the overall cost and requires careful selection based on the intended application. However, this also offers the user freedom to choose the exact probes best suited for their specific needs, whether that’s a particular brand, length, or connector type.

Design & Ergonomics

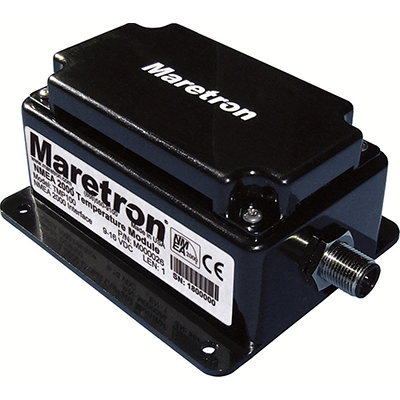

From a design perspective, this Maretron module is a study in functional minimalism. The enclosure is robust and appears to be well-sealed, offering good protection against environmental factors common in its target applications. It’s compact enough that mounting it within a crowded electronics panel or engine room is rarely an issue. The NMEA 2000 Micro-C connector is industry-standard, ensuring a secure and reliable connection to the network.

While there are no direct user interface controls on the module itself – it’s designed to be configured and read via a connected display unit – its passive nature means its ergonomics are more about its integration into a larger system. The screw terminals for the external sensor connections are appropriately sized for typical gauge wiring, making connections secure and relatively easy to make, even with less-than-ideal workshop conditions. The overall build quality feels very high, indicative of equipment designed for long-term service.

Durability & Maintenance

The Maretron Temperature Sensor Module, NMEA 2000 is built for endurance. Given its intended use in marine and industrial environments, where vibration, moisture, and temperature fluctuations are common, durability is paramount. The robust enclosure and sealed design suggest it will withstand these challenges for many years. I haven’t encountered any issues that would indicate a lack of longevity; it feels like a component designed to be installed and largely forgotten, other than for its critical data provision.

Maintenance is practically non-existent, which is a huge win. The only real “maintenance” would involve ensuring the NMEA 2000 backbone connections remain clean and tight, and that the external sensor connections are periodically checked for corrosion or looseness, especially in saltwater environments. Because it’s a solid-state module with no moving parts, the risk of mechanical failure is extremely low. Potential failure points would likely stem from external factors like extreme voltage spikes on the network or physical damage to the enclosure or sensor wiring, rather than an inherent flaw in the module itself.

Accessories and Customization Options

The Maretron Temperature Sensor Module, NMEA 2000 comes with the essential documentation needed for installation and integration. However, it is crucial to note that the external temperature probes (sensors) are not included with the TMP100-01 model. This is a significant point for potential buyers; you will need to procure these separately. The module supports a variety of probe types, specifically six external temperature probes in total.

These are divided into four channels for thermistor probes and two channels for high-temperature thermocouple probes. This flexibility allows for a wide range of customization regarding the sensing points. While the module itself is a fixed unit, the “customization” comes entirely from the selection of the appropriate external sensors to match your unique monitoring requirements. This approach offers a high degree of personalization for a data acquisition system.

Pros and Cons of Maretron Temperature Sensor Module, NMEA 2000

Who Should Buy Maretron Temperature Sensor Module, NMEA 2000?

This temperature sensor module is ideally suited for marine enthusiasts, boat owners, and industrial technicians who require robust, networked temperature monitoring. If you’re looking to consolidate multiple temperature readings onto a single display for critical systems like engines, generators, or complex machinery, this Maretron unit is an excellent choice. It’s particularly beneficial for those already invested in an NMEA 2000 ecosystem who need to expand their sensor capabilities.

However, individuals or organizations who only need to monitor one or two temperature points, or those operating on a very tight budget, might find this module to be overkill. Someone looking for a simple, standalone temperature gauge might be better served by a less integrated solution. For those who do invest, I would highly recommend considering appropriate high-quality NMEA 2000 terminators and backbone cables to ensure optimal network performance. Additionally, carefully select your thermistor and thermocouple probes based on the precise temperature ranges and environmental conditions you’ll be monitoring; Maretron offers a range of compatible sensors, or you can source others that meet the specifications.

Conclusion on Maretron Temperature Sensor Module, NMEA 2000

The Maretron Temperature Sensor Module, NMEA 2000 is a high-performance, highly capable device that delivers precisely what it promises: reliable, networked temperature monitoring for demanding applications. Its ability to support six sensors, including both thermistors and thermocouples, makes it incredibly versatile for a wide range of critical monitoring tasks, especially within the marine and industrial sectors. While the price point of $355.99 is substantial, especially when you factor in the cost of purchasing the necessary external probes, the value is undeniable for users who need comprehensive data integration. The robust build quality and minimal maintenance requirements further justify the investment for long-term, dependable operation. I would confidently recommend this module to anyone serious about accurate, integrated environmental monitoring who needs to expand their NMEA 2000 sensor network. If you’re building a sophisticated monitoring system, this Maretron unit is a solid, well-engineered foundation.
