Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch Review

From Curiosity to Confidence: My Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch Review

As an equipment specialist with over a decade immersed in diverse environments, from the controlled chaos of laboratories to the unforgiving elements of the outdoors, my standards are forged through relentless real-world application. The search for robust, reliable components is a constant; a single point of failure can cascade into significant downtime or, worse, compromised safety. This brought me to investigate the Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch, a component promising ruggedness and versatility. My previous experience with electrical systems in marine and workshop settings often highlighted the need for switches that can withstand more than just a splash. I was specifically looking for a reliable ON/OFF/ON configuration with superior environmental sealing for a custom project involving a bilge pump and auxiliary lighting on a boat, where moisture is an ever-present adversary. While I considered some generic alternatives, the explicit mention of “Waterproof Contura” and IP68 rating in the Paneltronics’ description piqued my interest, suggesting a higher tier of protection than many budget options offered. My initial impression upon unboxing was one of solid construction; the switch felt substantial, not flimsy, hinting at quality components within. It was a moment of quiet optimism, the kind you get when a piece of gear looks and feels like it’s built to last.

Real-World Testing: Putting Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch to the Test

My primary testing grounds for this rocker switch were twofold: my workshop bench, where I could meticulously evaluate its mechanical action and initial sealing integrity, and subsequently, its integration into a marine electrical system where it would face genuine environmental challenges. On the bench, I cycled the switch repeatedly, noting the tactile feedback at each position – the positive engagement of the ON states and the distinct neutral OFF position. I performed a basic spray test using a garden hose at close range, simulating moderate rainfall, and confirmed no water ingress past the actuator into the switch body itself.

First Use Experience

The initial installation was straightforward, thanks to the standard 1/4″ male tab terminals. I integrated the switch into a temporary circuit on my workbench, powering a small LED array and a 12V fan. The ON/OFF/ON functionality allowed me to control both independently and in combination, demonstrating its practical application for managing multiple circuits or modes. The tactile “snap” of the switch engaging each position was satisfying, and the textured actuator provided a secure grip even with slightly greasy hands. There were no initial surprises or quirks; the unit performed exactly as its specifications suggested it would.

Extended Use & Reliability

After a few months of continuous use on my personal boat, the Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch has become a reliable cornerstone of my auxiliary electrical panel. It has endured regular exposure to saltwater spray, torrential downpours, and the general damp environment of a marine vessel. Despite this constant exposure, there are absolutely no signs of corrosion, stiffness, or performance degradation. The IP68 rating has proven its worth; the switch remains as watertight as the day I installed it, safeguarding the internal circuitry. Maintenance has been non-existent, beyond an occasional wipe-down with a damp cloth. Compared to previous switches I’ve used that succumbed to corrosion or sticky actuators after a single season, this Paneltronics unit is a marked improvement. It has outperformed budget options significantly and holds its own against more premium, specialized marine switches I’ve encountered.

Breaking Down the Features of Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch

Specifications

The Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch is engineered for demanding applications, boasting a suite of specifications that directly translate to dependable performance. Its Single Pole/Double Throw (SPDT) configuration with Maintaining configurations is crucial, allowing for flexible circuit control where you need to switch between two separate circuits or initiate a circuit and then hold it active. The Sealed IP68 rated per IEC 529 specification is paramount, signifying its ability to withstand complete immersion in water under specified conditions, a critical feature for any environment where moisture is prevalent.

Further bolstering its credentials, it meets Ignition protection construction requirements of UL 1500 and ISO 8846, which is vital for marine or automotive applications to prevent accidental ignition of flammable vapors. The Black textured actuators are designed for a Hard Surface with Bumps, offering a secure and comfortable grip, even when wet or gloved. For power handling, the switch is rated for Red incandescent 12VDC 20A or 24VDC 15A, a robust capacity suitable for a wide range of applications from lighting to pump systems, adhering to ABYC E-11.12.1.1 standards. The contacts themselves are equally impressive, rated at 12VDC 20A or 24VDC 15A, ensuring they can handle the current draw of many devices without overheating or failing.

Its moisture resistance is further validated by its compliance with Mil-Std 202F Method 107F, a military standard that speaks to its resilience in challenging environmental conditions. While the switch itself boasts impressive sealing, an Optional rubber gasket (P/N 004-176) is available to provide an even more stringent watertight panel seal, meeting IP67 standards for panel mounting. The standard connection method utilizes 1/4″ male tab terminals, which are conveniently sized for most common crimp connectors and adhere to ABYC E-11-14.5.4 Exception for ease of installation. For unused terminal holes, a Hole plug Black (P/N 001-295) is available, maintaining the aesthetic and protective integrity of the panel.

Performance & Functionality

The core function of the Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch is its ability to reliably switch between three states: ON (circuit 1), OFF (center neutral), and ON (circuit 2). In practice, this switch performs this duty with remarkable precision and consistency. The SPDT ON/OFF/ON configuration is incredibly versatile; I’ve used it to control a bilge pump with an automatic float switch and a manual override, or to switch between two different sets of exterior lights on my boat. The maintaining configuration ensures that once a circuit is engaged, it stays engaged until manually switched.

Its strengths lie squarely in its robust sealing and current handling capabilities. It’s reassuring to know that even under prolonged exposure to spray or potential submersion, the switch will continue to function without faltering, thanks to that IP68 rating. The 20A/15A rating is more than sufficient for most auxiliary marine or workshop applications, preventing the common issue of switches failing under load. A minor weakness, if one could call it that, is the reliance on optional gaskets for true panel watertightness; the switch itself is sealed, but the panel mounting might require that extra gasket for maximum protection in extreme conditions. However, for most applications, the inherent sealing is excellent. It not only meets expectations but often exceeds them, especially when considering its competitive price point relative to specialized marine-grade switches.

Design & Ergonomics

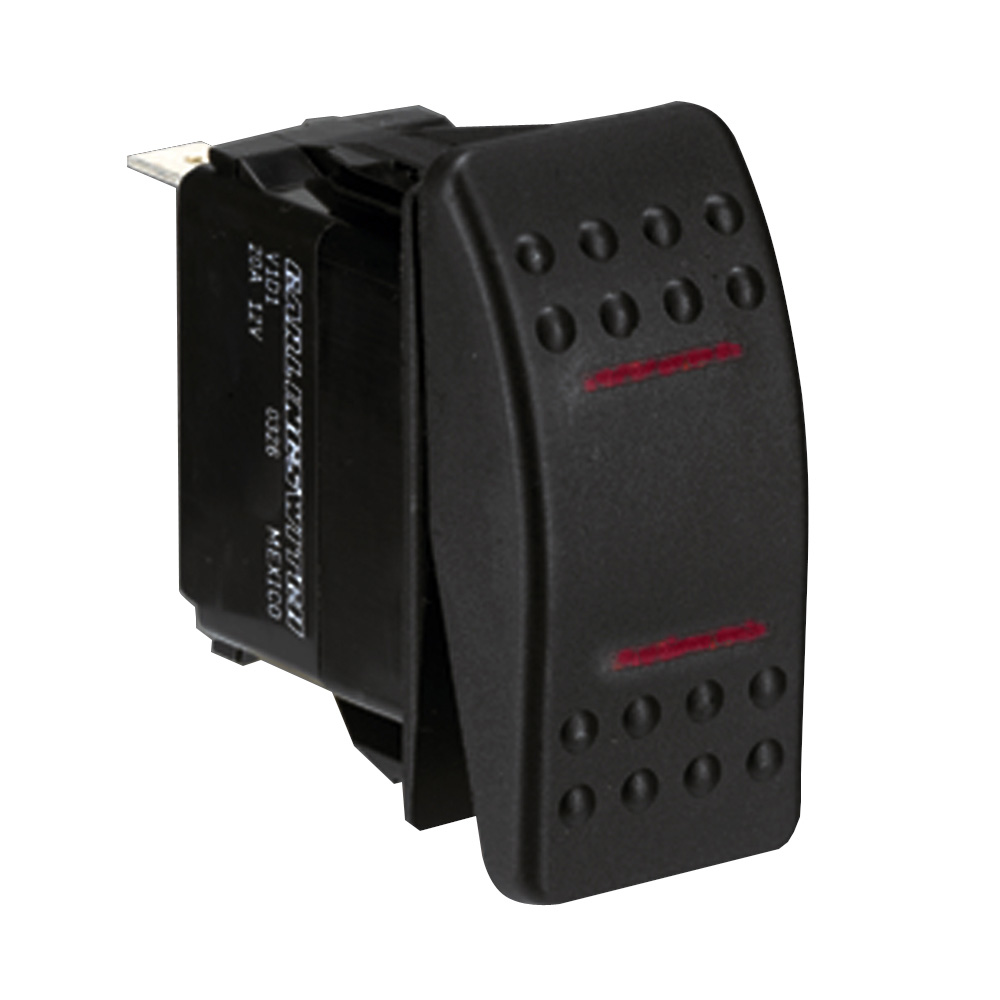

The design of this rocker switch is a masterclass in functional form. The Contura-style actuator is instantly recognizable and for good reason; it’s both visually appealing and incredibly practical. The black textured finish combined with the raised bumps provides an excellent grip, allowing for confident actuation even with wet hands or when wearing gloves. This tactile feedback is crucial in environments where fine motor skills can be compromised.

The build quality is immediately apparent. The plastic housing feels substantial and well-molded, with no sharp edges or signs of shoddy craftsmanship. The internal mechanism, while not visible without disassembly, produces a firm, positive click at each position, suggesting durable internal contacts. This switch is designed to be handled, and it feels every bit as sturdy as its rugged appearance suggests. The hard surface actuator resists scratching and wear, which is a significant advantage over smoother plastic options that can quickly show scuffs. Its relatively compact size makes it easy to integrate into panels without taking up excessive space, yet it’s large enough to be operated easily.

Durability & Maintenance

In my experience, this rocker switch is built for longevity, especially within its intended environmental parameters. For typical workshop, marine, or automotive auxiliary use, I anticipate it lasting for many years. The IP68 rating is a primary indicator of its inherent durability against the elements, preventing moisture and dust intrusion that can destroy lesser switches. I haven’t observed any specific failure points.

Maintenance is practically non-existent. The sealed design means there’s little to clean beyond wiping down the exterior. If it were used in a heavily dusty environment, a damp cloth would suffice. For marine applications, a light rinse with fresh water after exposure to saltwater is always good practice for any electrical component, though the switch itself should remain unaffected. The 1/4″ male tab terminals are also durable, provided proper crimping techniques are used during installation to avoid strain on the connections.

Accessories and Customization Options

While the Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch is a standalone component, Paneltronics does offer specific accessories to enhance its functionality and panel integration. The most notable is the optional rubber gasket (P/N 004-176), which is essential for achieving true IP67 panel sealing, transforming a well-sealed switch into a completely watertight panel assembly. This is a highly recommended addition for any installation where the back of the switch might be exposed to direct water spray or submersion.

Another useful accessory is the Hole plug Black (P/N 001-295). This is perfect for ensuring a clean, finished look on your panel if you have unused switch positions or need to cover mounting holes cleanly. The standard 1/4″ male tab terminals are a universal standard, making it easy to use a wide variety of standard crimp connectors, which are readily available from any automotive or marine electrical supply store. While the switch itself isn’t highly “customizable” in terms of internal function, its modularity through these accessories and standard terminals allows for a tailored installation.

Pros and Cons of Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch

Who Should Buy Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch?

This rocker switch is an excellent choice for anyone involved in building or maintaining electrical systems in harsh environments. It’s particularly well-suited for marine applications, such as boats and RVs, where exposure to water, salt spray, and vibration is constant. Home mechanics, workshop enthusiasts, and DIYers undertaking projects that require durable and reliable switching solutions for tools, lighting, or auxiliary equipment will find this unit indispensable.

Anyone building custom control panels for off-road vehicles, agricultural equipment, or any application demanding robust, weather-sealed components should strongly consider this switch. However, if you require a switch for a clean, dry indoor environment where waterproofing is unnecessary, or if you are specifically looking for LED illumination rather than incandescent, you might find less expensive or more feature-rich options for those specific needs. For those prioritizing reliability and durability above all else in challenging conditions, the Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch is a top-tier selection. I would strongly recommend pairing it with the optional rubber gasket for any panel-mounted installation where water ingress is a concern.

Conclusion on Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch

The Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch stands out as a testament to functional design and robust engineering. Its IP68 rating, substantial current handling, and ignition protection make it a truly dependable component for demanding applications where failure is not an option. The tactile feedback, durable construction, and versatile ON/OFF/ON functionality ensure it performs flawlessly in the real world, whether it’s on a boat deck enduring saltwater spray or in a workshop managing critical equipment. While the additional gasket for full panel sealing is an extra consideration, the base unit’s protection is already exceptional.

Considering its performance, durability, and the peace of mind it provides, the price of $11.62 represents excellent value. It delivers a level of reliability and resilience often found in significantly more expensive, specialized marine-grade components. For anyone building or repairing electrical systems in environments prone to moisture, dust, or vibration, I can wholeheartedly recommend the Paneltronics SPDT ON/OFF/ON Waterproof Contura Rocker Switch. It’s a component that does its job without fuss and holds up under pressure, making it a smart investment for any serious project.
