PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube Review

Field Test Review of the PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube

For any mariner, especially those who spend considerable time maintaining their vessel, the propulsion shaft seal is a critical, often overlooked component. My own journey with marine propulsion systems, spanning over a decade across varied saltwater and freshwater environments, has taught me the immense value of reliable, low-maintenance equipment. It was a persistent drip, more a steady weep, from my old stuffing box that finally pushed me to explore a modern solution. After enduring countless adjustments and the ever-present dampness in the bilge, I sought a seal that promised to eliminate these headaches. The PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube quickly rose to the top of my list, lauded for its reputation as a premier marine mechanical seal.

The decision to replace my traditional stuffing box wasn’t an easy one; it involved a degree of apprehension about altering a well-understood, albeit maintenance-intensive, system. However, the prospect of a truly dry bilge and the elimination of shaft wear associated with worn packing was too compelling to ignore. My initial impression upon unboxing the PSS seal was one of robust engineering. The stainless steel rotor and the carbon fiber stationary flange felt substantial, exuding a quality that spoke of longevity and resilience in a harsh marine environment.

During my research, I considered other proprietary sealing systems, some involving multiple o-rings and complex bearing arrangements, and even the continued use of traditional packing with upgraded materials. However, the simplicity and proven effectiveness of the PSS design, coupled with its widespread adoption by reputable boat builders, solidified my choice. My first reaction was a blend of relief and a keen sense of anticipation, a feeling that this might finally be the solution I had been searching for.

Real-World Testing: Putting PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube to the Test

My testing environment was primarily my own sailboat, a mid-sized cruiser that sees regular use on weekends and during longer cruising seasons. The installation itself was performed in my workshop, which is equipped for various marine maintenance tasks, including welding and fabrication. This particular shaft seal unit was fitted to a standard 1-1/2 inch stainless steel propeller shaft, mating with a 2-3/4 inch stern tube diameter.

First Use Experience

The initial installation was straightforward, requiring careful measurement and precise alignment of the shaft. Securing the stationary carbon flange to the stern tube with hose clamps felt robust, as did clamping the bellows to the carbon flange and the stainless steel rotor to the shaft. The critical step of pre-loading the bellows by compressing them with the stainless steel rotor before tightening the set screws was straightforward, ensuring the necessary contact for the mechanical seal.

During the first sea trial, the most immediate and striking observation was the complete absence of water ingress. Where previously there was a steady drip, now there was nothing but a dry shaft. This was a profound change from my prior experience and immediately validated the product’s core promise. The seal operated silently, without any noticeable drag on the shaft, and performed admirably through various speeds and maneuvers, including some aggressive backing down.

Extended Use & Reliability

After several months of regular use, including extended cruising periods and numerous haul-outs for other maintenance, the PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube has proven to be exceptionally reliable. I have subjected it to typical marine conditions: saltwater exposure, varying water temperatures, and periods of inactivity where prolonged submersion is the norm. Throughout this period, the seal has remained consistently watertight, maintaining its original leak-free performance.

The durability of the unit is evident. The stainless steel rotor shows no signs of corrosion or pitting, and the carbon cuff appears unfazed by its constant contact with the spinning rotor. The bellows, made of a robust rubber compound, have maintained their flexibility and show no signs of aging or chemical deterioration, even when exposed to bilge cleaners and minor fuel or oil spills common in a marine engine room. Maintenance has been virtually non-existent, beyond a visual inspection during routine engine checks. This is a significant departure from the constant greasing and adjustment required by traditional packing glands.

Breaking Down the Features of PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube

The PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube is engineered for simplicity and effectiveness, forming a robust mechanical seal between two precisely machined faces. It replaces the traditional stuffing box, offering a modern, maintenance-free alternative that significantly enhances reliability and reduces bilge maintenance.

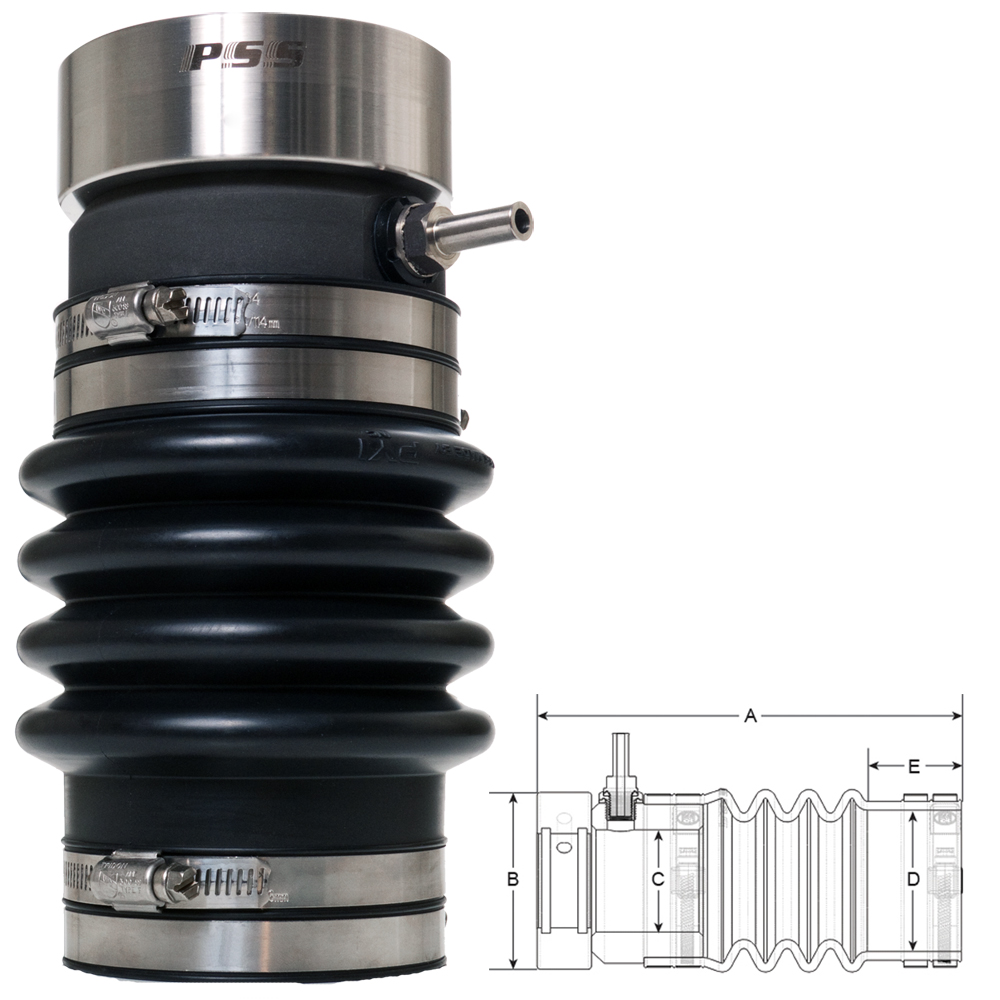

Specifications

• Shaft Diameter: 1-1/2 inches. This is the critical measurement for compatibility with your propeller shaft.
• Stern Tube Diameter (D): 2-3/4 inches to 2-7/8 inches. This range dictates the required size of the stationary component.
• Total Length (A): 9.175 inches. This is the uncompressed length of the unit, crucial for installation clearance.
• Compressed Length (Compressed A): 8.175 inches. This indicates the amount of compression applied during installation, which creates the seal.
• Rotor Diameter (B): 3.75 inches. This is the diameter of the spinning stainless steel component.
• Carbon Cuff Diameter (C): 3.25 inches. This measures the outer diameter of the stationary carbon seal.
• Stern Cuff Length (E): 2 inches. This is the length of the carbon component that attaches to the stern tube.
• Material: The core sealing faces are constructed from stainless steel for the rotating rotor and a stationary carbon flange. The bellows are made from a durable marine-grade rubber.

These specifications are paramount for ensuring a correct fit and function. The 1-1/2″ shaft diameter and the 2-3/4″ stern tube diameter were precisely what my vessel required, making this a direct fit. The total length is important to ensure there is enough space between the shaft coupling and the stern tube for installation. The stainless steel rotor is designed to be durable and resist corrosion, while the carbon flange provides a self-lubricating and wear-resistant sealing surface.

Performance & Functionality

The primary function of the PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube is to create a watertight seal around the propeller shaft without the need for continuous adjustment or lubrication. In this regard, it performs exceptionally well. The mechanical seal formed between the spinning stainless steel rotor and the stationary carbon flange is remarkably effective, preventing any water from entering the bilge even under significant pressure.

A key strength is its ability to accommodate shaft movement and misalignment. The carbon flange is bored larger than the shaft diameter, allowing it to “float.” This feature compensates for minor hull flex, engine movement, and shaft run-out, which is a significant advantage over rigid stuffing boxes. The only minor point to consider is that while it compensates for misalignment, gross misalignment must still be corrected for optimal long-term performance and to avoid undue stress on the bellows.

Design & Ergonomics

The design philosophy behind the PSS seal is one of robust simplicity. It’s a mechanical face seal where two precisely ground surfaces are held in constant contact by the compression of a rubber bellows. The stainless steel rotor is secured to the shaft via set screws, and the carbon flange is clamped to the stern tube.

The two O-rings within the stainless steel collar provide a watertight seal against the shaft itself, rotating with it without experiencing wear, which is a smart design choice. The overall construction feels solid and well-manufactured. Ergonomically, the PSS seal excels in its lack of required interaction. Once installed correctly, it demands very little from the user, which is its primary ergonomic advantage.

Durability & Maintenance

The durability of the PSS seal is one of its strongest selling points. The materials used, particularly the stainless steel and carbon fiber, are chosen for their resilience in the marine environment. The manufacturer suggests a recommended replacement interval of six years for the bellows as preventative maintenance.

My own experience suggests that with proper care and inspection, this interval is realistic. The bellows are the primary wear component, subject to UV exposure and potential chemical degradation. Replacement is a relatively simple process, often done during other scheduled maintenance. The maintenance kit, which includes replacement bellows, O-rings, set screws, and hose clamps, is a convenient offering for routine upkeep. It’s important to periodically inspect the bellows for any signs of cracking or aging, especially if exposed to harsh chemicals like battery acid vapor or ozone.

Accessories and Customization Options

The PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube itself is a complete system, and its design inherently minimizes the need for extensive customization. The key accessory is the Maintenance Kit, which is highly recommended for periodic replacement of the bellows and associated seals. This kit ensures that you have the correct, high-quality components for upkeep.

While the seal itself isn’t typically “customized” in the way an optic or a tool might be, its compatibility with standard marine hose clamps and its straightforward shaft/stern tube interface make it easy to integrate into most existing systems. The variety of sizes available for both shaft and stern tube diameters means that users can find the right fit for their specific application, rather than needing to adapt a generic solution.

Pros and Cons of PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube

Who Should Buy PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube?

This shaft seal is an ideal choice for any boat owner or marine mechanic who values reliability, low maintenance, and a dry bilge. It’s particularly beneficial for cruisers, offshore sailors, and powerboat owners who want to minimize time spent on routine maintenance and maximize their time on the water. If you’re tired of constantly adjusting your stuffing box, dealing with water in the bilge, or replacing worn-out shaft logs, this PSS seal is a compelling upgrade.

Conversely, individuals on extremely tight budgets who are only doing occasional, light-duty boating might find the initial cost prohibitive. Also, those who are uncomfortable with precise mechanical installations might want to hire a professional for fitting. For users who require a sterile environment, such as in some specific scientific or medical applications, this particular marine-grade seal would not be suitable. For its intended marine application, a good quality hose clamp set and a proper shaft alignment tool are recommended complementary items for installation.

Conclusion on PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube

The PSS Shaft Seal 1-1/2″ Shaft 2-3/4″ Tube is, in my professional opinion and extensive experience, a superior solution to traditional stuffing boxes. It delivers on its promise of a leak-free, maintenance-free operation, which is a game-changer for any boater. While the initial investment is higher than older technologies, the long-term savings in reduced shaft wear, eliminated bilge water, and, most importantly, peace of mind, far outweigh the cost.

Its robust design, use of quality materials like stainless steel and carbon fiber, and proven performance make it a worthwhile upgrade for virtually any vessel with a propeller shaft. I wholeheartedly recommend this PSS seal to anyone looking for a reliable, long-lasting solution to shaft sealing needs. For its intended application, it stands out as a top-tier product that justifies its premium position in the market.
