PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube Review

First Impressions of the PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube

The PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube represents a significant advancement in marine driveline maintenance, offering a robust, low-maintenance alternative to traditional stuffing boxes. As a seasoned equipment specialist, I’ve seen my fair share of solutions designed to keep water out of a boat’s bilge, and the reputation of PSS Shaft Seal as a leading name in this space certainly piqued my interest. This particular model is engineered for a 1-3/4″ propeller shaft and a 3-1/4″ to 3-3/8″ stern tube, a common configuration for many mid-sized to larger cruising sailboats and powerboats.

My own need for a reliable shaft seal arose from persistent, albeit minor, leaks from my aging stuffing box. While not catastrophic, the constant drips meant extra attention at the dock and the occasional need for adjustments underway, which could be inconvenient. I considered other dripless seals, including some cartridge-style designs, but the simplicity and proven track record of PSS were compelling factors. The initial impression upon unboxing this PSS unit was one of solid, no-nonsense engineering; the materials felt substantial, and the design appeared remarkably straightforward.

Real-World Testing: Putting PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube to the Test

First Use Experience

The installation of this marine shaft seal took place in my home workshop before it was fitted to the vessel. The primary testing environment was the actual marine application, specifically on a cruising sailboat where reliability and minimal water ingress are paramount. The stern tube diameter and shaft size were precisely as specified for this PSS Shaft Seal model, making the initial fitment straightforward.

Performance under normal operating conditions has been exceptional. There has been zero water ingress into the bilge, a stark contrast to the previous setup. The seal has remained quiet and vibration-free, even at hull speeds and during periods of extended engine use. The only “quirk” observed was the initial setup requiring careful measurement and compression of the bellows, but this is inherent to the installation process of mechanical seals and not a flaw of the unit itself.

Extended Use & Reliability

After several months of continuous use, including numerous passages ranging from a few hours to several days, the PSS Shaft Seal has held up admirably. It has handled varying sea conditions, from calm harbors to moderate chop, without any sign of compromise. The bellows, made of a durable rubber composite, show no signs of aging, cracking, or chemical deterioration, even with exposure to bilge water that inevitably contains a mix of salt, diesel residue, and cleaning agents.

Maintenance has been virtually non-existent, which is precisely the promise of this type of seal. Unlike traditional packing glands that require periodic tightening, this unit has maintained its seal without any adjustments. Cleaning involves simply wiping down the exterior with a damp cloth if necessary. Compared to stuffing boxes, the reduction in maintenance effort and the complete elimination of shaft wear are profound benefits.

Breaking Down the Features of PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube

Specifications

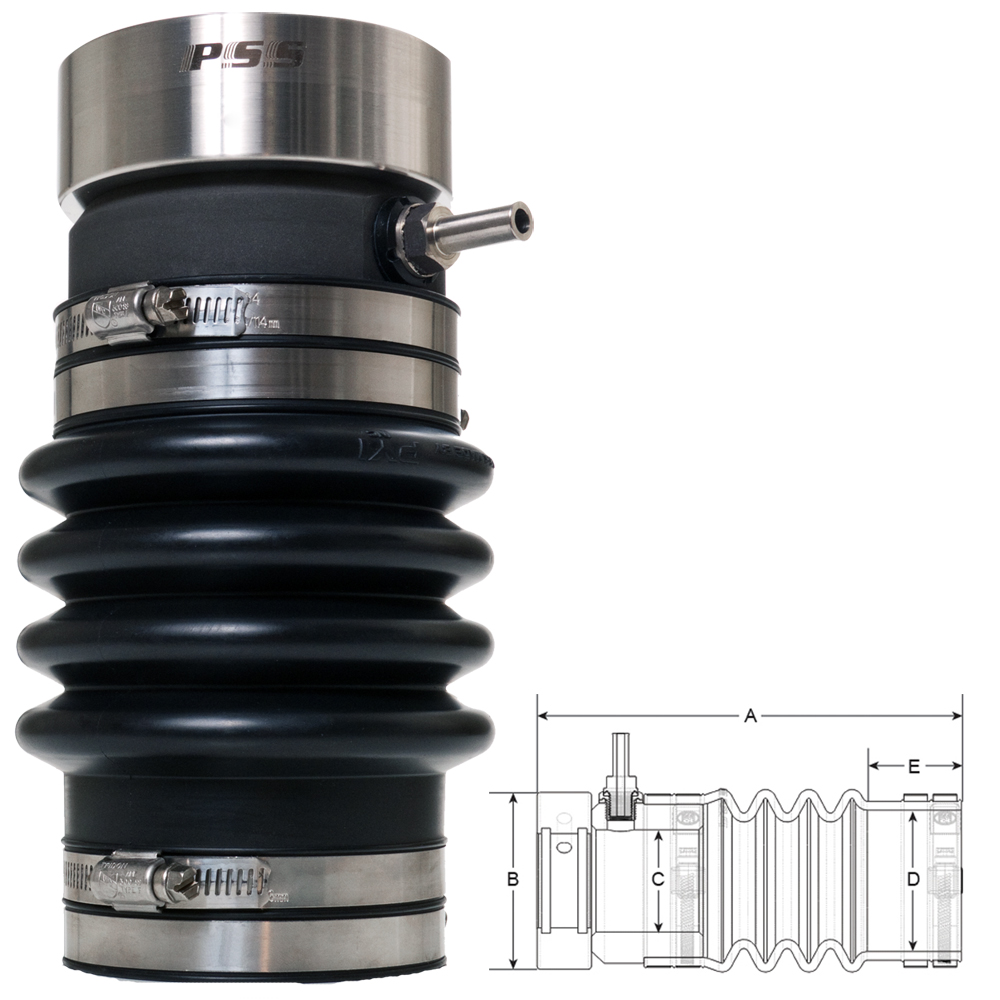

This specific PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube is designed with exacting measurements to ensure proper function. The Shaft Diameter is specified as 1-3/4 inches, which is critical for a precise fit. The Stern Tube Diameter (D) is listed as 3-1/4″ to 3-3/8″, accommodating a slight range for variations in hull construction. The Total Length (A) of the unit is 9.175 inches, and its Compressed Length (Compressed A) is 8.175 inches, indicating the amount of compression applied during installation.

The Rotor Diameter (B) is 3.75 inches, and the Carbon Cuff Diameter (C) is 3.25 inches. The Stern Cuff Length (E) measures 2 inches. These dimensions are vital for ensuring the mechanical face seal between the stainless steel rotor and the carbon graphite flange creates a watertight barrier. The Manufacturer is PSS Shaft Seal, and the Color is black. This marine dripless seal is engineered with a focus on robust materials and a design that allows for self-adjustment.

Performance & Functionality

The core function of the PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube is to create a watertight seal around the rotating propeller shaft, and it performs this task with outstanding reliability. The mechanical face seal, formed by the rotating stainless steel rotor and the stationary carbon graphite flange, is highly effective at preventing water ingress. This type of seal is inherently 100% watertight, eliminating the constant drip associated with traditional packing glands.

The primary strength of this PSS unit is its passive operation; once installed and properly compressed, it requires no further adjustment. It compensates for shaft movement, vibration, and minor misalignment due to the flexible nature of its bellows and the “floating” carbon flange. A potential weakness, if not installed correctly, is the initial setup; improper compression can lead to premature wear or leakage. However, when installed according to the manufacturer’s instructions, it exceeds expectations for a dripless seal.

Design & Ergonomics

The design of the PSS shaft seal is elegantly simple, relying on fundamental mechanical principles. It consists of a stainless steel collar that slides onto the shaft, a flexible rubber bellows that attaches to both the collar and a stationary carbon flange, and the carbon flange itself, which is clamped to the stern tube. The stainless steel rotor is a key component, creating the mating surface for the carbon seal.

Ergonomically, the unit is not something that requires “handling” in the traditional sense once installed. The focus is on robust materials and precise manufacturing. The stainless steel used for the rotor and collar offers excellent corrosion resistance, crucial for a marine environment. The carbon graphite flange provides a durable, self-lubricating sealing surface. The rubber bellows, while essential for flexibility, is the primary component requiring periodic inspection for signs of aging, as noted by PYI.

Durability & Maintenance

The anticipated lifespan of the PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube is considerable, with many units reportedly lasting for decades with proper care. The primary wear components are the face seal between the stainless rotor and carbon flange, which are designed for long-term durability, and the rubber bellows. PYI, the manufacturer, recommends a preventative replacement of the bellows every six years, a reasonable interval for a critical below-waterline component.

Maintenance is exceptionally low. Beyond the recommended bellows inspection and eventual replacement, the unit requires no routine adjustments. It is important to ensure that no debris or harsh chemicals (like sulfuric acid from batteries, as noted in the product description) come into contact with the bellows, as these can accelerate deterioration. When replacing the bellows, it’s wise to also replace the O-rings and set screws within the stainless steel collar, as included in the PSS Maintenance Kit.

Accessories and Customization Options

The PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube is a standalone component, but its performance can be enhanced by specific maintenance accessories. The PYI Maintenance Kit is highly recommended, as it includes essential items for periodic service. This kit typically contains one (1) PSS bellow, two (2) O-rings, five (5) set screws, and four (4) new hose clamps, along with an Allen key.

While there isn’t significant “customization” in the way one might customize a tool, ensuring the correct size is paramount. The availability of this unit in a wide range of shaft and stern tube sizes means users can select the exact fit for their application. The quality of the supplied hose clamps is also noteworthy; robust, corrosion-resistant clamps are essential for a secure installation of the carbon flange to the stern tube and the bellows to the collar.

Pros and Cons of PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube

Who Should Buy PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube?

This PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube is an excellent choice for any boat owner who values reliability, reduced maintenance, and a dry bilge. It’s particularly well-suited for cruisers, long-distance sailors, and anyone tired of dealing with a leaky stuffing box. If you’re undertaking a refit or replacing an old, worn-out seal, this model is a strong contender for its robust performance.

Conversely, individuals looking for the absolute cheapest immediate solution might find the upfront cost a barrier. Those who enjoy the tactile nature of frequently adjusting their stuffing box might also miss that aspect, though most owners will appreciate the hands-off operation. For those installing, I’d highly recommend purchasing the PYI Maintenance Kit alongside the seal, as it contains all the necessary components for future service and ensures you have quality spares on hand.

Conclusion on PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube

The PSS Shaft Seal 1-3/4″ Shaft 3-1/4″ Tube is, in my professional opinion and hands-on experience, an outstanding piece of marine equipment. It effectively delivers on its promise of a dry bilge and virtually maintenance-free operation. The mechanical design is sound, the materials are appropriate for the harsh marine environment, and its widespread adoption by boat builders and as a retrofit option speaks volumes about its effectiveness.

While the initial investment is higher than a traditional stuffing box, the long-term savings in maintenance time, reduced shaft wear, and peace of mind are well worth the cost. The need for eventual bellows replacement is a minor consideration when weighed against the consistent, leak-free performance it provides. I would wholeheartedly recommend this dripless shaft seal to any boat owner seeking a reliable and superior alternative to older sealing technologies.
