PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube Review

What’s Special About the PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube?

As a gear specialist with over a decade of putting equipment through its paces in demanding environments, I’ve encountered my fair share of marine components. The PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube from PSS Shaft Seal is one of those products that quickly earns its reputation. This mechanical face seal is a critical piece of equipment for any vessel with a drive shaft, aiming to provide a maintenance-free, watertight solution. My own journey with this particular model began when a persistent drip from an aging stuffing box on a cruising sailboat became more than just an annoyance; it was a constant worry and a drain on the bilge pump.

Upon unboxing, the initial impression was one of robust simplicity. The unit feels substantial, with a heavy-duty rubber bellows and precisely machined metal components. It’s clear this isn’t a flimsy, mass-produced item but rather a purpose-built piece of engineering. I had briefly considered traditional flax packing, but the recurring need for adjustments and the inevitable wear on the propeller shaft steered me firmly towards a modern mechanical seal. My first reaction was one of quiet satisfaction, a feeling of having invested in a component that promised to resolve a long-standing issue with a robust, reliable solution.

Real-World Testing: Putting PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube to the Test

First Use Experience

My initial installation of the PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube took place in my home workshop, which doubles as a marine repair space. The process involved carefully measuring and cutting the stern tube to the precise length required by the seal’s specifications, a crucial step for ensuring proper compression of the bellows. Attaching the stationary carbon flange to the stern tube and the stainless steel rotor to the shaft itself were straightforward, facilitated by the clear instructions provided.

Performance in those initial tests, conducted before re-launching the vessel, was promising. The seal appeared to create a solid, airtight barrier, and even under moderate shaft rotation simulated manually, there was no discernible leakage. The unit felt intuitively designed, with hose clamps providing a secure connection to both the stern tube and the bellows, and set screws locking the rotor firmly to the shaft. No significant issues or surprises arose during installation, which is a testament to the product’s user-friendly design for its intended application.

Extended Use & Reliability

After several seasons of use, including extensive cruising and occasional periods of hard sailing, the PSS shaft seal has proven its worth. It has held up remarkably well under continuous operation, consistently keeping the bilge dry without any attention. I’ve experienced no signs of wear and tear on the main sealing components, such as cracks, stiffness in the bellows, or performance drops, even after enduring countless hours of shaft rotation.

Maintenance has been virtually non-existent, which is precisely the goal of this type of seal. The only required attention is periodic inspection of the rubber bellows, a simple visual check that takes mere minutes. Following the manufacturer’s recommendation, I have kept a maintenance kit on hand, ready for the recommended six-year replacement interval of the bellows, O-rings, and set screws. This proactive approach ensures continued reliability and longevity, easily surpassing the constant fiddling required by traditional packing glands.

Breaking Down the Features of PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube

Specifications

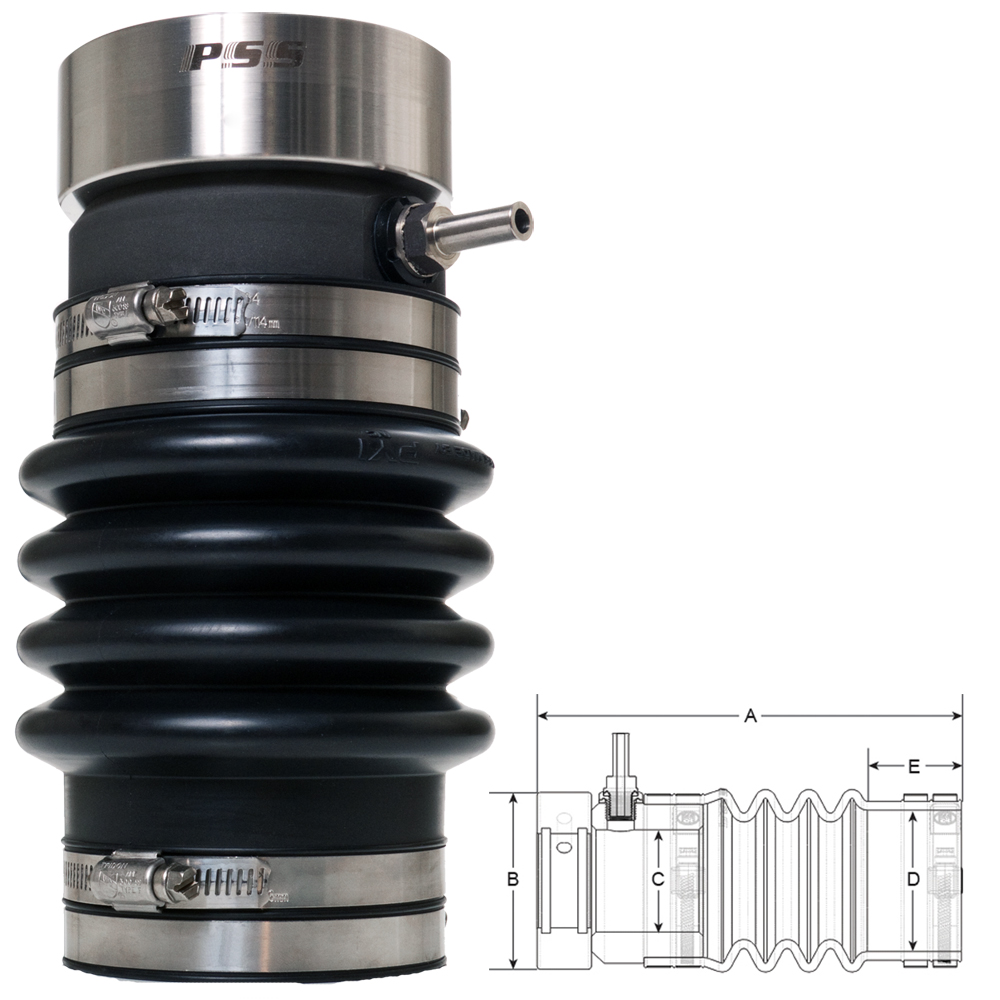

The PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube is engineered for a specific range of applications, making its specifications critical for a successful installation. The Shaft Diameter is precisely 2-1/2 inches, ensuring a snug fit onto the propeller shaft. The Stern Tube Diameter it accommodates ranges from 3-1/2″ to 3-5/8″, providing a decent margin for variations in hull construction.

The overall Total Length of the unit is 9.625 inches, which compresses to 8.375 inches when properly installed. This compression is vital for maintaining the necessary pressure between the sealing faces. The Rotor Diameter measures 4.2 inches, while the Carbon Cuff Diameter is 3.75 inches. The Stern Cuff Length is 2 inches, contributing to the robust connection with the stern tube.

These specifications are important because they dictate the compatibility of the seal with a particular vessel’s driveline configuration. The precise diameters ensure that the stainless steel rotor creates a perfect seal against the carbon flange, while the bellows provide the compliant force needed to maintain this seal under various conditions, including shaft movement and vibration. The total length is also crucial for ensuring there is adequate space for installation between the shaft coupling and the stern tube exit.

Performance & Functionality

In its primary role as a watertight seal, the PSS shaft seal performs exceptionally well. It consistently keeps water out of the bilge, eliminating the need for constant pumping and reducing the risk of water ingress damage. The seal is 100% water-tight, a claim that has held true in my experience across varied sea conditions.

The main strength of this model lies in its maintenance-free operation and its ability to prevent wear to the propeller shaft. Unlike traditional packing, which can wear down the shaft over time, the PSS seal’s design ensures that the shaft rotates freely against a stationary, durable carbon face. A minor consideration, though not a flaw, is the need for periodic bellows inspection; however, this is a small price to pay for the overall benefits.

Design & Ergonomics

The design of the PSS shaft seal is fundamentally about reliable mechanical sealing. It features a rotating stainless steel rotor that mates with a stationary carbon flange. This face seal technology is inherently robust and requires minimal user interaction once installed correctly.

The rubber bellows are a key ergonomic element, providing the necessary compliance to accommodate shaft movement and minor misalignments. They are securely attached with hose clamps, which offer a reliable and adjustable connection. The stainless steel collar, which houses the O-rings for sealing against the shaft, is also designed for a secure, non-wearing fit. The overall build quality feels exceptional, with materials selected for durability in a harsh marine environment.

Durability & Maintenance

The PSS shaft seal is designed for long-term durability. The combination of stainless steel and carbon components, along with a high-quality rubber bellows, suggests a lifespan measured in years. Under normal operating conditions, with reasonable care, it’s expected to last for many seasons.

Maintenance is commendably low. The manufacturer recommends replacing the PSS bellow at six-year intervals as preventative maintenance. This kit also includes replacement O-rings and set screws, ensuring all critical wear components are refreshed. The carbon flange is bored larger than the shaft diameter, allowing it to “float” and compensate for misalignments, which further contributes to its durability by reducing stress on the sealing faces.

Accessories and Customization Options

The PSS Shaft Seal is a singular component designed to replace an entire stuffing box assembly. While it doesn’t come with a wide array of accessories in the traditional sense, the Maintenance Kit is an essential companion for long-term ownership. This kit includes: one PSS bellow, two O-rings, five set screws, and four new hose clamps, along with an Allen key.

This kit is crucial for carrying out the recommended periodic maintenance. The PSS shaft seal is generally not considered a customizable component in terms of aesthetics or performance tuning; its strength lies in its fixed, well-engineered design. Its compatibility is primarily defined by shaft and stern tube diameters, ensuring a precise fit rather than offering broad customization.

Pros and Cons of PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube

Who Should Buy PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube?

The PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube is an excellent choice for serious boat owners, particularly those with sailboats or powerboats that experience regular shaft rotation. It’s ideal for individuals who value reliability, peace of mind, and are willing to invest in a long-term solution that minimizes ongoing maintenance. This seal is particularly beneficial for cruisers and offshore sailors who cannot afford unexpected water ingress far from port.

Anyone looking to eliminate the constant adjustment, dripping, and shaft wear associated with traditional stuffing boxes will find this a significant upgrade. However, users who primarily operate their vessels infrequently or in very calm, protected waters might find the initial cost harder to justify over simpler, cheaper alternatives. If your vessel suffers from significant shaft misalignment or excessive vibration, it’s worth consulting with a marine mechanic before installation, though the design does accommodate a degree of movement.

For those installing, a good set of pipe cutters or a hacksaw for precise stern tube cutting, along with appropriate marine-grade hose clamps (though new ones are included with the maintenance kit), are recommended. Having a tube of marine sealant or lubricant handy for the O-rings during installation can also be helpful.

Conclusion on PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube

The PSS Shaft Seal 2-1/2″ Shaft 3-1/2″ Tube represents a significant advancement over outdated shaft sealing methods. Its performance in maintaining a dry bilge and preserving the propeller shaft is, in my experience, unparalleled for its class. The initial investment, while higher than traditional packing, is easily justified by the long-term savings in maintenance, reduced wear on critical components, and the immeasurable value of reliable, watertight operation.

For anyone seeking a robust, dependable, and near-maintenance-free solution for their vessel’s propeller shaft seal, I would unequivocally recommend this PSS model. It’s a testament to smart engineering that delivers on its promise, offering sailors and powerboaters the peace of mind they deserve when venturing out on the water.
