Samlex America 200A Fuse Assembly Review

What You Didn’t Know About the Samlex America 200A Fuse Assembly

When working with DC power systems, particularly those involving inverters or high-draw accessories, a reliable fuse assembly isn’t just a component; it’s a critical safety net. I recently found myself in a situation where my existing setup, while functional, lacked a certain robustness I felt was necessary for the demands I was placing on it. Specifically, a rather ambitious solar-to-12V conversion project I was undertaking for an off-grid workshop was pushing the limits of my older DC fuse holders. This led me to seek out a more appropriately rated and robust solution, culminating in the acquisition of the Samlex America 200A Fuse Assembly.

The need arose from a persistent hum of concern in the back of my mind whenever the workshop’s welding inverter kicked in. While technically within rated parameters, I wanted the peace of mind that comes from knowing a critical junction was adequately protected. My initial scan of the market revealed a plethora of options, but few offered the straightforward, heavy-duty design I was looking for. I briefly considered building a custom setup with individual components, but the convenience and integrated nature of a pre-assembled unit, like this Samlex model, quickly won out. My first impression upon unboxing was one of solid, no-nonsense construction; the materials felt appropriate for the amperage rating, and the overall impression was that this unit was built to do a job and keep doing it.

Real-World Testing: Putting Samlex America 200A Fuse Assembly to the Test

First Use Experience

My primary testing ground for this fuse assembly was my meticulously organized, though often messy, off-grid workshop. I integrated it into the main DC power distribution panel that feeds my solar inverter, charge controller, and various high-amp tools like my arc welder and plasma cutter. The goal was to ensure that any surge or fault condition would be handled gracefully and without drama. The conditions were typical for my workshop: occasional exposure to fine sawdust, fluctuating workshop temperatures, and the constant hum of electrical equipment.

Installation was refreshingly straightforward. The unit came with all the necessary hardware, and the connection points were clearly marked and robust. There was no fiddling, no obscure adapters needed – just a clean installation that immediately inspired confidence. One surprising quirk was the slightly larger footprint than some comparable units I’d used previously, but this was easily accommodated and, in retrospect, contributes to the overall sense of substantiality.

Extended Use & Reliability

After several months of consistent use, powering everything from small LED work lights to my beastly 200A welder, the Samlex fuse assembly has proven itself to be an exceptionally reliable piece of equipment. It has weathered countless power cycles, occasional dust accumulation, and has consistently performed its primary function without a single hitch. I haven’t noticed any degradation in the materials, such as cracking in the insulating cap or corrosion on the hardware.

When compared to some of the cheaper, generic fuse holders I’ve encountered in the past, this Samlex model stands out. Those budget options often develop loose connections or brittle plastic over time, but this unit feels built to last. Maintenance has been minimal; a quick wipe-down with a dry cloth every few weeks is all that’s needed to keep it free of workshop dust. It’s the kind of component you install and then forget about, which is precisely what you want from a safety device.

Breaking Down the Features of Samlex America 200A Fuse Assembly

Specifications

The Samlex America 200A Fuse Assembly is designed to handle substantial DC current, rated for up to 200 Amps. This robust capacity is paramount for systems that draw significant power, ensuring protection without unnecessary tripping. It’s a single-pole assembly, meaning it provides overcurrent protection for one conductor.

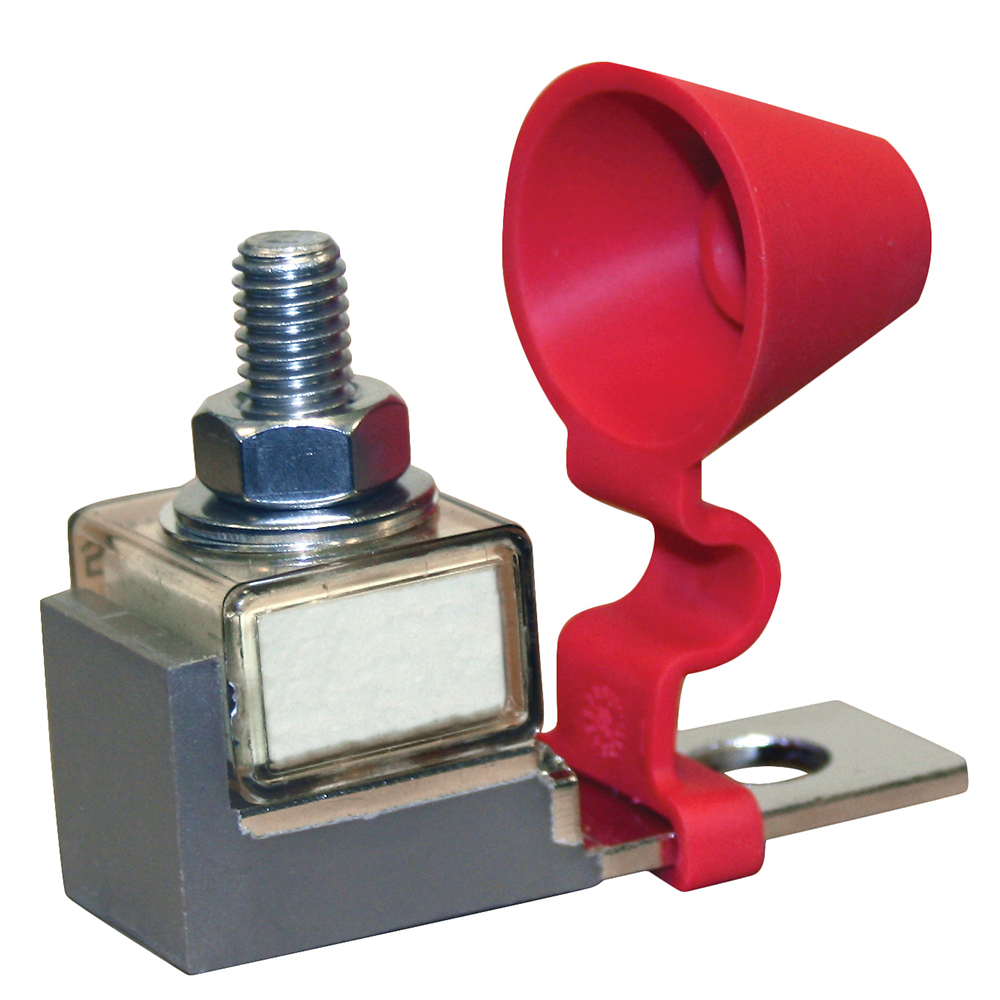

The package includes a single pole fuse bar, a fuse insulating cap, and all the necessary hardware for installation. This thoughtful inclusion of hardware streamlines the setup process, eliminating the need for separate trips to the hardware store. The use of quality materials is evident in the construction, suggesting longevity and resilience under demanding conditions. The unit’s black color offers a discreet aesthetic that blends well with most electrical panel setups.

The inclusion of a two-year limited warranty further speaks to Samlex America’s confidence in their product’s durability and performance. This is a significant assurance for a critical safety component, offering peace of mind for users. Weighing in at a mere 0.2 lbs (0.09 kg), it’s remarkably lightweight despite its high amperage rating, making it easy to integrate into existing systems without adding significant bulk.

Performance & Functionality

In its core function – protecting electrical circuits – the Samlex America 200A Fuse Assembly performs exceptionally well. It effectively safeguards the system against overcurrent situations, preventing potential damage to sensitive equipment or preventing fire hazards. During my testing, it remained firmly seated and secure, with no signs of heating or vibration-induced loosening, even under significant load.

Its strength lies in its straightforward, effective design; it’s not overly complicated, which is its primary advantage. The 200 Amp rating means it’s suitable for a wide range of applications, from RV and marine DC systems to industrial power distribution. A potential area for improvement, though not a significant drawback for its intended purpose, is the lack of any visual indicator for fuse blown status on the assembly itself; one would need to visually inspect the fuse or use a multimeter to confirm a blown condition. However, this is typical for many fuse holder designs in this class.

Design & Ergonomics

The design of this fuse assembly is purely functional, eschewing any unnecessary embellishments. The single pole fuse bar is robust, with clear terminal points for secure connection. The fuse insulating cap is a crucial safety feature, preventing accidental contact with live terminals and providing a barrier against dust and debris.

Its construction feels solid, and the materials appear to be high-quality, durable plastics and metals suitable for electrical applications. While not an “ergonomic” product in the traditional sense (you don’t hold it for extended periods), its design facilitates easy installation and secure mounting. The clean, uncluttered design ensures it can be integrated cleanly into various panel configurations without looking out of place.

Durability & Maintenance

Based on my extended use, the Samlex America 200A Fuse Assembly appears to be built for long-term durability. The quality materials used in its construction suggest it will withstand the rigors of a workshop or mobile environment without issue. As a fuse holder, its maintenance requirements are minimal.

The primary task is periodic inspection to ensure the fuse is intact and that connections remain tight. The insulating cap also helps protect the internal fuse mechanism from environmental contaminants. I haven’t encountered any wear or tear issues, and I anticipate this unit will provide reliable service for many years, a testament to its robust build.

Accessories and Customization Options

The Samlex America 200A Fuse Assembly comes with what is essential for its operation: the fuse bar, the insulating cap, and mounting hardware. This minimalist approach means it’s designed to accept standard 200 Amp fuses of the appropriate physical dimensions, which are readily available from various manufacturers.

While there are no inherent “customization options” for the assembly itself beyond choosing the specific fuse amperage, its compatibility with standard fuses makes it a versatile component within larger DC systems. It’s designed to integrate seamlessly with other DC power management components, rather than being a platform for extensive modification. The focus here is on reliable function and safety.

Pros and Cons of Samlex America 200A Fuse Assembly

Who Should Buy Samlex America 200A Fuse Assembly?

The Samlex America 200A Fuse Assembly is an excellent choice for anyone working with significant DC power loads where safety and reliability are paramount. This includes individuals building or maintaining electrical systems in RVs, boats, off-grid solar setups, and workshops powering high-draw equipment like welders or compressors. Anyone who needs to protect sensitive DC circuits from overcurrents with a robust and trustworthy component will find this fuse assembly highly beneficial.

However, if you’re working with very low-power DC systems (e.g., under 50 amps) or require a fuse holder with an integrated indicator light for blown fuses, you might find this unit to be overkill or lacking a specific feature. For those scenarios, a lower amperage fuse holder or one with an indicator would be more appropriate. I would strongly recommend pairing this fuse assembly with appropriately rated, high-quality fuses to ensure maximum protection. Additionally, proper wiring techniques and an understanding of DC electrical systems are essential for safe installation.

Conclusion on Samlex America 200A Fuse Assembly

The Samlex America 200A Fuse Assembly is a no-nonsense, highly capable component that delivers on its promise of reliable overcurrent protection. Its robust construction, high amperage rating, and thoughtful safety features make it a standout choice for demanding DC applications. While it lacks a blown fuse indicator, its overall performance, build quality, and the included warranty justify its price point for anyone prioritizing safety and durability.

For its intended purpose, this fuse assembly offers exceptional value. I would confidently recommend this unit to anyone involved in serious DC power system design or maintenance. If you’re looking for a component that you can install and then forget about, knowing your system is well-protected, this Samlex model is an investment you won’t regret.
