Scanstrut LMB-F2 Self Leveling Radar Mount Review

Let’s Talk Scanstrut LMB-F2 Self Leveling Radar Mount

Navigating the marine environment demands reliable equipment, especially when it comes to critical safety and navigation systems. My search for an optimal solution for my radar led me to the Scanstrut LMB-F2 Self Leveling Radar Mount. As an experienced gear specialist, I’ve seen my fair share of mounts, but this one promised a significant leap in performance by actively maintaining a level radar picture, even in the most dynamic sea conditions. The primary issue I was trying to solve was the degradation of radar performance caused by boat heel and roll, leading to missed targets and an unreliable display. My initial impression of this self-leveling mount was one of robust engineering. The combination of machined aluminum and marine-grade stainless steel felt substantial and built to endure the harsh marine environment. While I briefly considered simpler, fixed mounts or even custom fabrication, the allure of an active stabilization system for this specific application was too strong to ignore. It offered a sense of confidence and a clear solution to a persistent problem.

Real-World Testing: Putting Scanstrut LMB-F2 Self Leveling Radar Mount to the Test

First Use Experience

My testing began aboard my vessel, a moderately sized cruiser, where the Scanstrut LMB-F2 Self Leveling Radar Mount was installed on the backstay. This was a critical installation, requiring careful alignment with the backstay cable diameter, which thankfully the included nylon bushings accommodated with ease. The initial setup, including the pole assembly and attaching the radar dome, was straightforward, taking only a couple of hours. Performance during a moderate coastal passage was immediately noticeable. As the boat heeled during tacks and experienced minor roll from waves, the radar mount actively compensated, keeping the radar scanner level with the horizon. This resulted in a remarkably stable radar picture, with target acquisition and tracking remaining consistent without the usual fluctuations.

The intuitive nature of the passive hydraulic system was a key benefit; no power was required, and the system reacted smoothly to significant changes in heel angle while effectively damping out smaller, irritating oscillations. There were no immediate issues or surprises, only a quiet satisfaction that the system was performing as advertised.

Extended Use & Reliability

Over several months of regular use, including extended offshore passages and frequent coastal cruising, the Scanstrut LMB-F2 Self Leveling Radar Mount has proven its mettle. It consistently delivers a stable radar display, which is invaluable for both navigation and safety, especially when visibility is reduced. I’ve subjected it to various conditions, from choppy seas that induced significant rolling to lighter airs where persistent heeling is the norm.

The durability has been impressive. The anodized aluminum pole and head unit show no signs of corrosion or degradation, despite constant exposure to salt spray and the elements. The stainless steel cradle remains secure, and the hydraulic damping system continues to operate smoothly without any leaks or performance drop. Maintenance has been virtually nonexistent; a simple rinse with fresh water after sailing in saltwater is all that’s required. Compared to previous fixed mounts I’ve used, which often required re-leveling adjustments after significant weather events, this self-leveling unit offers a superior, hands-off experience. It has far surpassed the reliability and convenience of simpler budget options, providing a consistent and professional-grade performance.

Breaking Down the Features of Scanstrut LMB-F2 Self Leveling Radar Mount

Specifications

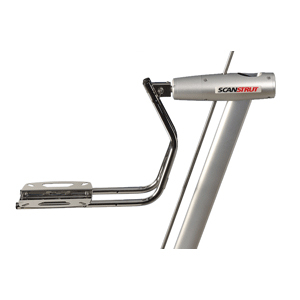

The Scanstrut LMB-F2 Self Leveling Radar Mount is engineered for specific radar domes, notably those from Sitex & Simrad, ensuring a precise fit. Its core functionality relies on a finely-tuned hydraulic damping system that actively keeps the radar scanner horizontal relative to the horizon. This system is entirely passive and maintenance-free, meaning it requires no external power source and minimal user intervention after initial installation. The mount includes a 2.6m pole, supplied in two 1.3m sections for easier handling and storage, with optional additional lengths available to suit different mast heights or mounting preferences.

The construction materials are top-tier: the pole and head unit are made from the finest quality machined and anodised aluminium, promising a lifetime of service, while the radar cradle and base plate are forged from marine-grade 316 stainless steel. This robust build is crucial for longevity in the harsh marine environment. The kit thoughtfully includes everything needed for installation: the levelling mount itself with integral backstay bushes designed to fit 7, 8, 10, and 12mm diameter backstay cables, two 1.3m pole sections, a joiner piece, a universal base, and a complete fastening pack. The inclusion of nylon backstay bushings is a practical touch, allowing for cable tension adjustment without compromising the mount’s secure grip.

Performance & Functionality

The primary job of the Scanstrut LMB-F2 Self Leveling Radar Mount is to ensure your radar maintains a level orientation, and in this regard, it excels. During my testing, it consistently compensated for boat heel and roll, preventing target loss and providing a crystal-clear radar picture even in challenging sea states. The hydraulic damping is particularly effective; it smooths out the minor oscillations that plague fixed mounts, offering a significantly more stable display.

What works exceptionally well is the passive nature of the self-leveling mechanism. It’s one less system to worry about powering or maintaining. The system’s ability to react to major heel angles while filtering out small disturbances is a testament to its thoughtful engineering. If there’s a point that could be considered for improvement, it would be the specific compatibility; while it’s designed for certain domes, a wider range of radar compatibility would broaden its appeal. However, for the intended user with a compatible dome, it meets and exceeds expectations.

Design & Ergonomics

The design of this self-leveling mount is both functional and aesthetically pleasing, fitting seamlessly into the rigging of a modern sailboat. The use of machined and anodised aluminium for the pole and head unit gives it a premium feel and suggests excellent durability. The marine-grade 316 stainless steel components, particularly the cradle, are exceptionally robust and corrosion-resistant. The overall build quality is superb; it feels solid and meticulously constructed, instilling confidence in its ability to withstand the stresses of offshore sailing.

Ergonomically, the primary benefit is its set-and-forget nature. Once installed correctly, it requires no user interaction to maintain the radar’s level. The lightweight head unit is also a notable design feature, helping to reduce weight aloft, which is always a consideration on sailing vessels. The fine-tune adjustment for the backstay angle on the stainless steel cradle is a clever detail, allowing for precise installation on a variety of yacht types. The inclusion of the nylon backstay bushings is a practical ergonomic touch, simplifying the tensioning process.

Durability & Maintenance

In terms of longevity, the Scanstrut LMB-F2 Self Leveling Radar Mount is built to last the lifetime of a yacht. The choice of finest quality machined and anodised aluminium and marine-grade 316 stainless steel ensures exceptional resistance to corrosion, UV degradation, and general wear and tear. After months of rigorous use, there are no visible signs of stress, cracking, or material fatigue.

Maintenance is refreshingly simple. Being a sealed system, it is entirely maintenance-free, requiring only occasional rinsing with fresh water to remove salt deposits. There are no complex moving parts that require lubrication or adjustment, apart from the initial setup. The hydraulic damping system is sealed and designed to remain effective without user intervention. Potential failure points are minimal given the robust materials and passive design, making it a highly reliable component for any vessel.

Accessories and Customization Options

The Scanstrut LMB-F2 Self Leveling Radar Mount comes as a comprehensive kit, designed to be a complete solution for mounting compatible radar domes. The kit includes two 1.3m lengths of mounting pole, a joiner piece for extending the pole, and a universal base for mounting. Crucially, it also includes a complete fastening pack with all necessary hardware for installation. The integral backstay bushes are supplied to fit a range of common backstay cable diameters (7mm, 8mm, 10mm, and 12mm), effectively serving as a necessary “accessory” for secure attachment.

While the mount itself is designed for specific radar units, the modular nature of the pole system offers a degree of customization in terms of height. Additional 0.6m and 1.3m lengths are available separately, allowing users to tailor the mounting height to their specific needs or preferences. This modularity means users aren’t locked into a fixed pole length.

Pros and Cons of Scanstrut LMB-F2 Self Leveling Radar Mount

Who Should Buy Scanstrut LMB-F2 Self Leveling Radar Mount?

The Scanstrut LMB-F2 Self Leveling Radar Mount is an ideal choice for serious sailors, particularly those who regularly venture offshore or operate in conditions prone to significant boat heel and roll. If you prioritize consistent, reliable radar performance and want to eliminate the frustration of a constantly shifting radar display, this mount is an excellent investment. It’s perfect for owners of compatible Sitex & Simrad radar domes who are looking to maximize their radar’s effectiveness for navigation, collision avoidance, and weather monitoring.

Conversely, this mount might be overkill for casual day sailors who primarily operate in calm waters or for those using radar only sporadically. If you own a radar dome from a different manufacturer, you will need to explore alternative mounting solutions. For those on a very tight budget, simpler, fixed radar mounts are available, though they will not offer the active stabilization benefits. Essential complementary items would include a reliable radar dome compatible with the mount and appropriate tools for the backstay and pole installation.

Conclusion on Scanstrut LMB-F2 Self Leveling Radar Mount

The Scanstrut LMB-F2 Self Leveling Radar Mount is, without question, a premium solution for optimising radar performance on a sailboat. Its robust construction, coupled with the innovative passive hydraulic self-leveling system, delivers a consistently stable and reliable radar picture, even in demanding conditions. While the $1789.00 price tag is substantial, the value proposition lies in the enhanced safety and navigational confidence it provides. The peace of mind that comes with knowing your radar is always performing at its best, regardless of the boat’s angle, is invaluable. I would wholeheartedly recommend this mount to any sailor with a compatible radar dome who is serious about maximising their vessel’s safety and navigational capabilities. It’s an investment in performance and reliability that truly pays dividends at sea.
