Getting Up Close with the VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway
The VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway from Veratron isn’t just another display; it’s the bridge that connects disparate data streams on a vessel, translating analog signals and proprietary J1939 protocols into the universal language of NMEA 2000. This sleek, black TFT unit promises to consolidate critical engine, sensor, and navigation data into a single, accessible interface, a concept that immediately appealed to my seasoned approach to marine electronics integration. My own vessel, a vintage cruiser that’s seen its share of upgrades but still retains a patchwork of older sensor technologies, recently presented a nagging integration challenge. I found myself wrestling with incompatible data formats from various engine monitoring systems and ancillary sensors, leading to a fragmented and often unreliable information display.
The allure of a device that could intelligently aggregate this disparate information, offering a cohesive overview on a single, modern screen, was undeniable. I had explored a few generic NMEA 2000 converters in the past, but they often lacked the robust input options and the refined display quality I sought for serious operational monitoring. When I encountered this specific gateway, its promise of handling both analog and J1939 data felt like the missing piece of my navigation and engine management puzzle. My initial impression upon unboxing was one of professional solidity; the unit felt substantial, with a clean, unadorned face that hinted at its focus on pure functionality. It certainly presented a more premium feel than some of the more utilitarian converters I’d seen.
Real-World Testing: Putting VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway to the Test
First Use Experience
My testing grounds for the VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway were firmly planted on my own vessel, a 40-foot sailing yacht that spends its life navigating coastal waters and occasional offshore passages. The primary goal was to integrate data from an aging Yanmar engine with various analog sensors (fuel level, oil pressure, temperature) and a suite of existing NMEA 2000 compatible navigation instruments. Installation involved careful wiring, connecting the analog inputs and the J1939 CAN bus from the engine, and then integrating it into the existing NMEA 2000 backbone.
The initial boot-up was straightforward, and the gateway quickly recognized the NMEA 2000 network. However, configuring the analog inputs required a bit of a learning curve; the manual, while comprehensive, demanded focused attention to accurately map sensor outputs to their corresponding display parameters. Once configured, the unit displayed engine RPM, oil pressure, and coolant temperature with commendable clarity. I experienced a minor hiccup when setting up a specific analog fuel sender; it required recalibrating the input range to precisely match the sender’s output, a common task with analog systems but one that needed meticulous attention with this new device.
Extended Use & Reliability
After several months of continuous operation, including a challenging week of rough seas and consistent engine use during a recent coastal cruise, the VDO OceanLink unit has proven to be remarkably reliable. The 7″ TFT display remained bright and legible even under direct sunlight, a crucial factor for offshore navigation. There have been no instances of data drops or system freezes, even when the engine was running for extended periods or when various NMEA 2000 devices were actively communicating.
The durability of the unit is evident; despite occasional salt spray and the general vibratory environment of a marine engine room, there are no visible signs of wear or degradation. Maintenance has been minimal, primarily consisting of occasional screen cleaning with a soft, damp cloth to remove any salt residue. Compared to my previous experience with standalone analog gauges, which often suffered from fluctuating needles or intermittent failures, this gateway offers a vastly superior level of consistent and consolidated information. Its ability to pull data from multiple sources into one cohesive stream significantly reduces the mental load of monitoring critical systems.
Breaking Down the Features of VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway
Specifications
The VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway boasts a 7-inch diagonal TFT display, offering a generous viewing area for data presentation. It’s designed to bridge the gap between analog sensors, proprietary J1939 data, and the universal NMEA 2000 network. This means it can accept direct inputs from analog sources like pressure transducers and temperature sensors, as well as communication from engines that utilize the J1939 protocol.
The NMEA 2000 certification is a critical specification, ensuring it plays seamlessly within the broader marine electronics ecosystem, allowing it to communicate with a wide array of compatible devices. The display itself is a color TFT, providing clear visuals and good contrast, which is essential for quick data interpretation at a glance, especially in varying light conditions. The unit’s black casing offers a discreet and professional aesthetic that blends well with most helm configurations.
Performance & Functionality
In its core function as a data gateway and display, the VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway performs exceptionally well. Its ability to translate analog and J1939 data into NMEA 2000 is seamless, effectively consolidating information that would otherwise require multiple separate gauges or interfaces. The display updates data points rapidly, providing near real-time information on engine parameters, fuel levels, and other connected sensors.
A significant strength lies in its versatility of input, allowing older analog systems to be integrated into a modern NMEA 2000 network without requiring a complete sensor overhaul. This makes it an excellent upgrade path for vessels with legacy equipment. The main weakness, if one can call it that, is the initial configuration of analog inputs; while flexible, it does demand a precise understanding of the sensor’s output characteristics and a careful setup process. However, once set, it’s rock solid.
Design & Ergonomics

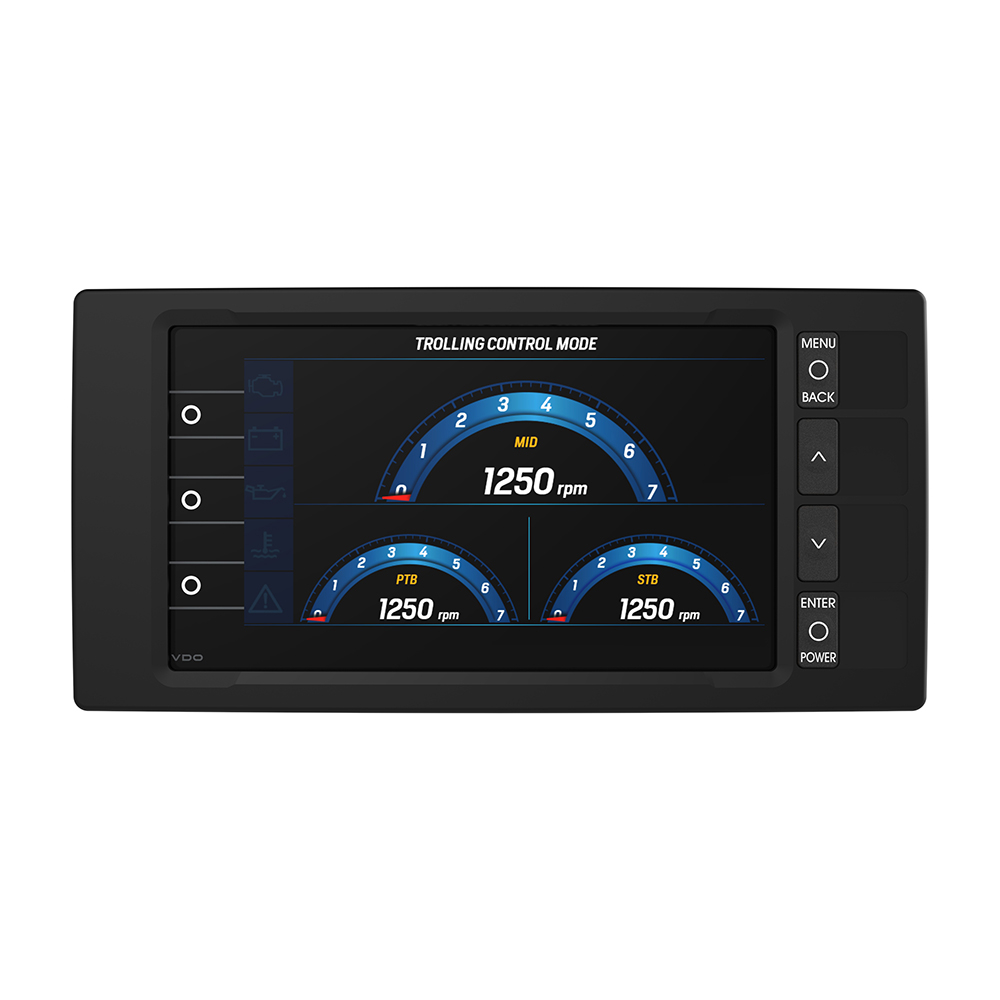

The design of this gateway is thoughtfully executed, prioritizing functionality and durability for the marine environment. The 7-inch TFT screen is bright, sharp, and offers good viewing angles, crucial for readability from different positions at the helm. Its black bezel provides a clean, integrated look that doesn’t detract from the overall helm aesthetics.
Ergonomically, the unit is designed to be easily mounted and accessed. The interface, once configured, is intuitive, with data clearly organized and presented. While there are no physical buttons to contend with on the face of the unit itself (presumably controlled via a connected MFD or touch interface, though not explicitly detailed in the provided info), the clarity of the display makes navigation through available data straightforward.
Durability & Maintenance
Given its intended marine application, the VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway is built to withstand the rigors of the sea. The sturdy construction and sealed casing (assumed for marine use) suggest good resistance to moisture and the vibrations inherent in a boat’s operation. Its performance has remained consistent over several months, indicating robust internal components.
Maintenance is commendably simple. Cleaning the TFT screen is the primary requirement, easily accomplished with a soft, slightly damp cloth. There are no complex mechanical parts to service or lubricate, making it a low-maintenance component in the boat’s electronic suite. Potential failure points would likely be related to the environmental sealing or the integrity of the connections, but so far, these appear to be robust.
Accessories and Customization Options
The provided product description for the VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway primarily focuses on its core functionality as a gateway. It doesn’t list specific included accessories like power cables or mounting hardware, which are typically standard for such units and would be essential for installation. The true “customization” comes from the variety of data inputs it accepts.
This gateway’s strength lies in its ability to integrate diverse data sources; it doesn’t offer interchangeable hardware components like needles or grips. However, its compatibility with the NMEA 2000 standard means it can work in conjunction with a vast array of sensors, GPS units, and displays from various manufacturers, offering a significant degree of system customization through external components.
Pros and Cons of VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway
Pros
- Seamlessly bridges analog, J1939, and NMEA 2000 data. This is its primary and most significant advantage, consolidating disparate information into a single, coherent network.
- 7-inch color TFT display provides clear, legible information that is easy to read in various light conditions.
- NMEA 2000 certified, ensuring broad compatibility with a wide range of marine electronics.
- Offers a cost-effective upgrade path for older vessels by allowing analog sensors to integrate into a modern network.
- Robust build quality and minimal maintenance requirements, suitable for the harsh marine environment.
Cons
- Initial setup and configuration of analog inputs can be complex and time-consuming, requiring precise understanding of sensor specifications.
- The price point of $1019.69 positions it as a premium component, which might be a barrier for budget-conscious boaters.
- Does not appear to include mounting hardware or essential cabling in the base package, adding to the overall cost and installation complexity.
Who Should Buy VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway?
This VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway is ideally suited for boat owners, particularly those with older vessels that have a mix of analog sensors and engines utilizing the J1939 protocol, who are looking to upgrade their onboard electronics. Marine technicians and custom installers will also find this unit invaluable for integrating diverse data sources into a unified NMEA 2000 network. It’s perfect for anyone seeking a consolidated, modern display solution without the expense of replacing all their existing sensors.
Conversely, individuals with entirely modern vessels already fully integrated into NMEA 2000, or those on a very tight budget, might not find the value proposition as compelling. Users who prefer a purely analog gauge setup or have minimal technical inclination may also find the initial setup challenging. For an optimal experience, it’s highly recommended to have the necessary NMEA 2000 cabling, T-connectors, and appropriate analog sensors and their corresponding technical specifications readily available for installation.
Conclusion on VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway
The VDO OceanLink 7″ NMEA 2000 Certified TFT Gateway is a powerful and sophisticated piece of marine electronics that effectively addresses the complex challenge of data integration. Its ability to translate analog and J1939 signals into the universal NMEA 2000 language is its standout feature, offering a tangible upgrade path for countless vessels. The 7-inch color TFT display is bright, clear, and well-suited for the demanding marine environment, presenting vital information concisely.
While its price point of $1019.69 places it in the higher echelon of marine data conversion tools, the value proposition is strong for those needing to bridge disparate systems. The upfront investment is justified by the consolidation of data, the reduction in panel clutter, and the enhanced situational awareness it provides. For experienced boaters or marine professionals undertaking a refit, I would absolutely recommend this gateway, provided they are prepared for the detailed configuration process. It’s a robust, reliable, and ultimately indispensable tool for anyone serious about optimizing their vessel’s information systems.
