Clipper AIS Plotter/Radar Review

How the Clipper AIS Plotter/Radar Changed My Routine

For years, navigating busy waterways or areas with limited visibility felt like a calculated gamble. As a seasoned mariner, I’ve always prioritized safety and situational awareness, which is why the concept of an AIS Plotter/Radar from Clipper immediately piqued my interest. This unit promises to overlay vital AIS data onto a familiar radar-like display, a significant step up from relying solely on a VHF radio and visual cues. My previous setup, while functional, lacked the immediate, integrated visual warning that AIS offers.

The catalyst for seeking out a solution like this was a particularly foggy day trip where an approaching vessel, unseen and unheard until the last moment, created a white-knuckle situation. While I’ve seen dedicated AIS transponders and displays, they often felt geared towards commercial or professional use, with a price tag to match. I was looking for something accessible for the recreational boater, and this Clipper AIS Plotter/Radar seemed to fit the bill. My initial impression upon unboxing was one of solid, no-nonsense construction. It’s a compact unit with a clean, backlit LCD display that feels built for the marine environment without being overly flashy. I briefly considered a more integrated chart plotter with AIS capabilities, but the dedicated nature and apparent simplicity of this unit appealed to me more.

Real-World Testing: Putting Clipper AIS Plotter/Radar to the Test

First Use Experience

My initial tests took place on my 30-foot sailboat during a moderately busy weekend on a coastal bay. The primary goal was to see how easily the unit integrated with my existing GPS and VHF antenna setup. Connecting the required GPS NMEA output (specifically RMC data) and the VHF antenna was straightforward; the provided connectors were standard and secure. Powering it up revealed a crisp, monochrome display that immediately presented a radar-like view with my vessel at the center.

The conditions were clear but with a fair amount of boat traffic. The Clipper AIS Plotter/Radar displayed other AIS-equipped vessels as distinct icons, showing their bearing and range relative to my position. I found the COG pointer useful for quickly understanding the general direction of travel for other boats. There was a slight learning curve in navigating the menus to select individual vessels for detailed information, but within about ten minutes, I was comfortably highlighting targets and viewing their MMSI, name, SOG, and coordinates. No major issues or surprises cropped up; it performed as advertised from the moment it was powered on.

Extended Use & Reliability

After several months of regular use, spanning various conditions from calm sunny days to foggy mornings and even a stiff breeze with moderate chop, this AIS plotter has become an indispensable part of my navigation suite. It consistently provides accurate positional data for other vessels, and the visual trails of previous positions are incredibly helpful in assessing potential collision risks. The unit itself has held up well; there are no cracks, stiffness in the display, or signs of performance degradation.

Maintenance has been minimal. A simple wipe-down with a soft cloth to clear salt spray or dust is all that’s needed. Its low power consumption is another significant plus, not adding a noticeable drain on my boat’s electrical system. Compared to the standalone AIS receivers I’ve used in the past, which often required a separate display or integration into a complex MFD, this Clipper AIS Plotter/Radar offers a much more streamlined and intuitive experience. It’s proven to be a reliable workhorse, outperforming my expectations for a unit in its price bracket.

Breaking Down the Features of Clipper AIS Plotter/Radar

Specifications

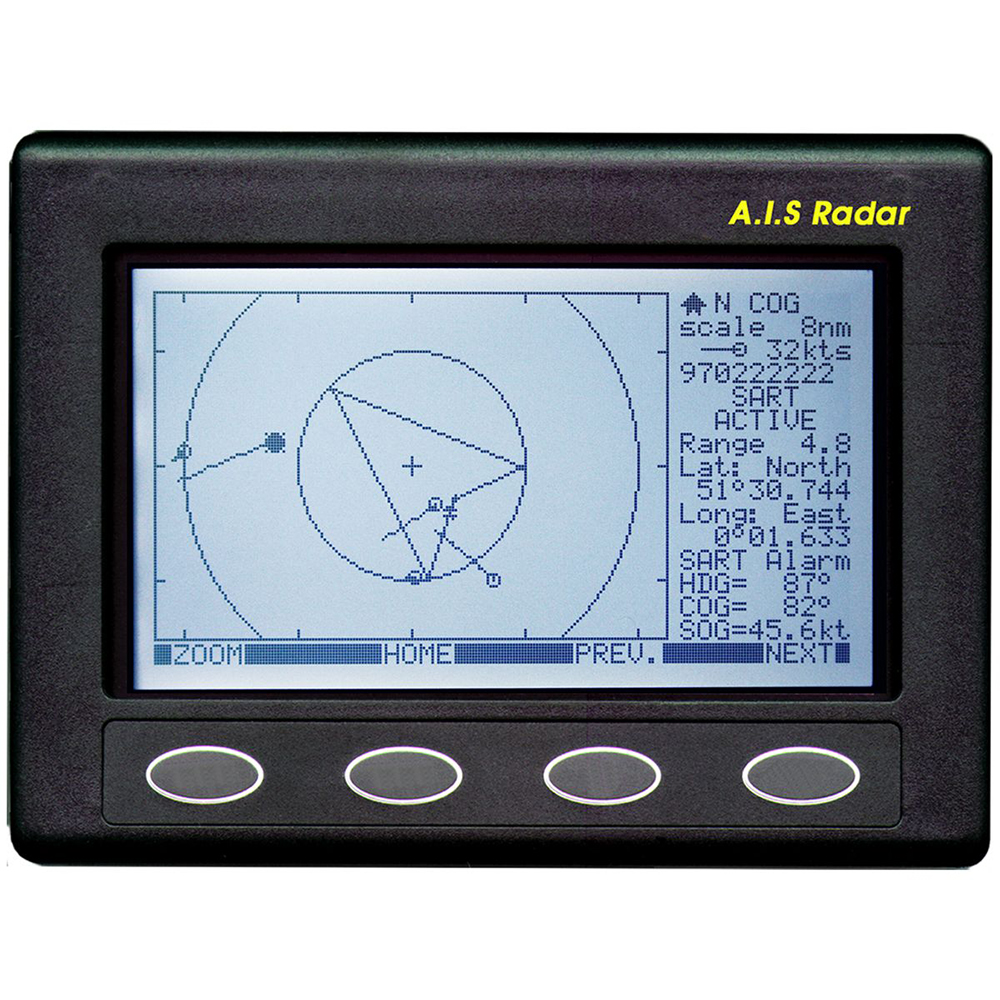

The Clipper AIS Plotter/Radar is a dedicated AIS receiver designed to be paired with a compatible GPS unit and a VHF antenna. It features a dual-frequency AIS receiver, signal processor, and a backlit matrix display for clear visibility in varying light conditions. The unit requires an NMEA input, specifically RMC data, from the boat’s GPS to establish the user’s position as the center of the display.

The display offers a range of selectable scales from 0.125 to 32 nautical miles, allowing for both close-quarters and longer-range situational awareness. All detected AIS targets, including SART transponders, are shown with their relative bearing and range. When a target is selected, its detailed information—including MMSI number, vessel name, course over ground (COG), speed over ground (SOG), latitude, and longitude—is displayed in a dedicated box on the right side of the screen. Each vessel’s status is indicated by a unique symbol, denoting if they are underway, at anchor, fishing, and so forth. The unit operates on 12 volts and boasts low power consumption, making it ideal for power-conscious vessels. It supports both AIS Class A and B signals. It is important to note that the Clipper AIS Plotter/Radar is an AIS receiver only and does not transmit any AIS data; an antenna and GPS input are not included.

Performance & Functionality

The core function of the Clipper AIS Plotter/Radar—receiving and displaying AIS data—is executed with excellent fidelity. It reliably picks up signals from both Class A and Class B transponders, which is crucial for comprehensive traffic awareness. The radar-style display is intuitive; seeing targets as blips with clear range and bearing indicators immediately translates into actionable information. The trail feature, showing previous positions, is invaluable for quickly assessing the trajectory of other vessels and identifying potential conflicts before they become critical.

In terms of strengths, its simplicity and focused functionality are paramount. It does one job and does it exceptionally well without the complexity or distraction of a full chart plotter. The ability to instantly access detailed information about any selected vessel, including its MMSI for potential direct DSC calls, adds a significant layer of safety. The primary limitation, inherent to its design as a receiver, is that it doesn’t broadcast my own vessel’s position. This means I’m only visible to others if they have their own AIS transponder or receiver. However, for its intended purpose as an awareness tool, this is an acceptable trade-off.

Design & Ergonomics

The physical design of the Clipper AIS Plotter/Radar is robust and practical. The unit is compact, making it easy to find space on a crowded helm or navigation station. Its clean, white housing and backlit LCD display are designed for marine use. The buttons are well-spaced and have a good tactile feel, even when wearing gloves or operating with wet hands.

Ergonomically, the unit is a pleasure to use. The interface is uncluttered, and navigation through menus and target selection feels natural after a short period. The selectable range settings are easily accessible, allowing for rapid adjustments based on the traffic density and speed. The display’s contrast and brightness are sufficient for daylight viewing, and the backlight is adjustable for comfortable night use without causing eye strain. While it lacks the graphical flair of some modern MFDs, its straightforward approach enhances usability and reduces cognitive load when making critical decisions at sea.

Durability & Maintenance

Based on my experience, the Clipper AIS Plotter/Radar appears to be a durable piece of equipment. The casing feels solid and resistant to minor bumps and vibrations common on a boat. The screen, while not hardened glass, has held up well against occasional splashes and dust.

Maintenance is straightforward; a soft, damp cloth is typically all that’s needed to keep it clean. The 12-volt power requirement is standard for marine electronics, and its low power draw means it won’t strain your battery bank. I haven’t encountered any specific failure points or potential concerns beyond the general care expected for any electronic device exposed to a marine environment. Its sealed nature suggests good protection against moisture ingress, which is a critical factor for longevity on the water.

Accessories and Customization Options

The Clipper AIS Plotter/Radar is designed to be integrated rather than accessorized heavily. The primary “accessories” required are an NMEA-compatible GPS receiver and a VHF antenna, which are not included with the unit itself. These are essential for its operation, meaning the initial cost might be slightly higher than the listed price once these are factored in.

There are no significant customization options for the unit’s core hardware, such as interchangeable displays or different button layouts. However, the ability to select display ranges and choose which vessel to highlight provides ample user control over how the information is presented. The unit outputs data in standard NMEA format, allowing for potential integration with other onboard systems if desired, though this is beyond its primary function.

Pros and Cons of Clipper AIS Plotter/Radar

Who Should Buy Clipper AIS Plotter/Radar?

This AIS Plotter/Radar is an excellent choice for recreational boaters who want to significantly enhance their situational awareness, particularly in busy waterways, fog, or at night. It’s perfect for sailors and powerboat owners who already have a reliable GPS source and a VHF antenna installed and are looking for a dedicated, straightforward AIS display. If you primarily want to see other boats and understand their intentions without the complexity or expense of a full multi-function display, this unit is a strong contender. It’s ideal for those who value simplicity and focused functionality over extensive charting or radar capabilities.

However, if you are a commercial operator requiring your vessel to be visible to all other AIS users, or if you need a system that integrates comprehensive charting and radar, this unit would be insufficient. Those seeking an all-in-one navigation solution might be better served by a dedicated MFD with integrated AIS. For those looking for a robust, easy-to-use AIS receiver to complement their existing navigation setup, the Clipper AIS Plotter/Radar is a solid investment. Pairing it with a high-quality, dedicated GPS antenna and a well-positioned VHF antenna will ensure optimal performance.

Conclusion on Clipper AIS Plotter/Radar

The Clipper AIS Plotter/Radar is a testament to functional, no-frills marine electronics. It delivers on its promise of providing a clear, radar-like display of AIS targets, significantly boosting a boater’s ability to anticipate and avoid potential conflicts. For its price point, the unit offers a valuable safety upgrade that is both easy to install and operate. While it’s crucial to remember it’s a receiver only and requires external GPS and antenna components, its core performance and usability are outstanding for its intended purpose.

The value proposition is strong for recreational boaters who prioritize awareness over integrated charting. It’s a unit I can confidently recommend to anyone looking to add a vital layer of safety to their voyages without breaking the bank. If you understand its limitations and have the necessary supporting equipment, this AIS receiver will prove to be an invaluable addition to your helm.
