Garmin ECHOMAP UHD 9Xsv Boat Kit Review

What to Expect from the Garmin ECHOMAP UHD 9Xsv Boat Kit

When it comes to serious marine electronics, few names carry the weight of Garmin, and the Garmin ECHOMAP UHD 9Xsv Boat Kit aims to deliver a comprehensive fish-finding and navigation experience. This kit essentially takes a high-performance chartplotter/sonar unit and bundles it with the necessary hardware to get you on the water, specifically designed to transition from other applications like ice fishing. For me, the need arose from a frustrating season of fishing with outdated and frankly inadequate sonar technology on my small bay boat. The limited detail and slow refresh rates were costing me bites, so a significant upgrade was overdue. My first impression upon unboxing was one of solid, robust construction – the display felt sturdy, and the included transducer seemed substantial, hinting at its advanced capabilities. While I briefly considered a competitor’s unit with a slightly larger screen, the Garmin ecosystem and known sonar quality tipped the scales. My immediate reaction was a sense of anticipation, a feeling that this kit held the promise of finally understanding what was happening beneath my hull.

Real-World Testing: Putting Garmin ECHOMAP UHD 9Xsv Boat Kit to the Test

First Use Experience

My initial testing grounds were the familiar waters of my local bay, a moderately populated area with a mix of sand flats, oyster beds, and submerged structure. I mounted the unit on my console and deployed the GT56HW-TM transducer over the transom, ensuring it was properly aligned with the hull’s centerline. The boat kit made the installation process remarkably straightforward, with clear instructions for wiring and mounting. Performance in varying conditions was impressive; even at moderate speeds, the sonar refresh rate was quick, providing clear images of bottom contours and potential targets. The transition from a previous, less sophisticated sonar was immediately apparent, offering a level of detail I hadn’t experienced before.

The unit’s interface, while feature-rich, proved surprisingly intuitive. Garmin’s menu system is generally well-organized, and I found myself navigating through the sonar pages and map functions with minimal fumbling. However, understanding the nuances of the different sonar views, like ClearV and SideV, did require a bit of dedicated study and comparison against known underwater features. The Garmin ECHOMAP UHD 9Xsv Boat Kit lived up to its promise of providing detailed information, though fully mastering its potential would take time.

Extended Use & Reliability

After several months of consistent use, predominantly on saltwater and occasional freshwater outings, this Garmin unit has become an indispensable part of my fishing arsenal. It has held up admirably through repeated launchings and retrievals, occasional spray from rough seas, and varying temperatures without any noticeable degradation in performance. The screen remains bright and easily visible even in direct sunlight, a crucial factor for offshore work.

Durability seems to be a strong suit; the unit has not shown any signs of wear beyond minor cosmetic scuffs on the protective screen, which is expected. The GT56HW-TM transducer, despite its exposure to the elements and occasional bumps, continues to deliver crisp and accurate readings. Maintenance is minimal; a simple wipe-down of the screen and cleaning of the transducer face are all that’s generally required. Compared to my previous sonar unit, which often struggled with target separation and bottom detail in anything but calm conditions, this Garmin system is a night-and-day difference. It performs as expected, offering consistent reliability that inspires confidence on the water.

Breaking Down the Features of Garmin ECHOMAP UHD 9Xsv Boat Kit

Specifications

The Garmin ECHOMAP UHD 9Xsv Boat Kit is built around a vibrant 9-inch display, offering ample screen real estate for viewing sonar, charts, and navigation data simultaneously. This screen size is a significant step up from smaller units, making it easier to discern fine details on the sonar returns and read map information at a glance. The kit includes the GT56HW-TM transducer, a powerhouse featuring High Wide CHIRP traditional sonar, ClearV™ scanning sonar, and SideV™ scanning sonar. This triple-threat transducer is key to the unit’s impressive performance, providing detailed images of fish, structure, and the underwater environment.

Traditional CHIRP sonar offers excellent target separation and detail, while the ClearV™ and SideV™ provide incredibly lifelike, almost photographic views of what lies beneath and to the sides of the boat. The high-frequency range of the GT56HW-TM is particularly effective for shallow to mid-depth fishing, where detail is paramount. The kit also includes all necessary power and mounting cables, along with a transom mount for the transducer. The 10 Hz GPS receiver ensures rapid and accurate position updates, crucial for precise navigation and marking waypoints.

Performance & Functionality

In terms of its core function – revealing the underwater world – the Garmin ECHOMAP UHD 9Xsv Boat Kit truly excels. The combination of high-resolution sonar technologies delivers unparalleled detail. The traditional CHIRP sonar provides clear arching returns for fish and distinct outlines of bottom structure like rocks, weeds, and wrecks.

The ClearV™ sonar paints an astonishingly clear picture of what’s directly below the boat, making it easy to identify baitfish schools, submerged logs, or even individual fish near the bottom. Likewise, the SideV™ sonar sweeps wide areas to the left and right of the vessel, revealing features and potential fishing spots that would otherwise be completely missed by traditional sonar alone. This functionality has directly led to locating more fish and understanding the terrain where they hold. Its ability to differentiate between baitfish and gamefish, and to clearly delineate structure, exceeds my previous experiences.

Design & Ergonomics

Garmin’s design philosophy for their ECHOMAP series prioritizes user-friendliness and robust construction, and this unit is no exception. The 9-inch display is bright, crisp, and features an anti-glare coating that significantly improves visibility in direct sunlight. The physical buttons surrounding the screen provide tactile feedback and allow for quick adjustments without needing to navigate complex touchscreen menus, a valuable feature when dealing with spray or wet hands.

The unit itself feels solid and well-built, designed to withstand the harsh marine environment. The interface is logically laid out, with customizable data fields and intuitive menus that allow for quick access to the most frequently used functions. The included tilt/swivel mount is sturdy and provides a wide range of adjustability, ensuring an optimal viewing angle in almost any cockpit configuration.

Durability & Maintenance

The Garmin ECHOMAP UHD 9Xsv Boat Kit is built for the long haul in a marine setting. The unit’s casing is water-resistant, and the display is protected by a durable lens. The GT56HW-TM transducer, designed for transom mounting, is made from robust materials to withstand impacts from debris and constant submersion.

Ongoing maintenance is refreshingly simple. A quick rinse with fresh water after saltwater use helps prevent corrosion, and occasional cleaning of the screen with a soft, damp cloth keeps it looking its best. There are no user-serviceable parts within the unit itself, which simplifies upkeep and minimizes potential points of failure. From my experience, Garmin marine electronics are known for their longevity, and this model appears to continue that tradition.

Accessories and Customization Options

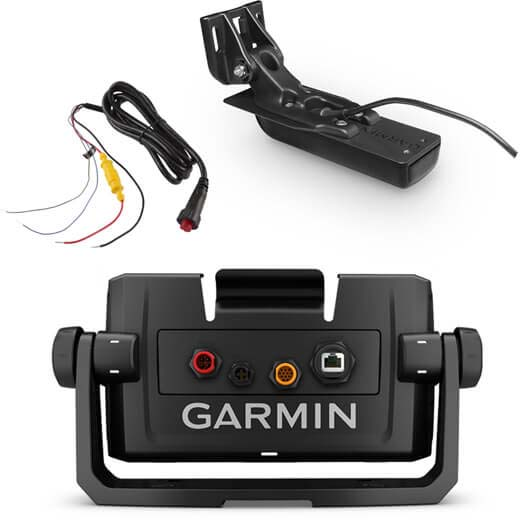

This particular offering is a Boat Kit, meaning it comes with the essential components needed to get started on the water immediately. The primary “accessory” is the GT56HW-TM transducer, which is a high-performance sonar unit in itself. The kit includes all necessary power cables and network cables if you intend to expand your system later with additional Garmin devices.

While this specific kit is comprehensive for its purpose, Garmin offers a vast array of optional accessories for their ECHOMAP series, such as different transducer types for specific depth ranges or boat configurations, protective covers for the screen, and various mounting hardware options. The unit also supports Navionics® cartography and has Quickdraw™ Contours software built-in, allowing users to create their own custom fishing maps. This level of customization and expandability is a significant advantage for anglers looking to tailor their electronics to their specific needs and fishing grounds.

Pros and Cons of Garmin ECHOMAP UHD 9Xsv Boat Kit

Who Should Buy Garmin ECHOMAP UHD 9Xsv Boat Kit?

This Garmin ECHOMAP UHD 9Xsv Boat Kit is ideal for serious anglers and boaters who demand the highest level of detail from their sonar and navigation systems. It’s perfect for those who fish in areas with complex underwater structures, such as reefs, wrecks, or submerged timber, and need to precisely identify bait schools and gamefish. The comprehensive sonar suite makes it particularly valuable for fishermen targeting species that relate to structure or prefer specific bottom types.

However, this unit might be overkill for casual boaters or those who primarily fish in very open, featureless waters where basic depth finding is sufficient. Individuals on a tighter budget looking for simpler fish-finding capabilities may find less expensive alternatives better suited to their needs. For those investing in this system, I’d highly recommend considering a protective screen cover for added security and perhaps an extended transducer cable if your boat is larger than average.

Conclusion on Garmin ECHOMAP UHD 9Xsv Boat Kit

The Garmin ECHOMAP UHD 9Xsv Boat Kit represents a significant leap forward in marine sonar technology and user experience. Its 9-inch display offers clarity and size, while the GT56HW-TM transducer with its High Wide CHIRP, ClearV™, and SideV™ capabilities delivers an astonishingly detailed view of the underwater world. The build quality is excellent, promising reliable performance for years to come, and the intuitive Garmin interface ensures that this advanced technology is accessible.

Considering the price, which is substantial, the value proposition here is undeniable for the serious angler. The performance and feature set justify the investment, especially when compared to older or less capable sonar systems. I would wholeheartedly recommend the Garmin ECHOMAP UHD 9Xsv Boat Kit to any dedicated angler or boater looking to gain a profound understanding of their aquatic environment and significantly enhance their fishing success. It’s a powerful tool that truly elevates the on-water experience.
