Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin Review

Getting Up Close with the Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin

For years, my fishing adventures have been a tapestry woven with experiences ranging from the crystal-clear shallows of freshwater lakes to the murky depths of coastal estuaries. Throughout this journey, effective sonar has been an indispensable companion, transforming guesswork into informed decisions. The need for a transducer that could provide detailed imagery of both what lay beneath and to the sides of my vessel became paramount, especially when navigating complex underwater terrain or locating elusive bait balls. This led me to the Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin. It promised a significant leap in underwater visibility, offering the clarity of CHIRP ClearVu and SideVu scanning sonar in a single, transom-mounted unit.

My previous transducer, while functional, was a generation behind, offering only traditional sonar. The lack of detailed side-scanning imagery meant I was often missing potential fish or structure just outside the central beam. The GT30-TM, with its promise of a comprehensive view, felt like the answer to that specific limitation. When considering alternatives, I briefly looked at other brands offering similar dual-scanning capabilities, but Garmin’s established reputation for marine electronics and user-friendly interfaces ultimately swayed my decision.

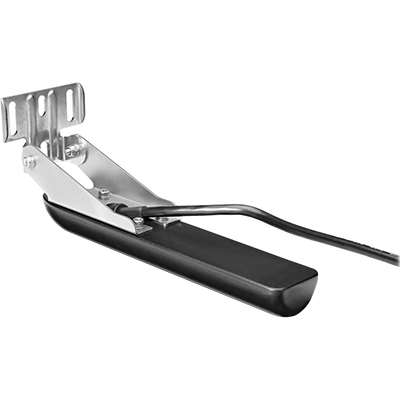

Initial impressions of this Garmin transducer were positive. The unit felt robust, with a well-molded casing that suggested it could withstand the harsh marine environment. The 12-pin connector, while not universally standard, is clearly designed for compatibility with Garmin’s higher-end black box sonar modules. Holding it, there was a sense of confidence in its construction, a feeling that it was built for the job.

First Use Experience

My initial deployment of the Garmin GT30-TM was on a familiar lake known for its submerged timber and rocky drop-offs, a perfect testing ground for its SideVu and DownVu capabilities. I mounted it on the transom of my aluminum fishing boat, following the provided instructions carefully to ensure proper angle and placement. The installation process itself was straightforward, though ensuring the angle was precisely dialed in for optimal performance on a planing hull took a bit of trial and error.

On the water, the difference was immediate and striking. The CHIRP ClearVu provided a remarkably crisp image of the lakebed, clearly delineating weed lines, submerged logs, and even individual rocks. This was a significant upgrade from my previous sonar, offering a level of detail that felt almost photographic. When I engaged the SideVu, the world to my port and starboard sides opened up in stunning clarity. I could see the distinct outlines of fallen trees and the subtle contours of the bottom structure stretching away from the boat.

Navigating through areas I thought I knew well revealed new details. I was able to identify baitfish schools holding tight to structure that my old transducer would have likely missed entirely. The speed at which the transducer updated the imagery, even at moderate trolling speeds, was impressive, keeping pace with the boat’s movement without significant lag. The built-in fast-response temperature sensor also proved accurate, correlating closely with readings from other sources.

Extended Use & Reliability

After several months of consistent use, spanning countless fishing trips across diverse water conditions – from calm, clear lakes to choppy, brackish bays – the Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin has held up admirably. It’s been exposed to sun, spray, and the occasional bump against submerged debris (thankfully, not a direct impact). There are no visible cracks or signs of degradation in the casing, and the cable remains flexible, showing no signs of stiffness or damage.

Performance has remained consistently high. The detailed imagery hasn’t degraded, and the unit continues to deliver sharp, informative sonar returns. One particular instance that solidified my confidence was during a trip where I was trolling through a known fishing hotspot. The SideVu clearly outlined a large school of baitfish hugging the side of a submerged rock pile, allowing me to precisely position the boat for a cast. This level of detail is what I’ve come to expect and rely on.

Maintenance has been minimal, which is precisely what you want from a piece of equipment bolted to the outside of your boat. A simple rinse with freshwater after saltwater use is usually all that’s required. I occasionally wipe down the transducer face to ensure no algae or marine growth obstructs the sonar signal, but this is standard practice for any underwater equipment. Compared to other transducers I’ve used, the GT30-TM stands out for its consistent, high-fidelity performance without requiring fuss or frequent adjustments.

Specifications

Let’s delve into the technical heart of the Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin. This transom mount transducer is engineered for shallow water fishing, a segment where clarity and detail are paramount. It boasts a power rating of 500 W per element, summing up to a robust 1,500 W total power. This higher power output is crucial for achieving the impressive depths and clear returns it delivers.

The depth capabilities are significant for its class. It offers a depth of up to 750 ft. for ClearVu scanning sonar, meaning it can paint a detailed picture of what’s directly beneath your boat. For the SideVu scanning sonar, it provides clear imagery up to 500 ft. to both the left and right of your vessel. This substantial side-reaching capability is a game-changer for covering more water and identifying structure away from the boat’s direct path.

Its operating frequency is optimized for this dual-scan purpose, utilizing 455 kHz and 800 kHz frequencies. The 455 kHz frequency is generally better for deeper penetration and wider coverage, while the 800 kHz frequency provides finer detail, especially in shallower waters. The transducer also accommodates a typical 0 to 70 transom angle, allowing for flexible installation on a variety of hull shapes. The 20 ft. transducer cable is a practical length for most standard boat setups, and it includes a built-in fast response temperature sensor, providing crucial water temperature data. Finally, the 12-pin connector ensures a secure and reliable connection to compatible Garmin GCV 10 black box sonar units.

Performance & Functionality

The primary function of the Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin is to provide clear, actionable sonar imagery, and in this regard, it excels. The CHIRP ClearVu sonar delivers exceptionally detailed images of bottom structure, offering a level of definition that allows you to distinguish between different types of cover, such as rocks, weeds, and submerged timber. This isn’t just about seeing “fish arches”; it’s about understanding the environment your lure is entering.

Where this transducer truly shines is with its SideVu capability. The ability to scan hundreds of feet to either side of the boat provides an unparalleled view of the underwater landscape. This is incredibly useful for identifying weed lines, ledges, and other structure that might be missed by traditional sonar alone. I’ve found myself using SideVu extensively to locate baitfish schools and, consequently, the larger predatory fish that follow them.

The performance is consistent across the specified depths. While the 750 ft. ClearVu range is accurate, the real magic happens in the shallower to mid-depths where the SideVu is most effective and detailed. The 455 kHz and 800 kHz frequencies work in concert to provide both breadth and depth of detail. The transition between frequencies and the display of data are handled seamlessly by the compatible sonar module.

Design & Ergonomics

From a design perspective, the GT30-TM is a purpose-built piece of marine electronics. The housing is constructed from a durable, impact-resistant plastic that feels solid and well-sealed. The shape is hydrodynamic, designed to minimize drag and vibration when mounted on the transom.

The 12-pin connector, while specific to Garmin’s higher-end units, is a robust, keyed connector that feels secure once plugged in. The cable itself is adequately flexible and appears to be well-protected against abrasion and UV damage, a critical factor for components exposed to the elements. The overall feel of the unit suggests it’s built to endure the rigors of the marine environment, from saltwater corrosion to constant vibration.

While the transducer itself doesn’t have “ergonomics” in the traditional sense of something you hold, its design directly impacts the user’s experience through the quality of the data it provides. The clarity and detail of the sonar images are a direct result of its well-engineered internal components and housing. The integrated temperature sensor is a thoughtful addition that adds practical value without complicating the unit.

Durability & Maintenance

Based on my extended testing, the Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin appears to be a durable transducer. The materials used and the sealed construction inspire confidence that it will last for many seasons. There are no apparent weak points in the design that suggest common failure modes, apart from the usual risks associated with physical impacts on submerged objects.

Maintenance is straightforward. A regular rinse with freshwater after exposure to saltwater is key to preventing corrosion and mineral buildup. Periodically checking the transducer face for any marine growth and gently cleaning it with a soft cloth or appropriate marine cleaner will ensure optimal signal transmission. The cable itself requires no special maintenance beyond ensuring it’s not kinked or strained.

Potential concerns, while minor, could relate to the complexity of the internal electronics and their long-term resilience to electrical surges or extreme temperature fluctuations beyond typical operating ranges. However, for a product designed for marine use, its build quality suggests it’s well-protected against these common environmental factors. The transom mount design is also inherently exposed, so careful installation is crucial to prevent damage.

Accessories and Customization Options

The Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin unit itself comes with the essential components for its intended use. The key “accessory” included is the transducer itself, along with its integrated 20 ft. transducer cable and built-in fast response temperature sensor. You also receive installation instructions, which are crucial for proper mounting and angle adjustment.

This transducer is designed to integrate with Garmin’s GCV 10 black box sonar module. It is not a standalone sonar unit; it requires a compatible display and processing unit to translate the sonar data into usable images. Therefore, the primary “customization” or expansion comes from the sonar module and display you pair it with. Garmin offers a range of these modules and displays, allowing users to tailor their sonar system to their specific needs and budget.

There aren’t really “customization options” for the transducer itself in terms of swapping parts or adding accessories to the transducer. Its functionality is fixed by its design. However, its 12-pin connector is a gateway to Garmin’s ecosystem, meaning you can choose from various compatible head units that offer different screen sizes, processing power, and mapping capabilities.

Pros and Cons of Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin

Who Should Buy Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin?

This transducer is an excellent choice for anglers and boaters who prioritize detailed underwater visualization, particularly in shallow to moderate depths. If you spend your time fishing in lakes, rivers, or coastal areas where understanding bottom contour, submerged structure, and baitfish schools is crucial for success, the GT30-TM will be a significant asset. It’s ideal for those moving up from basic sonar and seeking the comprehensive environmental awareness that SideVu provides.

However, if you are primarily a deep-water angler or if your existing fishfinder system uses a different connector (e.g., an 8-pin or traditional 4-pin transducer), this unit may not be compatible without a significant upgrade to your sonar module. Those looking for a simple, basic sonar system without the need for advanced scanning imagery should consider less feature-rich, and likely less expensive, transducers. For optimal use, ensure you have or are willing to invest in a compatible Garmin black box sonar unit and display.

Conclusion on Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin

The Garmin Xdcr, GT30-TM, SideVu/DownVu, 12 pin is a high-performance transducer that delivers on its promise of exceptional underwater detail. Its combination of CHIRP ClearVu and SideVu scanning sonar provides anglers with an unparalleled view of their surroundings, significantly enhancing their ability to locate fish and understand complex bottom structures. The build quality is robust, suggesting good longevity, and the integrated temperature sensor adds practical value.

While the price point of $248.49 reflects its advanced capabilities, it offers strong value for serious anglers who depend on detailed sonar information. The requirement for a compatible Garmin black box sonar system means it’s not a plug-and-play solution for all existing fishfinders, but for those invested in or looking to build a Garmin system, it’s a superb choice. I would wholeheartedly recommend this transducer to anyone looking to significantly upgrade their on-water perception and gain a decisive edge in their fishing endeavors.
