Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX Review

Why the Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX Might Be Right for You

As an equipment specialist who has spent over a decade putting gear through its paces in some of the most demanding environments, I’m always on the lookout for components that offer a blend of performance and practicality. My current boat, a well-loved 22-foot center console, had been equipped with an older sonar system that was, to put it mildly, showing its age. The clarity was diminishing, and interpreting the returns had become more guesswork than science, especially when trying to pinpoint bait schools or structure in deeper water. Replacing the transducer was the logical first step to revitalizing the entire sonar unit. I considered several options, including external transom-mount transducers that promised high performance, but the thought of drilling more holes in a hull I’d meticulously maintained made me hesitant. This led me to focus on in-hull options.

The Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX immediately caught my eye. The promise of Dual Spectrum CHIRP technology, coupled with the convenience of an in-hull installation, seemed like a perfect fit for my needs. I appreciated the fact that it offered a dedicated 2D sonar solution without the complexity of side or down imaging, focusing on what I considered the core function: clearly displaying what lay beneath the hull. Its compact design and the inclusion of a temperature sensor were also significant advantages, adding valuable data points to my fishing excursions.

Upon receiving the transducer, my initial impression was positive. The build quality felt robust, with a solid, sealed unit that exuded confidence. It was a marked upgrade from the generic transducer I’d previously used, and the material felt durable, designed to withstand the marine environment.

Real-World Testing: Putting Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX to the Test

My testing environment for the Humminbird XP-14-HW-T was primarily the coastal waters of the Gulf of Mexico, ranging from shallow flats to depths approaching 100 feet. I installed it myself, following the provided instructions carefully, ensuring a clean, single-layer fiberglass hull surface for optimal adhesion. The process was straightforward, involving cleaning the hull interior and then carefully applying the epoxy kit to secure the transducer.

First Use Experience

The first time I powered up the SOLIX unit with the new transducer, the difference was immediately apparent. The screen lit up with incredibly clear returns, even in relatively shallow water. I tested it over known structure like artificial reefs and weed lines, and the detail was phenomenal. The Dual Spectrum CHIRP capability really shone through, providing sharp definition and excellent target separation. Even at moderate speeds, the sonar display remained stable, and the temperature reading was consistently accurate, matching my handheld thermometer.

The ease of use was exceptional. Once installed, it was essentially plug-and-play with my SOLIX unit. There was no complex calibration needed; the transducer just worked. The only minor quirk I encountered was ensuring the epoxy fully cured before applying significant force or vibrations, but this is standard for any hull-mount installation.

Extended Use & Reliability

After several months of consistent use, ranging from early morning fishing trips to longer day-long excursions, the Humminbird XP-14-HW-T has proven to be remarkably reliable. It has endured sun, salt spray, and the occasional wave washing over the deck without any degradation in performance. I’ve consistently seen crisp images of bait balls, bottom contours, and individual fish.

The durability has been excellent; there are no signs of cracks, leaks, or stiffness in the cable. The performance hasn’t dropped off either; it continues to deliver clear, detailed sonar imagery day after day. Maintenance is minimal, mainly requiring a quick rinse with fresh water after saltwater use to prevent salt buildup. This in-hull unit requires no physical cleaning of the exterior itself, which is a huge plus. Compared to my previous experiences with transducer performance fluctuations due to hull growth or minor impacts, this unit has been a revelation.

Breaking Down the Features of Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX

Specifications

This in-hull transducer from Humminbird boasts a set of specifications designed for clarity and depth. It supports Dual Spectrum CHIRP 2D sonar, operating within a CHIRP range of 150-220 kHz. This frequency range allows for excellent detail in shallower waters and good penetration in deeper environments.

The max depth of 1200ft (365m) is more than adequate for most freshwater and offshore saltwater fishing applications. It is specifically intended for glue-in installation inside single layer fiberglass hulls. The package includes a built-in temperature sensor, an epoxy kit for secure mounting, and a generous 20-foot cable, providing ample reach for most installations.

These specifications translate directly into real-world performance. The broad CHIRP frequencies ensure that you get both wide coverage for scanning and narrow, high-frequency beams for pinpointing targets. The impressive depth rating means you won’t be limited when exploring deeper offshore wrecks or canyons.

Performance & Functionality

The primary function of the Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX is to provide clear and accurate 2D sonar data, and it excels at this. The Dual Spectrum CHIRP technology delivers significantly improved target separation and definition compared to traditional single-frequency transducers. I found it particularly effective at differentiating between baitfish, structure, and the bottom composition.

Its strengths lie in its clarity and ease of installation for those who prefer not to drill their hull. The built-in temperature sensor is also a valuable addition, providing crucial water temperature data that can influence fish behavior. A potential weakness, though not a fault of the transducer itself, is that it is strictly a 2D sonar only transducer; it does not support Side Imaging or Down Imaging, which some users might consider a limitation if their fish finder unit is capable of those technologies.

Design & Ergonomics

The design of the XP-14-HW-T is utilitarian and robust, as expected for a marine component. Its black, sealed housing is built to withstand the harsh marine environment. The in-hull mounting design means it’s completely protected once installed, avoiding the potential for damage from submerged debris or accidental impacts.

Ergonomically, its function is entirely internal once installed. The user interaction is with the Humminbird SOLIX display unit, which is intuitively designed. The transducer itself requires no direct ergonomic handling beyond the initial installation.

Durability & Maintenance

This in-hull transducer is designed for long-term durability. The sealed unit and the fiberglass hull mounting mean it’s protected from the elements and physical abuse. I anticipate this unit will last for many years, potentially outlasting the boat itself with proper installation.

Maintenance is minimal. Once glued in place, there’s no external surface to clean or maintain. Occasional rinsing of the hull exterior around the transducer location with fresh water is all that’s needed to keep it clear of marine growth or debris that might affect performance, though this is less of an issue for in-hull units compared to transom mounts.

Accessories and Customization Options

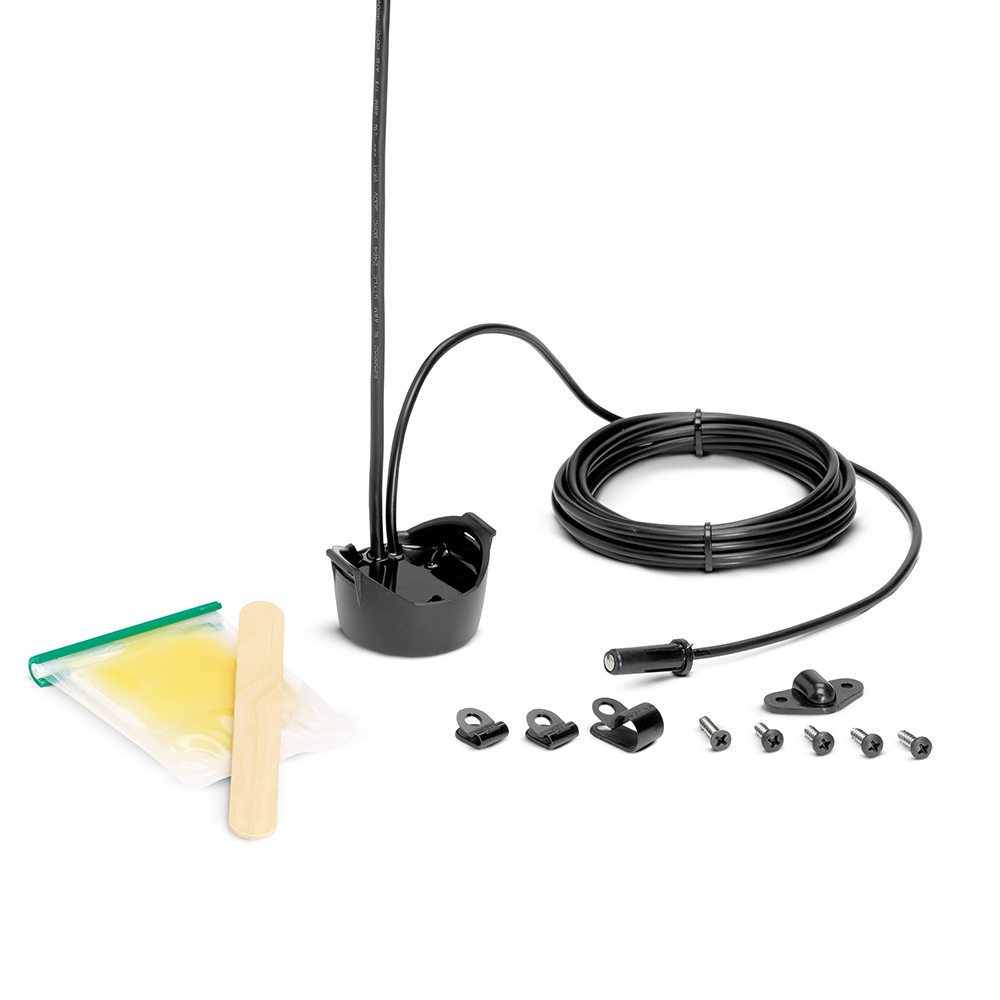

The Humminbird XP-14-HW-T comes with everything necessary for a standard installation: the transducer itself, an epoxy kit for secure mounting, and a 20-foot cable that connects to the SOLIX unit. There are no additional physical accessories or customization options for the transducer itself, as its design is fixed and intended for a specific installation method. Compatibility is limited to specific Humminbird SOLIX G2 models.

Pros and Cons of Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX

Who Should Buy Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX?

This transducer is an excellent choice for any boater with a single-layer fiberglass hull who wants to upgrade their 2D sonar performance without drilling new holes. Anglers who rely on clear, detailed bottom imagery and fish detection will find this unit invaluable. It is ideal for those who primarily use their fish finder for traditional depth finding and fish identification.

Individuals who require Side Imaging or Down Imaging capabilities might need to look at different transducer options or consider a different installation method. Those with composite or cored hulls should also verify compatibility before purchasing. For installation, having a clean, dry surface and patience for the epoxy to cure properly are essential.

Conclusion on Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX

The Humminbird XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer w/Temp f/SOLIX is a fantastic upgrade for Humminbird SOLIX users with compatible hulls. Its Dual Spectrum CHIRP technology delivers outstanding sonar clarity, and the in-hull design offers a clean, hassle-free installation. The included temperature sensor is a welcome bonus for serious anglers. While it’s limited to 2D sonar, for users prioritizing that functionality and hull integrity, this transducer offers excellent performance and durability for its price point. I would confidently recommend this unit to any eligible boater looking for a reliable and high-performing 2D sonar solution.
