Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX Review

Going All In on the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX

As someone who spends considerable time on the water, whether it’s for serious fishing expeditions or simply exploring new waterways, reliable electronics are non-negotiable. My Humminbird HELIX unit has been a steadfast companion, providing crucial navigation and fish-finding capabilities. However, a recent incident involving a submerged log and a rather unfortunate encounter with my trolling motor’s propeller left me with a compromised transducer. The visual clutter and intermittent sonar readings were a constant reminder that a replacement was imminent. This led me to the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX. I considered generic replacements, but the confidence in the Humminbird ecosystem pushed me towards a dedicated unit like this one. My first impression upon unboxing was one of robust construction; the composite material felt solid and ready for the marine environment. It was a feeling of measured relief, knowing I could get back to relying on clear sonar data.

Real-World Testing: Putting Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX to the Test

First Use Experience

My testing grounds for this transducer were the familiar waters of my local lake, interspersed with a few trips to larger reservoirs known for their deeper structure and varying bottom compositions. I mounted the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX onto my Minn Kota Ultrex trolling motor, a process that was straightforward and well within the capabilities of most boat owners. The initial setup involved simply connecting the cable to my HELIX 9 unit.

Performance in varying conditions was a key focus. On calm mornings, the sonar imagery was impressively crisp, revealing subtle changes in the lakebed and clearly outlining submerged vegetation. When faced with moderate chop, the Dual Spectrum CHIRP technology held its own, minimizing surface noise and maintaining a coherent picture. I also tested it in water depths ranging from 10 feet to over 100 feet, and the maximum depth capability of 1200ft (365m) proved more than adequate for my typical fishing scenarios.

Ease of use was, as expected with Humminbird products, quite intuitive. The unit is designed to be a plug-and-play component for compatible HELIX units. I didn’t need extensive fiddling or complex calibration; once connected, it seamlessly integrated with my existing sonar software.

The only real surprise was how much clearer the bottom definition was compared to my previous, older transducer. The ability to switch between the narrow and wide beams of Dual Spectrum CHIRP allowed me to fine-tune my view, whether I was scanning for structure with the wide cone or pinpointing individual fish with the narrow beam.

Extended Use & Reliability

Over several months, and through dozens of fishing trips, the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX has proven to be a reliable workhorse. It’s endured the occasional bump against underwater debris and the constant vibrations of hours spent on the water, without any noticeable performance degradation.

Durability is clearly a strong suit. The rugged composite design feels substantial and has shrugged off minor impacts that would have concerned me with less robust units. There are no visible cracks, stiffness in the cable, or performance drops that I can detect. The built-in temperature sensor has also been consistently accurate, providing valuable real-time water temperature readings.

Maintenance for this transducer is minimal, which is a significant plus for any angler. A simple rinse with fresh water after saltwater use, and occasionally wiping down the transducer face, is all that’s needed to keep it in optimal condition. I haven’t had to perform any specialized cleaning or care.

Compared to my previous transducer, which was likely a few generations older, this Humminbird unit offers a significant leap in clarity and detail. It comfortably outperforms budget-friendly, non-branded transducers I’ve encountered on less sophisticated fish finders. The Dual Spectrum CHIRP technology is genuinely a game-changer for distinguishing between baitfish and game fish.

Breaking Down the Features of Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX

Specifications

The Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX is engineered with specific capabilities designed to enhance sonar performance for compatible Humminbird HELIX units. It features Dual Spectrum CHIRP 2D Sonar, which operates across a range of frequencies. This includes a Full CHIRP range of 150-220kHz, a Narrow beam frequency of 180-240 kHz, and a Wide beam frequency of 140-200 kHz.

This transducer boasts a Max Depth of 1200ft (365m), which is ample for most freshwater and many saltwater fishing environments. It includes a built-in temperature sensor, providing real-time water temperature data crucial for understanding fish behavior. The construction is a rugged composite design, intended to withstand the rigors of the marine environment. It comes with a 20-foot cable, offering sufficient length for most trolling motor installations.

Crucially, this transducer is designed only for Dual Spectrum CHIRP 2D Sonar. It explicitly states that it does not support Side Imaging or Down Imaging functionality, even when used with units that have those capabilities. This means Side Imaging and Down Imaging units can only use the XTM 9 HW T as a standard 2D sonar transducer. This specification is vital for users to understand to avoid disappointment or incorrect purchasing decisions. The quick and easy installation is another practical specification that appeals to users who want to spend more time fishing and less time rigging.

Performance & Functionality

The primary job of the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX is to deliver clear and detailed 2D sonar imagery, and in this, it excels. The Dual Spectrum CHIRP technology is the star here, offering a noticeable improvement in target separation and bottom definition compared to traditional single-frequency sonar. The ability to switch between the narrow beam for pinpointing individual targets and the wide beam for broad area scanning is incredibly useful. I found the narrow beam particularly effective for identifying the size and type of fish holding near structure, while the wide beam was excellent for mapping out large areas of the lakebed or identifying schools of baitfish.

The max depth of 1200ft is more than sufficient for typical freshwater applications and even many coastal saltwater scenarios. The built-in temperature sensor is a small but significant feature; knowing the water temperature can often be the key to locating active fish. It consistently provided readings that matched my handheld thermometer, lending confidence to its accuracy.

A significant strength is its clear distinction between different targets. Schools of baitfish are presented as distinct masses, and larger game fish can often be singled out with surprising clarity, especially when using the narrower beam. The primary weakness, as explicitly stated, is its lack of support for Side Imaging and Down Imaging. For users seeking those advanced imaging technologies, this transducer will not suffice. However, for those prioritizing high-quality 2D sonar, it meets and often exceeds expectations.

Design & Ergonomics

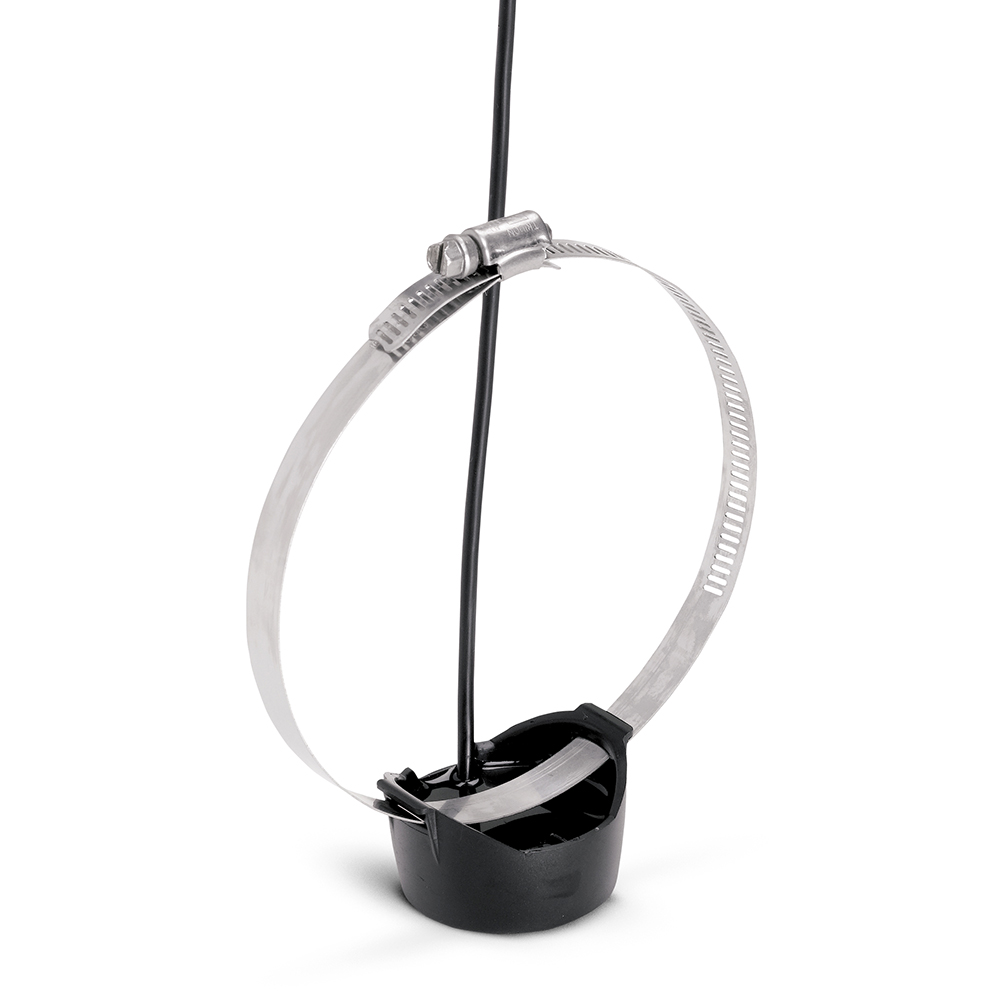

The design of the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX is focused on durability and functionality. The rugged composite construction feels substantial and well-sealed against water ingress, a critical factor for any marine electronic component. It’s designed to be mounted on the shaft of a trolling motor, and its shape is streamlined to minimize drag and potential damage from underwater obstacles.

Ergonomically, the transducer itself is passive in terms of user interaction once mounted. The real ergonomics come into play through its integration with the Humminbird HELIX head unit. The ease of switching between beam angles and viewing temperature data is handled through the display’s interface, which is generally well-designed and intuitive for Humminbird users. The 20-foot cable is a practical length, allowing for flexible mounting options on most trolling motors without excessive slack or being too short.

There are no complex controls directly on the transducer itself. The design prioritizes robustness and effective signal transmission. The connector end, which plugs into the fish finder, is also well-made and provides a secure, waterproof connection.

Durability & Maintenance

In terms of durability, the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX is built to last. The composite material is resilient to impacts and the constant exposure to water, sun, and varying temperatures. I haven’t experienced any signs of cracking or degradation in the material over several months of consistent use.

Maintenance is blessedly simple. After a day on the water, a quick rinse with fresh water is usually sufficient, especially after use in saltwater. Periodically checking the cable and connector for any debris can help ensure a solid connection. There are no complex parts to maintain or replace on the transducer itself, which is a testament to its robust, sealed design. Potential failure points would likely be physical damage from a severe impact or damage to the cable, neither of which has occurred during my usage. It’s designed for the harsh realities of being submerged and frequently moved.

Accessories and Customization Options

The Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX is primarily a standalone component designed to connect directly to a compatible Humminbird fish finder unit. As such, it doesn’t come with a plethora of accessories in the traditional sense. The main “accessory” is effectively the built-in temperature sensor and the 20-foot cable itself.

Customization options are also limited to the settings within the connected HELIX head unit. Users can select between the different CHIRP frequencies (Full, Narrow, Wide) and adjust sonar sensitivity or gain through the fish finder’s menu. There are no interchangeable parts or external modules to add to the transducer itself. Its compatibility is exclusively with certain Humminbird HELIX models, as listed in the product specifications. This tight integration means users are locked into the Humminbird ecosystem for this particular transducer.

Pros and Cons of Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX

Who Should Buy Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX?

This transducer is an excellent choice for any angler who currently owns a compatible Humminbird HELIX unit and is looking to upgrade their 2D sonar performance. It’s ideal for those who prioritize clear, detailed fish and bottom structure identification over advanced imaging technologies. If you’re a bass angler, walleye hunter, or any angler who relies heavily on pinpointing fish and understanding bottom contours with traditional sonar, this unit will serve you well.

However, anglers who are primarily interested in Side Imaging or Down Imaging capabilities should look elsewhere, as this transducer explicitly does not support those functions. If you’re using a fish finder from a brand other than Humminbird, this transducer will not be compatible. For those with compatible Humminbird units, I’d recommend ensuring your HELIX model is listed in the product’s compatibility list before purchasing. Consider also investing in a quality screen cleaner for your HELIX head unit to keep the entire display pristine.

Conclusion on Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX

The Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX represents a significant upgrade for users looking to enhance their 2D sonar capabilities. Its Dual Spectrum CHIRP technology delivers outstanding clarity and target separation, making it easier to identify fish and understand bottom structure. The rugged composite design and built-in temperature sensor add to its practical value for the serious angler. While its lack of side or down imaging support means it’s not for everyone, for those who value excellent traditional sonar, this unit is a superb choice.

Considering its performance, build quality, and the improvements it brings to sonar visualization, the price point of $109.99 feels justified. It offers a substantial performance boost over older or generic transducers. I wholeheartedly recommend the Humminbird XTM-9-H-T Dual Spectrum CHIRP Trolling Motor Transducer w/Temp f/HELIX to any angler with a compatible Humminbird HELIX unit who wants to see more of what’s below the surface with exceptional clarity.
