Konus College 600X Biological Microscope – 5302 Review

One Tool, Many Questions: The Konus College 600X Biological Microscope – 5302

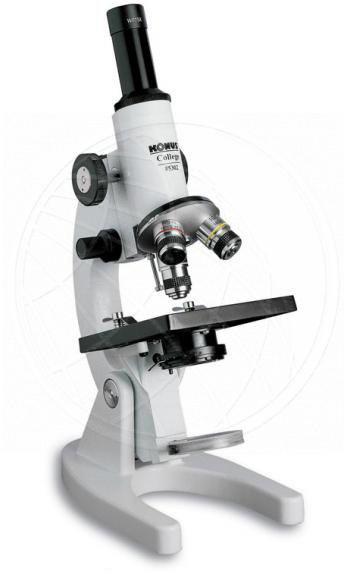

The Konus College 600X Biological Microscope – 5302 from Konus is designed as an entry-level biological microscope. It features a monocular head, three objective lenses providing up to 600x magnification, and a mirror-based illumination system. At a price point around $150, it promises an accessible gateway into the world of microscopy for students and hobbyists.

My interest in the Konus College 600X Biological Microscope – 5302 arose from a desire to foster a love for science in my kids. We are constantly exploring the outdoors, and I wanted a tool to examine our finds at a magnified level. I hoped this microscope would be durable enough for home use and provide clear images for educational purposes.

The packaging was simple and effective, securely housing all components. The microscope itself felt surprisingly solid, with a sturdy metal frame. It wasn’t overly heavy, but possessed a reassuring heft that suggested reasonable build quality.

I considered other options, including digital microscopes and more advanced compound microscopes. However, the Konus model’s lower price and traditional design appealed to me; I wanted my kids to learn the fundamentals before diving into digital imaging. The simplicity seemed like a strength.

My initial impression was one of cautious optimism. The lack of a built-in light source was immediately apparent as a potential drawback, but the overall construction and included features were encouraging. I was eager to see how it performed with real samples.

Real-World Testing: Putting Konus College 600X Biological Microscope – 5302 to the Test

First Use Experience

I tested the Konus College 600X Biological Microscope – 5302 primarily indoors, using prepared slides and samples we collected from our backyard. This included plant cells, insects, and pond water. The room had ample natural light, but I quickly realized the limitations of the mirror illumination.

Getting a clear, well-lit image proved challenging. The mirror needed precise adjustments to direct light effectively. Even with bright ambient light, the image quality was often dim and required patience to optimize.

Using the coarse and fine focus knobs was relatively straightforward, though achieving a sharp focus, especially at higher magnifications, demanded a steady hand. There was a slight learning curve associated with adjusting the iris diaphragm and condenser lens to properly manage the light.

The initial experience highlighted the need for an external light source. The mirror illumination was simply not sufficient for consistent or high-quality viewing.

Extended Use & Reliability

After several weeks of use, the Konus College 600X Biological Microscope – 5302 has proven to be reasonably durable. The metal frame shows no signs of wear, and the focusing mechanisms still operate smoothly. The painted finish has held up well to occasional handling by my kids.

Cleaning is straightforward: a soft cloth removes dust and fingerprints from the lenses and frame. The microscope lives on a shelf when not in use, protected by the included dust cover. The stage clips, while basic, still function to hold prepared slides in place.

Compared to other microscopes I’ve used in the past (primarily higher-end models in lab settings), the Konus College 600X Biological Microscope – 5302 does not offer the same level of optical clarity or ease of use. However, considering its price point, it’s a decent entry-level option for basic observation. The need for a separate light source remains the biggest drawback.

Breaking Down the Features of Konus College 600X Biological Microscope – 5302

Specifications

• Objective Lenses: It includes three achromatic objective lenses, providing magnifications of 4x (60x total magnification with the 15x eyepiece), 10x (150x), and 40x (600x). These lenses are designed to correct for chromatic aberration, improving image clarity.
• Eyepiece: A single 15x wide-angle eyepiece is provided. It offers a comfortable field of view.
• Head: The monocular head is straight. It allows for direct viewing without interpupillary adjustment.
• Focusing: It has double regulation focusing with macrometric and micrometric adjustments. These adjustments allow for coarse and fine focusing.
• Stage: The stage measures 120x110mm. It offers ample space for standard microscope slides.
• Illumination: It uses a flat concave mirror (46mm) with a support pin. The mirror reflects ambient light to illuminate the sample.
• Condenser: It features a light condenser lens to regulate incoming light. This helps to improve image contrast and resolution.
• Diaphragm: An iris diaphragm with a filter holder is included. This allows for further control over light intensity and contrast.
• Stand: It features a solid, stable metal stand. The stand can be inclined up to 90 degrees.

These specifications combine to provide a functional, albeit basic, microscopy experience. The lack of a built-in light source significantly impacts usability, while the achromatic lenses and focusing mechanisms allow for reasonable image quality at lower magnifications. The adjustable stand can improve user comfort during longer observation periods.

Performance & Functionality

The Konus College 600X Biological Microscope – 5302 performs adequately for basic microscopy tasks. The achromatic lenses deliver reasonably clear images, especially at 60x and 150x magnification. At 600x, image quality degrades noticeably, requiring careful adjustment and optimal lighting.

The greatest weakness is the mirror-based illumination. Consistent, bright illumination is critical for microscopy, and the mirror is highly dependent on external light sources. This often results in dim, unevenly lit images that are difficult to observe. The light condenser and iris diaphragm offer some control over light, but they cannot compensate for the lack of a dedicated light source.

The focusing mechanisms work well, allowing for precise adjustments. However, the small stage and basic slide clips limit the ease of use, especially when examining multiple samples.

The Konus College 600X Biological Microscope – 5302 meets expectations for an entry-level microscope at its price point. However, prospective buyers should be aware of its limitations, particularly regarding illumination.

Design & Ergonomics

The Konus College 600X Biological Microscope – 5302 boasts a robust design with a metal frame that contributes to its overall stability and perceived durability. The microscope does not feel cheap. Its weight is manageable, making it easy to move and store.

The monocular head and adjustable stand are designed for user comfort. Though the straight viewing position may cause some neck strain during extended use, the ability to incline the stand to 90 degrees allows for a more customized viewing angle.

The design is relatively user-friendly. The focusing knobs and stage clips are easy to operate. The lack of a built-in light source, however, requires a greater understanding of lighting principles to achieve optimal image quality.

Durability & Maintenance

The metal construction of the Konus College 600X Biological Microscope – 5302 suggests that it will last for several years with proper care. There are no delicate plastic components that are likely to break easily.

Maintenance is simple. Dusting the lenses with a soft cloth and occasionally cleaning the frame with a damp cloth is all that’s required. The absence of complex electronics minimizes the risk of technical issues.

With reasonable care, this microscope should provide years of service for hobbyists and students.

Accessories and Customization Options

The Konus College 600X Biological Microscope – 5302 includes a dust cover for protection and instructions. Konus sells a separate illumination module that is compatible with this microscope. The standard eyepiece can be replaced with higher-quality options for improved viewing.

The microscope is designed to accept standard microscope slides, and a wide range of prepared slides are readily available from various suppliers. The filter holder allows for the use of colored filters to enhance image contrast, though no filters are included with the base model.

Pros and Cons of Konus College 600X Biological Microscope – 5302

Who Should Buy Konus College 600X Biological Microscope – 5302?

This microscope is perfect for:

• Students: It’s a good tool for introductory biology or science classes.
• Hobbyists: It will suit those with a casual interest in microscopy.
• Parents: It’s a good tool to encourage scientific exploration in children.

This microscope is not suitable for:

• Advanced Researchers: Professionals needing high-resolution imaging and precise control should look elsewhere.
• Users Requiring Portability: It’s not for those who need a microscope for field work.

A must-have accessory is a dedicated LED light source. This will vastly improve the viewing experience. Prepared slides are also recommended for immediate use.

Conclusion on Konus College 600X Biological Microscope – 5302

The Konus College 600X Biological Microscope – 5302 offers an affordable entry point into the world of microscopy, but it’s not without its limitations. The lack of a built-in light source is a significant drawback that requires additional investment to overcome.

The value proposition is reasonable, considering the price point. The microscope is durably built and provides acceptable image quality for basic observation.

I would recommend this microscope to beginners and hobbyists who are aware of its limitations and willing to invest in a separate light source. If you’re seeking a simple, robust microscope for basic educational purposes, the Konus College 600X Biological Microscope – 5302 is worth considering. However, be prepared to spend a bit extra to truly unlock its potential.
