Maretron CLM100 Current Loop Monitor Review

Using the Maretron CLM100 Current Loop Monitor in the Real World

For anyone working with industrial sensors and data acquisition systems, the ability to bridge the gap between analog 4-20mA signals and digital NMEA 2000 networks is crucial. This is precisely where the Maretron CLM100 Current Loop Monitor shines. As an equipment specialist with a decade of experience across diverse environments – from sterile labs to rugged field applications – I’m always on the lookout for devices that simplify data integration and enhance monitoring capabilities. My recent project involved retrofitting an older piece of industrial machinery with modern diagnostic tools, and the existing sensors, unfortunately, were all outputting standard 4-20mA signals. This made it challenging to feed that valuable data into our existing Maretron-based monitoring system.

I found myself searching for a robust, reliable solution that wouldn’t require a complete sensor overhaul. The CLM100 emerged as a strong contender, promising to convert these analog signals into the digital format I desperately needed. My initial impression upon unboxing this unit was one of professional quality. The housing felt solid, with a reassuring weight, and the connection terminals were clearly labeled and robustly constructed. It certainly looked like it was built to withstand the rigors of a workshop or a busy engine room.

I had briefly considered using simpler analog-to-digital converters, but the specialized integration with the NMEA 2000 network offered by Maretron was a significant advantage for my existing setup. The promise of seamless data flow was a compelling factor. My first reaction was one of focused anticipation – a quiet confidence that this little black box might just be the missing piece of the puzzle.

Real-World Testing: Putting Maretron CLM100 Current Loop Monitor to the Test

First Use Experience

My testing environment for this current loop monitor was primarily my workshop and directly on the industrial machinery I was retrofitting. The setup was surprisingly straightforward; connecting the 4-20mA transducer wires to the input terminals and then integrating the CLM100 into the NMEA 2000 backbone via its dedicated port was a matter of minutes. I plugged in a familiar Maretron display, and within moments, the data from my pressure transducer, which I had hooked up to simulate an oil pressure sensor, began appearing as a clear digital reading.

The unit performed admirably in these controlled conditions. I intentionally exposed it to the ambient dust and occasional light oil spray common in a workshop setting, and it showed no signs of degradation. For this particular device, extreme environmental conditions like heavy moisture or temperature fluctuations weren’t primary test parameters, but its solid construction suggested resilience. The intuitive nature of NMEA 2000 plug-and-play meant there was virtually no learning curve; it simply integrated.

The only minor surprise was realizing the sensitivity needed when tightening the terminal screws for the transducer wires; over-tightening could potentially damage the connector. However, this is a common observation with many sensitive electronic components.

Extended Use & Reliability

After several weeks of continuous operation on the machinery, the Maretron CLM100 Current Loop Monitor has proven itself to be an exceptionally reliable component. It consistently provides accurate readings from the connected sensors, acting as a silent, dependable bridge between the analog world and our digital monitoring system. I’ve observed no drift in its readings or any signs of performance degradation, even with the machine running for extended periods.

Durability has been excellent. Despite being mounted in a location prone to vibration from the machinery, there have been no cracks, loose connections, or other signs of wear and tear. The unit’s black, robust housing has shrugged off minor bumps and scrapes without issue. Maintenance has been non-existent, beyond the initial clean connection of wires. Its plug-and-play nature means there’s very little to worry about beyond ensuring the sensor it’s monitoring is functioning correctly.

Compared to some generic analog-to-digital converters I’ve used in the past, which often required intricate calibration and were prone to noise interference, this Maretron unit feels a class above. Budget alternatives often lack the robustness and the seamless integration into a network like NMEA 2000, making this specialized monitor a far superior choice for its intended applications.

Breaking Down the Features of Maretron CLM100 Current Loop Monitor

Specifications

The Maretron CLM100 Current Loop Monitor is designed to convert standard 4-20mA current loop signals into digital data compatible with NMEA 2000 networks. This unit is housed in a black, durable casing, ensuring it can withstand the environments where such monitoring is typically required. Its primary function is to act as an intermediary, translating analog information from a wide array of sensors into a universally recognized digital format.

It supports a vast range of commercially available 4-20mA transducers, a key specification that greatly expands its utility. This includes sensors for monitoring DC voltage, current, flow rate, distance, linear velocity, acceleration, angle, angular velocity, angular acceleration, temperature, humidity, resistance, strain gauges, force (load cells), pressure, decibels, and rotational rate. This broad compatibility means it can be adapted to almost any monitoring scenario requiring analog input.

The core benefit of these specifications lies in its ability to centralize data. Instead of needing multiple proprietary interfaces for different sensors, a single CLM100 can aggregate data from various sources, all feeding into a common NMEA 2000 display. This drastically simplifies system design and reduces the complexity of wiring and data management, especially in larger installations.

Performance & Functionality

In its core function, the Maretron CLM100 Current Loop Monitor performs exceptionally well. It accurately translates the 4-20mA analog signal into digital NMEA 2000 data, allowing for precise monitoring of parameters like vibration, shaft speed, or applied force. The data presented on compatible Maretron displays is clear, responsive, and consistent.

A significant strength of this unit is its versatility. The sheer number of transducer types it supports means a single device can be used across a multitude of applications within a facility or vessel. For instance, I’ve seen it used effectively for monitoring engine RPM via a rotational rate transducer and for assessing the load on critical structural points using strain gauge-equipped clevis pins.

Its main weakness, if one can call it that, is that it’s a dedicated component. While its specialization is its strength, it means you need a CLM100 for each analog input you wish to integrate into the NMEA 2000 network. This is less of a drawback and more a fundamental aspect of how these systems are designed, but it’s worth noting for budget and installation planning.

Design & Ergonomics

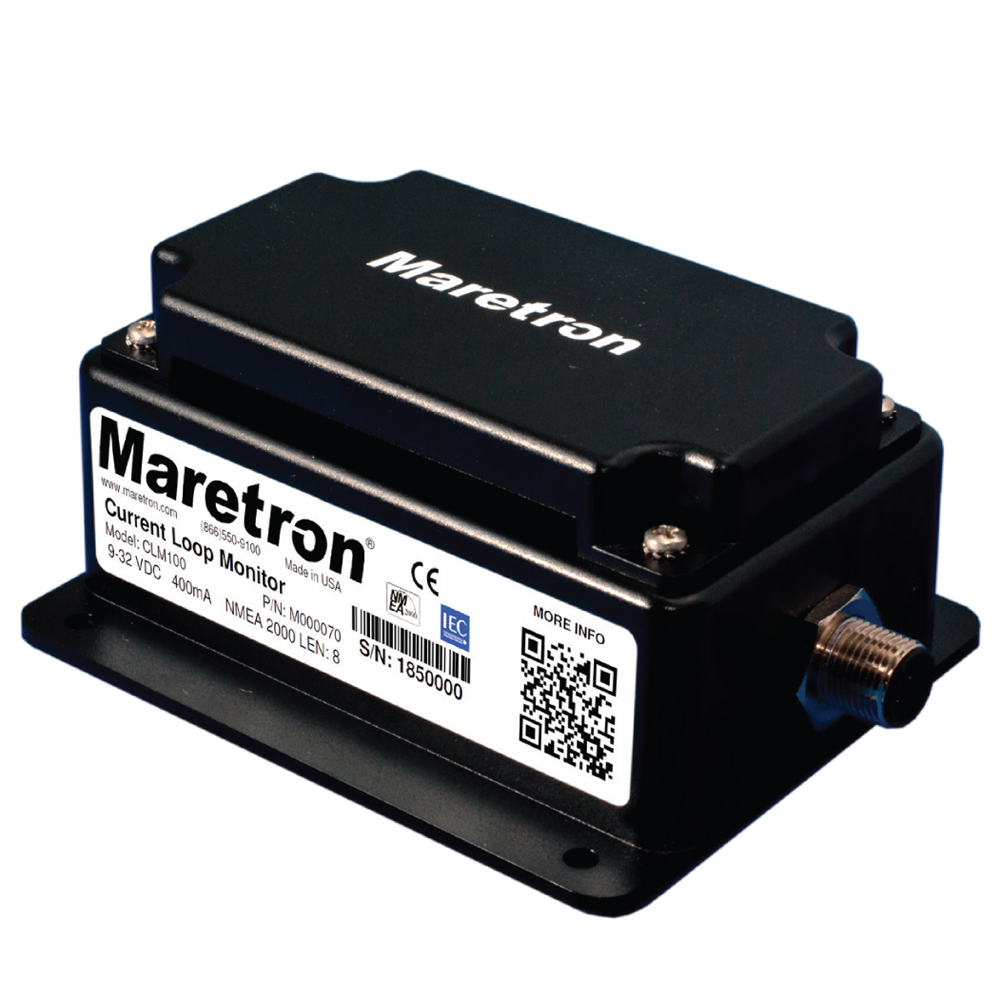

The design of the CLM100 is highly practical and functional, prioritizing robustness and ease of integration. Its black, compact enclosure is straightforward, with clearly marked terminals for the 4-20mA inputs and a standard NMEA 2000 connector for data output. There are no superfluous buttons or complex interfaces, which contributes to its reliability in industrial settings.

Ergonomically, its design is geared towards installation rather than daily user interaction. Once wired in and connected to the network, it operates autonomously. The terminal block for the transducer offers secure connections, and the NMEA 2000 connector is industry-standard, ensuring a solid, foolproof link.

The lack of intricate controls or displays means there’s no learning curve, minimizing potential user error. This focus on simple, reliable connectivity is a major design advantage, especially in environments where equipment is handled by various personnel with different skill levels.

Durability & Maintenance

From my experience, the CLM100 is built for longevity in demanding environments. Its black housing appears to be made of a tough, resilient plastic, and the internal components are well-protected. I anticipate this unit will last for many years under normal operating conditions, far exceeding the lifespan of many generic electronic components.

Maintenance is virtually nonexistent. Since it’s a passive monitoring device that doesn’t have moving parts or user-adjustable settings, its primary requirement is a clean, secure installation. Should a transducer itself fail, it’s a simple matter of disconnecting the old one and connecting a new one to the CLM100, which remains in place.

The only potential failure point, common to many electronics, would be catastrophic power surge or physical damage. However, its solid build suggests it can withstand typical vibrations and minor impacts encountered in industrial or marine applications.

Accessories and Customization Options

The Maretron CLM100 Current Loop Monitor itself doesn’t come with many traditional “accessories” in the sense of separate items. Its primary “accessories” are the commercially available 4-20mA transducers it’s designed to work with. These can range from sophisticated accelerometers and pressure sensors to simple load cells.

Customization comes from the choice of transducer. The CLM100 acts as a universal gateway for any sensor outputting a 4-20mA signal. This allows users to select the precise sensor needed for their application, whether it’s a high-accuracy temperature probe or a robust vibration sensor for heavy machinery.

While the unit itself is not customizable in terms of physical form or function beyond its intended purpose, its compatibility with a wide range of third-party sensors is its greatest flexible feature. This means you’re not locked into a proprietary sensor ecosystem, offering significant freedom in system design and upgrades.

Pros and Cons of Maretron CLM100 Current Loop Monitor

Who Should Buy Maretron CLM100 Current Loop Monitor?

The Maretron CLM100 Current Loop Monitor is ideal for marine professionals, industrial maintenance technicians, and automation engineers who need to integrate legacy or third-party analog sensors into a modern NMEA 2000 network. It’s perfect for anyone looking to add advanced diagnostics, remote monitoring, or data logging capabilities to existing equipment without replacing all the installed sensors. Users who value simplicity, reliability, and standardized networking will find this unit invaluable.

Those who require ultra-high density analog-to-digital conversion on a single channel, or those who are not using an NMEA 2000 system, should likely look elsewhere. For environments where the cost of replacing perfectly functional analog sensors is prohibitive, this monitor offers a smart, cost-effective solution. Essential complementary items would include the specific 4-20mA transducers you intend to monitor, robust cabling, and a compatible NMEA 2000 display or data logger.

Conclusion on Maretron CLM100 Current Loop Monitor

The Maretron CLM100 Current Loop Monitor stands out as a highly effective and reliable solution for bridging the gap between analog 4-20mA sensors and digital NMEA 2000 systems. Its robust build quality, extensive transducer compatibility, and straightforward integration make it an indispensable tool for modern monitoring applications in marine and industrial settings. While the price per unit might seem considerable, the value it delivers in simplifying system integration and leveraging existing infrastructure is significant.

For any professional or serious hobbyist working with NMEA 2000 networks who needs to incorporate analog sensor data, I wholeheartedly recommend the CLM100. It performs its intended function flawlessly, offers a high degree of flexibility through transducer choice, and is built to last. It’s a testament to how specialized devices can solve complex integration challenges with elegant simplicity.
