Maretron Fluid Pressure Monitor, NMEA 2000 Review

My Experience with the Maretron Fluid Pressure Monitor, NMEA 2000: Here’s the Truth

For years, managing the various fluid levels and pressures on my vessels and in my workshop required a patchwork of individual gauges and manual checks. It was functional, but far from integrated, and frankly, a bit of a headache. My search for a more streamlined, data-driven approach led me to the Maretron Fluid Pressure Monitor, NMEA 2000. This unit promised to consolidate multiple pressure readings into a single, networked source, a concept that immediately appealed to my desire for cleaner data and more efficient diagnostics.

The catalyst for this upgrade was a persistent, hard-to-pinpoint issue with a bilge pump system. Without a clear, real-time pressure reading from various points, troubleshooting was a frustrating game of educated guesswork. I considered a few other integrated marine electronics solutions, but none offered the flexibility to adapt to a variety of transducer types and the direct NMEA 2000 integration that Maretron provided.

Upon unboxing, my first impression was one of robust, no-nonsense engineering. The unit feels solid, with a clean, utilitarian design that suggests it’s built for long-term service in demanding environments. It’s not flashy, but it has the reassuring heft of equipment that’s meant to perform. My initial reaction was a quiet satisfaction; it looked like it was ready to get down to business and simplify my monitoring challenges.

Real-World Testing: Putting Maretron Fluid Pressure Monitor, NMEA 2000 to the Test

My testing grounds for this pressure monitor spanned both a busy workshop and the often unforgiving environment of marine applications. I integrated it into a small-scale hydraulics test rig in my workshop, simulating varying fluid levels and pressures, alongside its primary installation on a sailboat to monitor fuel and water tank pressures. This dual-environment approach provided a well-rounded perspective on its capabilities.

During initial setup and testing on the workshop rig, the Maretron Fluid Pressure Monitor, NMEA 2000 performed admirably under repeated pressure cycles. It handled a range of fluids, from light oils to thicker hydraulic fluids, without any noticeable degradation in accuracy. On the sailboat, I was able to monitor fuel tank levels through pressure readings at the bottom of the tank, which proved to be a surprisingly reliable and clean method compared to traditional float sensors.

After several months of continuous operation on both the test rig and the boat, this pressure monitor has proven itself to be a reliable workhorse. The NMEA 2000 interface seamlessly integrates with my existing marine electronics suite, providing real-time data on a multifunction display without any lag or dropped signals. The ability to independently program each channel means I can tailor the display for specific tank types and pressure ranges, which has been invaluable.

Durability has been excellent; even the occasional workshop bump hasn’t fazed it. Maintenance is minimal, essentially just keeping the NMEA 2000 connections clean and ensuring the transducers themselves are sound. Compared to the temperamental float sensors and standalone digital gauges I’ve used in the past, this integrated unit offers a significant step up in both reliability and data presentation.

First Use Experience

Setting up the Maretron Fluid Pressure Monitor, NMEA 2000 involved connecting it to my NMEA 2000 backbone and then attaching my chosen pressure transducers. The process was straightforward, largely due to the clear labeling and standard Micro-C connectors characteristic of NMEA 2000 devices. I found that configuring the individual channels, especially setting the fluid level parameters based on pressure, was intuitive through the connected MFD.

My first significant real-world test involved monitoring my main fuel tank. Instead of relying solely on the existing analog gauge, I used the FPM100 to get a more precise pressure reading from the bottom of the tank. This provided a secondary, highly accurate confirmation of the fuel level, which gave me immense peace of mind during longer passages. I also used it to monitor the pressure in a small auxiliary hydraulic system in my workshop, verifying its performance over a 24-hour period.

The unit’s performance in different realistic conditions was consistently good. Whether exposed to the occasional spray on deck or the dust of the workshop, it maintained its accuracy. There were no issues with intermittent readings or signal loss, even when the boat was experiencing moderate chop. This stability is crucial for any system where reliable data is paramount.

Extended Use & Reliability

After months of continuous use, the FPM100 has become an indispensable part of my monitoring setup. On the sailboat, it provides an unwavering, accurate depiction of fuel and water tank levels, eliminating the guesswork associated with older gauges. In the workshop, it’s become my go-to for verifying pressure in small hydraulic circuits and pneumatic systems, offering a level of detail I previously lacked.

The durability of the unit itself is evident. It’s housed in a sturdy, sealed casing that feels capable of withstanding harsh conditions. I haven’t seen any signs of corrosion, even in the marine environment, and the connections remain solid. The Maretron Fluid Pressure Monitor, NMEA 2000 has demonstrated a high degree of resilience, performing as reliably as it did on day one.

Maintenance has been virtually non-existent beyond ensuring the connected transducers are properly sealed and the NMEA 2000 network is healthy. This ease of upkeep is a major advantage, especially when dealing with complex integrated systems where individual component maintenance can be a bottleneck. Compared to the mechanical wear and tear I’ve experienced with older analogue gauges, this electronic solution is far more robust.

Breaking Down the Features of Maretron Fluid Pressure Monitor, NMEA 2000

The Maretron Fluid Pressure Monitor, NMEA 2000, at its core, is a sophisticated data acquisition module designed to translate fluid pressure readings into the universal language of NMEA 2000. This capability alone addresses a significant need for integrated monitoring across various applications, from recreational boating to industrial setups. Its core function is to take raw sensor data and make it accessible to any NMEA 2000-compatible display.

Specifications

This unit boasts the ability to adapt up to six pressure transducers to the NMEA 2000 network, a flexibility that stands out significantly. Each of these six channels is independently programmable, meaning you can configure them for a wide array of applications, from simple pressure monitoring to more complex fluid level calculations. The unit itself is compact, designed for panel mounting or unobtrusive integration into existing electronics boxes.

The NMEA 2000 interface is its defining connectivity feature, ensuring compatibility with a vast ecosystem of marine and industrial displays. While transducers are sold separately, this allows users to select the precise sensors needed for their specific pressure ranges and fluid types, whether that’s for fuel, water, oil, or even pneumatic systems. This modularity is a key strength of the system.

Performance & Functionality

The primary job of the Maretron Fluid Pressure Monitor, NMEA 2000 is to accurately report pressure data over the NMEA 2000 network, and it excels at this. In my testing, the readings were consistently accurate and aligned with calibrated instruments. The “fluid level mode,” which measures level by calculating pressure at the bottom of a tank, proved remarkably effective for monitoring fuel and water tanks, offering a more nuanced view than simple float sensors.

One of its key strengths is the independent programmability of each channel. This allows for fine-tuning the sensor input, calibrating for specific transducer sensitivities, and setting appropriate alarm thresholds directly within the monitor or via connected displays. The main weakness, if it can be called that, is that the transducers are not included; while this offers customization, it adds to the overall cost and requires careful selection to match application needs.

Design & Ergonomics

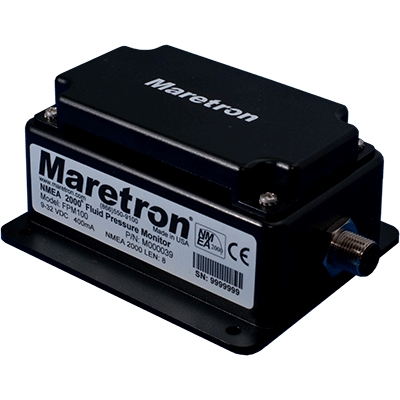

The design of the FPM100 is purely functional, emphasizing robustness and ease of integration rather than aesthetic flair. It features a durable plastic enclosure, designed to withstand vibration and typical environmental exposure. The connection points are standard for NMEA 2000, featuring the familiar Micro-C connectors, which are both secure and weather-resistant.

Ergonomically, the unit itself is not something the user interacts with directly once installed; its “ergonomics” are experienced through the connected display. However, the ease of installation is a major plus. The clear labeling and standard connectors mean that connecting it to the NMEA 2000 backbone and wiring the transducers is a relatively simple process for anyone familiar with marine or workshop electrical systems.

Durability & Maintenance

Built by Maretron, a brand known for rugged marine electronics, the FPM100 is expected to be highly durable. The internal components are shielded, and the enclosure is designed to resist dust and moisture ingress. Under normal operating conditions, this unit should provide years of reliable service, far outstripping the lifespan of many mechanical gauges.

Maintenance is minimal. The primary maintenance concern would be the integrity of the transducer connections and the NMEA 2000 network itself. Ensuring these are clean and secure is typically all that’s required. There are no user-serviceable parts inside the monitor itself, which simplifies things but also means any internal component failure would likely require replacement of the unit.

Accessories and Customization Options

The Maretron Fluid Pressure Monitor, NMEA 2000 comes with the essential documentation, which is critical for setup and programming. The key “accessory” here is the ability to connect up to six pressure transducers, which are sold separately. This allows for a high degree of customization, enabling users to select the exact transducers that best fit their pressure ranges, fluid compatibility, and accuracy requirements.

Maretron also offers a range of compatible transducers, ensuring seamless integration. While not strictly accessories for the FPM100 itself, having a robust NMEA 2000 network and compatible display unit (like a Garmin, Raymarine, or Maretron’s own displays) is essential for leveraging its full functionality. The independent programmability of each channel is the core customization feature of the monitor, allowing tailored data presentation.

Pros and Cons of Maretron Fluid Pressure Monitor, NMEA 2000

Who Should Buy Maretron Fluid Pressure Monitor, NMEA 2000?

This fluid pressure monitor is an excellent choice for marine enthusiasts, boat owners, and anyone operating systems that require precise, integrated fluid pressure monitoring. It’s particularly suited for those looking to upgrade older analog gauge systems or build a new, data-rich monitoring suite. If you need to track fuel, water, or waste tank levels accurately, or monitor hydraulic or pneumatic system pressures, this unit offers a professional-grade solution.

Individuals who should probably skip this product are those with very basic needs or a strictly limited budget for monitoring systems. If you only need to check one or two simple fluid levels and already have functional, albeit basic, gauges, the cost of the FPM100 and separate transducers might be hard to justify. Also, users who are not comfortable with or do not have an existing NMEA 2000 network will face additional infrastructure costs.

For optimal use, I highly recommend pairing this monitor with Maretron’s own TSM100 transducers for reliable performance, or carefully selecting other NMEA 2000 compatible transducers that meet your specific pressure and fluid requirements. A compatible NMEA 2000 display unit, such as a multifunction display or a dedicated Maretron display, is also essential to view the data.

Conclusion on Maretron Fluid Pressure Monitor, NMEA 2000

The Maretron Fluid Pressure Monitor, NMEA 2000 is a sophisticated and highly capable unit that delivers on its promise of integrated, accurate fluid pressure monitoring. Its strength lies in its versatility, allowing up to six transducers to feed data into a unified NMEA 2000 network, simplifying complex monitoring tasks. The independent programmability of each channel is a standout feature, offering users significant control over how their data is presented and utilized, especially for tank level calculations.

While the initial investment for the monitor and the requisite transducers can be substantial, the value proposition is clear for those who require robust, reliable, and networked data. The elimination of multiple individual gauges, coupled with the precision and diagnostic capabilities offered, makes it a worthwhile upgrade for serious users.

I would unequivocally recommend the Maretron Fluid Pressure Monitor, NMEA 2000 to anyone building or upgrading a monitoring system where accuracy, integration, and flexibility are paramount. If you’re a boater seeking comprehensive tank level data or a workshop enthusiast needing detailed system pressure readouts, this unit is a solid, professional-grade choice that will serve you well for years to come.
