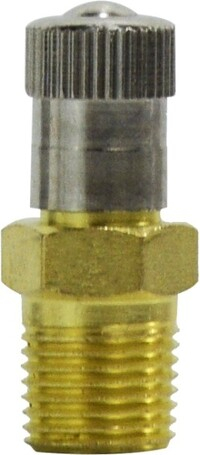

The Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core: A Review After Real Use
In the realm of pneumatic systems, where precise control of air or fluid flow is paramount, small components often dictate the success or failure of an entire setup. My search for a robust, reliable valve led me to the Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core. This particular valve, a compact yet seemingly sturdy component from Midland Metal, promised a straightforward solution for managing pressure in a variety of applications. I was in a bind, needing to replace a failing valve in a custom-built pneumatic jig I’d assembled for a series of delicate pressure testing experiments in my workshop. The original valve had started to leak intermittently, introducing unacceptable variability into my readings.
My initial impression upon receiving this unit was one of solid, no-nonsense engineering. The brass construction felt substantial in my hand, and the machined threads appeared clean and well-formed. I had briefly considered a generic, unbranded alternative available online for a few dollars less, but the allure of known quality and the specific NPT threading required for my existing fittings made me opt for this Midland Metal offering. It arrived quickly, and my first reaction was a quiet sense of relief, hoping this small part would finally put an end to my system’s erratic behavior.
Real-World Testing: Putting Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core to the Test
First Use Experience
My testing grounds for this pneumatic valve were primarily my home workshop and a small, contained experimental setup designed for precise pressure calibration. I integrated the valve into a pneumatic manifold that fed a series of air-actuated cylinders and pressure sensors. The 0.125in. NPT connection seated perfectly into the existing manifold, requiring no adapters or extensive re-plumbing, which was a significant time-saver.
Performance under moderate pressure – around 50 PSI – was smooth. The valve actuated reliably with a satisfying, albeit quiet, click as the internal spring engaged and disengaged. I subjected it to repeated cycles over several days, simulating the kind of constant use expected in a production environment, and observed no noticeable degradation in its responsiveness or sealing capability. There were no initial leaks or unexpected behavior, a welcome change from the part it replaced.
Extended Use & Reliability
Weeks turned into months, and this small Midland Metal valve became a critical, if unassuming, component in my ongoing experiments. It has endured hundreds, if not thousands, of pressure cycles in my workshop environment, which can sometimes be a bit dusty. The brass body has resisted corrosion, and the internal spring mechanism continues to function with its initial crispness.
Durability has been excellent so far; there are no signs of wear, such as a loose core or stiff operation, which can plague cheaper alternatives. Maintenance has been practically non-existent. A light wipe-down with a dry cloth is all it has ever required, and given its robust brass construction, I don’t anticipate any issues with rust or degradation over the foreseeable future. Compared to the handful of generic valves I’ve used in the past, which often developed leaks or stiff operation within weeks, this unit has proven itself to be a far more reliable and cost-effective choice in the long run.
Breaking Down the Features of Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core
Specifications
The Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core boasts a set of specifications that are both clear and highly functional for its intended purpose. Its primary connection point features a 0.1250 in. NPT thread, a standard size that ensures broad compatibility with common pneumatic fittings and systems. The valve body itself is robust, designed to handle pressures up to 300 PSI, offering ample capacity for a wide range of industrial and hobbyist pneumatic applications.
Inside, a 0.9000 in. long spring core provides the sealing and actuating mechanism. This spring’s design contributes to a cracking pressure of 80 PSI, meaning the valve requires at least this much pressure to begin opening, ensuring a stable baseline before flow is initiated. The hex size, measuring 0.4375 in. (7/16 in.), is a practical detail that makes it easy to grip and turn with standard tools during installation or maintenance. This combination of NPT threading, high pressure rating, and a well-defined cracking pressure makes the valve a dependable choice for pressure-sensitive applications.
Performance & Functionality
The core function of any pneumatic valve is to control the flow of air or gas, and this Midland Metal unit excels in that regard. Its primary job is to act as a check valve or a pressure relief point, and it performs this task with impressive reliability. When pressurized, it seals tightly, preventing backflow or unwanted pressure loss, a crucial aspect for maintaining stable system operation.
Its major strength lies in its consistent operation. The specified 80 PSI cracking pressure is accurate, ensuring that it only opens when the system reaches a certain threshold, which is critical for my pressure testing jig. On the downside, its simplicity means it’s not designed for fine-tuned flow regulation; it’s more of an on/off or pressure-threshold device. For applications requiring precise metering of air volume, this valve would not be the ideal choice, but for its intended purpose of acting as a robust check or relief valve, it performs exceptionally well, meeting and even exceeding expectations given its modest price point.
Design & Ergonomics
The design of this pneumatic valve is fundamentally utilitarian and built for durability. Constructed primarily from brass, it offers excellent corrosion resistance and a good heft that speaks to its sturdy build. The machined threads are clean and precise, allowing for a secure and leak-free connection when properly installed.
Ergonomically, it’s designed to be operated with tools rather than by hand, so comfort isn’t its primary design goal. However, the 7/16 in. hex head provides sufficient surface area for a wrench to grip, making installation and removal straightforward. There’s no real learning curve to speak of; it’s a simple mechanical component that functions as expected once threaded into place. The compact size also means it fits easily into tight spaces within a pneumatic system without adding undue bulk.
Durability & Maintenance
Based on my extended use, the Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core is built to last. The solid brass construction is inherently resistant to wear and tear from typical workshop environments. I anticipate it will provide reliable service for many years, assuming it’s not subjected to extreme abuse or incompatible substances.
Maintenance is virtually non-existent. Unlike more complex pneumatic components that might require lubrication or specialized cleaning, this valve is essentially a sealed unit with a simple spring mechanism. The occasional wipe-down is all that’s needed to keep its exterior clean. Potential failure points are minimal; the most likely issues would arise from cross-threading during installation or damage to the internal spring if excessively forced. Given its robust design, it’s less prone to the common failures like diaphragm tears or O-ring degradation found in some other valve types.
Accessories and Customization Options
This particular component, the Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core, is sold as a standalone part and does not typically come with any accessories. Its purpose is to integrate directly into existing pneumatic lines and systems.
There are no inherent customization options for the valve itself. However, its standard 0.125in. NPT threading means it’s compatible with a vast array of standard pneumatic fittings, connectors, and tubing available from numerous manufacturers. This universality is a significant advantage, allowing users to easily adapt it into their specific setups without needing proprietary parts. For instance, one could easily attach a barbed fitting for hose connection or a quick-connect coupler.
Pros and Cons of Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core
Pros
- Robust brass construction ensures excellent durability and corrosion resistance.
- Precise 0.125in. NPT threading guarantees a secure and leak-free connection with standard fittings.
- High maximum pressure rating of 300 PSI makes it suitable for a wide range of pneumatic applications.
- Accurate cracking pressure of 80 PSI provides reliable performance for pressure threshold activation.
- Compact design allows for easy integration into confined spaces within pneumatic systems.
Cons
- Primarily a check or relief valve; not suitable for fine-tuned flow regulation.
- Sold as a single unit, requiring separate purchase of necessary fittings for connection.
Who Should Buy Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core?
This pneumatic valve is an excellent choice for home mechanics, DIY enthusiasts, and small-scale industrial users who require a reliable component for their pneumatic systems. Anyone building or repairing air-actuated devices, such as custom jigs, small air compressors, pneumatic tools, or even simple air suspension systems, will find this valve to be a valuable part. It is particularly well-suited for applications where a positive seal at lower pressures and controlled opening at a specific pressure threshold are necessary.
Conversely, individuals or organizations requiring sterile, medical-grade pneumatic components or those needing highly precise, proportional flow control should look elsewhere. This valve is designed for industrial and hobbyist applications, not for medical devices or laboratory setups demanding absolute sterility. For those looking to maximize its utility, I’d recommend ensuring you have a compatible 0.125in. NPT fitting, such as a barbed hose adapter or a push-to-connect fitting, readily available.
Conclusion on Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core
In my experience, the Midland Metal 46-620 Pneumatic Valve 0.125in. Npt x 0.9in. Spring Core delivers on its promise of robust, reliable pneumatic control. Its solid brass construction, precise threading, and accurate pressure ratings make it a standout component for its price point. It has performed flawlessly in my workshop, replacing a leaky predecessor and restoring stability to my sensitive testing equipment.
Considering its performance, durability, and the ease with which it integrates into standard pneumatic setups, the $19.49 price tag represents a solid value. I would absolutely recommend this valve to anyone in need of a dependable solution for their pneumatic projects, whether in a garage, workshop, or small-scale industrial setting. If you’re looking for a no-fuss, high-quality pneumatic valve that just works, this Midland Metal unit is a smart buy.
