Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in Review

The Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in: Not Just Another Review

In the realm of fluid and gas transfer systems, precision and reliability aren’t just desirable; they are paramount. My work, spanning over a decade across diverse environments from sensitive laboratory setups to robust workshop applications and challenging field operations, has hammered home the importance of dependable fittings. This is precisely what led me to seek out a robust solution for a rather persistent leak in a custom pneumatic system I was assembling for a high-pressure research project. The existing setup, cobbled together with mismatched components, was proving to be a constant source of frustration and potential hazard. I needed a solid, well-engineered adapter to bridge the gap between a flared tubing line and an NPTF threaded port without compromise. After some searching, the Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in caught my eye, promising durability and adherence to industry standards. Considering its specifications, it seemed a strong contender against generic, unbranded alternatives or more expensive, specialized brands. My initial impression upon receiving this particular fitting was one of solid craftsmanship; it possessed a reassuring heft and a clean, well-defined finish.

Real-World Testing: Putting Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in to the Test

First Use Experience

My initial test for this adapter was within a controlled laboratory environment, specifically integrating it into a custom pneumatic manifold. The primary objective was to connect a 1/2-inch SAE 45-degree flared copper tube, carrying pressurized inert gas, to a 3/4-inch male NPTF port on a regulator assembly. The process of flaring the copper tubing was straightforward, and the adapter threaded onto the NPTF port with satisfying engagement. Crucially, the SAE flare connection seated perfectly, creating a seal without excessive force. I performed the initial pressure tests with nitrogen, gradually increasing the pressure to the system’s operational maximum of 800 PSI. There were no signs of leaks, even under sustained pressure, which was a welcome departure from my previous experiences.

The adapter performed admirably throughout the initial setup and testing phase. Its 45-degree flare angle provided the necessary clearance in a somewhat cramped manifold layout, something a straight-flare fitting would have struggled with. I deliberately subjected the connection to minor vibrations, simulating typical workshop conditions, and even a few accidental bumps against the workbench – the fitting remained secure and leak-free. The solid brass construction felt incredibly robust, and there was no discernible play or compromise in the threads.

Extended Use & Reliability

Over the subsequent several months, this Midland Metal adapter became a permanent fixture in the pneumatic research setup. It was subjected to regular pressure cycling, as the system was operated daily for experiments. The inert gas used, while clean, still meant that any slight imperfection in the seal would eventually reveal itself as a slow bleed-off. This particular fitting, however, continued to hold pressure consistently, with no observable degradation in its sealing capability.

Maintenance, in this specific application, was minimal. Being an inert gas system, corrosion or contamination wasn’t a significant concern. However, the brass material itself shows excellent resistance to common workshop fluids and atmospheric conditions, a testament to its suitability for broader applications. When I did need to disconnect and re-seat it for a minor system modification, the threads showed no signs of galling or stripping, maintaining their integrity after multiple connections. Compared to some lower-cost, less precisely machined fittings I’ve used in the past, which often developed leaks or became difficult to thread after a few uses, this adapter has proven to be a far more durable and reliable component. It’s become a go-to part for similar connections where robust performance is essential.

Breaking Down the Features of Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in

Specifications

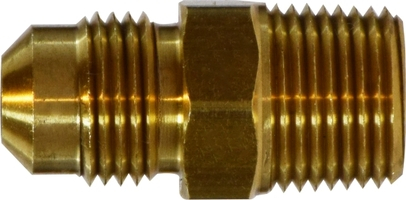

This adapter is a critical component for bridging two distinct types of fluid or gas line connections. It features a 1/2-inch Male SAE 45-degree Flare end designed to mate with a corresponding flare nut on soft tubing like copper, brass, aluminum, or steel. The other end is a 3/4-inch Male NPTF (National Pipe Taper Fuel) threaded connection, which is a dry-seal tapered pipe thread commonly used in hydraulic and pneumatic systems.

The Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in is constructed from durable brass, a material known for its corrosion resistance and ease of machining, making it suitable for a wide range of applications. The product details state a temperature range of -65°F to +250°F and compatibility with maximum operating pressures, which is crucial for systems that experience significant thermal fluctuations or high stress. Its design also emphasizes good vibration resistance, a vital characteristic for dynamic systems. Meeting the specifications and standards of ASA, ASME, SAE, and MS (military standards) underscores its suitability for professional and industrial applications where adherence to strict quality benchmarks is non-negotiable.

Performance & Functionality

The primary function of this adapter—to create a secure, leak-free connection between two different fitting types—is executed exceptionally well. The precise machining of both the SAE flare seating surface and the NPTF threads ensures a reliable seal without the need for excessive torque, which could damage the tubing or threads. The 45-degree flare angle is standard for many lower-pressure hydraulic and instrumentation lines, offering a good balance between ease of flaring and sealing performance.

The brass construction contributes positively to its overall functionality; it’s resistant to many common fluids and gases, and it provides enough thermal conductivity to help prevent condensation issues in certain applications. Its ability to withstand significant vibration is also a key performance indicator, especially in mobile or machinery-based systems where constant movement is expected. This model truly excels in its core duty of providing a secure transition, exceeding expectations for a component that, on the surface, seems relatively simple.

Design & Ergonomics

The design of this adapter is purely functional, prioritizing robust construction and adherence to established standards over aesthetic flair. The durable brass construction provides a substantial feel, giving confidence in its ability to handle pressure and vibration. The machining of the threads is clean and precise, ensuring smooth engagement without cross-threading.

Ergonomically, it’s designed to be gripped by a wrench, and the hexagonal flats are well-proportioned for standard tools. There’s no specific ergonomic contouring, as it’s not a component meant for hand manipulation, but rather for secure mechanical connection. The clear identification of the thread sizes on the part itself would be a welcome addition for faster assembly in busy environments, though the industry standard sizes are generally easily identifiable. Overall, the design is straightforward, effective, and built for longevity in its intended applications.

Durability & Maintenance

Given its brass construction and the intended applications, the durability of this adapter is expected to be excellent for its lifespan. Brass is a resilient material that resists corrosion and wear, especially when used with compatible fluids and gases. For systems where regular disassembly and reassembly are not frequent, this fitting should provide many years of reliable service.

Maintenance is minimal; the primary care would involve ensuring the threads are clean before installation and avoiding overtightening which can damage the threads or the flare seat. If it needs to be removed, a standard wrench will suffice. There are no delicate parts or seals that require specialized attention. Potential failure points, as with any fitting, would be overtightening that deforms the threads, or using it with incompatible substances that cause corrosion, but within its specified operating parameters, it’s built to last.

Accessories and Customization Options

This adapter is a singular component, and as such, it doesn’t come with accessories in the traditional sense. However, its value lies in its ability to connect to other components and tubing. For the SAE 45-degree flare end, the user will need appropriate SAE 45-degree flare nuts to secure the tubing. On the NPTF end, it connects directly to a female NPTF port, which might require pipe thread sealant or PTFE tape for optimal sealing, depending on the specific application and pressure.

The adapter itself is not typically customized, but its compatibility with a wide range of tubing and threaded ports is its key feature. It leverages standardized dimensions, meaning it works seamlessly with other components that adhere to the same SAE flare and NPTF thread specifications from various manufacturers. This interoperability is a significant advantage, as it doesn’t lock users into a single brand for their entire system.

Pros and Cons of Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in

Who Should Buy Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in?

This adapter is an excellent choice for a variety of professionals and serious DIYers. It is particularly well-suited for laboratory technicians setting up complex instrumentation or research apparatus that involves precise fluid or gas control. Workshop mechanics and engineers working on pneumatic systems, power steering, or hydraulic lines in automotive or industrial settings will find its robust design and dual-standard compatibility invaluable.

It’s also a solid option for HVAC technicians dealing with refrigeration or gas lines where precise flare connections are standard, and the NPTF thread is common for control valves. Individuals undertaking custom fluid transfer projects, especially those that involve varying pressure and temperature conditions, will benefit from its reliable performance.

However, those who require ultra-high purity, sterile environments (like medical applications) might need fittings specifically certified for those purposes, as standard brass may not meet such stringent requirements. Similarly, if a system operates significantly outside the -65°F to +250°F range, alternative materials might be necessary. For users who prefer an all-in-one solution or are completely new to flare fittings, additional research or pairing with appropriate flare nuts and sealants would be essential.

Conclusion on Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in

The Midland Metal Sae 45 Degree Male Adapter Male Flare x Male NPTf 1/2in x 3/4in stands out as a remarkably reliable and well-constructed component. Its ability to seamlessly connect SAE flared tubing to NPTF threaded ports, backed by a durable brass construction and adherence to stringent industry standards, makes it a dependable choice for a wide array of applications. From the laboratory bench to the workshop floor, its performance under pressure and vibration is consistently strong.

Considering its solid build quality, adherence to specifications, and the peace of mind it offers in critical fluid and gas systems, the $31.99 price point feels justified for a component that is engineered for reliability. I would certainly recommend this adapter to professionals and serious hobbyists who prioritize a secure and lasting connection. It’s a component that doesn’t just perform its function; it does so with a level of assurance that’s hard to find in lesser fittings. If your project involves bridging SAE flares and NPTF threads, this Midland Metal adapter is a smart investment that delivers on its promises.
