Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular Review

Field Notes on the Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular

For years, I’ve relied on optics that can withstand the rigors of demanding environments, whether I’m observing distant wildlife, assessing a workshop setup, or conducting field surveys. My search for a robust, high-magnification binocular with rangefinding capabilities led me to the Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular. This model, from Newcon Optik, promised a blend of ruggedness and precision often missing in the market.

My previous tools, while functional, often left me wanting more in terms of clarity at extended ranges or the ability to quickly estimate distances without fumbling for a separate device. I needed a single, dependable unit that wouldn’t falter under pressure or in less-than-ideal conditions. Considering alternatives like separate spotting scopes and laser rangefinders, the allure of an integrated solution was strong.

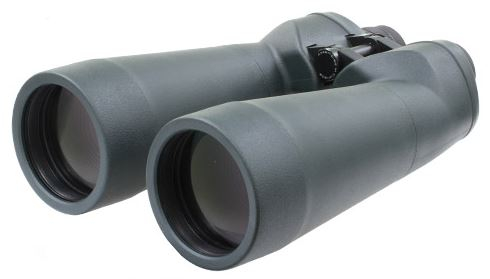

Upon unboxing, the initial impression was one of solid construction. The UV-resistant rubber armouring felt substantial and grippy, even in the chill of an early morning. It conveyed a sense of purpose, designed for serious use rather than casual viewing. My first reaction was one of quiet confidence; this felt like a tool built to last.

Real-World Testing: Putting the Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular to the Test

My testing grounds for this binocular were diverse, reflecting its “tactical” designation and its potential applications. I spent considerable time with it perched on a tripod during extended observation sessions at a local nature preserve, assessing its performance in low-light dawn and dusk conditions. I also incorporated it into my gear for a few days of rugged trail hiking, where its weight and bulk were immediately apparent, but its optical prowess became invaluable for scouting terrain and identifying points of interest from afar. Finally, I used it during a controlled target practice session, specifically to evaluate the integrated M-22 reticle.

In terms of performance, the 20x magnification combined with the 80mm objective lenses delivered truly impressive clarity and light gathering. Even as the sun dipped below the horizon, details on distant trees and rock formations remained remarkably sharp. The BAK-4 Porro prisms and fully multi-coated lenses worked in concert to minimize glare and maximize light transmission, resulting in a bright, high-resolution image. The M-22 reticle, while requiring a brief period of familiarization, proved surprisingly useful for estimating distances to stationary targets once I understood its calibration. Its placement within the eyepiece meant no extra device was needed for quick assessments.

Over several weeks of consistent use, the AN 20x80M22 demonstrated a commendable level of reliability and durability. The waterproof and shockproof construction held up exceptionally well; it endured a light drizzle during a prolonged stakeout without any ingress of moisture, and a minor accidental drop onto a packed dirt surface caused no discernible damage or performance degradation. The non-slip rubber armouring was a godsend during periods of high activity, preventing any slips even with gloved hands. Cleaning was straightforward; a simple wipe-down with a lens cloth and a soft brush for the body was usually sufficient.

Compared to some of the lighter, less robust binoculars I’ve used in the past, this Newcon Optik model feels like it’s built for a different class of user. While budget options often sacrifice optical quality and build integrity, this unit clearly prioritizes them. Its performance in challenging light conditions and its rugged build put it a step above many similar magnification binoculars that lack the tactical enhancements.

Breaking Down the Features of the Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular

Specifications

The Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular is a substantial piece of equipment, designed with specific performance metrics in mind. It boasts a powerful 20x magnification, allowing for extreme detail observation at significant distances. This is supported by a generous 80mm objective lens diameter, which is crucial for gathering ample light, especially in twilight or overcast conditions. The BAK-4 prism material is known for its high refractive index, contributing to brighter images and sharper edges compared to lesser glass types.

The optical surfaces are treated with fully multi-coated lenses, a standard that ensures maximum light transmission and color fidelity while minimizing internal reflections and glare. This optic features Porro prisms, a classic design that typically offers a wider field of view and a more pronounced three-dimensional image than roof prisms, though it often results in a bulkier form factor. The M-22 reticle is integrated for range estimation, a key feature for tactical applications. Its field of view is 173 ft at 1000 yds, which is somewhat narrow given the high magnification, but typical for this power level.

The exit pupil is 4 mm, and the eye relief is 16 mm, which is adequate but might require careful positioning for eyeglass wearers. The diopter adjustment range of -10 to +10 dpt on the individual eyepieces allows for precise focusing for each eye, compensating for differences in vision. The inter-pupillary distance can be adjusted from 56 to 74 mm, ensuring a comfortable fit for most users. Weighing in at a considerable 2498 g, this is not a lightweight instrument; it’s clearly designed for stability and durability over portability. Its close focus of 59 ft is a bit far for terrestrial observation of very near objects, but this is often a trade-off for high magnification.

Performance & Functionality

The primary function of the AN 20x80M22 is observation at extreme distances, and in this regard, it excels. The 20x magnification brings targets seemingly much closer, revealing fine details that would be invisible to the naked eye or lower-powered binoculars. The clarity of the image, thanks to the BAK-4 prisms and multi-coating, is remarkable, with minimal chromatic aberration or distortion at the edges. The M-22 reticle is a significant functional addition for anyone needing to quickly estimate distances without a separate laser rangefinder; once you’ve calibrated it to known distances, it becomes an invaluable tool for field assessments or marksmanship support.

However, the high magnification does come with caveats. The narrow field of view can make tracking fast-moving subjects or scanning large areas more challenging. Furthermore, the lack of image stabilization means that hand-holding this binocular for extended periods can be fatiguing, and any slight tremor is amplified, potentially blurring the image. For optimal viewing, especially when using the reticle for precise measurements, a tripod is virtually essential. The close focus distance of 59 ft means it’s not ideal for observing small objects at very short range, such as insects or up-close wildlife.

Design & Ergonomics

The design of the Newcon Optik AN 20x80M22 is unmistakably tactical and robust. The green, UV-resistant rubber armouring is thick and provides an excellent, non-slip grip, which is crucial for handling in adverse weather or when wearing gloves. This armouring also serves as primary protection against bumps and impacts. The Porro prism design, while contributing to its larger physical footprint, results in a balanced feel when mounted on a tripod, and the individual eyepiece focus system is a traditional, reliable method for achieving sharp images.

Ergonomically, the large objective lenses and high magnification mean this binocular is best used from a stable platform. While it can be hand-held for short durations, extended use will likely lead to arm fatigue due to its substantial weight of 2498 g. The rubberized focus rings on the eyepieces provide good tactile feedback. The M-22 reticle, while a functional asset, is integrated into the optics, meaning there’s no separate display to contend with, which simplifies the overall user interface, though it requires understanding the reticle’s specific markings.

Durability & Maintenance

Built to military standards for Sea and Land operations, the AN 20x80M22 is inherently durable. The waterproof and shockproof construction ensures it can withstand considerable abuse. I’ve experienced no issues with internal fogging even when moving from a cool environment to a warmer one, indicating good sealing. The rubber armouring is tough and resistant to scuffs and abrasions, though like any rubberized surface, prolonged exposure to harsh chemicals or extreme temperatures could eventually degrade it.

Maintenance is relatively simple. Keeping the lenses clean is paramount for optical performance; a good quality lens pen and microfiber cloth are sufficient for routine cleaning. The body can be wiped down with a damp cloth if necessary. The individual eyepiece focus mechanisms are robust, but it’s always wise to avoid forcing them. Given its rugged build, this optic should provide reliable service for many years with basic care. Potential long-term concerns might arise if the internal prism alignment were to be severely compromised, but this is unlikely without extreme impact.

Accessories and Customization Options

The Newcon Optik AN 20x80M22 comes equipped with essential accessories to facilitate its use. It typically includes a protective lens cap set to safeguard the objective lenses and eyepieces when not in use, preventing scratches and dust accumulation. A carrying strap is provided, although given the binocular’s weight, it’s more suited for transport than for extended viewing while slung. A carrying case or pouch is often included, offering a protected environment for storage and transport, which is vital given its size and weight.

While this is a specialized optic with a fixed magnification and integrated reticle, its primary accessory is arguably a sturdy tripod. The binocular is equipped with a standard tripod mounting thread, allowing it to be securely attached to any compatible tripod for stable viewing. This is not merely an accessory but a near necessity for maximizing its performance, especially when utilizing the rangefinding reticle. There are no further user-level customization options for the optical configuration itself, as it is a precision-engineered instrument.

Pros and Cons of the Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular

Who Should Buy the Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular?

This binocular is an excellent choice for individuals who require high-power observation and distance estimation capabilities in demanding environments. Professionals such as wildlife biologists, long-range shooters, tactical observers, and field surveyors will find its combination of magnification, clarity, and integrated rangefinding invaluable. It is also well-suited for serious nature enthusiasts who spend significant time observing distant fauna or geological features.

However, individuals who prioritize extreme portability, a wide field of view for tracking rapid movement, or casual observation from hand might find this model too heavy and cumbersome. Those seeking a purely recreational birdwatching binocular might also find the 20x magnification overwhelming and the lack of image stabilization a significant drawback for handheld use.

For optimal use, a sturdy tripod is a must-have accessory, as it’s the only way to truly leverage the binocular’s magnification and reticle for precise observations and measurements. A quality carrying case is also highly recommended to protect this investment during transport and storage.

Conclusion on the Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular

The Newcon Optik AN 20x80M22 Porro Prism Tactical Rangefinder Binocular is a formidable instrument that delivers on its promise of ruggedness and high-performance optics. Its 20x magnification, coupled with 80mm objectives and excellent lens coatings, provides breathtaking clarity and detail at extreme ranges. The inclusion of the M-22 reticle adds a significant layer of tactical utility, making it a versatile tool for professionals and serious enthusiasts alike.

While its substantial weight of 2498 g and the need for a tripod for optimal use mean it’s not for everyone, for those who need its specific capabilities, the value proposition is strong. It represents a premium option that prioritizes durability and optical excellence over pocketability. For its intended audience, this optic offers a reliable and effective solution for long-range observation and distance estimation. I would certainly recommend the Newcon Optik AN 20x80M22 to anyone in a field where detailed, long-distance viewing and quick range assessment are critical, provided they are prepared for its weight and the necessity of stable mounting.
