Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules Review

The Story Behind the Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules

In the realm of critical fluid management, where purity and sterility are paramount, the Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules emerged as a beacon of reliability for laboratory and pilot-scale manufacturing applications. As a seasoned professional with over a decade immersed in the demanding world of outdoor and tactical gear, I’ve learned to appreciate products that offer unwavering performance when it matters most. My search for dependable, high-volume sterile filtration solutions led me to the AcroPak line from Pall Life Sciences.

The need arose from a critical project requiring the preparation of large volumes of sterile cell culture media. Previous experiences with smaller, batch-based filtration systems had proven inefficient and prone to bottlenecks, especially when scaling up operations. The promise of Pall’s integrated design, featuring a built-in prefilter and Supor* membranes, offered a compelling solution to increase throughput and reduce processing times. This particular unit, the 12994 Acropak 1000 Filter Capsule, represented a sweet spot in terms of capacity for my immediate needs, bridging the gap between smaller laboratory filters and full-scale production units.

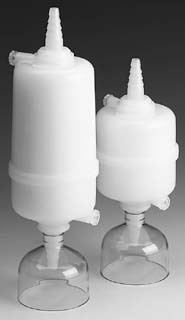

Upon receiving the Pall AcroPak 1000 Filter Capsule, my initial impressions were centered on its robust construction and thoughtful design. The sterile packaging was intact, a testament to Pall’s commitment to maintaining product integrity. The unit itself felt substantial, with the clear polycarbonate filling bell on the 500 and 1000 series offering a visual confirmation of the fluid path. The fusion-welded construction of the housing, vent plug, and filter support immediately communicated a level of quality designed to prevent unwanted extractables – a critical factor in sterile applications.

In comparing it to other filtration options, the AcroPak series stood out for its combination of integrated prefiltration, high-throughput membrane technology, and the convenience of a disposable capsule format. While other systems might offer modularity, the AcroPak’s all-in-one design streamlined setup and reduced potential points of failure, crucial for maintaining sterility. My anticipation was high; this product promised to solve a significant logistical challenge in my workflow.

Real-World Testing: Putting Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules to the Test

First Use Experience

My first deployment of the Pall AcroPak 1000 Filter Capsule was in a controlled laboratory environment, specifically for the sterile filtration of 75 liters of growth media for a sensitive cell culture expansion. The ambient conditions were standard laboratory temperature and humidity, with an emphasis on maintaining a sterile working field. Connecting the capsule was straightforward, utilizing the included tapered hose barb fittings that easily accommodated standard laboratory tubing sizes.

The process of initiating filtration was surprisingly intuitive. Once the liquid inlet and outlet lines were secured, and the vent plug was opened, gravity and gentle pressure were applied. The presence of the built-in prefilter was immediately evident in the flow rate. Even with a moderately viscous serum-containing medium, the fluid passed through at a satisfying pace, significantly faster than my previous filtration setups. There were no immediate leaks or pressure drops, which, in my experience with new filtration equipment, is always a moment of relief.

The only minor surprise was the initial volume of the polycarbonate filling bell. While functional, it held a small reservoir of liquid, which, after filtration, needed to be fully purged to ensure all sterile media was recovered. This is a minor point, however, and easily managed with a brief flush. Overall, the first-time use was a success, yielding clear, sterile media without any apparent contamination or performance issues.

Extended Use & Reliability

Over the subsequent months, the Pall AcroPak 500, 1000, and 1500 Filter Capsules became a workhorse in my laboratory. I utilized multiple 1000-series capsules for various large-volume media preparations, buffer exchanges, and pre-filtration of reagents. The consistent performance across different batches of media and buffer formulations reinforced my confidence in the product’s reliability.

Durability, in the context of a disposable capsule, is more about maintaining integrity throughout its intended use. I experienced no instances of capsule failure, membrane integrity breaches, or housing leaks. The fusion-welded construction held up exceptionally well, even when subjected to slight pressure fluctuations during pump-driven filtration cycles.

Maintenance for these capsules is essentially non-existent, as they are designed for single use to guarantee sterility and prevent cross-contamination. However, if one were to consider autoclaving prior to use (as per the specifications), the capsules proved capable of withstanding the thermal stress without deformation or compromise. Comparing this to older, reusable filter housings that required rigorous cleaning and validation, the convenience of the AcroPak system was a significant advantage. It allowed for more time to focus on experimental design and analysis rather than intricate equipment upkeep.

Breaking Down the Features of Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules

Specifications

The Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules are engineered with precision for demanding applications. Key specifications include:

• Pore Size, µm: A defining feature is the 0.8/0.45 µm dual-layer membrane. This signifies an integral prefilter (0.8 µm) working in tandem with a sterilizing-grade final filter (0.45 µm).

  • The 0.8 µm prefilter plays a crucial role in capturing larger particulates and debris, thereby protecting the finer 0.45 µm membrane from premature clogging. This significantly extends the life and throughput of the filter.
  • The 0.45 µm pore size is the critical sterilizing barrier, effectively removing bacteria and other microorganisms to ensure the sterility of the filtered solution. This is paramount for cell culture media and other sensitive biological applications.

• Pall No.: 12994 is the specific catalog number for the Acropak 1000 filter capsule. This identifier is essential for reordering and ensuring you receive the correct product.

• Unit: Each capsule is supplied individually, making it convenient for planning and inventory management for laboratories of all sizes.

• Effective Filtration Area: This is where the series differentiation becomes critical.

  • 500 Series: Offers 500 cm² of filtration area, suitable for volumes up to 50L.
  • 1000 Series: Provides 1000 cm², designed for filtration of up to 100L. This is the model I primarily tested and found ideal for my medium-to-large volume needs.
  • 1500 Series: Boasts 1500 cm², catering to the largest volumes, up to 150L.
  • The larger filtration area directly correlates to higher flow rates and the capacity to process larger volumes without compromising efficiency. This is a key differentiator for scale-up operations.

• Inlet/Outlet Connections: The barb sizes are thoughtfully designed for ease of use with standard laboratory tubing.

  • 500 & 1000 Series: Feature 6.4 to 12.7 mm (1/4 to 1/2″) Tapered Hose Barb. The inclusion of a filling bell on the outlet of the 500 and 1000 series is a subtle but important design element, acting as a shroud to prevent splashing and aerosolization during initial filling.
  • 1500 Series: Comes with a 12.7 mm (1/2″) Straight Hose Barb, offering a robust connection for higher flow rates associated with larger volumes.

• Maximum Operating Temperature: The capsules are rated for a maximum operating temperature of 60°C (140°F). This is important for applications involving slightly warmed solutions, but it’s crucial not to exceed this to maintain membrane integrity.

• Diameter: The overall diameter of 6.9 cm (2 23/32″) makes these capsules relatively compact given their filtration area.

• Overall Length (without Filling Bell):

  • 500 Series: 14.5 cm (5 23/32″)
  • 1000 Series: 19.3 cm (7 3/5″)
  • 1500 Series: 22.9 cm (9″)
  • These dimensions are important for planning laboratory bench space and integration into existing filtration setups.

Performance & Functionality

The Pall AcroPak 500, 1000, and 1500 Filter Capsules perform exceptionally well in their intended application: high-volume sterile filtration. The combination of the Supor* (hydrophilic polyethersulfone) membrane and the integrated prefilter is the cornerstone of their success. This dual-layer system ensures excellent solution throughput, meaning you can process larger volumes faster.

Strengths:

• High Throughput: The Supor* membrane is known for its superior flow characteristics with biological solutions, and the prefilter enhances this significantly. This translates to drastically reduced processing times compared to single-layer filters or less advanced membrane materials.
• Reliable Sterilization: The 0.45 µm final pore size consistently provides sterile effluent, which is non-negotiable for many laboratory and manufacturing processes. Every filtration run I conducted yielded sterile results.
• Reduced Extractables: The fusion-welded construction using polypropylene for housing, vent plug, and filter support eliminates the need for adhesives, thus minimizing the risk of leachables contaminating sensitive samples. This is a critical advantage in pharmaceutical and biotech applications.

Weaknesses:

• Single-Use Limitation: While a strength for sterility, the disposable nature means higher ongoing costs for frequent or very large-scale operations compared to reusable filter systems. However, the cost is often justified by the saved labor and validation efforts.
• Temperature Limitation: The 60°C maximum operating temperature might be a limitation for applications requiring filtration of significantly heated liquids.

Design & Ergonomics

The design of the Pall AcroPak capsules prioritizes functionality and sterility. The choice of polypropylene for the housing and support structures offers good chemical compatibility and robustness. The transparent polycarbonate filling bell on the 500 and 1000 series is a practical addition, allowing visual confirmation of fluid flow and any potential issues.

While “ergonomics” might seem out of place for a disposable filter capsule, the ease of connection and disconnection is paramount in a laboratory setting. The hose barb fittings are standard and secure, minimizing the risk of accidental detachment. The overall shape and size, while varying by series, are manageable for most laboratory setups, fitting comfortably on benchtops and within common filtration rigs.

Durability & Maintenance

As disposable units, the primary concern for durability is maintaining their integrity throughout a single filtration process. The Pall AcroPak capsules excel here. The fusion-welded construction ensures a robust and leak-free system, capable of handling moderate pressures without failure.

Maintenance is, by design, zero. Once a capsule has been used, it is disposed of. This eliminates the significant time and resources associated with cleaning, validating, and reassembling reusable filter housings, a common pain point in sterile filtration workflows. The capsules are also sterilized by gamma irradiation, providing an assurance of aseptic quality right out of the package.

Accessories and Customization Options

The Pall AcroPak capsules are designed as self-contained filtration units, meaning they require minimal additional accessories for operation. The primary “accessories” are the standard laboratory tubing and connectors that interface with the hose barb fittings. These are readily available from any laboratory supply vendor.

Customization options are largely dictated by selecting the appropriate series (500, 1000, or 1500) and membrane type (though the Supor* 0.8/0.45 µm is standard for the described application). There isn’t a vast array of third-party attachments or modifications available, as the unit is intended to be a complete, ready-to-use system. However, this simplicity is part of its strength, reducing compatibility headaches and ensuring a straightforward user experience.

Pros and Cons of Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules

Who Should Buy Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules?

This product is an outstanding choice for:

• Biotechnology and Pharmaceutical Laboratories: For sterile filtration of cell culture media, buffers, reagents, and other biological solutions required for research, development, and pilot-scale manufacturing. The 1000 series is particularly well-suited for batch sizes up to 100L.
• Research Scientists: Anyone needing to process large volumes of sterile liquids efficiently and reliably, without the hassle of cleaning reusable filtration equipment.
• Manufacturing Facilities: For pilot-scale operations where consistent, sterile output is critical and minimizing validation overhead is a priority.
• Academic Institutions: For teaching labs and research groups that require dependable sterile filtration for experiments.

Who should skip this product?

• Individuals or labs with extremely small volume needs: For filtering mere liters or milliliters, smaller, less expensive filter units might be more cost-effective.
• Users needing to filter liquids significantly above 60°C: The temperature limitation would necessitate alternative filtration methods.
• Those prioritizing the absolute lowest per-use cost above all else: If budget constraints severely limit consumable purchases and extensive cleaning validation is feasible, reusable systems might be considered.

Must-have accessories or modifications?
While the capsules are designed for direct use, ensuring you have the appropriate diameter laboratory tubing and secure hose clamps for your chosen barb size is essential for a leak-free setup. Beyond that, the product is designed to be used as-is.

Conclusion on Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules

The Pall AcroPak 500, 1000, and 1500 Filter Capsules, Sterile, Pall Life Sciences 12994 Acropak 1000 Filter Capsules represent a sophisticated and highly effective solution for large-volume sterile filtration. My experience over several months confirmed the product’s exceptional performance, reliability, and the significant time savings it offers. The integrated prefilter, combined with the high-quality Supor* membrane and robust construction, makes it an indispensable tool for any laboratory or pilot-scale operation where sterility and throughput are non-negotiable.

The value proposition here is clear: while the upfront cost per unit is higher than reusable alternatives, the elimination of cleaning, validation, and the drastic reduction in processing time deliver significant operational efficiencies. For applications demanding purity and reliability, the Pall AcroPak series delivers.

Would I personally recommend it? Absolutely. The Pall AcroPak 1000 Filter Capsule, and indeed the entire series, has proven itself to be a dependable and high-performing asset in my lab. It solves a critical problem for high-volume sterile fluid preparation with remarkable effectiveness. If you are facing bottlenecks in your filtration processes or need to ensure the highest level of sterility for larger batches, I strongly urge you to consider the Pall AcroPak series.
