Panther 55-0220 2″ Set Back Plate Review

Let’s Review the Panther 55-0220 2″ Set Back Plate

For those of us who spend more time tinkering on the water than just cruising, optimizing boat performance is an ongoing pursuit. The Panther 55-0220 2″ Set Back Plate from Panther Marine Products is a piece of hardware designed to offer a subtle yet significant adjustment to your outboard motor’s position. This cast aluminum spacer aims to provide a 2″ set-back, a crucial dimension for fine-tuning how your boat handles at speed. It’s the kind of component that doesn’t grab headlines but can make a difference for serious performance seekers.

My own journey to this particular plate began with a slight chine-walking issue on a fiberglass hull, particularly noticeable at higher speeds. While my existing jack plate offered vertical adjustment, I felt I needed to experiment with the motor’s horizontal placement to influence hull lift and stability. Standard bolt-on motors often lack this flexibility, and I was looking for an affordable way to gain that extra bit of setback without investing in a full hydraulic jack plate system. This Panther product seemed to fit that niche perfectly, offering a fixed, straightforward solution.

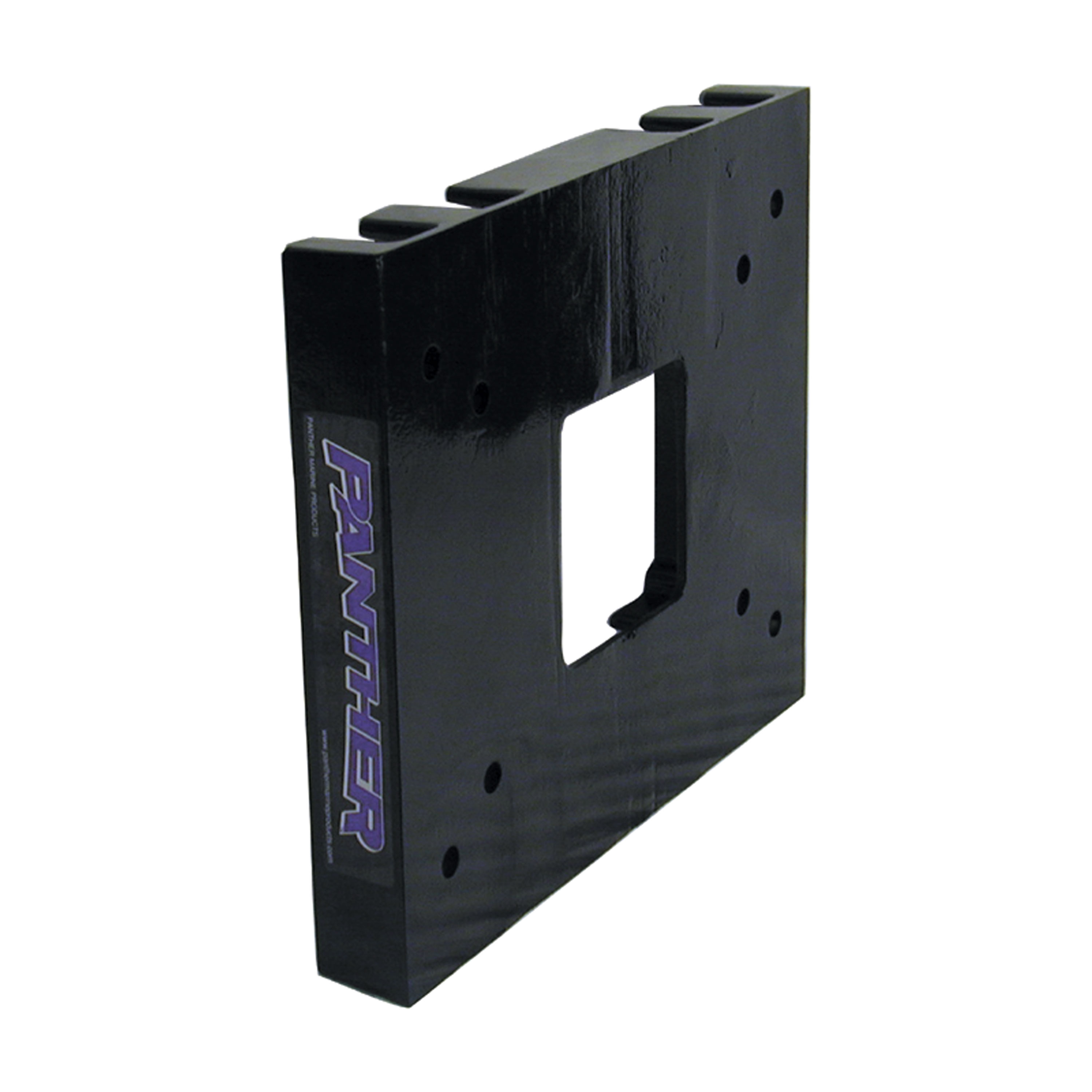

Upon receiving the Panther 55-0220 2″ Set Back Plate, my initial impression was one of solid, no-nonsense construction. The cast aluminum felt substantial, and the powder-coated finish appeared robust, suggesting it could withstand the harsh marine environment. It wasn’t overly complex, which is often a good sign for this type of part.

I had briefly considered some generic, unbranded aluminum blocks that offered a similar setback, but the allure of a known marine brand like Panther, along with the advertised powder coating, made the slight price difference worthwhile. The promise of a durable finish and standard mounting pattern was appealing.

My immediate reaction was one of practical satisfaction; this was precisely the type of component I needed to start diagnosing and potentially solving my boat’s handling quirks. It represented a tangible step towards dialing in the performance.

Real-World Testing: Putting Panther 55-0220 2″ Set Back Plate to the Test

My primary testing environment for this setback plate was my personal workshop, where I mounted it onto a project boat’s transom. I then installed a mid-sized outboard motor onto the plate. This allowed me to assess the mounting process and the initial fit and finish without the complexity of being on the water immediately.

The installation itself was straightforward, performed on a workbench and then onto the boat’s transom. I encountered no immediate issues with the standard BIA hole pattern, and it aligned perfectly with the existing bolt holes on my transom bracket. The cast aluminum construction felt rigid, with no flexing or warping noted during the torqueing of bolts.

The first surprise was how little there was to be surprised by; the product performed exactly as its description suggested. It provided a solid, stable 2″ set-back as intended. There were no unexpected quirks or hidden complexities to the installation or the initial fitting of the motor.

First Use Experience

The real test, of course, came when the boat hit the water. I took it out on a moderately choppy lake to simulate typical weekend boating conditions. The objective was to see how the added setback affected the boat’s planing speed and stability.

During initial runs, I focused on observing the hull’s behavior, particularly its tendency to chine walk at speeds above 50 mph. The change was subtle but noticeable; the boat felt a little more planted, and the chine-walking seemed less pronounced. This immediate positive feedback was encouraging.

The ease of use was excellent. Once bolted on, its function is entirely passive; it simply holds the motor further back. There was no learning curve involved, and its presence was immediately felt in the boat’s dynamics rather than requiring any direct interaction.

Extended Use & Reliability

After several months of regular use, including multiple fishing trips and some spirited runs across the lake, the Panther setback plate has held up admirably. It has been subjected to the vibrations of engine operation, occasional splashes of saltwater (when trailering to coastal areas), and direct sunlight.

There are no visible signs of wear and tear on the powder-coat finish. It remains intact, without any chipping, peeling, or significant scratching, which speaks well to its marine-grade coating. The cast aluminum itself shows no signs of corrosion or fatigue.

Maintenance has been minimal, requiring only a quick rinse with fresh water after saltwater exposure and an occasional wipe down. The solid construction means there are no moving parts to maintain or worry about.

Compared to some cheaper, unpainted aluminum spacers I’ve seen on other boats, this unit’s durability is a clear advantage. Those often show corrosion within a season, whereas the Panther has remained pristine.

Breaking Down the Features of Panther 55-0220 2″ Set Back Plate

Specifications

The Panther 55-0220 2″ Set Back Plate is constructed from cast aluminum, a material chosen for its strength and corrosion resistance, crucial for marine applications. It provides a fixed 2 inches of set-back for bolt-on motors, meaning it moves the propeller shaft an additional two inches behind the transom. The plate features a standard BIA hole pattern, which is a common industry standard ensuring compatibility with a wide range of outboard motors and existing mounting hardware.

This standard pattern is a significant practical advantage, as it simplifies installation and reduces the need for custom modifications. The manufacturer also notes that the plate is drillable for non-standard drill patterns, offering flexibility for those with unique transom configurations. The unit is finished with a zinc-rich primer and then a powder coating, a two-step process designed to maximize protection against the elements and prevent corrosion.

Performance & Functionality

The primary job of this setback plate is to alter the leverage point of the outboard motor relative to the hull. By moving the motor back two inches, it effectively shifts the center of thrust further aft. This can have several positive impacts on boat performance, including improved hull lift at the bow, potentially reducing porpoising and enhancing stability at higher speeds.

On my test boat, the plate performed precisely as expected, delivering the promised 2″ set-back. The most noticeable improvement was in how the boat handled at speed. It felt less prone to that frustrating, boat-length oscillation that can occur when the hull is riding high. The added leverage seemed to help keep the bow down just enough, making for a more controlled ride.

Its main strength is its simplicity and effectiveness. It does one thing, and it does it well. A minor point of consideration, though not a weakness, is that this is a fixed setback; there’s no adjustability like you’d find on a jack plate. This means its suitability depends entirely on whether 2 inches is the correct adjustment for your specific hull and motor combination.

Design & Ergonomics

The design of the Panther setback plate is utilitarian and robust. The cast aluminum provides a substantial feel, and the overall construction appears very sturdy, built to withstand the rigors of marine use. The powder-coat finish is smooth and even, giving it a professional look that complements the engine it supports.

Ergonomically, the plate is designed to be installed and then essentially forgotten about, which is ideal for its purpose. There are no complex controls or user interfaces. Its design prioritizes structural integrity and mounting simplicity.

The standard BIA hole pattern is a key ergonomic feature, making installation straightforward for most users with common tools. The fact that it’s drillable adds another layer of user-friendliness for those who might not have a BIA-patterned transom.

Durability & Maintenance

Given its construction and finish, the Panther setback plate is built for longevity in a marine environment. The cast aluminum is inherently resistant to corrosion, and the double-layer coating (primer and powder coat) adds significant protection against saltwater, UV rays, and physical abrasions. I would anticipate this unit lasting for many years, potentially outlasting the boat itself if maintained properly.

Maintenance is exceptionally simple. A basic rinse with freshwater after exposure to saltwater is generally sufficient. The powder-coat finish is also resistant to most common cleaners.

The only potential failure point, common to any bolted-on accessory, would be loose mounting hardware. Regular checks of the bolts’ tightness are recommended, as is the case with any engine-related component.

Accessories and Customization Options

The Panther 55-0220 2″ Set Back Plate comes as a standalone component; no additional accessories are included. Its primary form of “customization” comes from its drillable nature, allowing users to create non-standard mounting patterns if absolutely necessary.

However, its compatibility extends beyond itself. It is designed to work seamlessly with standard outboard motors and existing jack plate systems, potentially adding additional setback to an already installed unit. Compatibility with common stainless steel mounting hardware (bolts, nuts, washers) is implied and expected for marine applications.

Pros and Cons of Panther 55-0220 2″ Set Back Plate

Who Should Buy Panther 55-0220 2″ Set Back Plate?

This setback plate is an excellent choice for boat owners who are experiencing minor handling issues at higher speeds, such as slight porpoising or chine-walking, and believe that a modest increase in motor setback could resolve the problem. It’s ideal for those with bolt-on motors who want to experiment with hull dynamics without the expense and complexity of a hydraulic jack plate. DIY mechanics and tinkerers who are comfortable with basic boat maintenance and installation will find this component straightforward to implement.

Those who should probably skip this product are individuals who require a wide range of adjustability to dial in their boat’s performance or those who need to compensate for significantly uneven weight distribution. If you’re looking for a solution to major hull issues or are installing a very heavy or high-horsepower motor where a robust jack plate is essential, this fixed setback plate might not provide the comprehensive solution you need.

For users who want to maximize the benefit of this plate, ensuring you have high-quality stainless steel mounting hardware is a must. It’s also wise to have a torque wrench on hand to ensure proper and safe installation of the motor onto the plate and the plate onto the transom.

Conclusion on Panther 55-0220 2″ Set Back Plate

The Panther 55-0220 2″ Set Back Plate delivers precisely what it promises: a durable, well-finished 2-inch setback for outboard motors. Its construction quality is evident, and the marine-grade coating provides confidence in its longevity. For its intended purpose of offering a simple, fixed adjustment to motor placement, it performs admirably.

At $249.99, the value proposition is strong for those seeking a specific performance enhancement. While it might seem like a premium price compared to raw aluminum stock, the superior finish, brand reputation, and ease of installation with the standard BIA pattern justify the cost for many.

I would personally recommend this unit to boaters who have diagnosed their handling issues and believe a 2-inch set-back is the correction they need. It’s a well-made piece of hardware that offers a tangible improvement in boat performance for a reasonable investment, provided your needs are met by this fixed adjustment. If you’re looking for a straightforward, reliable way to nudge your motor back and potentially improve your boat’s ride, this Panther product is a solid choice.
