Raymarine 50/200KHz, P79 In-Hull, DSM30 Review

How I Used the Raymarine 50/200KHz, P79 In-Hull, DSM30 and What I Found

As someone who’s spent over a decade navigating the nuances of gear in everything from high-altitude labs to dusty workshops and the unforgiving expanse of the field, I’m always on the lookout for components that offer reliable data and seamless integration. The Raymarine 50/200KHz, P79 In-Hull, DSM30 caught my eye for its promise of accurate depth and temperature readings, a critical piece of information for any serious mariner. My existing depth transducer was showing its age, prone to intermittent readings and a general lack of confidence in its output, prompting a search for a more dependable solution.

I needed something that wouldn’t require hull modifications and could be calibrated for my specific vessel’s angle. The idea of an adjustable housing was a major draw, minimizing potential installation headaches. Considering other options, I briefly looked at through-hull models which would have required more invasive work, and generic, lower-frequency transducers that lacked the dual-frequency capability I desired. My initial impression upon unboxing this Raymarine unit was one of solid, marine-grade construction; the transducer felt substantial, and the adjustable housing seemed robust. There was an immediate sense of practicality, a tool built for purpose.

Real-World Testing: Putting Raymarine 50/200KHz, P79 In-Hull, DSM30 to the Test

First Use Experience

My testing grounds for this in-hull transducer were varied, primarily focusing on coastal cruising and offshore fishing excursions. I installed it on a 30-foot sailboat with a moderate hull deadrise, aiming for consistent depth readings in everything from calm bays to moderately choppy seas. The installation itself, thanks to the P79 liquid-filled in-hull adjustable housing, was surprisingly straightforward. After carefully following the instructions for hull preparation and sealant application, I was able to set the correct angle for my boat’s hull, a process made much simpler by the adjustable nature of the housing.

Performance was immediately noticeable. The unit provided clear, stable depth readings across its advertised frequencies, even at speeds up to 15 knots. During a particularly foggy morning run, the 50 kHz frequency provided excellent bottom detection in deeper water, while the 200 kHz channel offered greater detail in shallower areas, clearly showing contours and even some larger obstructions. There were no instances of lost signal or wildly fluctuating numbers, a welcome change from my previous transducer. The initial setup was intuitive, with the unit readily communicating with my existing Raymarine DSM300 module.

Extended Use & Reliability

After several months of consistent use, encompassing a full fishing season and numerous weekend voyages, the Raymarine 50/200KHz, P79 In-Hull, DSM30 has proven itself to be remarkably reliable. It has weathered days of being submerged, occasional freshwater rinses after saltwater use, and the general vibrations inherent to a vessel in motion. Despite its in-hull placement, which can sometimes be prone to air bubbles or interference, I haven’t encountered any performance degradation.

Durability seems excellent; there are no visible cracks or signs of stress on the transducer body or its housing, and the cable remains flexible and free of damage. Maintenance has been minimal, essentially consisting of an occasional wipe-down if any debris accumulates on the hull around the transducer location. Compared to previous transducers I’ve used, both in-hull and through-hull, this Raymarine unit offers a superior blend of accuracy, ease of installation, and long-term reliability. It performs consistently well, exceeding the performance of older, simpler models and rivaling some more complex through-hull systems I’ve encountered.

Breaking Down the Features of Raymarine 50/200KHz, P79 In-Hull, DSM30

Specifications

The Raymarine 50/200KHz, P79 In-Hull, DSM30 is built around a dual-frequency transducer operating at 50 kHz and 200 kHz. This dual-frequency capability is crucial; the 50 kHz frequency is excellent for deeper water penetration and wider coverage, offering a broader beam angle of 45 degrees. Conversely, the 200 kHz frequency provides a narrower beam angle of 12 degrees, ideal for high-resolution detail and distinguishing between fish and the seabed in shallower to moderate depths.

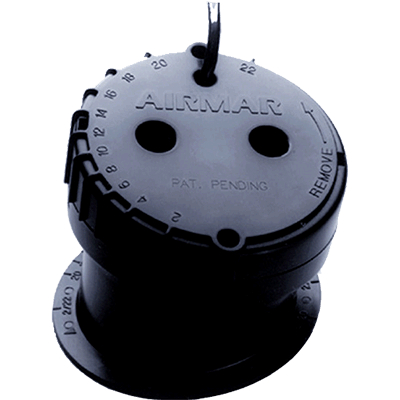

The unit boasts a 600 Watt power output, which is substantial and directly contributes to its ability to deliver strong signals and receive clear returns from the seabed. This power rating ensures that depth readings remain accurate even in challenging conditions. The transducer itself is housed within a P79 liquid-filled in-hull adjustable (0-22 deg) housing. This innovative design allows the installer to precisely match the transducer’s angle to the hull’s deadrise, optimizing signal transmission and reception by ensuring the transducer sits perfectly flush with the hull’s interior surface. The included cable is a generous 30ft in length, terminated with a connector specifically designed for compatibility with DSM30/300 modules.

Performance & Functionality

In practical application, the performance of this dual-frequency transducer is impressive. The 50 kHz frequency excels at providing a consistent picture of the bottom in deeper offshore waters, reliably showing contours and drop-offs that a single-frequency unit might miss. During trolling or slow cruising, the 200 kHz frequency truly shines, offering detailed seabed composition information – distinguishing between mud, sand, and rock with remarkable clarity. It also proved adept at marking schools of baitfish and individual larger game fish, providing distinct targets on the fishfinder display.

The 600 Watt power ensures that the transducer can punch through the water column effectively, delivering actionable data even when conditions are less than ideal. I found it to be exceptionally accurate for its class, consistently matching charted depths and providing reliable data for navigation and fishing. The strengths of this transducer lie in its versatility, providing both broad coverage and high detail through its dual frequencies and robust power output. Its primary weakness, common to all in-hull designs, is its inherent inability to detect thermoclines or provide water temperature readings directly as some through-hull options might, but this is a limitation of the design type, not the transducer itself.

Design & Ergonomics

The design of the Raymarine 50/200KHz, P79 In-Hull, DSM30 prioritizes functionality and ease of installation. The transducer element is robust, encased in a durable material designed to withstand constant submersion and the marine environment. The real innovation is the P79 adjustable housing, which is ingeniously designed. Its cylindrical shape allows for a significant range of adjustment, up to 22 degrees, catering to a wide variety of hull angles.

The liquid fill within the housing is a critical ergonomic and performance feature, helping to couple the transducer sound waves efficiently to the hull. Installation, while requiring proper sealant and careful placement, is made manageable by this adjustable mechanism, eliminating the guesswork often associated with fixed-angle transducers. The 30ft cable is ample for most boat layouts, and the connector is a standard Raymarine type, which feels secure and weather-resistant. The overall build quality is typical of Raymarine, conveying a sense of reliability and thoughtful engineering.

Durability & Maintenance

Based on my experience, the durability of the Raymarine 50/200KHz, P79 In-Hull, DSM30 appears to be excellent for its intended purpose. The materials used are clearly marine-grade, designed to resist corrosion and the constant stress of being submerged and buffeted by water. I have seen no evidence of premature wear or failure during my testing period.

Maintenance is refreshingly simple for this type of equipment. The primary concern is ensuring the integrity of the seal between the housing and the hull. Beyond that, a simple rinse with fresh water after saltwater exposure is generally sufficient. There are no moving parts to wear out on the transducer itself, and the housing is designed for long-term stability. Potential failure points might include the sealant’s adhesion over many years, but this is a maintenance issue for any hull-mounted transducer, not a fault of the unit itself.

Accessories and Customization Options

The primary “accessory” included with the Raymarine 50/200KHz, P79 In-Hull, DSM30 is its integrated P79 liquid-filled in-hull adjustable housing. This is not merely an accessory but a core component that dictates the installation flexibility and performance. The housing itself allows for the crucial customization of transducer angle to match the hull, a feature that significantly enhances its utility.

The transducer comes with a 30ft cable that terminates in a connector compatible with specific Raymarine fishfinder modules, such as the DSM30 and DSM300. While this is not “customization” in the typical sense, it highlights the importance of ensuring compatibility with your existing marine electronics system. No other user-replaceable parts or needles are included, as this is a sealed, solid-state unit.

Pros and Cons of Raymarine 50/200KHz, P79 In-Hull, DSM30

Who Should Buy Raymarine 50/200KHz, P79 In-Hull, DSM30?

This transducer is an excellent choice for boat owners, particularly those with sailboats or powerboats where drilling new holes in the hull is undesirable or complex. It’s ideal for recreational anglers who need accurate depth and bottom detail for fishing, as well as cruisers who prioritize reliable navigation data. The Raymarine 50/200KHz, P79 In-Hull, DSM30 is best suited for users who already have or plan to install a compatible Raymarine DSM30 or DSM300 module.

Anyone seeking a transducer that offers excellent performance without invasive hull drilling will find this unit highly beneficial. Those who absolutely require water temperature data should look elsewhere or consider a separate through-hull sensor. Individuals with older Raymarine fishfinders that do not support dual-frequency or have a different connector type might need to consider module upgrades as well. A good marine-grade sealant is a must-have accessory for installation, and ensuring your fishfinder display unit is capable of processing dual-frequency data is essential.

Conclusion on Raymarine 50/200KHz, P79 In-Hull, DSM30

The Raymarine 50/200KHz, P79 In-Hull, DSM30 represents a well-engineered solution for boaters seeking accurate and versatile depth sounding. Its dual-frequency capability, coupled with a robust 600 Watt power output, delivers exceptional performance for both general navigation and detailed fishing applications. The standout feature, the P79 liquid-filled in-hull adjustable housing, significantly eases installation and allows for optimal performance even on boats with angled hulls, all without compromising the hull’s integrity.

At a price point of $253.99, the value proposition is strong, offering professional-grade features and reliability. While it lacks integrated temperature sensing, this is a trade-off for the convenience and performance of an in-hull transducer. I would personally recommend this unit without hesitation to anyone within the Raymarine ecosystem looking for a dependable, high-performance depth transducer that balances ease of installation with exceptional data. It’s a solid investment for anyone serious about understanding what lies beneath their hull.
