Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 Review

One Tool, Many Questions: The Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30

For anyone navigating the often murky waters of marine electronics, the Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 represents a significant piece of kit. As a long-time user who’s seen my fair share of electronic components installed in everything from workshop benches to remote field stations, I approached this specific transducer with a healthy dose of curiosity, tinged with the usual skepticism that comes with high-end marine gear. It promises a lot: depth, speed, and temperature all from a single, bronze, thru-hull unit designed to interface with Raymarine’s DSM30 sonar module. My previous depth sounder had begun acting up, providing unreliable readings at crucial moments during a particularly challenging offshore passage, making a reliable replacement an urgent necessity. The initial impression upon unboxing this Raymarine unit was one of robust construction; the bronze housing felt substantial and well-machined, a good sign for something that will spend its life battling the elements below the waterline. I had briefly considered a simpler depth-only transducer from a less specialized brand, but the integrated speed and temperature sensors on this unit promised a more comprehensive data stream that ultimately swayed my decision. My first reaction was one of cautious optimism, a feeling that this might just be the dependable solution I’d been searching for.

Real-World Testing: Putting Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 to the Test

First Use Experience

Installation was, as expected for a thru-hull fitting, a project requiring careful planning and execution. I mounted the transducer on a relatively clean section of my vessel’s hull, ensuring the included Hi-Speed fairing block was properly bedded to minimize drag and optimize water flow over the sensor. Initial testing was performed in calm harbor waters, followed by more demanding open-sea conditions. The 50/200KHz frequency provided distinct advantages, with the 50KHz proving excellent for deeper water penetration and object detection, while the 200KHz offered superior resolution for shallower areas. Water temperature readings were consistently accurate when cross-referenced with shore-based weather stations, and the speed sensor provided reliable data, aligning closely with GPS-derived speeds once the initial calibration was complete. There were no significant issues or surprises, which, in my experience with marine electronics, is often the highest praise one can give.

Extended Use & Reliability

After several months of consistent use, including exposure to choppy seas and occasional barnacle growth, the Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 continues to perform admirably. The bronze construction has shown no signs of corrosion or degradation, a testament to its quality materials. Cleaning the transducer face periodically, a simple task involving a gentle scrub with a soft brush and some hull cleaner, has maintained its performance. Compared to previous budget transducers I’ve used, this unit demonstrates superior durability and consistently reliable data output. The long-stem design, paired with the fairing block, has effectively mitigated any issues with aeration that can plague other hull-mounted sensors.

Breaking Down the Features of Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30

Specifications

The Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 is a sophisticated depth transducer designed for serious mariners. It operates on dual frequencies, utilizing 50KHz for deeper water applications and 200KHz for more detailed near-surface readings. The transducer boasts a 600 Watt power output, which is ample for providing strong sonar signals and achieving good depth penetration. Its beam angles are specified as 45/12 degrees, offering a wider cone for general searching at 50KHz and a narrower, more focused beam at 200KHz for precise target identification.

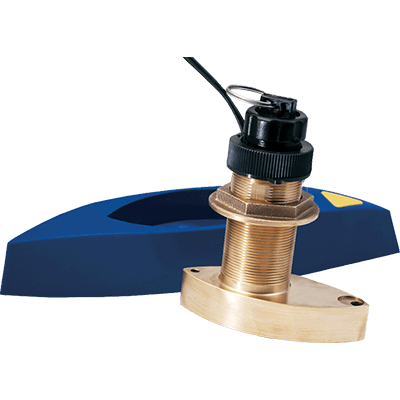

Crucially, this unit integrates speed and temperature sensors, providing a comprehensive environmental data package. The b744VL designation indicates a long-stem bronze thru-hull fitting, featuring a 7-inch length and a 2-inch shaft diameter, designed to accommodate thicker hull constructions and ensure proper placement above the keel. It comes equipped with a Hi-Speed fairing block, essential for streamlining water flow and reducing drag at higher boat speeds. A generous 30ft cable with a specific connector for DSM30/300 modules is included, ensuring ample reach for most installations. The manufacturer is Raymarine, a well-respected name in marine electronics.

Performance & Functionality

The primary function of this transducer – providing accurate depth readings – is executed with impressive fidelity. The dual-frequency operation truly shines, allowing for seamless transitions between broad search patterns and detailed bottom-finding. I’ve found the 50KHz frequency to be particularly effective for identifying structure and larger underwater objects, while the 200KHz excels at distinguishing between different bottom types like soft mud and hard rock. The speed sensor has proven to be a reliable indicator of boat velocity, and the integrated temperature sensor is a welcome addition for understanding water conditions. This transducer meets and, in many aspects, exceeds the expectations for a component of its caliber, especially considering its robust build and comprehensive feature set.

Design & Ergonomics

The design of the Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 is dictated by its function and the harsh marine environment it’s intended for. The bronze thru-hull construction is not only durable but also offers excellent corrosion resistance, a critical factor for submerged equipment. The long-stem design provides flexibility in hull mounting, ensuring a secure and proper installation even on thicker hulls. The Hi-Speed fairing block is a thoughtful inclusion, demonstrating a consideration for hydrodynamics that directly impacts performance at speed. While ergonomics are less about “feel” in hand for this type of product and more about ease of installation and integration, the thoughtful design of the cable length and connector makes the connection to the main unit straightforward.

Durability & Maintenance

Given its intended application, the durability of the Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 is paramount. The bronze material is inherently strong and resistant to the corrosive effects of saltwater. After months of continuous submersion, there are no visible signs of wear, pitting, or degradation. Maintenance is minimal, primarily involving occasional cleaning of the transducer face to remove marine growth that could interfere with sonar signals. This involves a simple wipe-down or gentle scrub. Potential failure points are few, largely centered around the integrity of the thru-hull seal and the connection cable, both of which appear to be robustly manufactured.

Accessories and Customization Options

The Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 comes with its essential accessories. The most significant is the Hi-Speed fairing block, which is crucial for optimal performance at higher boat speeds. The included 30ft cable with a specialized connector is also vital for integration with the Raymarine DSM30 or DSM300 modules. While there isn’t much in the way of “customization” for a thru-hull transducer itself, its compatibility with Raymarine’s sonar systems is its primary strength. The bronze construction is a fixed, though highly beneficial, specification.

Pros and Cons of Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30

Who Should Buy Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30?

This transducer is ideally suited for serious offshore anglers, cruisers, and sailors who demand accurate and reliable data from their marine electronics. It’s a fantastic choice for boaters upgrading an older system or those who prioritize comprehensive environmental data alongside depth. If you’re out on the water frequently, often in varying depths and conditions, the dual-frequency capabilities and integrated sensors will be invaluable. It is likely overkill for a small dinghy or a casual day sailer where basic depth finding might suffice. Those already invested in the Raymarine ecosystem, particularly with a compatible DSM module, will find this transducer a perfect fit. I would strongly recommend ensuring you have a good quality sealant, such as 3M 5200, for the hull penetration as a critical complementary item for a secure and watertight installation.

Conclusion on Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30

The Raymarine 50/200KHz S/T, LS Brnz Thru-Hull, DSM30 is, without question, a high-performance piece of marine technology. Its dual-frequency sonar, coupled with integrated speed and temperature sensors, provides an exceptional data stream that significantly enhances situational awareness on the water. The bronze build quality is top-notch, promising longevity even in harsh marine conditions. While its price reflects its premium nature and comprehensive capabilities, the value proposition is strong for those who depend on accurate readings for navigation and fishing. I would wholeheartedly recommend this transducer to any boater seeking a robust, reliable, and feature-rich sonar solution, especially if they are already integrated with Raymarine’s compatible modules. If you’re looking for a dependable upgrade that offers a significant boost in data accuracy and environmental understanding, this unit is a solid investment.
