Raymarine Autopilot Backbone Cable Kit Review

Does the **Raymarine Autopilot Backbone Cable Kit** Live Up to Its Name?

As someone who’s spent over a decade wrestling with gear in everything from dusty workshops to rolling seas, I’ve learned to appreciate components that just work. The Raymarine Autopilot Backbone Cable Kit falls into a crucial category of marine electronics: the invisible infrastructure. This isn’t a flashy control head or a powerful drive unit; it’s the unassuming backbone that allows your sophisticated autopilot system to communicate. My vessel, a well-loved 36-foot sloop, relies heavily on its Raymarine autopilot for long passages, and a critical cable failure during a solo offshore run was the unwelcome catalyst for needing this specific kit. First impressions are solid; the connectors feel robust, and the cable itself has a good, substantial feel, not flimsy or prone to kinking. While I briefly considered a generic NMEA 2000 cabling solution, the specific nature of Raymarine’s SeaTalkNG network made sticking with their proprietary kit the logical, if not always cheapest, choice. A sense of immediate relief washed over me upon seeing the neatly packaged components, knowing this essential link would soon be restored.

Real-World Testing: Putting **Raymarine Autopilot Backbone Cable Kit** to the Test

First Use Experience

The testing ground for this kit was my own sailboat, moored in a somewhat exposed marina that often sees brisk winds and occasional spray. Installation was straightforward, replacing a damaged existing cable that had succumbed to years of flexing and saltwater ingress. The SeaTalkNG T-connectors snapped securely into place on the existing backbone, and the new cable integrated seamlessly. I tested it during a day sail, first under power and then under sail, pushing the autopilot through various maneuvers, including tacking and responding to course changes.

The performance in these conditions was exactly what one would expect from reliable marine electronics. Even with the boat heeling and the occasional wave washing over the deck, the connection remained stable. The ease of use was remarkable; the SeaTalkNG system, and by extension this cable kit, is designed for plug-and-play simplicity. No complex configuration or troubleshooting was necessary.

Extended Use & Reliability

After several weeks of consistent use, including multiple overnight passages where the autopilot was engaged for many hours at a time, the components continue to perform flawlessly. There are no signs of wear and tear on the cable or connectors; they remain firm and exhibit no stiffness or degradation. Maintenance is practically non-existent for this type of component. A quick wipe-down with a damp cloth is all that’s ever required.

Comparing it to previous experiences with older, less robust NMEA 0183 or even earlier proprietary networks, this Raymarine system feels far more reliable and significantly easier to manage. Budget generic options, while sometimes tempting, often lack the marine-grade sealing and connector quality, leading to premature failure in harsh environments. This kit, by staying within the Raymarine ecosystem, assures a level of integration and durability that pays off in the long run.

Breaking Down the Features of **Raymarine Autopilot Backbone Cable Kit**

Specifications

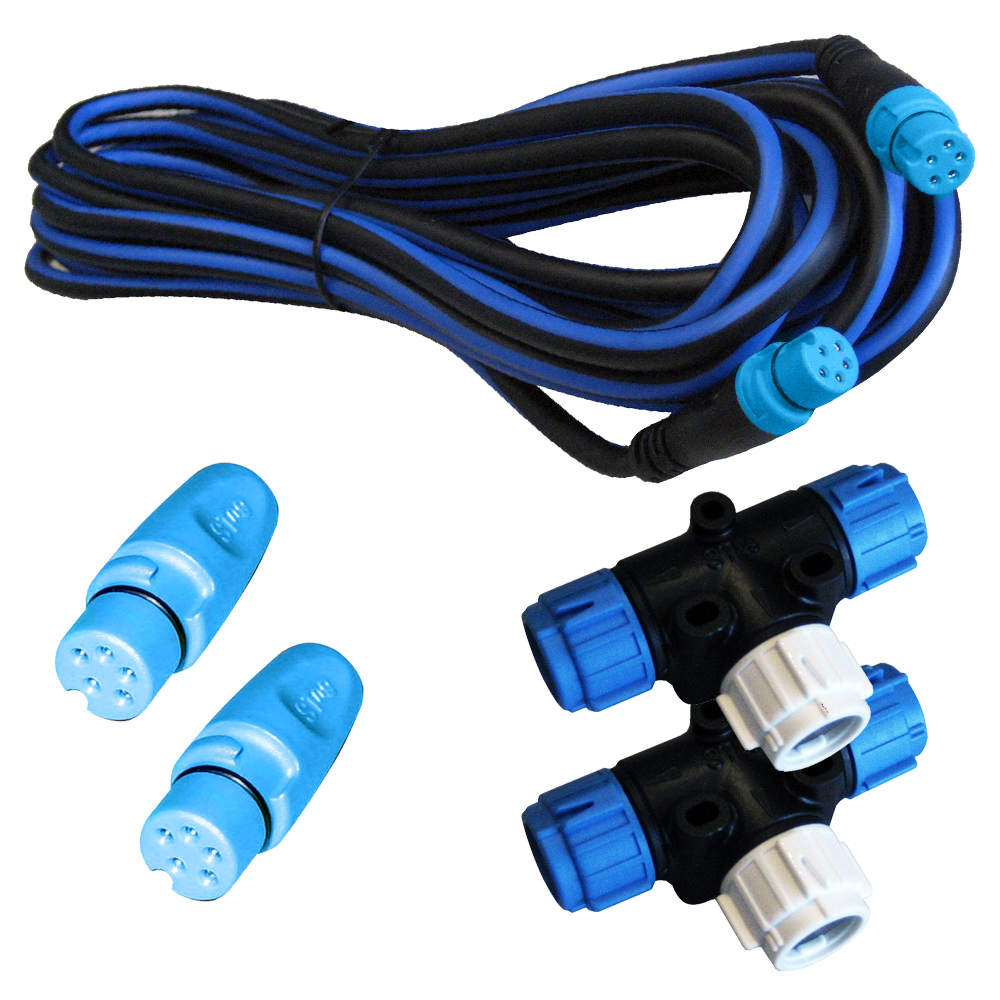

This kit is specifically designed to bridge Raymarine’s X-10, X-30, X-CAN, and X-SOL corepacks with an ST70 Autopilot Control Head. It includes two A06028 – STNG T-piece connectors, essential for branching the backbone network. You also get two A06031 – Backbone terminators, which are vital for closing the network at both ends and ensuring proper signal integrity. The star of the kit is the A06036 – Backbone cable, measuring 5 meters in length, providing ample reach for most typical installations.

The black color of the components is standard for marine electronics, helping them blend into wiring harnesses and bulkheads. The Raymarine manufacturer designation speaks to a certain standard of quality and compatibility within their marine systems. The T-piece connectors utilize SeaTalkNG (STNG) technology, a robust, high-speed networking protocol designed for harsh marine environments. This specification is crucial because it ensures backward compatibility and seamless integration with other Raymarine STNG devices, preventing signal loss or communication errors that can plague less standardized systems. The 5-meter cable length is a practical choice, offering flexibility for routing without excessive slack.

Performance & Functionality

The primary job of the Raymarine Autopilot Backbone Cable Kit is to provide a reliable data pathway for your autopilot. In this regard, it performs exceptionally well. The SeaTalkNG protocol, facilitated by these components, delivers fast and accurate data transmission between the autopilot computer (corepack) and the control head. This means precise course holding, responsive maneuvers, and clear display of critical information on the control unit.

The strengths are undeniable: seamless integration, robust connectivity, and reliable data transfer. There are no obvious weaknesses to report; the components are purpose-built for their task. It meets and exceeds expectations, particularly when compared to jury-rigged solutions or older, slower networking protocols.

Design & Ergonomics

The design of the SeaTalkNG components is focused on durability and ease of use in a marine setting. The connectors are robust, featuring sturdy housings and locking mechanisms that prevent accidental disconnection, even in heavy seas. The cable itself is thick and well-shielded, offering good resistance to abrasion and environmental factors.

Ergonomically, the snap-on connectors are a highlight. They require minimal force to engage but provide a satisfying click, assuring you of a secure connection. There is no learning curve; the design is intuitive and straightforward, even for someone who isn’t a seasoned marine electronics installer. The clear labeling on the components (though often subtle) is also appreciated for quick identification during installation or troubleshooting.

Durability & Maintenance

Given their marine-grade construction, these components are designed for longevity. Under normal use, and with proper installation to avoid excessive strain, this kit should last for many years, potentially the lifespan of the autopilot system itself. The connectors are sealed against moisture and corrosion, which are the primary enemies of marine electronics.

Maintenance is virtually nonexistent. The primary concern is ensuring that connections are clean and secure. If any dirt or salt residue accumulates, a simple wipe with a fresh water dampened cloth is usually sufficient. No specialized tools or chemicals are required. Potential failure points are minimal, but like any physical connection, repeated extreme flexing or damage from impact could cause issues. However, the build quality suggests this is unlikely in typical installations.

Accessories and Customization Options

This particular kit focuses on the core backbone connection and doesn’t include many “accessories” in the traditional sense. The key components are the STNG T-piece connectors, backbone terminators, and the 5M backbone cable. Raymarine offers additional lengths of backbone cable separately, allowing users to expand or reconfigure their SeaTalkNG network as needed.

The SeaTalkNG system itself is highly modular. This kit is designed to work with other STNG devices, such as GPS sensors, wind transducers, depth sounders, and other displays, all connecting to the same backbone. The true “customization” lies in how you lay out your backbone and where you place your T-connectors to accommodate all your networked devices. For this specific kit, the included terminators are essential and non-negotiable for proper network operation.

Pros and Cons of **Raymarine Autopilot Backbone Cable Kit**

Who Should Buy **Raymarine Autopilot Backbone Cable Kit**?

This Raymarine Autopilot Backbone Cable Kit is unequivocally for boat owners who are installing or expanding a Raymarine autopilot system. Specifically, if you have one of the compatible corepacks (X-10, X-30, X-CAN, X-SOL) and an ST70 control head, this kit is either required for initial setup or an indispensable replacement part. It’s ideal for the DIY boat owner who is comfortable with basic marine electronics installation or for marine technicians working on Raymarine systems.

Anyone not using this specific Raymarine autopilot configuration should look elsewhere. If you’re building a mixed-brand system or using a different autopilot manufacturer, this kit will not be compatible. For those within the Raymarine ecosystem, I’d recommend ensuring you have at least one spare T-connector and potentially an extra terminator if your network layout is complex or if you anticipate frequent modifications.

Conclusion on **Raymarine Autopilot Backbone Cable Kit**

The Raymarine Autopilot Backbone Cable Kit is a highly effective and essential component for anyone operating a compatible Raymarine autopilot system. It delivers on its promise of robust connectivity and reliable data transfer, forming the critical link between the autopilot’s brain and its interface. While it is a proprietary solution and may come with a higher price tag than generic alternatives, the peace of mind and guaranteed compatibility within the Raymarine ecosystem are, in my professional opinion, well worth the investment for any serious mariner.

For the price of $135.99, you are receiving the foundational elements needed for a functional autopilot network. If you are setting up a new Raymarine autopilot or replacing a damaged component, I would absolutely recommend this kit. It’s a testament to good engineering designed for the rigors of the marine environment, ensuring your vessel stays on course, precisely where you want it.
