Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer Review

Here’s What I Think of the Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer

For any serious angler, knowing what lies beneath the waves is paramount, and my quest for better underwater data led me to the Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer. This specific unit promised enhanced detail and resolution, a significant upgrade from the standard transducers I’d used previously. My previous setup, while functional, sometimes left me guessing about the nuances of the seabed and the finer points of fish schooling.

The decision to upgrade was driven by a particularly frustrating tournament day last season, where subtle changes in bottom structure were the key to finding productive grounds, and my old transducer simply couldn’t provide that granular information. I needed a more capable tool.

Initial impressions of this thru-hull transducer were solid. The bronze housing felt substantial and well-machined, suggesting good durability. Its low-profile design also appealed, aiming to minimize drag. I briefly considered a similar model from another reputable marine electronics brand, but Raymarine’s reputation for robust fishfinding technology ultimately swayed my decision. My immediate reaction was one of cautious optimism; the heft and build quality certainly suggested a capable piece of equipment.

Real-World Testing: Putting Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer to the Test

First Use Experience

My testing grounds were primarily the coastal waters off the Carolinas, a mix of sandy flats, rocky outcrops, and significant wrecks. I installed this unit on my 23-foot center console, which spends most of its time offshore chasing tuna and bottom fishing. The installation process itself was straightforward, typical for a thru-hull transducer, though proper bedding and sealing are always critical to prevent leaks.

In its first outings, the performance was immediately noticeable. The CHIRP technology provided a remarkably clear picture of the bottom contours, even at higher speeds. I was able to distinguish between a patch of shell and a small reef structure with a clarity I hadn’t experienced before. The fast-response water-temperature sensor also proved to be an accurate and valuable addition, showing real-time temperature changes as I moved through different water masses.

Extended Use & Reliability

After several months and numerous trips, the Raymarine B75H has held up exceptionally well. I’ve encountered everything from heavy chop to extended periods at trolling speeds, and its performance has remained consistent. There are no signs of wear and tear on the bronze transducer housing, and I haven’t experienced any signal degradation or phantom readings.

Maintenance has been minimal, as expected for a permanently installed thru-hull unit. A simple wipe-down during routine hull cleaning is all that’s required. Compared to previous, less robust transducers that sometimes suffered from fouling or signal interference, this unit has been a significant step up in terms of reliability and ease of ownership.

Breaking Down the Features of Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer

Specifications

This transducer boasts several key specifications that directly impact its performance. It operates with 600 watts of power, providing ample signal strength for deep-water applications. The medium CHIRP frequency range spans from 130 kHz to 210 kHz, offering a substantial 80 kHz of total bandwidth from a single installation. This broad bandwidth is crucial for achieving the high detail and resolution that CHIRP is known for, allowing the detection of smaller targets and finer seabed features.

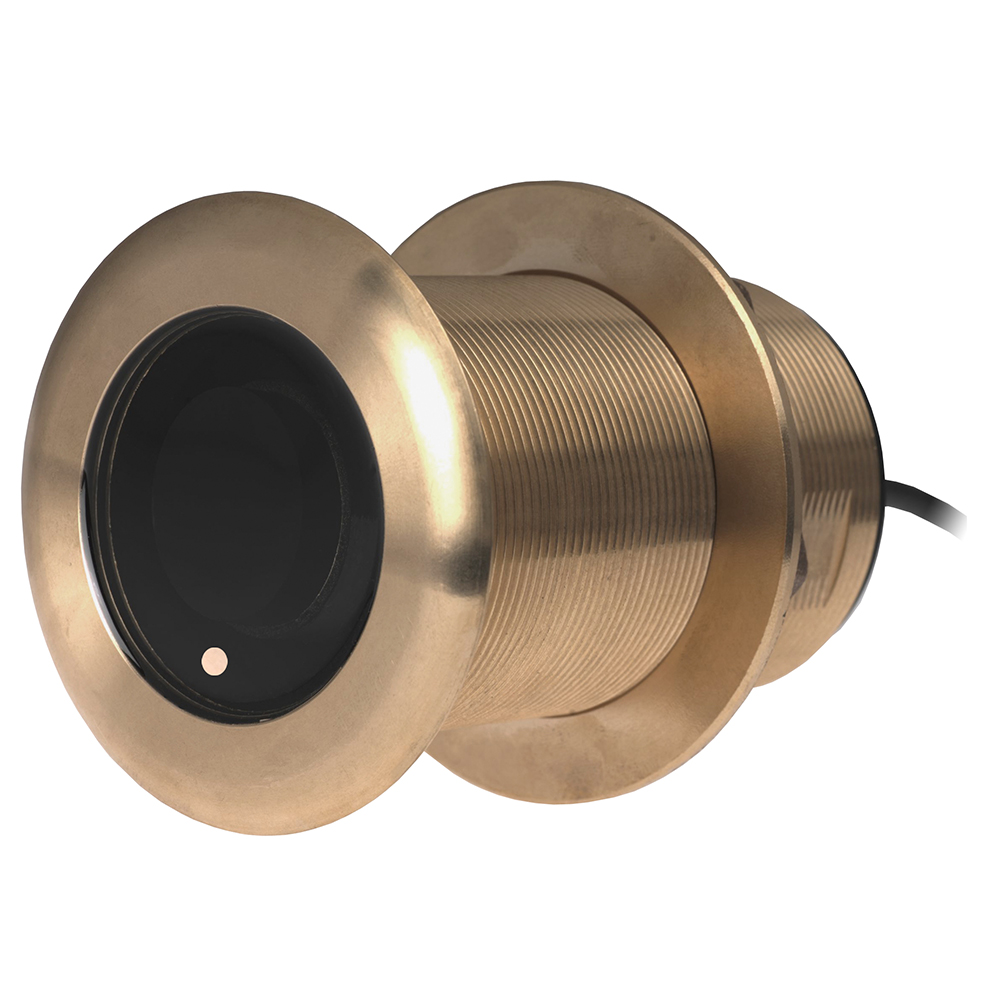

The low-profile design is significant for boats that experience higher speeds, minimizing the risk of the transducer becoming dislodged or causing excessive drag. Its bronze transducer housing is a hallmark of quality marine electronics, offering superior corrosion resistance in saltwater environments compared to plastic or stainless steel alternatives. This unit is designed for boats up to 8 meters (25 feet) and is suitable for fiberglass or wood hulls.

Performance & Functionality

The core function of this Raymarine unit is to deliver accurate and detailed sonar imagery, and it excels in this regard. The medium CHIRP band is particularly effective for a wide range of fishing scenarios, from spotting schools of baitfish in mid-water to identifying subtle changes in bottom composition that might hold game fish. The 15 to 9 degree beamwidth provides a good balance between coverage area and target definition.

Its main strength lies in the clarity of the returned signal; it’s possible to differentiate between baitfish, larger game fish, and even the texture of the seabed. This level of detail significantly enhances situational awareness on the water. While it performs admirably, it’s important to remember that its capabilities are tied to the processing power of the connected Raymarine MFD (Multi-Function Display), such as the CP370 or CP570 CHIRP modules.

Design & Ergonomics

The low-profile design is a key ergonomic consideration, ensuring it sits flush with the hull for minimal hydrodynamic impact. The bronze housing not only offers durability but also a premium feel, indicative of a product built for demanding marine conditions. While the transducer itself is mounted externally and not held directly, its integrated design and robust construction suggest it’s built to withstand the rigors of the marine environment.

Markings are minimal and functional, focused on the unit’s core purpose. The inherent benefit of a thru-hull installation means it becomes an integrated part of the vessel, requiring no direct manipulation once installed. This design philosophy prioritizes reliability and unobtrusive performance.

Durability & Maintenance

Bronze transducer housing is renowned for its longevity and resistance to marine growth and corrosion, which is a major advantage for a permanently installed component. Given its robust construction, this transducer is built to last for many years under normal operating conditions. As mentioned, maintenance is virtually non-existent beyond periodic hull cleaning.

Potential failure points for any thru-hull transducer usually involve improper installation leading to leaks, or damage from grounding or debris. However, the bronze construction itself is inherently tough and resistant to the elements. Raymarine’s reputation further supports the expectation of long-term durability.

Accessories and Customization Options

The Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer is designed to integrate seamlessly with compatible Raymarine sonar modules, notably the CP370 & CP570 CHIRP units. It’s not a product with a wide array of user-replaceable accessories in the traditional sense, as it’s a sealed, robust component.

However, its compatibility with Raymarine’s advanced sonar systems is its key “accessory” feature, allowing users to leverage powerful CHIRP processing. For boat owners with existing Raymarine electronics, this ensures straightforward integration and access to advanced features like detailed bottom detection.

Pros and Cons of Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer

Who Should Buy Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer?

This transducer is an excellent choice for serious anglers and boaters who demand the best in underwater visibility. It’s ideal for those operating boats up to 25 feet, particularly those who fish in deeper waters or require precise identification of bottom structure and fish. Owners of fiberglass or wood-hulled boats who are looking to upgrade their existing sonar system will find this unit a significant improvement.

Those who should reconsider are individuals with very basic fishing needs, small inflatable boats, or those who already have a high-performance transducer and are not using compatible Raymarine MFDs. Anyone looking for the absolute cheapest sonar solution should probably look elsewhere, as this is a premium performance unit. For optimal use, ensuring you have a compatible Raymarine CP370 & CP570 CHIRP module is a must, and having proper thru-hull installation expertise or professional assistance is highly recommended.

Conclusion on Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer

The Raymarine B75H Bronze 0 Low Profile D/T Thru-Hull Transducer is, without question, a top-tier sonar component for the dedicated angler. Its ability to deliver incredibly detailed imagery, combined with its robust bronze construction and efficient low-profile design, makes it a standout piece of equipment. The enhanced resolution afforded by its 80 kHz bandwidth CHIRP technology is not just a technical specification; it translates directly into better fishing decisions on the water.

While the investment is significant, especially when considering the required Raymarine sonar modules, the value proposition for serious fishermen is undeniable. The clarity and accuracy it provides can mean the difference between a successful trip and a frustrating one. I wholeheartedly recommend this transducer to any boater with compatible Raymarine electronics who is serious about understanding the underwater world and maximizing their fishing success.
