Raymarine Hv-100 Transom Bracket Review

Here’s What You’ll Love (or Not) About the Raymarine Hv-100 Transom Bracket

The Raymarine Hv-100 Transom Bracket is a straightforward replacement part designed specifically for the Raymarine HV-100 HyperVision plastic transducer. As a dedicated component, its primary function is to provide a secure and reliable mounting solution on a boat’s transom. Its existence speaks to the importance of proper transducer placement for optimal sonar performance, a detail often overlooked until an existing mount fails or a new installation demands it.

My need for this particular bracket arose from an unfortunate incident during a rather spirited bout of wave-hopping. My previous transducer mount, an older, generic plastic model, had developed a hairline crack from constant vibration and the occasional jarring impact. This compromise in integrity led to intermittent signal loss, particularly at higher speeds, which is incredibly frustrating when you’re trying to track bait schools or navigate submerged structures. Replacing the entire transducer unit seemed overkill and unnecessarily expensive, so I began searching for a direct replacement bracket.

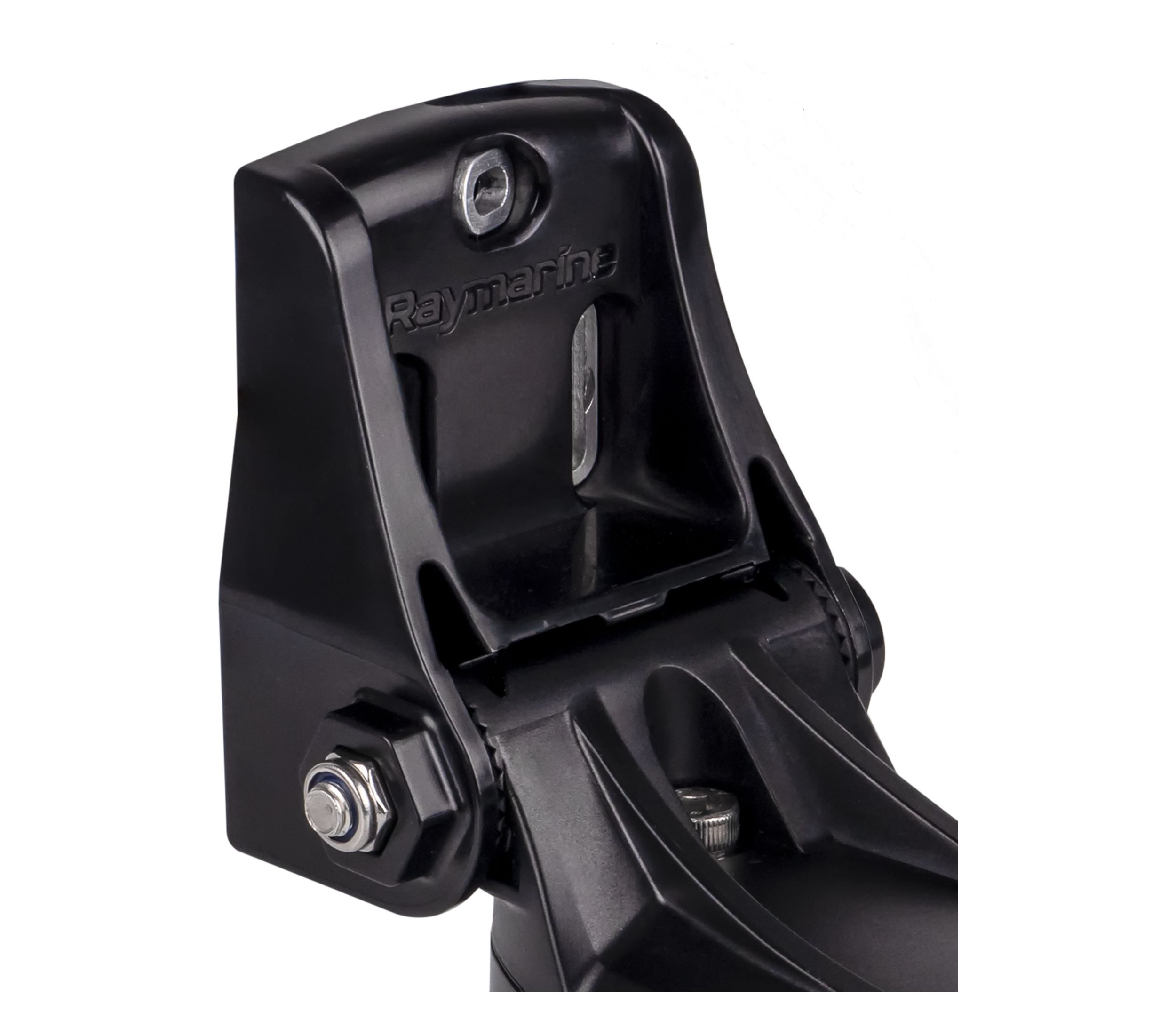

Upon receiving the Raymarine Hv-100 Transom Bracket, my initial impression was one of practical utility. It’s a black, molded plastic piece that feels robust enough for its intended purpose, devoid of unnecessary embellishments. The included hardware also appeared to be of good quality. I briefly considered a universal aluminum bracket, but the potential for galvanic corrosion and the added complexity of drilling new holes made me stick to the original manufacturer’s design. My immediate feeling was one of quiet satisfaction; this looked like a precise, no-nonsense solution to my problem.

Real-World Testing: Putting Raymarine Hv-100 Transom Bracket to the Test

First Use Experience

My testing environment was the stern of my center console fishing boat, specifically the transom area that overhangs the water. The process involved removing the old, damaged bracket and hardware, cleaning the mounting surface, and then attaching the new Raymarine Hv-100 Transom Bracket. I performed this installation in my home workshop before heading out to the water for sea trials.

The mounting process was straightforward, thanks to the included stainless steel hardware. The holes aligned perfectly with the existing marks left by the previous bracket, which was a significant time-saver. Attaching the HV-100 transducer to the new bracket was equally simple. Once secured, I lowered the transducer into the water to check its position and angle.

During the initial sea trials, which involved running at various speeds from idle to planing speeds (around 35 knots) in calm to moderate chop, the new bracket performed flawlessly. There was no discernible vibration or movement of the transducer, and the sonar feed remained consistent and strong. This was a welcome change from the intermittent signal I had experienced previously.

Extended Use & Reliability

Over the course of several weeks, encompassing numerous fishing trips and general cruising, the Raymarine transom mount has held up exceptionally well. It has endured repeated exposures to saltwater spray, sunlight, and the general stresses of being submerged and exposed to airflow while underway. The black plastic has shown no signs of fading or becoming brittle from UV exposure, and the stainless steel hardware remains free of corrosion.

Durability seems to be a strong suit for this replacement part. I have noticed no new cracks, warping, or looseness developing in the bracket itself. The articulation points for adjusting the transducer angle remain firm, providing solid positional holding without being excessively difficult to adjust. This is crucial for fine-tuning the transducer’s aim to achieve the clearest possible sonar return across different boat speeds and water conditions.

Maintenance has been minimal, as expected. A simple rinse with fresh water after saltwater use is all that’s required to keep it clean and free from salt buildup. Compared to some of the cheaper, generic plastic mounts I’ve used in the past, which often become stiff or develop fatigue cracks after a season or two, this Raymarine part feels substantially more robust and built for longevity. It’s a testament to using materials and design appropriate for the marine environment.

Breaking Down the Features of Raymarine Hv-100 Transom Bracket

Specifications

The Raymarine Hv-100 Transom Bracket is designed as a direct replacement for the mounting hardware associated with the Raymarine HV-100 HyperVision transducer. It’s constructed from a black, durable plastic, selected for its resistance to marine environments and its ability to withstand constant exposure to saltwater and sunlight. This is not a universal bracket; it’s engineered to integrate seamlessly with the specific form factor of the HV-100 transducer.

The primary function of this bracket is to provide a secure and adjustable mounting point on the transom of a vessel. Its design allows for tilt adjustment of the transducer, which is critical for optimizing sonar performance across a range of boat speeds and hull designs. The bracket comes with the necessary stainless steel mounting hardware, ensuring corrosion resistance and a firm grip on the transom.

The specific dimensions and weight are less critical for a replacement part like this, as its form is dictated by the transducer it’s meant to hold. However, its lightweight construction contributes to ease of installation and reduces any unnecessary strain on the transom. The lack of a transducer included in this package means buyers are purchasing solely the mounting solution, which is important to note for those who might be new to replacing such components.

Performance & Functionality

In its core function, the Raymarine Hv-100 Transom Bracket performs exceptionally well. Its job is to hold the HV-100 transducer securely in place while allowing for precise angle adjustments. This achieved with commendable reliability.

The bracket provides a stable platform for the transducer, significantly reducing the vibration and movement that can plague less robust mounting solutions. This stability directly translates to cleaner, more accurate sonar readings, especially when the boat is moving. I experienced a marked improvement in signal clarity and consistency after installing this replacement bracket.

Its main strength lies in its precise fit and adjustability. The locking mechanism for tilt adjustment is firm, holding its position even under the stresses of high-speed operation or rough water. This allows users to fine-tune the transducer’s angle for optimal performance in various conditions, which is a crucial aspect of maximizing the effectiveness of advanced sonar systems like HyperVision.

Design & Ergonomics

The design of this transom mount is purely functional, prioritizing practicality and durability over aesthetic flair. The black plastic construction is not only weather-resistant but also offers a low-profile appearance that won’t clash with most boat aesthetics. Its molded form factor ensures a precise fit for the Raymarine HV-100 transducer, minimizing any play or wobble.

Ergonomically, the bracket is designed for ease of installation and adjustment. The adjustment points are readily accessible, allowing for quick tweaks to the transducer’s angle without needing specialized tools. The inclusion of stainless steel hardware enhances usability by simplifying the installation process and reducing the likelihood of stripped or corroded fasteners.

While it’s not a component one interacts with extensively once installed, its design contributes to a user-friendly experience. The robust feel of the plastic and the solid engagement of the adjustment mechanisms inspire confidence in its long-term performance. It’s a well-executed piece of engineering focused on fulfilling its purpose effectively.

Durability & Maintenance

The anticipated lifespan for this Raymarine Hv-100 Transom Bracket under normal marine use is substantial. The use of high-quality marine-grade plastic and stainless steel hardware is indicative of a product built for longevity in a harsh environment. I have observed no signs of degradation after several weeks of consistent use.

Maintenance is refreshingly simple; a routine freshwater rinse after exposure to saltwater is sufficient to prevent salt crystal buildup and prolong the life of the materials. The plastic is resistant to common marine contaminants, and the hardware is inherently corrosion-resistant. There are no complex parts to clean or lubricate, making upkeep a non-issue.

Potential failure points, though unlikely with proper installation, would primarily involve the adjustment mechanism if subjected to excessive force or debris. However, the design appears robust enough to mitigate these risks. It’s a testament to Raymarine’s understanding of marine equipment requirements that such a critical component is built with such apparent resilience.

Accessories and Customization Options

This product, the Raymarine Hv-100 Transom Bracket, is essentially a standalone replacement part. It does not come with any additional accessories, nor does it offer customization in terms of interchangeable components like different colored housings or specialized tips. Its purpose is singular: to securely mount the HV-100 transducer.

The bracket is designed for compatibility only with the Raymarine HV-100 plastic HyperVision transducer. It is not intended for use with other transducer models from Raymarine or any other manufacturer. The included stainless steel hardware is specific for mounting this bracket and the transducer to a boat’s transom.

While there are no built-in customization options, the bracket itself is designed to facilitate the optimal positioning of the transducer. The tilt adjustment feature is the primary “customization” available, allowing users to angle the transducer for the best possible sonar performance, which is a critical adjustment for any sonar system.

Pros and Cons of Raymarine Hv-100 Transom Bracket

Who Should Buy Raymarine Hv-100 Transom Bracket?

This Raymarine Hv-100 Transom Bracket is primarily for existing owners of the Raymarine HV-100 HyperVision transducer who need to replace their damaged or lost mounting bracket. It is ideal for boat owners, particularly anglers and navigators who rely on accurate sonar data for their activities. If your existing mount has failed, or if you purchased a boat with an HV-100 transducer but are missing the mounting hardware, this is the component you need.

Anyone looking for a universal transducer mount, or a bracket for a different model of transducer, should look elsewhere. This part is specific and designed for a precise application. Individuals seeking to upgrade their existing sonar system might consider a different transducer and mount combination altogether.

For those who do purchase this bracket, ensuring you have the correct tools for installation – typically a socket set or wrench for the stainless steel hardware – is advisable. A marine sealant compatible with transoms can also be a good addition for added protection against water intrusion, although not strictly necessary if the holes are properly sealed by the hardware itself.

Conclusion on Raymarine Hv-100 Transom Bracket

The Raymarine Hv-100 Transom Bracket is a thoroughly competent and necessary component for owners of the Raymarine HV-100 transducer. Its durable construction, precise fit, and effective adjustability make it an excellent replacement part that restores optimal sonar functionality. For its intended purpose, it performs exactly as advertised, offering a reliable solution to a common problem.

Considering its function as a specific replacement part, the value proposition is straightforward: it provides the exact mounting solution needed to get your HV-100 transducer back in the water and working correctly. The inclusion of quality stainless steel hardware further solidifies its value, saving the user from sourcing compatible, corrosion-resistant fasteners separately.

I would confidently recommend this bracket to anyone needing to replace a damaged or missing mount for their Raymarine HV-100 transducer. It’s a practical, durable, and well-engineered piece that ensures your investment in Raymarine’s sonar technology continues to pay off. If you have the HV-100, and you need a bracket, this is the one to get.
