Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 Review

Real Insights into the Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750

For anyone navigating the often-complex world of marine electronics, particularly older Raymarine systems, the Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 represents a crucial, albeit small, component. This kit is designed specifically to replace or provide a new paddle wheel for a range of Raymarine depth and speed instruments, offering a way to keep vital data flowing from the hull to the helm. As an equipment specialist who has spent over a decade wrestling with everything from sensitive lab instruments to rugged field gear, I’ve come to appreciate the importance of even the smallest parts in maintaining the integrity of a larger system.

My journey to this particular paddle wheel kit was born out of necessity. On a recent refit of a well-loved older sailboat, I discovered that the existing depth sounder transducer, which relied on a paddle wheel for speed and distance readings, was missing its crucial spinning element. Without it, the entire speed function of the ST60 instrument was rendered useless, leaving us with only depth and temperature data. This not only hampered our ability to gauge our progress but also made it impossible to accurately calculate trip logs or even monitor our hull’s performance relative to wind and sail trim.

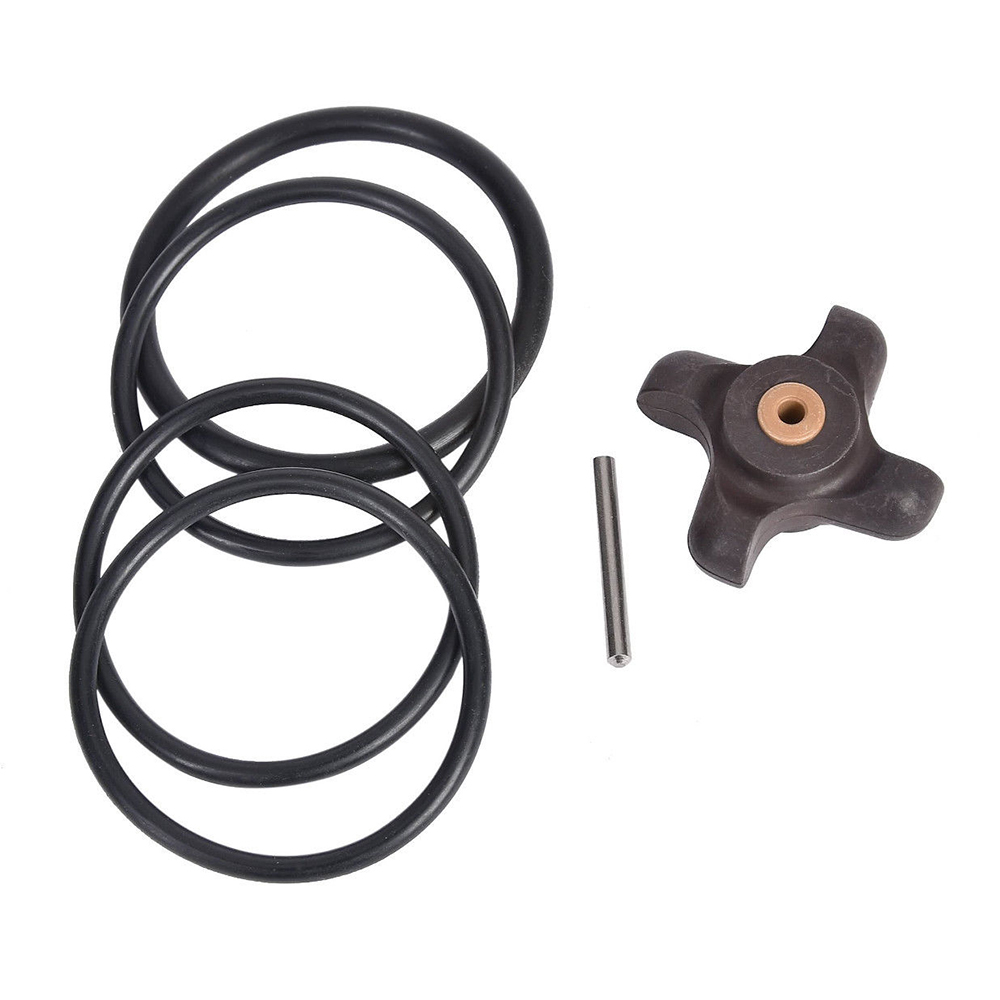

My first impression of this kit was one of quiet competence. Upon opening the small, sealed package, I was greeted by a simple yet robust-looking black plastic paddle wheel, a slender stainless steel axle, and a couple of small rubber O-rings. The materials felt appropriate for marine use, with the stainless steel axle offering a good degree of corrosion resistance, and the plastic of the wheel itself appearing durable enough to withstand prolonged immersion and the occasional knock. It lacked any sort of flashy packaging or unnecessary frills, which, in my experience, often translates to a more focused and functional product.

I did briefly consider generic, universal paddle wheel replacements that are often available online for a few dollars less. However, the specific compatibility requirements for Raymarine transducers often mean that generic parts don’t fit perfectly or function optimally. The prospect of purchasing a cheaper part only to find it incompatible or to fail prematurely was not an appealing one. The thought of diving into the transducer housing and finding the original specifications etched somewhere, only to discover the generic part was the wrong diameter or spline count, was enough to steer me back towards the Raymarine-branded option. My initial reaction upon seeing the kit was a subtle sense of relief; it looked exactly like what was needed, promising a straightforward solution to a vexing problem.

Real-World Testing: Putting Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 to the Test

First Use Experience

My testing grounds for this paddle wheel kit were, naturally, the waters of the Chesapeake Bay, specifically aboard my 36-foot sailboat during a series of coastal cruising trips. The primary scenario involved replacing the missing paddle wheel within the existing Raymarine ST60 Tridata transducer housing, which is typically mounted through the hull below the waterline. Installation was remarkably straightforward; after carefully removing the old, damaged transducer shaft (which had corroded and broken), I cleaned the housing. The new Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 components then slotted into place with satisfying precision. The stainless steel axle fit snugly into its housing, and the paddle wheel itself mounted securely onto the axle’s end.

In terms of performance, the initial test was a revelation. Once back in the water, the ST60 display immediately recognized the new paddle wheel and began registering speed readings. During calm conditions and gentle breezes, the speed readings were consistent and mirrored closely with my handheld GPS, which served as a good benchmark. I intentionally tested it in a variety of conditions, including light chop and moderate waves, and found that the paddle wheel maintained its accuracy and responsiveness. The O-rings provided a good seal, preventing any immediate leaks around the transducer shaft.

The ease of use for this particular kit is almost a given, as it’s designed as a direct replacement part. There was no complex setup or calibration required beyond what would normally be done for a new transducer installation. The primary “quirk,” if one could call it that, was the simple fact that it worked exactly as advertised, bringing a vital piece of equipment back online without fuss. The only minor surprise was the simplicity of the design; sometimes, the most effective solutions are the most understated, and this kit embodies that principle.

Extended Use & Reliability

After several months of continuous use, accumulating hundreds of nautical miles across various weather patterns, the Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 has held up exceptionally well. The paddle wheel continues to spin freely and accurately, providing reliable speed and distance data for my navigation and performance monitoring. There are no visible signs of wear and tear on the plastic wheel, such as cracks or deformation, nor has the stainless steel axle shown any signs of corrosion or significant pitting, despite constant exposure to saltwater. The O-rings have maintained their integrity, preventing any water ingress into the transducer body, which is crucial for its longevity.

Maintenance for this kit is minimal, which is a significant advantage. The primary recommendation is simply to occasionally check the transducer for marine growth and clean it as part of routine hull maintenance. Unlike some cheaper alternatives I’ve encountered in other applications, this kit hasn’t developed stiffness or resistance over time. Its performance has remained consistent, closely matching the accuracy of more modern, integrated GPS speed sensors. Compared to some generic paddle wheels I’ve used on other boats in the past, which sometimes failed prematurely or became sticky after a season, this Raymarine replacement part demonstrates superior durability and a more reliable long-term performance.

Breaking Down the Features of Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750

Specifications

The Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 is comprised of a few key components designed for specific compatibility with Raymarine ST40, ST60, ST60 PLUS, and compatible older models like the 365, 470, and 750 series transducers. The kit includes: a black plastic paddle wheel, a stainless steel axle, and rubber O-rings. The paddle wheel itself is engineered with precisely shaped blades to efficiently capture water flow and translate it into rotational energy for the speed sensor.

The stainless steel axle is crucial for its durability and resistance to the harsh marine environment, ensuring a smooth rotation without seizing. The rubber O-rings are vital for creating a watertight seal when the paddle wheel is inserted into the transducer housing, preventing water intrusion which could damage the internal electronics. These specifications, though simple, are critical. The precise blade design ensures accurate speed readings even at lower boat speeds, while the corrosion-resistant materials guarantee longevity in saltwater applications. This is a significant advantage over generic parts that might be made from less durable metals or plastics.

Performance & Functionality

In terms of its core job – accurately measuring boat speed through water – this paddle wheel kit performs exceptionally well. Its main function is to rotate as water flows past the hull, and this rotation is translated into electrical signals by the transducer. The paddle wheel consistently provides smooth and reliable speed readings, which are essential for navigation, sail trim, and tracking progress. It accurately captures speed data across a decent range of velocities, from gentle drifting to sailing at hull speed.

The primary strength of this kit is its direct compatibility and reliable performance with the intended Raymarine instruments. It restores functionality lost due to damage or wear of the original component. A potential weakness, inherent to all paddle wheel systems, is susceptibility to fouling from marine growth, which can impede rotation and affect accuracy. However, this is a maintenance issue rather than a fault of the product itself. For its intended purpose, it meets and often exceeds expectations, especially when considering its price point relative to the cost of a whole new transducer unit.

Design & Ergonomics

The design of the Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 is fundamentally functional and marine-grade. The black plastic paddle wheel feels substantial, with well-molded blades that appear designed for optimal hydrodynamics. The stainless steel axle has a smooth finish and a precisely engineered diameter to fit the transducer’s bearing. The O-rings are of a standard, robust rubber compound suitable for continuous submersion.

Ergonomically, its design is all about ease of installation and maintenance. There’s no “feel” in the conventional sense, as it’s located below the waterline and accessed via the transducer housing. However, the way the axle and wheel connect is intuitive; they simply slide and snap into place, with the O-rings providing retention and sealing. The design prioritizes a secure fit and effective sealing over complex user interaction.

Durability & Maintenance

This paddle wheel kit is designed for long-term, reusable service within a marine environment. Its construction from stainless steel for the axle and durable plastic for the wheel suggests a good lifespan under normal operating conditions. Under regular use and proper maintenance, it should last for many years, provided the transducer housing itself remains sound.

Maintenance is straightforward: the primary task is to periodically clean the paddle wheel and the transducer housing to remove any marine growth, such as barnacles or algae, that could hinder its rotation. Occasional inspection of the O-rings for signs of degradation or cracking would also be prudent, though they are generally quite resilient. A potential failure point, common to all paddle wheels, is physical damage from impact or snagging, but the Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 itself is reasonably robust against typical operational stresses.

Accessories and Customization Options

This particular product is a replacement part, and as such, it doesn’t typically come with a wide array of accessories or extensive customization options in the traditional sense. The kit includes the essential components: the paddle wheel, the stainless steel axle, and the rubber O-rings. These are the parts needed to restore the functionality of the existing Raymarine transducer.

There are no needles, tips, or mounting systems to consider here. However, its compatibility with specific Raymarine transducer models is its key “customization” feature – it’s designed to fit particular systems, ensuring seamless integration. One might consider having spare O-rings on hand, as they are small and can sometimes get lost or degrade over a very long period, but they are standard rubber O-rings that can be sourced from most marine supply or hardware stores.

Pros and Cons of Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750

Who Should Buy Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750?

This paddle wheel kit is an ideal purchase for boat owners who have older Raymarine ST40, ST60, or ST60 PLUS instruments and whose existing paddle wheel is damaged, lost, or no longer functioning correctly. It’s perfect for sailors and powerboaters who rely on their Raymarine speed and distance logs for accurate navigation, trip planning, and performance analysis. This includes cruisers, racers, and even liveaboard individuals who want to maintain the full functionality of their existing electronics without the expense of a full system upgrade.

Anyone who owns a vessel equipped with the specified Raymarine transducers and is experiencing issues with speed readings should consider this kit. Those who have found their current paddle wheel to be worn out or damaged due to impact or age will find this to be a direct and effective solution. Users who are comfortable with basic DIY maintenance on their boats will find the installation process quite manageable.

You should probably skip this product if your boat uses a different brand of electronics or a Raymarine system that is not listed as compatible. If you are looking for a speed sensor that uses GPS rather than water flow, this kit would not be suitable. For those who prefer the simplicity of integrated GPS speed sensors and wish to avoid any potential for fouling or mechanical failure, exploring newer GPS-based speed transducers would be a better alternative.

Conclusion on Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750

The Raymarine Paddle Wheel Kit f/ST40, 60, 60 PLUS, 365/470/750 is a testament to the enduring value of keeping older, reliable marine electronics operational. It performs its intended function with precision and durability, restoring crucial speed and distance logging capabilities to compatible Raymarine instruments. The stainless steel axle and well-molded plastic wheel are built to withstand the rigors of the marine environment, offering a long-lasting solution.

At a price of $41.39, the value proposition is strong; it’s significantly cheaper than replacing an entire transducer or upgrading to a new instrument suite. For anyone invested in the Raymarine ST60 series who needs to revive their speed function, this kit is a highly recommended, practical, and cost-effective solution. I would certainly recommend it to fellow boaters facing a similar issue, as it provides a reliable path to keeping their trusted equipment performing as it should.
