Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch Review

Discovering the Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch: My Take

For anyone involved in marine electrical systems, particularly those working with electric trolling motors or auxiliary power, a reliable switch is not just a convenience; it’s a critical component. The Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch aims to fill this role, promising durability and precision. My own needs for a robust control unit on a recent boat refit, specifically for managing independent power circuits for lighting and a small bilge pump, led me to this particular model.

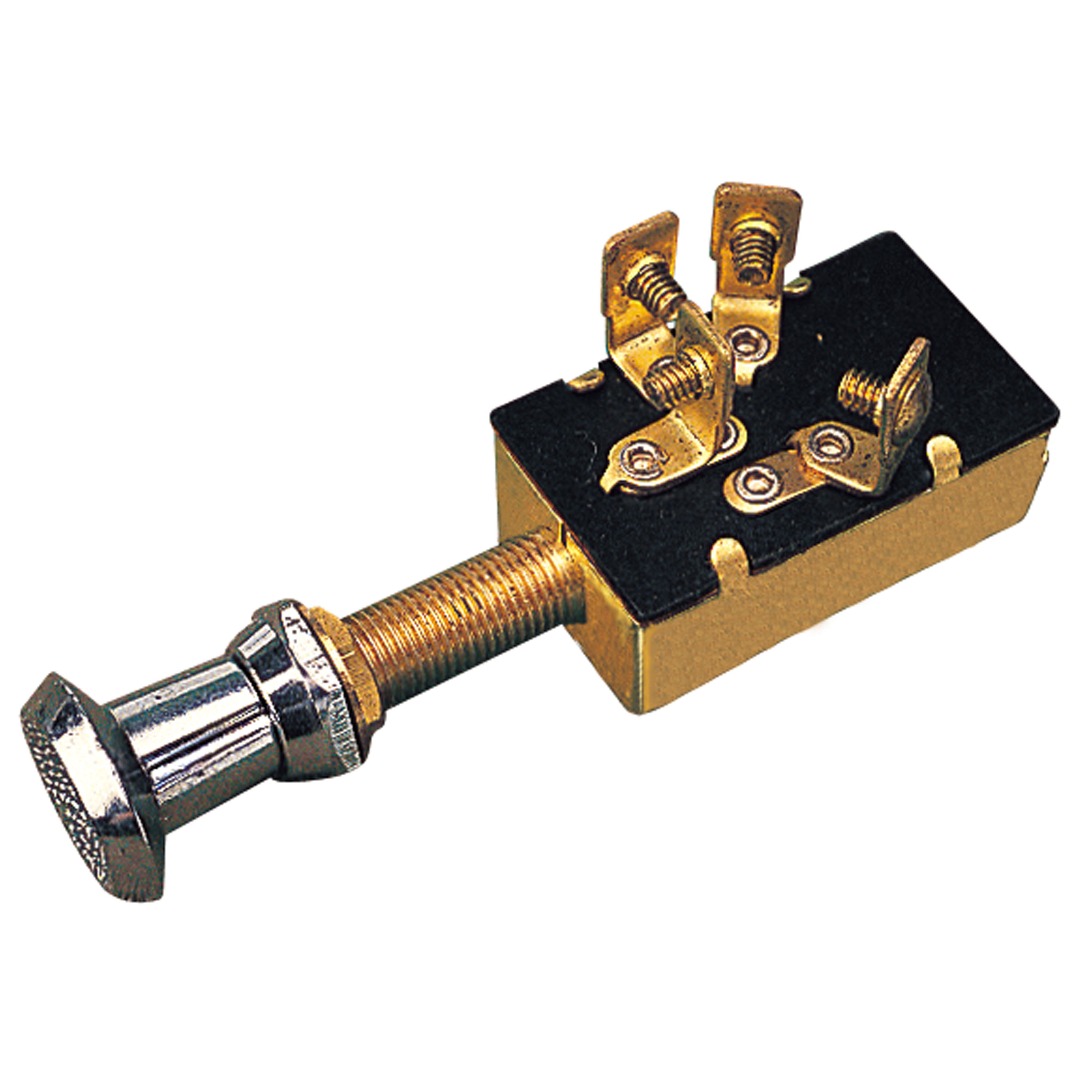

Initial impressions of this switch were centered on its construction. The stamped brass housing immediately suggests a commitment to resisting the harsh marine environment. Unlike cheaper plastic alternatives that degrade quickly under UV and saltwater exposure, this unit felt solid and substantial. I briefly considered a more complex digital switching system, but for the straightforward control needed, a robust analog switch made more sense for its simplicity and inherent reliability. My first reaction upon holding it was one of cautious optimism, a feeling that this component could withstand the abuse the sea dish out.

Real-World Testing: Putting Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch to the Test

My testing environment was primarily a workshop setting and then, more importantly, the demanding conditions aboard a 22-foot center console fishing boat. I integrated the Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch into a newly wired panel, managing a secondary battery circuit. This involved routing power for LED deck lights and a small auxiliary bilge pump, both of which have distinct operational needs. The switch was mounted in a relatively exposed area of the helm console, meaning it would encounter spray, varying temperatures, and general vibration from engine operation.

First Use Experience

Installation was straightforward, thanks to the clear terminal layout and the unit’s compact size. The connection points are well-marked, and the switch mechanism itself has a satisfying, positive detent for each position. I tested its functionality by cycling through the OFF, ON 1, and ON 2 positions while manually powering the respective circuits. There was no immediate need for a manual; the intuitive three-position, two-circuit design was self-explanatory.

One minor quirk I noticed during initial setup was the feel of the lever. While solid, it has a certain amount of play before engaging fully, which is not necessarily a negative, but it’s worth noting if absolute precision in lever feel is paramount. It did not, however, affect its operational reliability.

Extended Use & Reliability

Over the past few months, this switch has become an integral part of the boat’s electrical system. It has seen regular use, often multiple times per outing, controlling the deck lights during evening fishing trips and activating the bilge pump during heavy seas or after washing down the deck. It has experienced direct saltwater spray on several occasions and has been subjected to the constant low-frequency vibrations of the outboard motor.

So far, there are no signs of corrosion beyond the superficial tarnish that’s typical for brass, and the switch action remains smooth and crisp. Cleaning is as simple as wiping it down with a damp cloth, and no specialized maintenance has been required. Compared to the plastic toggle switches I’ve used on previous projects, which often become brittle or develop loose contacts over time, this Sea-Dog unit feels significantly more robust and built to last. The corrosion-resistant brass construction is proving its worth, keeping performance consistent even after repeated exposure.

Breaking Down the Features of Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch

Specifications

The Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch is designed with marine applications firmly in mind. Its core functionality revolves around its three-position control, allowing for an “OFF” state, and two distinct “ON” states for separate circuits. It is rated for a 15-amp amperage capacity, which is sufficient for many common marine electrical accessories like lights, pumps, and small electronics.

The material is a key selling point: stamped corrosion-resistant brass. This is crucial for longevity in a saltwater environment, where galvanic corrosion can quickly degrade less robust materials. The design is also engineered for quick and simple installation, typically involving screw terminals for secure wire connections. The physical dimensions are compact enough to fit neatly onto most standard marine electrical panels without taking up excessive space.

Performance & Functionality

In practice, the Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch performs its primary duty flawlessly. The separation of two circuits allows for flexible power management, enabling independent control of, for example, a spotlight and navigation lights from a single switch point. The 15-amp rating proved adequate for the LED lights and the small bilge pump I connected; neither circuit pushed the limits of the switch’s capacity.

The three-position toggle provides a clear and unambiguous way to select the desired circuit or to shut everything down. There’s a satisfying click at each position, confirming the switch has engaged. Its strengths lie in its simplicity and the robustness of its electrical contacts.

Design & Ergonomics

The design is utilitarian, as expected for a marine component. The stamped brass housing provides a solid feel and hints at its durability. The lever is substantial enough to be easily operated, even with wet hands or gloves, although it doesn’t feature any aggressive grip texturing.

The terminals are clearly marked and provide ample space for securing wires with screws. While it doesn’t boast any fancy ergonomic contours, its practicality is evident. The overall feel is one of ruggedness and readiness for the marine environment.

Durability & Maintenance

Given the corrosion-resistant brass construction, this switch is built for sustained use in challenging conditions. I anticipate it will last many seasons without significant degradation, provided basic electrical connections are maintained. Its simple mechanical nature means there are few points of failure.

Maintenance is minimal; occasional cleaning to remove salt residue is all that’s needed. Unlike some sealed switches that can be difficult to service if issues arise, the terminal screws are readily accessible. The only potential point of long-term concern would be the internal switch contacts, but with a 15-amp rating and the quality of brass, this should not be an immediate issue.

Accessories and Customization Options

This particular model, the Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch, is a standalone component and does not typically come with accessories. Its primary function is as a direct replacement or an addition to a marine electrical panel. There are no direct customization options for the switch itself, such as interchangeable levers or different color housings.

However, its compatibility with standard marine wiring practices is excellent. The screw terminals accept a variety of ring and spade connectors commonly used in boat wiring. The unit’s standard size also means it should fit into most pre-cut switch panel openings designed for similar-sized marine switches.

Pros and Cons of Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch

Who Should Buy Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch?

This Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch is an excellent choice for boat owners, marine mechanics, and DIY enthusiasts working on electrical systems for smaller to medium-sized vessels. It’s particularly well-suited for applications where independent control of two circuits is needed, such as managing combined lighting systems, or a bilge pump and a livewell aerator. Anyone seeking a durable, straightforward, and reliable switch that can withstand the rigors of a marine environment will find this unit very effective.

Those who should probably skip this product are users who require extremely high amperage ratings for heavy-duty equipment, or who are looking for advanced features like remote control or circuit monitoring found in more complex digital switching systems. For a simple, robust solution to manage two independent circuits up to 15 amps, this switch fits the bill perfectly. Complementary items that would enhance its use include marine-grade wire, heat-shrink connectors, and a good set of wire strippers and crimpers for a professional installation.

Conclusion on Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch

The Sea-Dog 420400-1 Sea Dog Line Three Position Two Circuit Switch delivers precisely what it promises: reliable, durable control for two separate electrical circuits in a marine setting. Its corrosion-resistant brass construction is a significant advantage, ensuring longevity and performance where cheaper alternatives would fail. The 15-amp rating is practical for a wide range of common marine accessories, and the intuitive three-position design makes operation effortless.

For its price point of $33.99, the value proposition is strong. You are investing in a component that feels built to last, avoiding the frustration and potential hazards of less resilient switches. I would absolutely recommend this switch to anyone undertaking a marine electrical project or needing a direct replacement for a similar component. It’s a no-nonsense, effective solution that provides peace of mind for managing critical on-board power.
