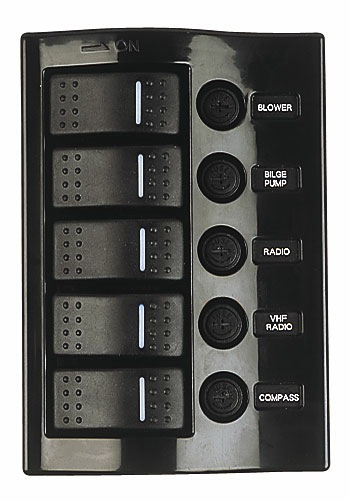

Hands-On with the Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse
Navigating the complexities of electrical systems in demanding environments, whether it’s the salty spray of a marine vessel, the rugged terrain of an off-road build, or the organized chaos of a workshop, requires reliable and intuitive control. The Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse is designed to bring order and clarity to such systems. This panel offers a consolidated hub for managing up to five separate electrical circuits, each protected by its own fuse and indicated by a subtle green LED. My need for this specific unit arose from a project where a disparate collection of individual switches and jury-rigged fuse holders were leading to confusion and occasional circuit failures. Alternatives like individual waterproof switches with separate inline fuses or more complex, custom-built panels were considered, but the pre-assembled nature and clear labeling potential of this Sea-Dog offering seemed like the most efficient solution for streamlining operations. My initial impression upon unboxing was one of sturdy practicality; the injection-molded nylon felt robust, and the rocker switches had a reassuringly firm click.
Real-World Testing: Putting Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse to the Test
First Use Experience
My initial testing grounds for this panel were firmly rooted in a workshop environment, specifically integrated into a custom-built workbench lighting and accessory system. The goal was to consolidate control of LED work lights, a cooling fan, and a charging station into a single, manageable unit. Installation involved mounting the panel and then connecting the appropriate circuits, a process that was straightforward thanks to the accessible terminals. Performance under typical workshop conditions was immediately satisfactory; the switches operated smoothly, and the illuminated indicators provided a clear visual cue of circuit status. There were no significant surprises, but the inclusion of a variety of fuse ratings from the outset was a welcome detail, allowing for immediate protection tailored to different devices.
Extended Use & Reliability
After several months of consistent use in my workshop, the Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse has proven its worth. The injection-molded nylon construction has resisted scuffs and minor impacts common in a busy workspace, and the rocker switches continue to offer a positive tactile response with each actuation. I haven’t observed any signs of wear like cracking or stiffness, which is a testament to the material’s durability. Maintenance has been minimal; a quick wipe-down with a damp cloth is usually all that’s needed to keep it clean, and the fuse holders are easily accessible for replacement if a circuit is overloaded. Compared to previous experiences with cheaper, less robust switch panels, this Sea-Dog unit feels significantly more reliable and built to last.
Breaking Down the Features of Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse
Specifications
The Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse boasts a number of switches: 5, each being an ignition protected, illuminating SPST On/Off rocker switch. This means each switch controls a single circuit independently and is designed to resist ignition sources, a crucial feature for marine or automotive applications. The panel also incorporates five fuse holders, compatible with standard AGC 1/4 x 1-1/4 standard glass fuses. It comes supplied with a selection of fuses: two 3A, two 5A, one 8A, and one 10A, offering a good starting point for protecting various low-to-medium power devices. The system is designed for a 10A maximum per individual circuit and a 30A total maximum for the entire panel, making it suitable for a wide array of accessories. Construction is of injection molded nylon, a material known for its strength and resistance to corrosion and impact. The unit is designed for installation with six fasteners, which are conveniently not included, allowing users to select the appropriate mounting hardware for their specific application.
Performance & Functionality
In its primary role as a circuit control hub, this panel performs exceptionally well. The rocker switches provide a satisfying tactile feedback and a clear audible click, ensuring that users know when a circuit has been engaged or disengaged. The illuminating green LEDs are subtle enough not to be distracting but bright enough to be easily visible, even in moderate lighting conditions, confirming that a circuit is live. The inclusion of individual fuse protection for each switch is a significant advantage, preventing a single fault from disabling the entire system and simplifying troubleshooting. Its performance meets and often exceeds expectations for a component of this type, particularly in its robustness and ease of use.
Design & Ergonomics
The design of the Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse is fundamentally practical and user-centric. The injection molded nylon housing feels solid and capable of withstanding the rigors of regular use without feeling cheap or flimsy. The layout of the five rocker switches is logical and spaced well enough to prevent accidental activation of adjacent switches, even with gloves on. The green LED illumination is a thoughtful touch, providing immediate visual confirmation of power flow. While the panel itself is straightforward, the lack of included fasteners is a practical design choice, allowing for custom mounting solutions depending on the installation surface.
Durability & Maintenance
From my experience, the injection molded nylon construction suggests good long-term durability for this switch panel. It’s designed to resist common environmental stressors like moisture and UV exposure, which are prevalent in outdoor or marine settings. Maintenance is refreshingly simple; the surface wipes clean easily, and accessing the fuse holders for replacement is straightforward. There are no complex mechanical parts that are prone to failure beyond the switches themselves, which appear to be well-made. Potential failure points would likely be extreme impact or prolonged exposure to highly corrosive chemicals, neither of which are typical for its intended environments.
Accessories and Customization Options
This particular model comes with a practical set of accessories, most notably a sheet of 20 preprinted decals. These decals are invaluable for clearly labeling each switch, making it easy to identify the function of every connected accessory, from navigation lights to bilge pumps to auxiliary fans. The backlit green LEDs in the decals enhance readability in low-light conditions. While the panel itself isn’t customizable in terms of its core components, the included fuse selection (two 3A, two 5A, one 8A, and one 10A) allows for immediate adaptation to a range of circuit requirements. The absence of mounting hardware also allows for user-defined customization in how and where the panel is secured.
Pros and Cons of Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse
Pros
- Consolidated Control: Offers a single, organized point for managing multiple electrical accessories.
- Illuminated Feedback: Green LEDs provide clear visual confirmation of active circuits.
- Individual Circuit Protection: Each of the five switches has its own fuse holder, preventing cascading failures.
- Durable Construction: Made from robust injection molded nylon, suitable for demanding environments.
- Customizable Labeling: Includes 20 preprinted decals for easy circuit identification, with backlit labels.
- Ignition Protected: Switches are designed to be ignition protected, enhancing safety in potentially flammable atmospheres.
Cons
- Fasteners Not Included: Users must source their own mounting hardware for installation.
- Limited Fuse Variety: While a good start, a wider range of fuse amperages could be beneficial for some specialized applications.
- Single Pole, Single Throw: Standard SPST switches limit functionality to simple on/off control for each circuit.
Who Should Buy Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse?
This switch panel is ideally suited for boat owners, RV enthusiasts, and custom vehicle builders who need to manage multiple electrical accessories cleanly and efficiently. It’s also a great fit for workshop or garage setups where consolidating control of tools and lighting is desirable. Anyone looking to upgrade from a jumble of individual switches to a more integrated and professional-looking system will find this panel to be an excellent solution. Individuals who require precise, high-amperage circuit control for heavy-duty equipment or complex electronic systems might need to look at more specialized or higher-capacity panels, as this unit is rated for 10A max per circuit and 30A total. For typical accessory loads, however, it’s a superb choice. A useful complementary item would be a set of appropriate ring terminals or spade connectors for secure wire termination to the switch terminals, along with a drill bit and suitable screws or bolts for mounting.
Conclusion on Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse
The Sea-Dog 425110-1 Sea Dog Wave Rocker Switch Panel With 5 Illuminating Switches And Fuse delivers on its promise of organized and protected electrical control. Its robust construction, user-friendly illuminated switches, and integrated fuse protection make it a valuable addition to any project requiring multiple accessory circuits. The included labeling system is a thoughtful touch that significantly enhances usability and safety. While the price point of $91.59 might seem a bit steep for a simple switch panel, the quality of materials, the inclusion of five ignition-protected switches, and the comprehensive fuse system justify the investment for those who prioritize reliability and clean integration. I would certainly recommend this panel to anyone undertaking a marine, automotive, or workshop electrical project where order and dependable function are paramount. It’s a solid, well-built component that streamlines operations and brings a professional finish to any electrical installation.
