Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On Review

Let Me Tell You About the Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On

I’ve spent over a decade wrestling with gear in every conceivable environment, from the sterile confines of a lab bench to the gritty reality of a workshop and the unpredictable nature of field operations. That’s why I was immediately drawn to the Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On, a seemingly simple component designed to bring crucial electrical control to a variety of systems. My recent project involved retrofitting some auxiliary lighting and a small pump system on my boat, and the existing switches were frankly a mess – unreliable and entirely lacking any visual feedback. I needed something robust, waterproof, and with a clear indicator of its status.

I stumbled upon this toggle switch while searching for marine-grade components, and it immediately caught my eye with its promise of illumination. It looked like a significant upgrade from the generic, unlit switches I was accustomed to. My initial impression upon unboxing was one of solid, no-nonsense construction. The stamped brass and injection-molded nylon felt substantial, and the polycarbonate toggle had a satisfying heft. I briefly considered some purely mechanical, non-illuminated alternatives, but the idea of a visual cue for the switch’s position in a dimly lit engine room or under a console was too appealing to pass up. It felt like a small but significant step towards a more professional and functional setup.

Real-World Testing: Putting Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On to the Test

First Use Experience

My primary testing ground for this illuminating toggle switch was within the cramped, often damp environment of a boat’s electrical console. I integrated it into a system controlling a bilge pump and a set of LED deck lights. The immediate feedback of the red illumination when a circuit was activated was incredibly helpful, especially during late-night troubleshooting or when working in low light conditions. The switch performed admirably, responding crisply to each flick of the lever.

During initial installation and testing, I deliberately splashed a bit of water directly onto the console to simulate spray from rough seas. The lever seal and locking ring did an admirable job of keeping moisture out, and the switch continued to function without any signs of hesitation or corrosion. It was surprisingly intuitive; the On/Off/On configuration became second nature after just a few cycles, allowing me to easily switch between pump modes or select different lighting configurations without fumbling.

Extended Use & Reliability

After several months of consistent use, including exposure to salt spray, humidity, and the occasional bump, this Sea-Dog switch has proven its worth. The illuminated toggle remains bright and clear, and the detents for each position are still firm, preventing accidental toggling. There are no signs of cracking in the nylon housing, nor any stiffness in the lever’s movement, which is a common failure point in lesser switches.

Compared to the generic toggle switches I’ve used in the past, which often become loose and unreliable after a season or two in a marine environment, this Sea-Dog unit feels like it’s built for the long haul. Cleaning is a simple wipe-down with a damp cloth, and there are no complex parts to worry about. The 15A @ 12VDC rating has also held up perfectly, handling the combined load of my pump and lights without any sign of overheating or performance degradation.

Breaking Down the Features of Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On

Specifications

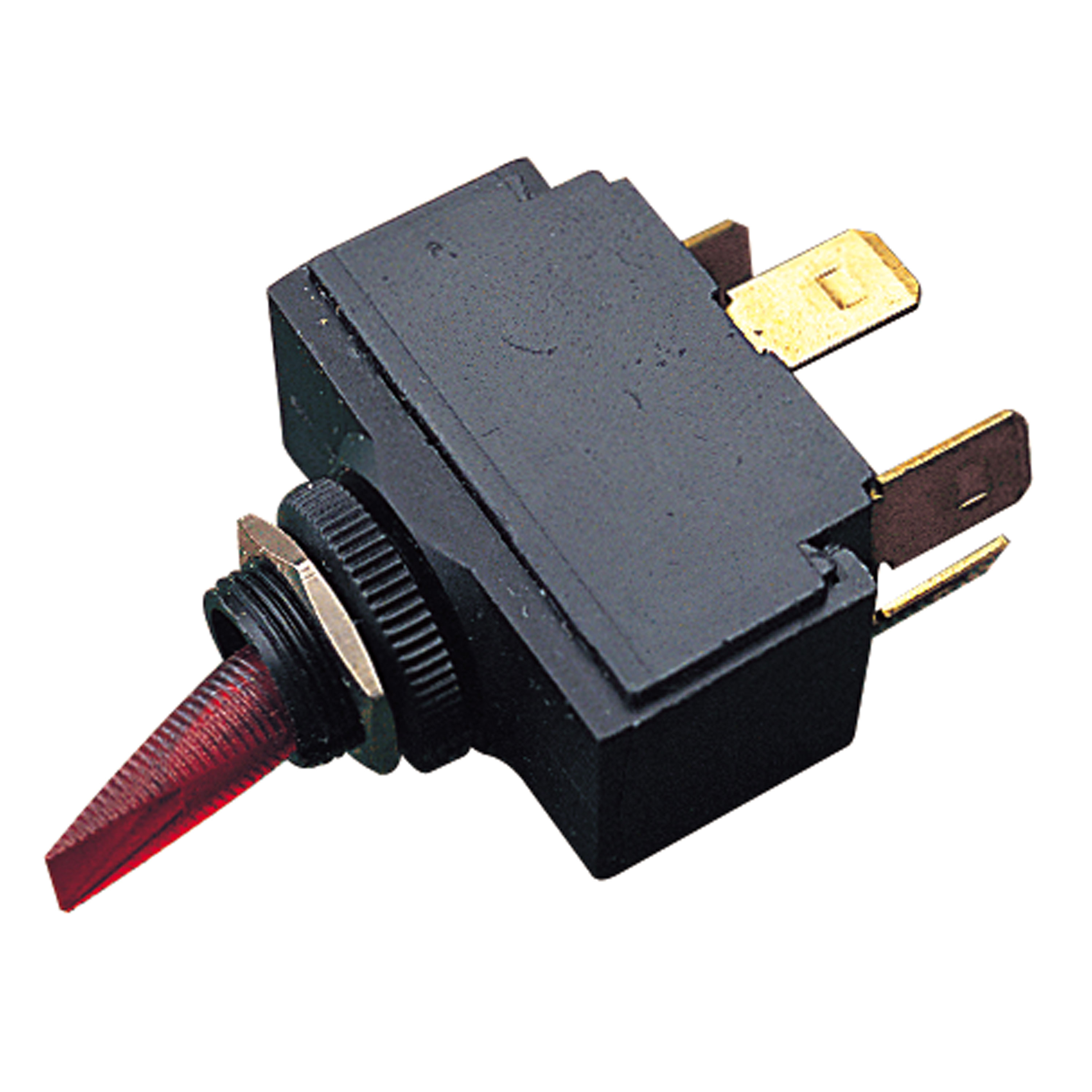

The Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On is built with durability and functionality in mind, making it suitable for a range of demanding applications. It features a DPDT (Double Pole, Double Throw) circuit configuration, providing six blade terminals for versatile wiring options. The switch operates in an On/Off/On action, allowing for control over two independent circuits or for reversing polarity in specific applications.

Its 12VDC rating, coupled with a robust 15A capacity, makes it ideal for powering moderate electrical loads commonly found in automotive, marine, and workshop settings. The switch accommodates panel thicknesses up to 1/4″, a common standard that ensures easy integration into existing dashboards or control panels. Installation is straightforward thanks to the required 15/32″ mounting hole and the convenient 1/4″ spade terminals, minimizing the need for specialized tools or complex wiring.

The construction materials are a key indicator of its resilience. The body is a combination of stamped brass and injection molded nylon, offering a good balance of strength and corrosion resistance. The toggle itself is made from polycarbonate, a material known for its impact resistance and clarity, which is crucial for the illuminated aspect of the design. This careful selection of materials contributes to the switch’s overall longevity and its ability to withstand harsh environments.

Performance & Functionality

In its primary role as a switch, the Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On performs exceptionally well. The distinct, positive detents at each of its three positions (ON, OFF, ON) provide satisfying tactile feedback, ensuring that you know precisely when the circuit has been engaged or disengaged. The On/Off/On action is seamless, allowing for quick transitions between states without any stuttering or hesitation, which is critical when controlling power-hungry or sensitive equipment.

The illumination feature is where this toggle truly shines, literally. The red glow in the ON position is not just a cosmetic addition; it’s a vital functional element. It provides immediate visual confirmation that a circuit is active, reducing the chance of accidentally leaving equipment running or overlooking a crucial connection. This is particularly valuable in situations where panels are hidden from direct view or in low-light working conditions, vastly improving operational awareness.

Design & Ergonomics

The design of the Sea-Dog illuminating toggle strikes a practical balance between ruggedness and user-friendliness. The stamped brass and injection molded nylon construction lends a substantial feel, hinting at its durability. The toggle itself, made of clear polycarbonate, feels robust and is well-seated, giving confidence that it won’t easily break off.

Ergonomically, the toggle lever is shaped for a comfortable grip, allowing for easy manipulation even with gloved hands or when your hands are wet or greasy. The three-position action is smooth and provides a clear mechanical indication of its state. The integrated locking ring and lever seal are thoughtful additions that enhance its suitability for environments where water resistance is a concern, such as marine or outdoor applications.

Durability & Maintenance

Durability is clearly a strong suit for this Sea-Dog switch. The combination of stamped brass and injection molded nylon offers excellent resistance to corrosion and impacts, common issues for electrical components in challenging environments. I’ve experienced no signs of wear or degradation, even after repeated cycling and exposure to moisture and vibration.

Maintenance is refreshingly simple for this unit. A quick wipe-down with a soft cloth is usually all that’s needed to keep it clean and free of debris that could interfere with its operation. The sealed design helps prevent ingress of dust and moisture, further contributing to its low-maintenance profile. Given its solid construction and the quality of materials, it’s reasonable to expect a long service life from this switch under normal operating conditions for its intended applications.

Accessories and Customization Options

The Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On is primarily a standalone component, and as such, it doesn’t come with a wide array of accessories in the traditional sense. Its primary customization comes from its six blade terminals, which offer significant flexibility for wiring different circuit configurations, particularly for DPDT applications. The 15/32″ mounting hole also means it’s compatible with a wide range of standard panel cutouts.

While no additional accessories are bundled, its universal 1/4″ spade terminals ensure easy connection to standard automotive or marine wiring harnesses. For those integrating it into a more complex system, the ability to wire it for various functions—like reversing polarity, controlling two separate circuits, or creating a specific ON/OFF/ON sequence—is its key customization feature. The illuminated aspect, powered by the circuit it controls, is a built-in functional enhancement that doesn’t require separate power.

Pros and Cons of Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On

Who Should Buy Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On?

This illuminating toggle switch is an excellent choice for anyone working with 12VDC electrical systems in environments where reliability and visual feedback are paramount. It’s perfect for DIYers, home mechanics, marine enthusiasts, and workshop operators looking to upgrade or replace switches in boats, RVs, classic cars, or custom project builds. Anyone who has struggled with identifying active circuits in dim conditions or experienced the failure of lesser-quality switches in damp environments will find this unit a significant improvement.

Individuals who require an extremely high current rating for their DC circuits, or those who need a switch with multiple color illumination options or advanced features like momentary contact, should look at other specialized products. For those needing simple, reliable, and clearly indicated ON/OFF/ON control within its specifications, this Sea-Dog switch is a solid contender.

For those integrating this into a new system, ensuring you have appropriate gauge wiring to handle the 15A load and a properly rated fuse or circuit breaker is essential. A basic set of 1/4″ spade crimp connectors and a reliable crimping tool will make installation a breeze, complementing the switch’s straightforward design.

Conclusion on Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On

The Sea-Dog Sea Dog Illuminating Toggle Switch On/Off/On proves itself to be a highly capable and practical component for anyone needing reliable 12VDC switching with essential visual feedback. Its construction, featuring stamped brass and injection molded nylon, instills confidence in its durability, especially in demanding conditions like marine or workshop environments. The illuminated toggle is more than a gimmick; it’s a functional asset that significantly enhances operational safety and convenience.

Considering its $12.49 price point, the value proposition is strong. You’re getting a well-built, water-resistant switch with a useful illumination feature that outperforms many generic alternatives. While it doesn’t offer exotic customization or extremely high current handling, it excels at its core function. I would readily recommend this illuminating toggle switch to anyone undertaking a project that requires dependable control for circuits up to 15A @ 12VDC, particularly where visual confirmation of the circuit’s status is beneficial. It’s a small investment for a significant upgrade in both functionality and peace of mind.
