What You Didn’t Know About the Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt
Navigating the world of marine and RV electrical components can often feel like a deep dive into a sea of generic parts, where reliability and thoughtful design are too often sacrificed for sheer volume. It was during a particularly frustrating wiring project on a vintage sailboat that I found myself in need of a specific kind of switch—one that offered clear operational status without the need for an external indicator, something that could handle the inherent moisture and vibration of a maritime environment, and crucially, a double-pole, double-throw (DPDT) configuration for controlling dual circuits. This search led me to the Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt. Sierra International has built a solid reputation in the marine and RV sectors for delivering dependable parts, and this particular switch promised a blend of robust construction and an innovative illumination feature.
My initial encounter with this tip-lit toggle switch was born out of necessity. I was overhauling the accessory panel on my 1970s-era sailboat, aiming to modernize the electrical system while preserving its classic aesthetic. The existing toggle switches were bulky, unlit, and frankly, prone to corrosion, leading to intermittent failures at the worst possible moments. I needed a replacement that was not only functional but also offered a clear visual cue for its state, especially for circuits like bilge pumps or navigation lights that require immediate confirmation. I briefly considered standard lighted switches or basic unlit toggles, but the idea of integrated illumination directly through the switch handle was particularly appealing for its clean integration. The immediate impression upon unboxing the Sierra International TG19520 was one of understated quality; the non-corrosive plastic felt solid, and the brass blade terminals gleamed with potential.
Real-World Testing: Putting Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt to the Test
First Use Experience
My primary testing grounds for this tip-lit toggle switch were the electrical panels of my sailboat, specifically integrated into a custom-built accessory board designed to manage auxiliary lighting and pump systems. This environment is unforgiving, characterized by constant vibration, high humidity, and the occasional splash of saltwater. Installation was straightforward, with the brass blade terminals providing a secure connection for my crimped wires. The DPDT On-Off-On configuration was crucial for my dual-circuit needs, allowing for flexible control of both primary and auxiliary functions for accessories like a bilge blower and its backup pump.
During initial use, the tip lighting feature proved immediately useful. When the boat’s panel lights were on, the tip of the switch glowed a soft white, indicating its position in neutral or ‘off’ state. Flipping the switch to either ‘on’ position transformed the tip’s illumination to a clear, distinct red, offering an unambiguous visual confirmation of active circuits. This was a significant upgrade from my old, unlit switches, where guessing the state of a circuit was a common occurrence. The action of the switch itself is satisfyingly crisp, with distinct detents for each position, preventing accidental engagement or disengagement.
Extended Use & Reliability
After several months of continuous use aboard the sailboat, the Sierra International TG19520 Tip Lit Toggle Switch has held up remarkably well. It has endured numerous days of sailing with considerable engine vibration, periods of high humidity, and even a few accidental splashes from wave spray that made their way into the cockpit. Despite these challenges, the switch’s operation remains smooth and consistent, and the illumination feature continues to function flawlessly. There are no signs of corrosion on the brass blade terminals, and the plastic housing feels as robust as it did on day one.
Maintenance has been minimal, as expected for a marine-grade component. A quick wipe-down with a damp cloth is all that’s needed to keep it clean. Compared to previous unlit or poorly sealed toggle switches I’ve used, this unit demonstrates superior longevity and reliability. The 20 amp @ 12 VDC rating provides ample headroom for the circuits it controls, including a high-draw bilge blower, without any signs of overheating or stress.
Breaking Down the Features of Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt
Specifications

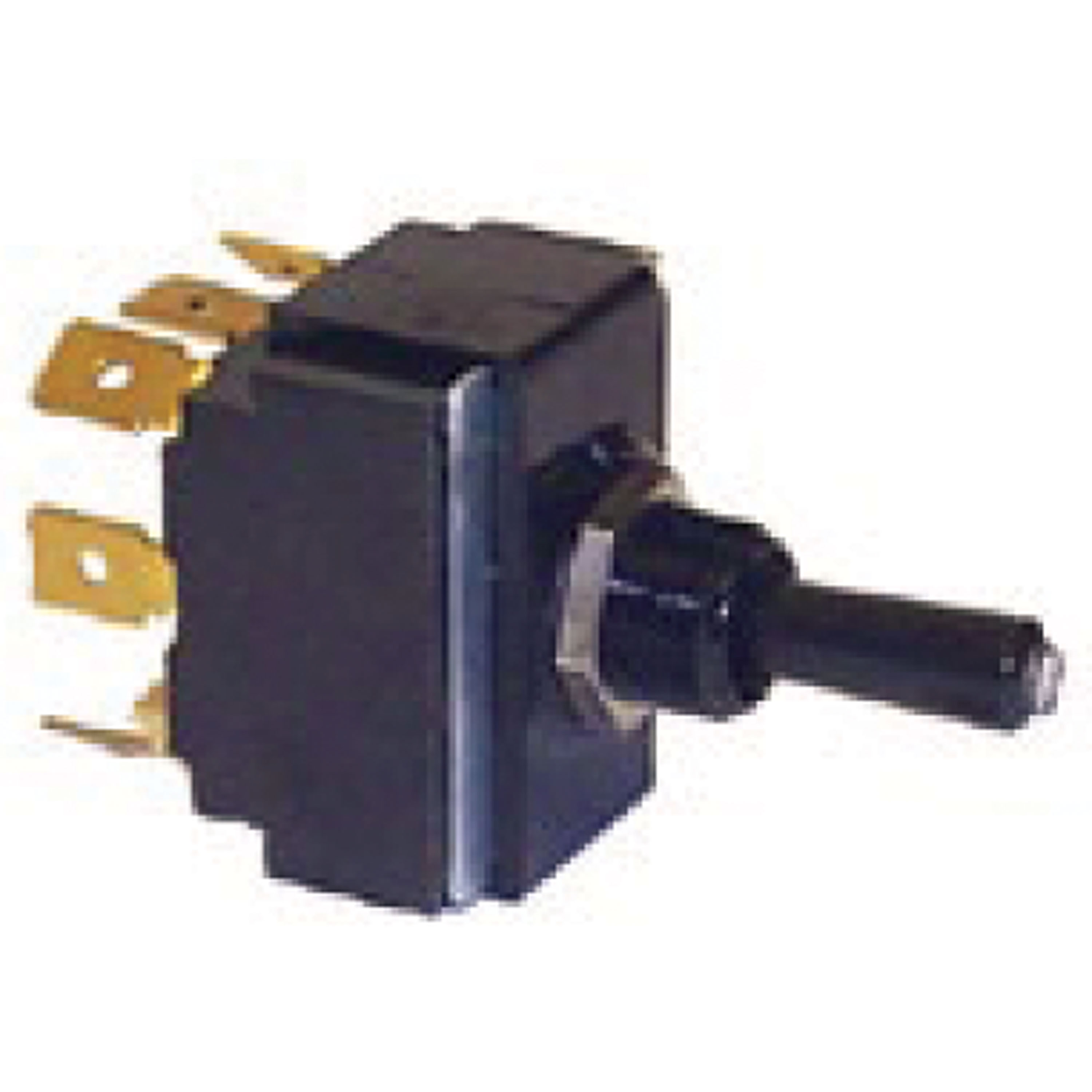

The Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt is engineered with specific demands of marine and RV applications in mind. Its construction features non-corrosive plastic, which is paramount for resisting the corrosive effects of salt air and moisture commonly found in these environments. The switch is equipped with brass blade terminals for reliable electrical conductivity and secure connections. Internally, it utilizes silver contacts, a material known for its excellent conductivity and resistance to oxidation, which contributes to consistent performance over time.
The defining characteristic of this switch is its innovative tip lighting system. When the panel lights are illuminated, the tip of the toggle glows white, providing a subtle indicator. Crucially, when the switch is activated to either the ‘on’ position, this illumination changes to a distinct red, serving as a clear visual cue that the circuit is active. This tip lighting through the tip of the handle offers a clean, integrated look without the need for separate indicator lights. The switch is rated for 20 amps @ 12 VDC, a robust capacity suitable for many higher-draw accessories in boats and RVs, ensuring safe and reliable operation. Its configuration is On-Off-On DPDT, offering versatility in circuit control, allowing users to switch between two different circuits or perform simultaneous operations.
Performance & Functionality
The primary function of the Sierra International TG19520 Tip Lit Toggle Switch is to reliably switch electrical circuits, and it performs this task with commendable effectiveness. The DPDT On-Off-On configuration provides the necessary flexibility for managing dual-circuit applications, such as selecting between a primary and backup bilge pump, or controlling different sets of auxiliary lights. The 20 amp @ 12 VDC rating is more than sufficient for a wide range of marine and RV accessories, including pumps, lights, and small motors, without any hint of strain or overheating during extended use.
The tip lighting feature is not merely an aesthetic addition; it significantly enhances usability. The shift from white (when panel lights are on) to red (when the switch is engaged) is clear and intuitive, providing immediate confirmation of the switch’s state, which is invaluable in low-light conditions or high-stress situations. This visual feedback mechanism surpasses the utility of standard unlit toggles and even many basic lighted switches, offering a cleaner integration into the panel. The detents for each position are well-defined, providing a positive tactile feedback that prevents accidental activation.
Design & Ergonomics
From a design perspective, the Sierra International TG19520 Tip Lit Toggle Switch embraces a practical, no-nonsense aesthetic that aligns perfectly with its intended marine and RV applications. The non-corrosive plastic construction feels durable and capable of withstanding the rigors of its operating environment. The brass blade terminals are sturdy and provide a secure point for wire attachment, a critical factor in vibration-prone settings like a boat or RV.
Ergonomically, the toggle itself is of a standard size, making it easy to grip and manipulate even with wet hands or while wearing gloves. The tip lighting is subtly integrated into the handle, maintaining a clean profile without adding bulk. The feel of the switch in hand is solid, with a reassuring tactile click as it moves through its On-Off-On positions. There is no discernible learning curve; its operation is immediately intuitive for anyone familiar with toggle switches.
Durability & Maintenance
The durability of the Sierra International TG19520 Tip Lit Toggle Switch is a key selling point, particularly for its marine and RV focus. The use of non-corrosive plastic and silver contacts suggests a design life well beyond that of cheaper, non-marine-grade alternatives. After months of exposure to harsh environmental conditions, there are no visible signs of wear, such as cracks, fading, or stiffness in the toggle action.
Maintenance is refreshingly simple. Given its robust construction, the switch requires no specialized care beyond occasional cleaning. The sealed nature of the toggle mechanism (typical for quality marine components) means that dust and moisture ingress are unlikely to be issues, contributing to its long-term reliability. Potential failure points would likely be extreme physical impact or prolonged electrical overload beyond its 20 amp @ 12 VDC rating, but for its intended use, it appears built to last.
Accessories and Customization Options
The Sierra International TG19520 Tip Lit Toggle Switch is a standalone component, and as such, it does not typically come with additional accessories. Its strength lies in its integrated functionality, specifically the tip lighting feature, which negates the need for separate indicator lamps for simple status monitoring. As a standard electrical component, it can be integrated into various custom wiring harnesses and panels using common crimp connectors for the brass blade terminals.
While there are no direct customization options for the switch itself, its DPDT On-Off-On configuration allows for a degree of flexibility in how it’s wired. This makes it adaptable to a range of dual-circuit control scenarios, such as controlling a main function and a secondary accessory, or managing forward and reverse operations for motors. It seamlessly fits into standard panel cutouts designed for marine or RV toggle switches.
Pros and Cons of Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt
Pros
- Integrated Tip Lighting: The white-to-red illumination provides clear, immediate visual feedback on switch status, enhancing usability in various lighting conditions.
- Robust Marine-Grade Construction: Features non-corrosive plastic and brass blade terminals, designed for durability in harsh marine and RV environments.
- Reliable DPDT Functionality: The On-Off-On DPDT configuration offers excellent versatility for controlling dual circuits or complex switching tasks.
- High Current Rating: A 20 amp @ 12 VDC rating ensures safe and dependable operation for many common accessories.
- Quality Internal Contacts: Silver contacts contribute to excellent conductivity and resistance to corrosion, promoting long-term reliability.
- Crisp Tactile Action: Distinct detents provide positive feedback, preventing accidental switching.
Cons
- Price Point: While justifiable for its features and build quality, it is noticeably more expensive than basic, non-lit toggle switches.
- Limited Aesthetic Options: The design is functional and clean, but lacks the premium finishes or varied color options found in some higher-end automotive or specialized control switches.
- No External Indicators for Panel Light Off: The tip only illuminates white when the panel lights are on; otherwise, it is unlit, meaning a separate indicator might still be needed if the panel lights are entirely off and the switch state must be known.
Who Should Buy Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt?
This tip lit toggle switch is an excellent choice for boat owners, RV enthusiasts, and anyone involved in custom electrical projects in environments where reliability and clear status indication are paramount. It is particularly well-suited for replacing aging or corroded toggle switches on marine vessels, RV control panels, or off-road vehicle dashboards. If you frequently operate dual-circuit accessories and desire an intuitive visual confirmation of their status, this switch will greatly simplify your operations.
Individuals seeking a basic, budget-friendly toggle switch without any illumination should look elsewhere. Those requiring extremely high-amperage switching or specialized functions like momentary contact might also need to explore different component types. For optimal integration, ensure your panel has appropriate cutouts for standard toggle switches, and consider having appropriate crimp connectors and wire stripping tools readily available for installation.
Conclusion on Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt
The Sierra International TG19520 Tip Lit Toggle Switch On Off On Dpdt stands out as a superior solution for anyone needing a durable and highly functional DPDT switch in demanding environments. Its innovative tip lighting feature, combined with robust marine-grade construction and a reliable 20 amp @ 12 VDC rating, makes it a worthwhile investment for enhancing both usability and safety in electrical systems. The switch delivers on its promise of quality, providing clear visual feedback and dependable operation where it matters most.
Considering its build quality, integrated lighting, and the peace of mind it offers, the price point of $43.99 is well-justified, especially when compared to the potential cost of failures from lesser components in corrosive environments. I wholeheartedly recommend this toggle switch to boaters, RVers, and DIYers who prioritize reliability and clear operational status indication. It’s a component that performs its job exceptionally well, offering a noticeable upgrade over standard switches and contributing to a more intuitive and secure electrical setup.
