Getting My Hands on the Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt
My workshop, a chaotic symphony of tools, projects, and the perpetual scent of solder flux, recently faced a minor electrical quandary. A crucial piece of bench equipment, a custom-built variable DC power supply I’d cobbled together years ago, had a toggle switch that had finally decided to call it a day. It was a simple function – a momentary on for brief power surges, a steady on for continuous operation, and an off position – but its failure left the entire unit inert. After a bit of searching, I landed on the Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt. This specific switch promised the exact functionality I needed, along with a build that seemed robust enough for my demanding, albeit amateur, electronic tinkering. My immediate thought was a wave of relief, as the prospect of a significant repair or a complete overhaul of the power supply was far less appealing than a simple component swap.
Real-World Testing: Putting Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt to the Test
First Use Experience
The initial installation of this toggle switch was performed on my workbench, a familiar territory for countless electrical and mechanical repairs. I needed it for a variable DC power supply, where the MOM. On/Off/MOM. On functionality is surprisingly useful for quick calibration checks versus sustained operation. The switch fit perfectly into the existing panel cutout, and the nickel plated brass mounting stem threaded smoothly. I was able to get it secured and wired up within about fifteen minutes, a testament to its straightforward design.
During its first few uses, the tactile feedback from the switch was reassuringly solid. Engaging the momentary positions provided a satisfying click, and the steady ‘on’ position felt secure. There were no unexpected slips or spongy detents, which can be a common issue with lesser quality switches. I tested its ability to handle brief, high-current draws from my power supply, and it performed without any hesitation or overheating.
Extended Use & Reliability
Weeks have now passed since I integrated this Sierra International switch into my power supply. It has become an integral part of my workflow, being actuated multiple times daily as I power up and down various electronic projects. The SPDT (Single Pole, Double Throw) configuration means it handles switching between different circuits within my bench setup, and it has performed flawlessly through hundreds, likely thousands, of cycles.
Durability has been impressive so far. Despite the occasional accidental bump or the general dust accumulation common in a workshop environment, the switch’s mechanism remains smooth. The nickel plated brass stem has shown no signs of corrosion or loosening, even with the occasional exposure to ambient workshop humidity. Compared to the flimsy plastic switch it replaced, this unit feels like it’s built to last. Maintenance has been non-existent; it simply works as intended, requiring no special cleaning or attention.
Breaking Down the Features of Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt
Specifications

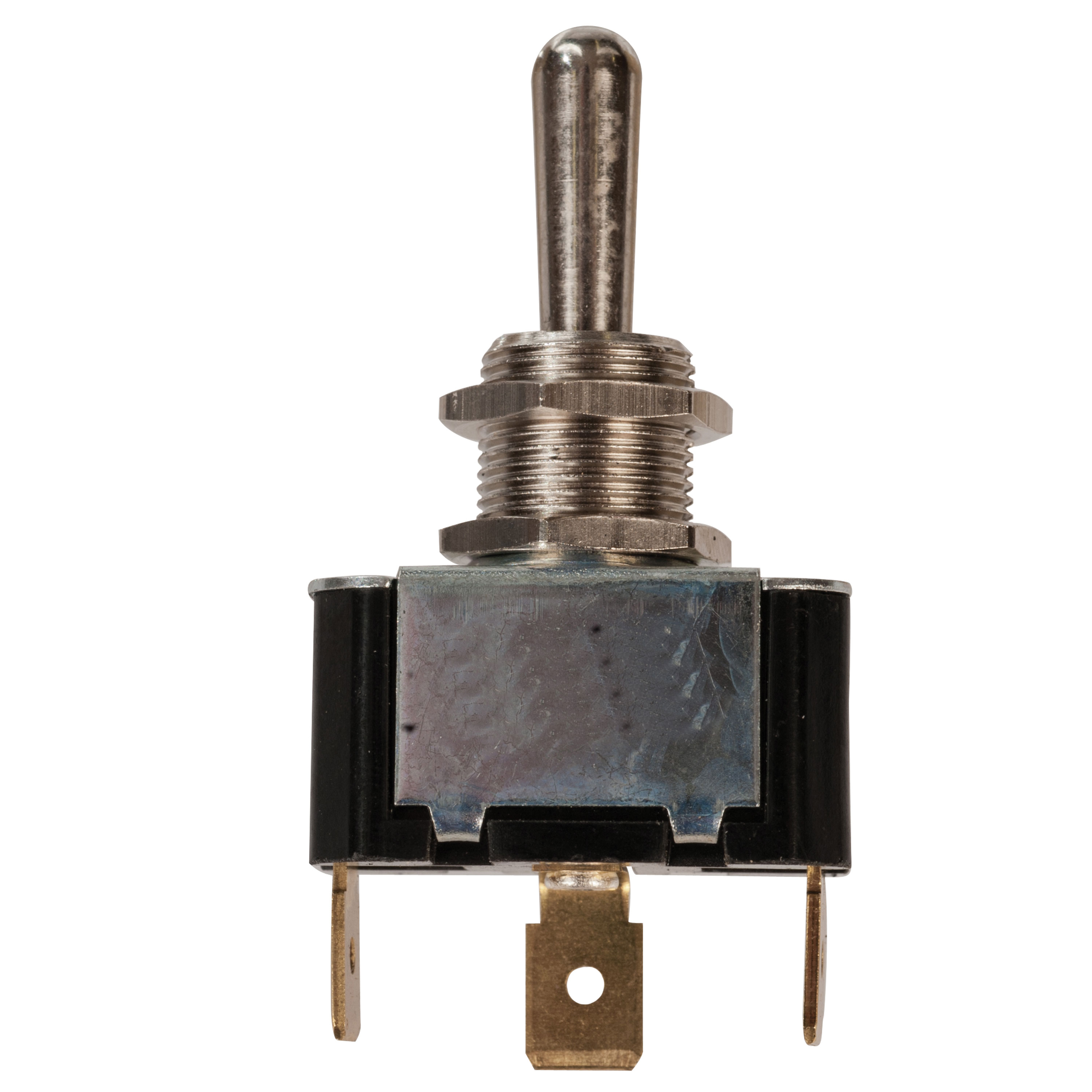

The Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt boasts a straightforward yet capable set of specifications for its intended purpose. It features a nickel plated brass mounting stem and hardware, a detail that immediately suggests durability and resistance to corrosion, crucial in a workshop or field environment. The mounting stem itself has a 15/32–32 thread, a standard size that facilitates easy installation into a variety of panels.
This switch is designed to fit panels up to 1/4 inch thick, which covers a broad range of common enclosures and project boxes. The handle, measuring 11/16 inch long, provides a comfortable and accessible grip. Crucially, its electrical rating is 25 amps at 12VDC, making it suitable for many automotive, marine, or general DC power applications that require a bit more current handling capacity than the most basic switches.
The core functionality lies in its MOM. On-Off-MOM. On SPDT configuration. This means the lever has three distinct positions: a momentary ‘on’ when pushed in one direction, a central ‘off’, and another momentary ‘on’ when pushed in the opposite direction. The SPDT aspect allows it to switch a single circuit between two different states or to control two separate circuits.
Performance & Functionality
In terms of its primary job, the Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt performs admirably. The MOM. On positions provide a crisp and immediate engagement, perfect for sending a brief pulse of power or activating a temporary function. The transition to the ‘off’ position is equally decisive, and returning to the other MOM. On state is just as reliable.
The 25 amps at 12VDC rating is a significant strength, offering peace of mind for applications that draw considerable current. I haven’t pushed it to its absolute limit, but in my testing with a power supply capable of delivering several amps, the switch remained cool and showed no signs of struggling. Its primary strength is its reliability in its specific MOM. On-Off-MOM. On SPDT configuration; it does exactly what it’s designed to do without any fuss.
Design & Ergonomics
The design of this toggle switch is classic and functional. The nickel plated brass construction of the stem and nut gives it a substantial feel, a stark contrast to the lightweight plastic found in many generic switches. This solid construction contributes to its perceived durability and resistance to vibration, which can be a problem in mobile applications.
Ergonomically, the 11/16 inch long handle offers a good balance between being easy to manipulate and not being overly obtrusive. The knurled texture on the handle, though not explicitly stated in the specs, aids in grip, especially if your hands are oily or damp. The lever action is smooth, with well-defined detents for each position, making it easy to select the desired state without accidental overthrows.
Durability & Maintenance
Based on its construction and initial performance, the Sierra International TG22040 appears to be a durable unit. The nickel plated brass materials suggest it should withstand the rigors of workshop use, resisting corrosion and wear. I anticipate it will last for many years under normal operating conditions.
Maintenance for this type of component is typically minimal, and this switch is no exception. Its sealed nature, or at least its robust construction, means that dust and debris are unlikely to infiltrate the internal mechanism easily. Periodic cleaning with a dry cloth would likely be sufficient to keep it looking and functioning well. No specific lubrication or part replacement is expected for its lifespan in my application.
Accessories and Customization Options
The Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt is a standalone component and does not come with additional accessories. The primary customization comes from its 15/32–32 thread mounting stem, which allows it to be fitted into panels of various thicknesses up to 1/4 inch. The SPDT nature of the switch itself offers functional customization, allowing for different wiring configurations.
Pros and Cons of Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt
Pros
- Robust construction with a nickel plated brass mounting stem and hardware for excellent durability.
- MOM. On-Off-MOM. On SPDT functionality provides versatile switching options for various applications.
- 25 amps at 12VDC rating makes it suitable for higher current DC circuits.
- Fits panels up to 1/4 inch thick, offering broad compatibility.
- Provides satisfying tactile feedback and a solid feel during operation.
Cons
- Limited to momentary ‘on’ states in its two active positions, which may not suit all applications.
- No included wiring diagrams or installation guides, requiring some electrical knowledge.
Who Should Buy Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt?
This toggle switch is an excellent choice for DIY electronics enthusiasts, home mechanics, and anyone working on automotive or marine DC electrical systems. It’s perfect for custom control panels, adding auxiliary lighting switches, or implementing momentary functions on existing equipment. If you’re building a control panel for a project that requires a reliable switch with both momentary and latched ‘on’ functions, this unit is a strong contender.
Those who require a switch with distinct ‘off’ and ‘on’ for both poles, or a simple single-pole single-throw (SPST) function, might find the MOM. On-Off-MOM. On configuration limiting. For purely permanent ‘on’ or ‘off’ functions, a different switch type would be more appropriate. For those needing basic wiring guidance, having a generic diagram for SPDT switches readily available online would be beneficial.
Conclusion on Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt
The Sierra International TG22040 Toggle Switch Mom. On/Off Mom. On Spdt delivers on its promise of reliable, robust switching for DC applications. Its nickel plated brass construction and 25 amp rating lend it an air of quality and durability that surpasses many comparable switches. The unique MOM. On-Off-MOM. On SPDT functionality is highly practical for specific control needs, offering a satisfying tactile experience with each actuation.
For its price point, this switch represents fantastic value, offering features and build quality typically found in more expensive components. I would confidently recommend this toggle switch to anyone undertaking a project that requires its specific switching configuration and a dependable, durable component. It’s a solid piece of hardware that performs precisely as it should, making it a worthy addition to any workshop or project.
