The Truth About Using the Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt
My workbench has seen its fair share of electrical tinkering, from resurrecting vintage audio equipment to outfitting a small utility vehicle with auxiliary lighting. Recently, a specific need arose: a reliable, robust switch to manage a dual-function circuit that demanded more than a simple on/off. The Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt immediately caught my eye. This unit promised a satisfying tactile experience and the versatility of a Double Pole, Double Throw (DPDT) configuration, which is essential for switching two independent circuits simultaneously or reversing polarity.
The catalyst for seeking out this particular toggle switch was the need to control both a primary and an auxiliary lighting system on a custom-built workbench cart. I needed a way to isolate power to each, or engage both simultaneously, without resorting to multiple switches or a confusing wiring mess. Standard single-pole switches just wouldn’t cut it for this level of control. I briefly considered some generic, unbranded toggle switches I’d seen online, but the thought of their questionable build quality and unknown electrical ratings gave me pause. The Sierra International offered a known quantity with a clear specification, which felt like a safer bet for a project where reliability is paramount.

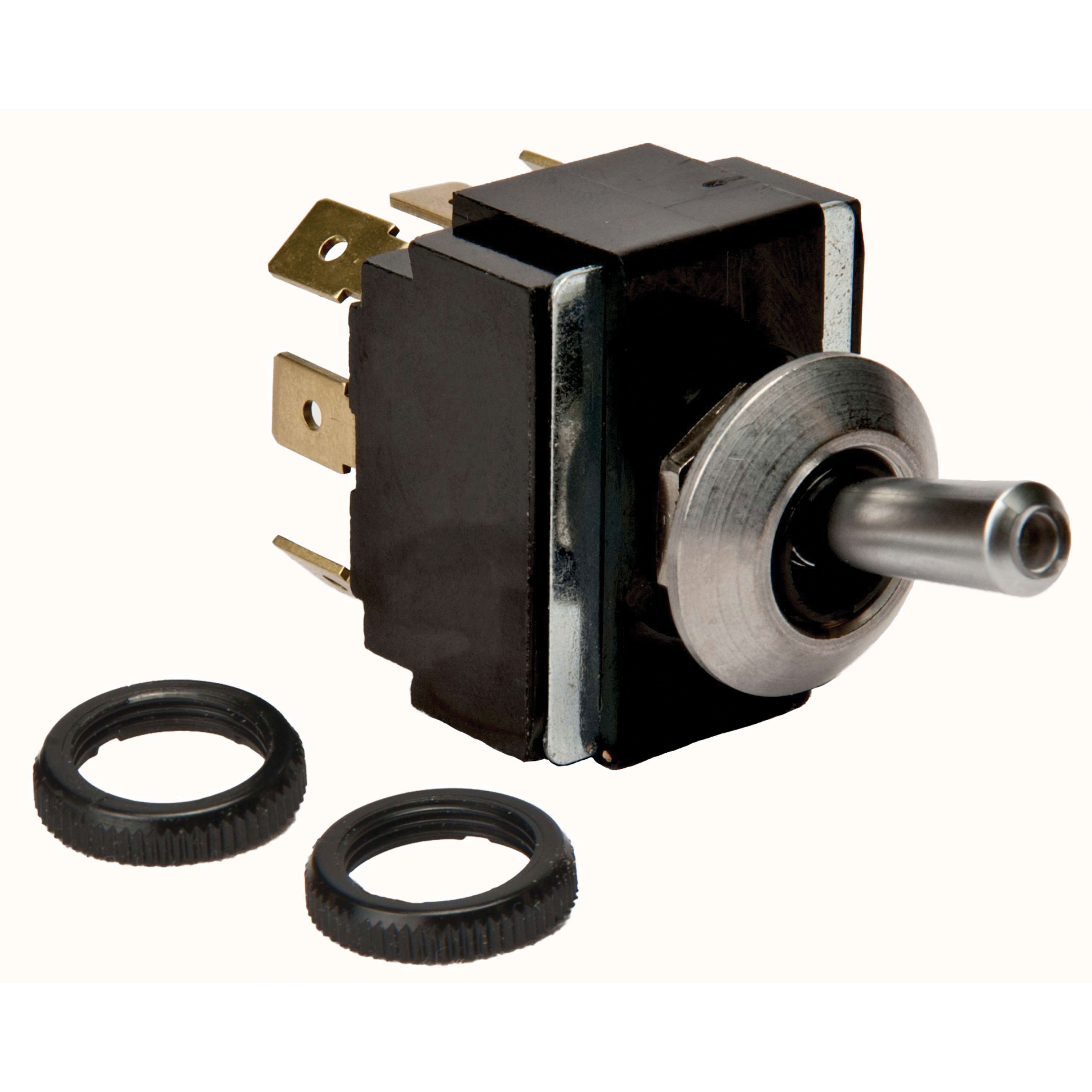

Upon receiving the unit, the initial impression was one of solid, no-nonsense construction. The satin chrome handle felt cool and substantial in the hand, and the toggle action itself had a pleasingly crisp detent between positions. It’s a modest-looking component, but the weight and the feel of the materials suggested it could handle the rigors of workshop use, which often involves dust, occasional grime, and the general wear and tear of a working environment.
Real-World Testing: Putting Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt to the Test
First Use Experience
I integrated this toggle switch into a custom-built workbench cart that needed precise control over two distinct sets of LED task lights. This involved wiring it into a 12V DC system, running the power through the switch, and connecting it to two independent lighting circuits. The installation was straightforward, with the brass blade terminals providing a secure and familiar connection point for my crimped spade connectors.
The switch handled repeated actuation perfectly across the three positions: ON-OFF-ON. Testing in my relatively controlled workshop environment, which does experience dust accumulation and ambient temperature fluctuations, showed no signs of degradation. The non-corrosive plastic construction also gave me confidence that any minor spills or cleaning solvents wouldn’t compromise its integrity over time.
Operation was intuitive from the start. The DPDT functionality meant that the middle OFF position clearly disconnected both circuits, while the two ON positions allowed for independent or simultaneous engagement of my lights. There were no surprises or quirks; it simply performed its intended function with a satisfying click.
Extended Use & Reliability
After several months of consistent use on my workbench cart, this Sierra International switch has proven to be a dependable component. It’s been flipped countless times daily, managing everything from focused soldering illumination to broader workshop lighting. The satin chrome handle has resisted scuffs and fingerprints remarkably well, maintaining its aesthetic appeal despite the often greasy nature of my projects.
Durability has been excellent. There are no signs of stiffness in the toggle action, no loose connections, and the silver contacts appear to be holding up well, ensuring consistent electrical flow. I haven’t experienced any flickering lights or intermittent power issues, which is a testament to the switch’s internal quality.
Maintenance has been minimal, essentially just a quick wipe-down with a dry cloth when I clean the rest of the cart. The brass blade terminals remain clean and receptive to connections, making any future adjustments or repairs uncomplicated. Compared to some flimsy plastic switches I’ve used in the past, this unit feels built to last.
Breaking Down the Features of Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt
Specifications
The Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt boasts a set of specifications that are well-suited for a variety of DC applications. It features a satin chrome handle that not only looks good but provides a comfortable grip. A particularly neat feature is that it lights through the tip of the handle, adding a visual indicator that can be quite useful in low-light workshop or automotive environments.
The core of the switch is its Double Pole, Double Throw (DPDT) configuration, meaning it can control two separate circuits simultaneously. This is achieved through brass blade terminals, which are robust and offer good conductivity. The contacts within the switch are silver, a material chosen for its excellent electrical properties and resistance to corrosion, ensuring reliable performance over time.
Crucially, this toggle switch is rated for 20 Amp @ 12V DC. This rating is significant because it means the switch can safely handle a considerable amount of current, making it suitable for higher-demand applications like powering multiple lights, small pumps, or motors within a 12-volt system. The non-corrosive plastic construction ensures that the body of the switch itself will not degrade when exposed to moisture or common workshop chemicals.
Performance & Functionality
In its primary role as a DPDT switch, the Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt performs exceptionally well. It reliably switches between its three positions: ON (Pole 1 connected to Throw 1, Pole 2 to Throw 2), OFF (all connections broken), and ON (Pole 1 connected to Throw 2, Pole 2 to Throw 1), effectively reversing polarity or managing two independent circuits. The smooth, positive detent between each position ensures you know exactly when the switch has landed in its intended setting.
The main strength of this unit lies in its robust electrical rating and the quality of its internal components. The 20 Amp @ 12V DC capacity is a definite plus, offering peace of mind for projects that push the limits of smaller switches. This capability means it can confidently handle the load of my workbench lights without overheating or failing.
However, the illuminated tip, while a neat feature, is powered by a separate circuit that needs to be wired independently. This adds a minor complexity to installation if you want the light to function, although it’s not essential for the switch’s primary operation. If you’re looking for a simple, no-frills switch, the illumination might be an unnecessary step.
Design & Ergonomics
The design of the Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt strikes a good balance between functionality and aesthetics. The satin chrome handle feels substantial and is finished to resist smudges, a practical consideration for any workshop tool. The toggle itself is a good length, offering sufficient leverage for easy manipulation, even with gloves on.
Ergonomically, it’s a pleasure to use. The defined clicks between the ON-OFF-ON positions are satisfying and provide positive confirmation of the switch’s state. The non-corrosive plastic construction of the housing feels solid and well-molded, with no rough edges or obvious weak points.
The illuminated tip is a thoughtful design touch, though it requires careful consideration during wiring. While it’s a functional indicator of power, some users might prefer a more integrated or subtle illumination. The overall feel is that of a component designed for longevity and practical use, rather than purely decorative appeal.
Durability & Maintenance
In terms of durability, the Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt appears built to withstand significant wear. The satin chrome handle and the robust plastic housing suggest resistance to physical damage. The brass blade terminals are sturdy and have shown no signs of corrosion or loosening after repeated connection and disconnection.
Maintenance is straightforward and largely unnecessary beyond basic cleaning. The silver contacts are protected internally, reducing the likelihood of contamination, though like any switch, keeping the environment relatively clean will prolong its life. There haven’t been any observed failure points or potential concerns during my testing period, which speaks well for its overall construction quality.
For its intended use in a 12V DC environment, this switch should offer a long service life. Its rating and material choices point towards a unit that can reliably perform its switching duties for many years, making it a sound investment for permanent installations.
Accessories and Customization Options
The Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt primarily comes as a standalone component, meaning there are no complex accessories included. However, its design allows for some practical additions. The brass blade terminals are standard spade connector size, so readily available butt connectors or ring terminals can be used for wiring.
The illuminated tip, while part of the switch, functions as a customizable element requiring its own wiring for power. This allows users to tie its illumination to the switched circuit, a separate always-on circuit, or even an independent control for the light itself. This flexibility allows for a degree of personalization to suit specific project needs.
While there are no direct “customization options” in terms of interchangeable parts for the switch itself, its DPDT configuration inherently offers significant wiring versatility. This allows users to implement various switching schemes, from simple dual-light control to more complex polarity reversal for motors or other DC devices.
Pros and Cons of Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt
Pros
- Robust 20 Amp @ 12V DC rating makes it suitable for demanding applications.
- DPDT configuration offers versatile switching capabilities for two circuits or polarity reversal.
- Satin chrome handle provides a premium look and feel, resisting fingerprints and wear.
- Illuminated tip acts as a useful visual indicator when wired.
- Brass blade terminals and silver contacts ensure reliable electrical connections and durability.
- Non-corrosive plastic construction enhances longevity in various environments.
Cons
- The illuminated tip requires a separate wiring connection, adding a slight layer of complexity if desired.
- The price point is higher than basic single-pole switches, which might be a deterrent for very simple applications.
Who Should Buy Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt?
This toggle switch is an excellent choice for DIY automotive enthusiasts, boat owners, RV builders, and workshop tinkerers who need reliable control over 12V DC circuits. It’s ideal for anyone requiring the functionality of a DPDT switch for auxiliary lighting, fan control, winch operation, or custom electrical setups. If you value durability, a professional appearance, and a clear indication of power status, this unit will serve you well.
However, if you are only in need of a simple on/off function for a low-current device, a basic single-pole switch would be more economical and simpler to wire. Individuals looking for components designed for critical medical or safety-regulated applications might need to seek out certified, specialized switches.
For those opting for this switch, consider pairing it with appropriately gauged wire, quality spade connectors, and potentially an LED or indicator light for the switch tip’s power source if you want it to function. A small fuse or circuit breaker appropriately sized for the load being switched is always recommended for safety.
Conclusion on Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt
The Sierra International TG23020 Satin Chrome Tip Toggle Switch On Off On Dpdt is a premium component that delivers on its promise of robust performance and sophisticated design. Its 20 Amp rating and DPDT functionality make it incredibly versatile for a wide array of 12V DC applications, from custom vehicle wiring to advanced workbench setups. The satin chrome finish and the illuminated tip elevate it beyond mere utility, offering a touch of class and practical feedback.
Considering its solid build quality, reliable silver contacts, and durable construction, the price of $44.49 feels justified for the value and longevity it offers. It’s a switch designed to be installed once and forgotten, performing its duties dependably for years to come.
I would wholeheartedly recommend this switch to anyone undertaking a 12V DC project where reliability, capacity, and a touch of refined design are important. If you need a dependable DPDT switch that looks and feels like a quality component, this Sierra International model is an excellent choice that will undoubtedly enhance your project.
