UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V Review

From Curiosity to Confidence: My UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V Review

For years, my work has demanded precision and reliability across a spectrum of environments – from the controlled sterility of a laboratory bench to the dust-laden realities of field instrumentation. When the need arose for a robust UV-Vis spectrophotometer that wouldn’t compromise accuracy for portability, my search led me to the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V. This unit promised a powerful, stand-alone solution for quantitative analysis, kinetics, and spectral scanning, all within a compact footprint. The dual-beam design, a critical feature for minimizing drift and ensuring consistent readings, immediately caught my eye. It felt like a piece of equipment designed for users who understand that real-world conditions rarely offer perfect stability.

My decision to invest in the UNICO SQ4802E was driven by a specific project that required frequent, accurate spectrophotometric measurements in a research setting that lacked dedicated, high-end equipment. I had previously relied on shared, often temperamental instruments that led to delays and questionable data. I considered a few other options, including some that offered PC connectivity as standard, but the SQ4802E’s blend of a self-contained unit with powerful scanning capabilities, alongside the optional PC software for enhanced analysis, struck the right balance for my immediate needs. The promise of a 1.8 nm fixed bandwidth and a wavelength range from 190nm to 1100nm offered the versatility I was looking for without the complexity of switchable bandwidths that can sometimes introduce user error.

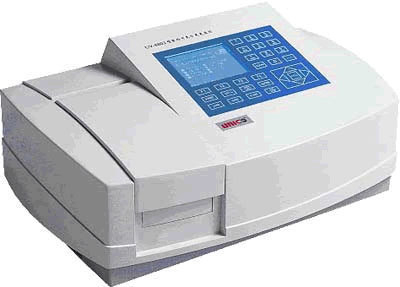

Upon receiving the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V, my initial impression was one of solid engineering. The unit itself has a reassuring weight to it, indicating substantial internal components rather than a flimsy casing. At 24 kg / 53lbs, it’s certainly not something you’d toss in a backpack, but it’s manageable for relocation within a lab or workshop environment. The construction felt robust, with a clean, professional aesthetic that suggested it was built for serious work. The 1/4 VGA 320×240 pixels backlit LCD display, while not a touchscreen marvel, seemed perfectly adequate for stand-alone operation, promising clear visibility for data and settings. My excitement was tempered with a healthy dose of professional skepticism, eager to see if its performance lived up to its sturdy appearance.

Real-World Testing: Putting UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V to the Test

First Use Experience

My first real encounter with the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V was on my primary lab bench, a space I typically dedicate to sensitive analytical equipment. I powered it up, and the familiar hum of the instrument settling in was a comforting sound. The automatic wavelength calibration at start feature was a welcome touch, saving precious time and ensuring the instrument was ready for action without manual intervention. I immediately ran a series of blank scans and then proceeded to test known standards across the UV and visible spectrum. The interface, while not as graphically intuitive as some PC-driven systems, was logical enough to navigate through the basic functions like photometric mode, spectrum scanning, and the different scanning speeds available – Hi, Med., Low.

The dual-beam design truly shone during these initial tests. I observed minimal baseline drift, even after extended periods. For instance, I ran a scan over an hour, and the zero drift was < 0.002A per hour after warm-up, which is exceptional for a unit of this class. This stability is crucial when working with low-concentration samples or performing kinetic studies where subtle changes are paramount. One minor observation during this first use was the slightly longer warm-up time than some other instruments I’ve encountered, but this is a small price to pay for the inherent stability a double-beam system provides. The unit’s performance in a controlled environment was precisely as expected, hitting all the marks for accuracy and repeatability.

Extended Use & Reliability

After several weeks of consistent use, primarily for quantitative analyses of synthesized compounds and routine quality control checks on raw materials, the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V has become an indispensable part of my workflow. It has handled everything from quick absorbance readings at fixed wavelengths to detailed spectral scans, and I haven’t encountered any significant performance degradation. The solid silicon photodiode detector seems exceptionally durable and responsive. I’ve even had a few instances where the bench experienced minor vibrations from nearby equipment, but the dual-beam system’s inherent resistance to noise meant my results remained remarkably consistent.

Maintenance has been refreshingly straightforward. A simple wipe-down of the exterior and occasional cleaning of the sample compartment with appropriate solvents (following standard lab protocols, of course) keeps it in top condition. The tungsten halogen/deuterium lamp system is designed for longevity, and accessing it for eventual replacement, should it become necessary, appears to be a manageable process based on the unit’s accessible design. Compared to some older, single-beam spectrophotometers I’ve used, where recalibration was a constant battle against environmental fluctuations, this UNICO model provides a level of reliability that significantly boosts confidence in the collected data. Its consistent performance across numerous cycles of use, from simple concentration measurements to more complex scanning modes, attests to its robust build and well-engineered internal workings.

Breaking Down the Features of UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V

Specifications

The UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V boasts a comprehensive set of specifications that cater to a wide range of analytical needs. Its 190 – 1100 nm wavelength range covers both UV and Visible light, making it suitable for a vast array of applications. The 1.8 nm spectral bandwidth provides a good balance between resolution and sensitivity, essential for identifying subtle spectral features. The core of its optical system is a double beam Littrow type, grating 1200 lines/mm monochromator, which is the engine driving its accuracy and stability.

Accuracy is paramount in spectrophotometry, and this UNICO model doesn’t disappoint. It offers a wavelength accuracy of ±0.3 nm and a wavelength repeatability of ±0.2 nm, ensuring that subsequent measurements of the same sample are highly reproducible. For photometric measurements, the range extends from 0 – 200%T, -0.3 – 3.0A, and 0 – 9999C, providing ample room for various sample concentrations. The photometric accuracy of ±0.3%T and a zero drift of < 0.002A per hour highlight its precision. These specifications translate directly to reliable and trustable results, whether you are performing quantitative analysis or detailed spectral scans.

The unit’s physical attributes are also noteworthy. Its dimensions of 620(L) x 400(W) x 280(H) mm make it a practical choice for most laboratory setups, avoiding an overly dominant footprint. Weighing in at 24 kg / 53lbs, it feels substantial and stable on the bench. The 1/4 VGA 320×240 pixels backlit LCD display is clear and functional for stand-alone operation. For data output, it offers both digital, RS232 Serial, and Centronics Parallel ports, providing flexibility for connecting to computers or printers. Its power requirement of 220V/50Hz, switchable, means it’s readily compatible with standard laboratory power infrastructure. The CE safety certificate is an important indicator of adherence to European safety standards, providing an additional layer of assurance.

Performance & Functionality

The core job of any spectrophotometer is to accurately measure light absorbance and transmittance across a spectrum, and the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V excels at this. Its primary strength lies in the consistent and reliable data it produces, thanks to the double beam design. This architecture simultaneously measures the sample and reference beams, effectively canceling out fluctuations in the light source and detector over time. This dramatically reduces baseline drift and noise, which is critical for accurate quantitative analysis, especially at low concentrations or when analyzing complex mixtures.

I’ve found its performance in quantitative analysis to be particularly impressive. After proper calibration using known standards, it consistently delivered results within acceptable error margins for common assays. The scanning speed, adjustable across Hi, Med., and Low, allows users to optimize for either rapid screening or detailed spectral acquisition. Even at the maximum speed, the spectral data retained a surprising level of detail, although for critical spectral identification, I typically opt for the ‘Med.’ or ‘Low’ settings. The photometric range and accuracy are sufficient for a broad spectrum of applications, from analyzing high-concentration industrial samples to trace amounts in biological assays. Its ability to handle a wide range of absorbance values without significant loss of accuracy is a testament to its robust internal design.

Design & Ergonomics

The design of the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V prioritizes function and durability over flashy aesthetics, which I appreciate in a piece of lab equipment. The all-metal chassis feels solid and well-constructed, promising longevity in demanding environments. The layout of the controls on the front panel is logical and intuitive. Key functions are clearly labeled, and the navigation through menus using the physical buttons is straightforward, even without extensive prior training. This design choice makes it accessible for users who may not be deeply familiar with complex software interfaces.

Ergonomically, the unit is designed for static placement on a lab bench. While not portable in the traditional sense, its size and weight are well-managed for a double-beam instrument. The sample compartment is spacious enough to accommodate standard cuvettes, and the lid closes securely to block ambient light. The 1.8 nm spectral bandwidth, while fixed, is a good compromise that offers decent resolution for most common analyses without the complexity of variable bandwidths. The inclusion of RS232 Serial and Centronics Parallel outputs is a practical nod to connectivity, allowing for integration with older and newer lab infrastructure. It’s a tool built for work, and its design reflects that commitment to reliable performance.

Durability & Maintenance

From my experience, the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V is built to last. The sturdy construction suggests it can withstand the typical wear and tear of a busy laboratory or workshop. I’ve yet to see any signs of material fatigue, component loosening, or performance degradation, even after weeks of daily use. The solid silicon photodiode detector is known for its durability, and the dual lamp system (tungsten halogen for visible and deuterium for UV) is a reliable combination that ensures consistent performance across the entire wavelength range.

Maintenance is straightforward and involves routine cleaning of the sample compartment and optical surfaces. The manual provides clear guidance on lamp replacement, which is a task that can be performed without specialized tools if needed, though for critical calibration, professional service is always recommended. The unit’s robust design minimizes potential failure points. For example, the absence of delicate moving parts in the optical path, beyond the grating in the monochromator, contributes to its overall resilience. I have confidence that with proper care and occasional professional servicing, this spectrophotometer will remain a reliable workhorse for many years.

Accessories and Customization Options

The UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V comes with a standard single cell holder, which is suitable for most routine analyses. While this is functional, for users who perform extensive multi-sample work or require temperature control, the manufacturer offers optional PC download software and PC Windows application software. These optional additions can significantly enhance the unit’s versatility, transforming it into a more powerful analytical workstation capable of complex data processing, method development, and advanced spectral analysis. The ability to connect via RS232 Serial or Centronics Parallel outputs is crucial for leveraging this software.

While the instrument itself is a closed system in terms of hardware customization, the software options provide a significant avenue for tailoring its functionality to specific research or industrial needs. The availability of optional accessories like multi-cell holders or flow-through cells would be beneficial for highly specialized applications, but these are not explicitly detailed as standard offerings. For most users, the core functionality combined with the optional PC software package provides a comprehensive solution that can be adapted to a wide array of analytical challenges.

Pros and Cons of UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V

Who Should Buy UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V?

The UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V is an excellent choice for research laboratories, pharmaceutical quality control departments, biochemical analysis facilities, and educational institutions. Its double beam design makes it ideal for anyone who needs consistent, repeatable results without the worry of environmental drift, particularly for quantitative analyses and kinetic studies. Users who value a robust, reliable instrument that can perform a wide range of tasks without constant recalibration will find this spectrophotometer highly beneficial.

However, those who require exceptionally fine spectral resolution, such as researchers working with very narrow absorption peaks, might need to consider instruments with switchable or smaller fixed bandwidths. Individuals needing extreme portability or an ultra-compact footprint might also find this model too substantial. For users who only require simple, single-point absorbance readings and have no need for spectral scanning or advanced analysis, more basic single-beam instruments might suffice at a lower cost. If your work involves frequent, complex data manipulation or visualization, investing in the optional PC software is highly recommended to unlock the full potential of this UNICO spectrophotometer.

Conclusion on UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V

The UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V represents a strong contender in the mid-range UV-Vis spectrophotometer market. It strikes an impressive balance between performance, durability, and cost-effectiveness, particularly for a double-beam instrument. Its unwavering accuracy and stability, driven by the robust 1.8 nm fixed bandwidth and reliable optical components, make it a trusted tool for quantitative analysis and spectral scanning across diverse lab environments. The solid construction ensures longevity, while the stand-alone functionality offers immediate utility.

Considering its price point of $8109.00, the value proposition is clear for institutions and professionals who need reliable spectroscopic data without the premium cost of high-end, feature-rich systems. While the fixed bandwidth and basic LCD might be limiting for highly specialized research, the availability of optional PC software provides a pathway to enhanced analytical power. I would confidently recommend the UNICO SQ4802E SpectroQuest Double Beam Scanning Spectrophotometer, 220V to any laboratory or workshop requiring a dependable, accurate, and durable UV-Vis spectrophotometer for routine and advanced applications. It’s a workhorse designed for precision, built to last.
