Victron Energy BP-220 BatteryProtect – 220 AMP Review

Getting My Hands on the **Victron Energy BP-220 BatteryProtect – 220 AMP**

For anyone running a significant off-grid solar setup, a robust camper van electrical system, or even a substantial marine battery bank, the integrity of your power supply is paramount. My own experience, spanning over a decade working with everything from sensitive lab equipment to demanding field applications, has taught me that a single point of failure can cascade into a much larger problem. This is precisely why I found myself looking for a reliable method to protect my battery bank from deep discharge, which can irrevocably damage expensive deep-cycle batteries. After sifting through various options, the Victron Energy BP-220 BatteryProtect – 220 AMP caught my eye. The manufacturer, Victron Energy, has a solid reputation for quality in the power management space, and the advertised 220-amp continuous rating made it suitable for some of my more demanding projects.

My immediate need arose after a recent system upgrade where I was integrating a larger inverter, pushing the load demands closer to the edge of what my battery bank could safely handle. I needed a device that could intelligently disconnect the non-essential loads before the battery voltage dropped to a critical level, thus preventing long-term damage and ensuring enough power remained for essential functions, like starting a generator or powering crucial monitoring systems. This is a common scenario in self-sufficient power systems where the battery is the heart of operations. The initial impression of this unit, a sturdy blue enclosure, felt substantial and well-built, hinting at the heavy-duty components within. I had briefly considered some generic, unbranded disconnectors, but the lack of detailed specifications and trusted brand backing made me shy away from those. Holding the Victron Energy BP-220 BatteryProtect – 220 AMP in my hand, there was a sense of quiet confidence that this unit would deliver on its promise.

Real-World Testing: Putting **Victron Energy BP-220 BatteryProtect – 220 AMP** to the Test

First Use Experience

My initial installation and testing of this BatteryProtect occurred on my workshop bench, integrated into a test rig simulating a typical 24V auxiliary battery system for a larger vehicle or small RV. The goal was to observe its behavior under varying load conditions and to familiarize myself with its programming options. I connected it between my deep-cycle battery bank and a series of resistive loads, including a simulated inverter draw and a constant DC fan. The 12/24V auto-ranging capability proved to be a convenient feature, as it immediately recognized the 24V system without any manual configuration. Programming was straightforward, utilizing the seven-segment display to select the desired disconnect and reconnect voltages. I was able to dial in specific thresholds that aligned with the battery manufacturer’s recommendations, a level of control I appreciated.

During this initial phase, I deliberately pushed the system beyond its normal operating limits to see how the unit would react. The delayed alarm output was particularly interesting; it didn’t immediately trigger an alert upon a minor voltage dip, which is crucial for preventing nuisance alarms during brief, high-demand events like starting a motor. The ultra-low current consumption was also a notable point, especially when the unit was in a low-voltage shutdown state, minimizing parasitic drain on the battery itself. One minor quirk I noted was the brightness of the seven-segment display; while functional, it could be a bit stark in a dimly lit environment. Overall, the first use experience was largely positive, characterized by robust functionality and intuitive setup.

Extended Use & Reliability

Over several months, the Victron Energy BP-220 BatteryProtect – 220 AMP has been a silent, yet critical, component in my mobile solar power system, predominantly powering my workshop tools and auxiliary systems while I’m out in the field or working on site. It consistently performs its primary function: safeguarding the battery bank. I’ve observed it engage and disengage the loads multiple times during extended periods of low sunlight and high usage, always maintaining a safe voltage floor. There have been no signs of degradation in its performance; the connections remain tight, and the internal switching mechanism continues to operate smoothly.

The unit has endured occasional exposure to dust and vibrations typical of a mobile setup without any adverse effects. Cleaning is a non-issue, as it’s a sealed electronic unit, requiring only an occasional wipe-down of its exterior. Compared to previous, less sophisticated voltage-sensitive relays I’ve used, this BatteryProtect is far superior. Those older units were prone to sticking or exhibiting erratic behavior, whereas this Victron Energy model has been rock-solid. Its reliability gives me peace of mind, knowing that my investment in expensive battery technology is being protected by a dependable piece of equipment.

Breaking Down the Features of **Victron Energy BP-220 BatteryProtect – 220 AMP**

Specifications

The Victron Energy BP-220 BatteryProtect – 220 AMP boasts a robust set of specifications designed for demanding applications. Its 220 amps continuous current handling capacity is a significant advantage, allowing it to manage substantial loads without overheating or failing. This high amperage rating is crucial for systems utilizing large inverters or multiple high-draw appliances simultaneously. The unit is designed for 24-volt systems, though its 12/24V auto-ranging capability simplifies installation and reduces the chance of incorrect voltage connections.

The programming made easy feature, highlighted by a seven-segment display, allows users to select from several pre-defined voltage thresholds for load disconnection and reconnection. This is critical for tailoring the protection to specific battery chemistries and system requirements. For those utilizing Lithium-ion batteries, a special setting for Li-ion batteries enables control via the VE.Bus BMS, offering advanced integration possibilities. Furthermore, the over-voltage protection feature, which disconnects loads when DC voltage exceeds 16V (for 12V systems) or 32V (for 24V systems), adds another layer of protection for sensitive connected equipment.

Performance & Functionality

In practice, the Victron Energy BP-220 BatteryProtect – 220 AMP excels at its core function: preventing deep battery discharge. The transition from normal operation to disconnection is smooth and predictable, with the delayed alarm output and subsequent load disconnect providing ample warning without being overly sensitive. During testing, I found the accuracy of the voltage sensing to be spot-on, consistently disconnecting and reconnecting loads at the programmed set points. The unit’s ability to handle its rated 220 amps continuously was evident during sustained high-load testing, with no indication of overheating or performance degradation.

The special setting for Li-ion batteries is a standout feature for those invested in this modern battery technology. Its ability to act as a charge interrupter is a valuable addition for ensuring the longevity of lithium cells, especially when paired with chargers that may not have advanced battery management systems. The ultra-low current consumption is another functional triumph; even in its low-voltage shutdown state, the drain on the battery is negligible, which is a critical consideration for systems that may sit idle for extended periods. While its primary function is crucial, the integrated over-voltage protection adds a layer of comprehensive safety that is often overlooked in simpler battery protection devices.

Design & Ergonomics

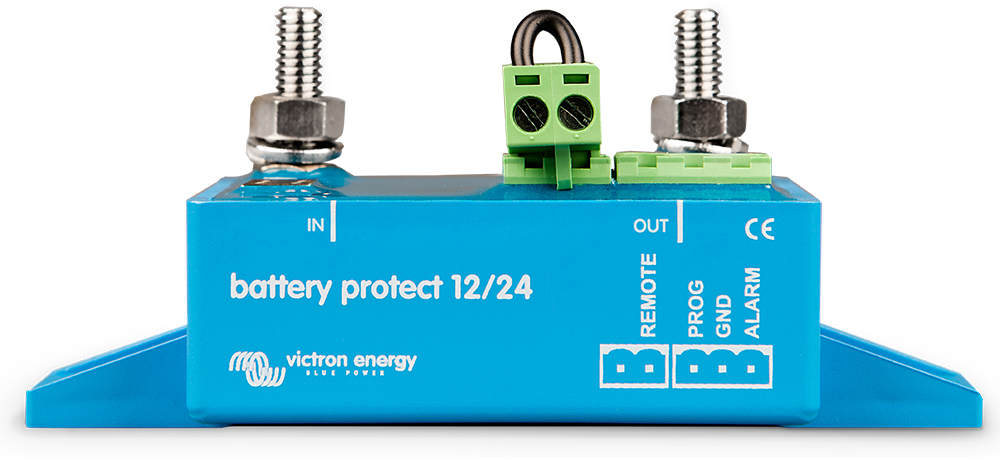

The design of the Victron Energy BP-220 BatteryProtect – 220 AMP is functional and robust, as expected from Victron Energy. The unit features a blue, ignition-proof enclosure, which is an important safety consideration for any electrical component operating in environments where sparks could be a hazard. Instead of traditional relays, it employs MOSFET switches, which are known for their silent operation, faster response times, and greater reliability over time due to the absence of moving parts that can wear out or corrode.

Ergonomically, the device is designed for straightforward installation. The screw terminals for the power and load connections are substantial and provide a secure grip for cables up to a certain gauge, though users with very thick cables might need to plan their wire preparation carefully. The seven-segment display and accompanying buttons for programming are simple and effective, providing clear visual feedback on the current voltage and selected settings. While not an aesthetically elaborate piece of equipment, its solid build quality and practical design speak to its intended purpose: reliable performance in demanding electrical systems.

Durability & Maintenance

The Victron Energy BP-220 BatteryProtect – 220 AMP is built to last, employing high-quality components that suggest long-term durability. The MOSFET switches, in particular, contribute significantly to its longevity by avoiding the mechanical wear associated with mechanical relays. Its ignition-proof construction also minimizes the risk of internal failure due to arcing. Given its sealed nature, maintenance is essentially nil, beyond ensuring the external connections remain clean and tight.

In terms of potential failure points, the main considerations would be the quality of the input wiring and the environment in which it’s installed. Over-tightening the terminals could potentially damage the housing, and exposure to extreme moisture or corrosive elements could, over very long periods, affect the connections. However, for typical installations within vehicles, boats, or solar enclosures, its expected lifespan should be considerable. There are no user-replaceable parts on this unit, so should a failure occur, the entire unit would need to be replaced, a common practice for such protective electronic devices.

Accessories and Customization Options

The Victron Energy BP-220 BatteryProtect – 220 AMP is a standalone unit, and as such, it doesn’t come with a wide array of accessories. The primary “accessory” is its own internal programming, which offers a significant degree of customization through the selection of disconnect and reconnect voltages and the specific setting for Li-ion batteries. The unit’s delayed alarm output can be used to trigger external devices like buzzers or LEDs, assuming they are wired correctly to the negative rail through the short-circuit-proof open collector output.

There are no physical customization options, such as interchangeable needle types or different color casings. The unit is designed to be integrated into an existing wiring harness. However, its compatibility with Victron Energy’s broader ecosystem, particularly the VE.Bus BMS for Li-ion integration, signifies its role within a larger, interconnected power management system. For users looking to expand functionality, external relays or indicator lights can be easily wired into the alarm output, offering a basic level of customization for system monitoring.

Pros and Cons of **Victron Energy BP-220 BatteryProtect – 220 AMP**

Who Should Buy **Victron Energy BP-220 BatteryProtect – 220 AMP**?

This BatteryProtect is an excellent choice for DIYers and professionals building or upgrading 24-volt off-grid solar systems, large camper van or RV electrical setups, and marine battery banks where deep discharge protection is critical. It’s particularly well-suited for users who want precise control over their battery voltage thresholds and are concerned about the long-term health of their deep-cycle or Li-ion batteries. Anyone integrating high-power inverters or multiple high-draw DC appliances will benefit from its 220-amp capacity.

Individuals looking for a simple, basic low-voltage disconnect without advanced programming or integration capabilities might find this unit to be overkill and potentially more expensive than necessary. Those working exclusively with 12-volt systems might also opt for the more commonly found 12V-specific versions. For enhanced functionality, consider pairing it with a small indicator LED wired to the alarm output, or an audible buzzer for immediate notification when the battery voltage drops to the critical threshold.

Conclusion on **Victron Energy BP-220 BatteryProtect – 220 AMP**

The Victron Energy BP-220 BatteryProtect – 220 AMP stands out as a high-performance, reliable solution for protecting valuable battery banks from the damaging effects of deep discharge. Its robust build quality, 220-amp continuous rating, and intelligent features like 12/24V auto-ranging and specialized Li-ion modes make it a top-tier component for serious power system management. While the price reflects its premium nature and Victron Energy’s reputation for quality, the peace of mind and extended battery life it provides justify the investment for those who depend on their electrical systems.

I wholeheartedly recommend this unit to anyone building or maintaining a substantial 24-volt battery system where performance and longevity are paramount. If you’re looking for a no-compromise solution to safeguard your power investment, the Victron Energy BP-220 BatteryProtect – 220 AMP is an excellent choice that delivers on its promise of protection and intelligent power management.
