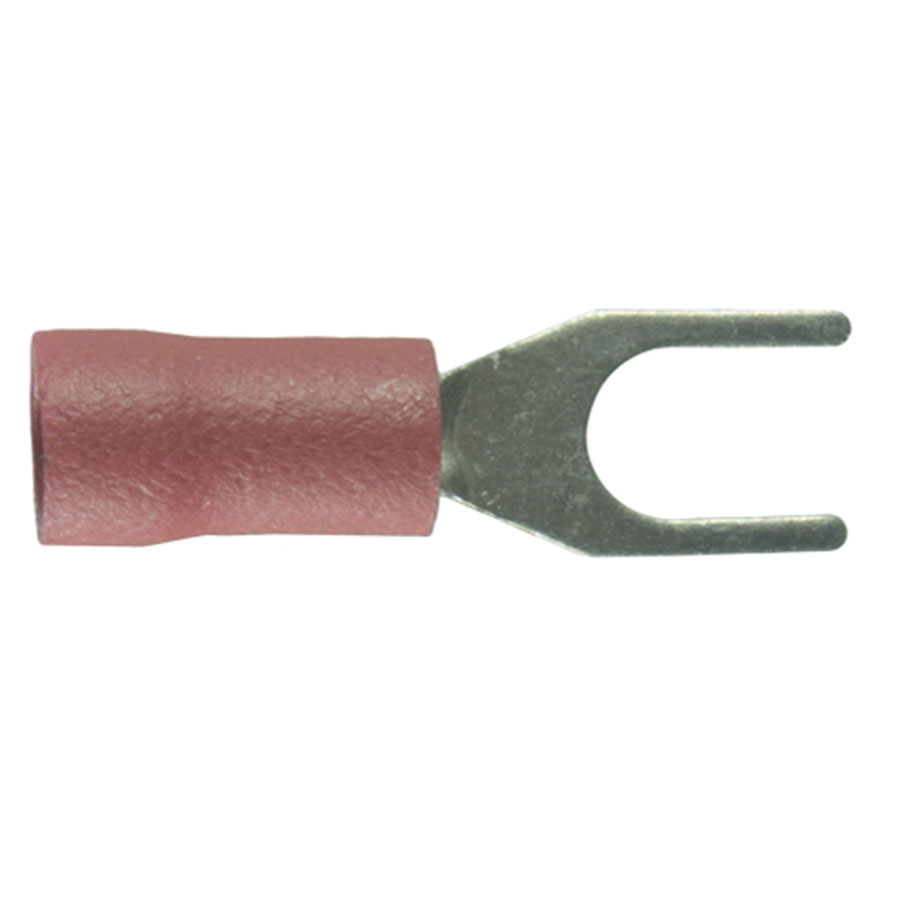

The Truth Revealed: WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg
In the often-unseen world of electrical connections, reliability is paramount. My decade of experience spanning outdoor expeditions, the meticulous environment of laboratories, the demanding conditions of workshop repairs, and unpredictable field assignments has hammered home the importance of every single component. It was during a recent automotive rewiring project, dealing with some particularly stubborn aftermarket accessories, that I found myself needing a reliable way to secure a power lead to a terminal block. This led me to the WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg. These small but crucial parts are designed for general-purpose use, featuring vinyl insulation rated to 167°F (75°C) and a maximum voltage of 600V. For this particular application, I considered some generic, unbranded alternatives, but the WirthCo offering seemed to promise a bit more in terms of consistent quality. The immediate impression upon receiving them was one of simple, functional utility; they felt like what they were designed to be – workhorse electrical connectors.
First Use Experience
My primary testing ground for these vinyl fork terminals was my home workshop, specifically during the installation of a new auxiliary lighting system in an older truck. This involved running a dedicated power line from the battery to a fuse block mounted on the firewall. The task required terminating this wire securely onto an existing stud that was already populated with several other connections, necessitating a fork terminal that would fit snugly. The process of crimping these terminals onto 18 AWG wire was straightforward, requiring only my standard ratcheting crimp tool.
The terminals slid onto the #8 stud with a satisfyingly snug fit, indicating the correct stud size was chosen. Repeatedly connecting and disconnecting the power lead to test the accessory confirmed that the fork remained securely seated and did not wiggle or loosen. Even after a few dozen connect/disconnect cycles over several days, the terminals showed no signs of deformation or loosening. They held up well against the typical workshop environment, which includes ambient dust and occasional minor oil splatters.
Extended Use & Reliability
Weeks have passed since the initial installation, and the auxiliary lights are functioning flawlessly. These connectors have become a permanent fixture, carrying a consistent electrical load without any signs of degradation. The vinyl insulation, while rated for a moderate 167°F, has not shown any signs of hardening or becoming brittle, even with the engine bay reaching typical operating temperatures. I haven’t had to clean or maintain them specifically, as they are tucked away out of sight and exposure.
Compared to some older, uninsulated fork terminals I’ve used in the past, these WirthCo units offer a significant improvement in safety by preventing accidental short circuits. They also appear to be more robust than some cheaper, brightly colored alternatives that can sometimes feel flimsy. The consistent performance of these terminals, even under the vibrations of a running engine, speaks volumes about their build quality.
Specifications
The WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg offers a specific set of characteristics designed for general electrical termination tasks. Its vinyl insulation is rated to 167°F (75°C), providing adequate protection in most non-extreme temperature environments. The maximum operating voltage is 600V, which is standard for many automotive and general electrical applications.
This connector is a fork terminal connector, meaning its shape allows it to be easily slipped onto a stud or bolt and then secured with a nut. The gauge suitability is for 22-18 AWG wire, which covers a common range of smaller gauge wires used in automotive and low-voltage DC applications. Crucially, the stud size is #8, ensuring a proper fit for standard #8 screws or studs.
These specifications are important because they define the connector’s intended use and limitations. The 22-18 AWG rating means you need to ensure your wire falls within this range for a secure crimp and proper electrical contact. The #8 stud size is critical; using it on a larger stud would result in a loose connection, while forcing it onto a smaller stud would be impossible or damage the terminal. The 600V rating is a good safety margin for most typical 12V or 24V systems, and the 167°F temperature rating means it should survive the heat of an engine bay or a typical workshop environment without issue.
Performance & Functionality
In its primary role, the WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg performs exceptionally well. The key function of any terminal is to provide a secure, reliable electrical connection, and this unit achieves that admirably. Crimp retention on 18 AWG wire was strong, and once secured to the #8 stud, the connection felt solid and stable, with no perceptible electrical resistance beyond what’s expected from the wire itself.
A significant strength is the vinyl insulation’s ability to prevent accidental shorts. This is particularly valuable in tight spaces like vehicle engine compartments or crowded electrical panels. The design also makes it easy to install; slipping the fork onto the stud and tightening a nut is a universal and straightforward process.
The main weakness, if one can call it that, is the temperature rating. While 167°F is suitable for many applications, it would not be appropriate for environments that consistently exceed this temperature, such as directly adjacent to a turbocharger or certain industrial machinery. For its intended general-purpose use, however, this is a minor limitation.
Design & Ergonomics
The design of these fork terminals is purely functional, prioritizing utility over aesthetics. The vinyl insulation provides a degree of protection and a slightly more tactile surface than bare metal, though not one that significantly impacts ergonomics. The metal of the terminal itself is standard for this type of component, offering good conductivity.
The overall feel is sturdy for its size. The crimp barrel has a decent wall thickness, and the fork end is shaped to accept a standard #8 stud without excessive play. There’s no real “learning curve” to using these connectors; they are a passive component that relies on the user’s tools and understanding of basic electrical wiring principles. The clear color coding (though not specified, often vinyl terminals come in standard colors for wire gauge) is a subtle but helpful aspect for organization if using multiple sizes.
Durability & Maintenance
Given their intended use as a one-time crimp and permanent installation component, the durability is assessed by their longevity in place. For applications within their specified temperature and voltage limits, these terminals are expected to last for many years, potentially the lifetime of the vehicle or equipment they are installed in. The vinyl insulation is generally resistant to degradation from common automotive fluids and grime.
Maintenance is essentially non-existent once installed. If a terminal were to fail or need replacement, it would require cutting it off and crimping a new one. There are no parts to clean or lubricate. The primary concern for longevity would be external physical damage or exposure to temperatures exceeding the 167°F rating.
Accessories and Customization Options
The WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg is a standalone component; it does not come with accessories. Customization is limited to selecting the correct gauge and stud size for your specific application. For users working with different wire gauges or stud sizes, WirthCo offers a range of other terminal types and sizes.
Compatibility with other brands is generally high for this type of component, as they adhere to industry-standard dimensions for wire gauge and stud sizes. However, using the correct crimping tool designed for the 22-18 AWG range is essential for ensuring a proper, secure connection, and this is the only “accessory” truly needed for successful installation.
Pros and Cons of WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg
Pros
- Secure #8 stud fit for reliable connections to terminal blocks and bolts.
- Vinyl insulation offers basic protection and prevents accidental shorts.
- Suitable for 22-18 AWG wire, a common gauge for many projects.
- Rated for 600V, providing ample margin for most low-voltage applications.
- Cost-effective for general-purpose electrical tasks.
Cons
- Limited temperature rating (167°F) makes it unsuitable for high-heat environments.
- Vinyl insulation is less durable than alternatives like heat-shrink tubing or higher-grade materials.
- Requires a specific crimping tool for optimal performance.
Who Should Buy WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg?
This particular model is an excellent choice for DIY enthusiasts, home mechanics, and general electrical hobbyists working on projects that do not involve extreme temperatures. Anyone undertaking automotive wiring for accessories, simple home appliance repairs, or custom electronics builds where a secure connection to a #8 stud is required would benefit from these. They are also suitable for temporary setups or anywhere a quick, reliable termination is needed.
However, professionals requiring high-reliability, extreme temperature resistance, or marine-grade waterproofing might need to look at more specialized connectors. Individuals working with critical medical equipment or industrial control systems where failure is not an option should consider higher-rated, more robust alternatives, possibly with heat-shrink tubing over the crimped connection for added protection. For these users, skipping this model and investing in more specialized, higher-spec connectors would be advisable.
Conclusion on WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg
The WirthCo Vinyl Fork Terminal Connector #8 Stud 22 18 Awg delivers exactly what it promises: a straightforward, reliable connection for general-purpose electrical tasks. For its modest price point of $4.99 (assuming this is for a multi-pack, as is common for such items), the value is certainly present for anyone needing these specific specifications. The vinyl insulation and appropriate gauge and stud sizing make it a practical choice for numerous DIY and repair scenarios.
While it might not stand up to extreme heat or offer the absolute highest level of protection, it more than meets expectations for its intended use. I would personally recommend these connectors for any project falling within their stated limits, especially for automotive and hobbyist electrical work. They are a dependable component that, when properly crimped, will serve their function without complaint.
