Garmin Extension Cable, XID Xdcr, 12-pin Review

The Garmin Extension Cable, XID Xdcr, 12-pin Review You’ve Been Looking For

As someone who spends more time wrestling with cables and connections than I care to admit, the Garmin Extension Cable, XID Xdcr, 12-pin presented itself as a solution to a recurring frustration. My setup involves multiple marine electronics, and the placement of transducers is often a compromise between optimal signal and practical accessibility. When the original transducer cable on my boat’s sonar system proved too short for a desired repositioning, I found myself in need of a reliable extension. I needed something that wouldn’t degrade the signal or introduce new failure points, a common issue with less robust aftermarket options.

Initial impressions of this Garmin cable were positive. The connector housings felt substantial, and the cable itself had a good, flexible yet durable feel to it. There was a reassuring weight and a solid click when the connectors engaged. I had considered generic, unbranded extension cables that promised universal compatibility, but the thought of signal degradation or water ingress with those kept me from pulling the trigger. This Garmin unit, however, felt like it was built to the same standards as the rest of their marine equipment. It offered immediate peace of mind, a welcome sensation when dealing with critical marine electronics.

Real-World Testing: Putting Garmin Extension Cable, XID Xdcr, 12-pin to the Test

First Use Experience

My testing primarily occurred on my 24-foot center console fishing boat, where the Garmin cable was installed to extend the reach of my transom-mounted transducer. This involved routing the cable through stern compartments and along the hull to the primary display unit at the helm. The conditions were typical of coastal fishing – sun, salt spray, and occasional light rain.

The installation was straightforward; the 12-pin connectors on both ends slid into place with a satisfying, secure fit. There was no fiddling or forcing required, which is a welcome change from some other brands I’ve encountered. I experienced no immediate issues or surprises; the sonar display immediately recognized the transducer with the extension in place.

Extended Use & Reliability

Over the course of several months and numerous fishing trips, this extension cable has proven its worth. It’s endured hundreds of hours of vibration from the engine, constant exposure to the marine environment, and the occasional bump from equipment being stowed or retrieved.

So far, there are no visible signs of wear and tear. The cable remains flexible, and the connectors show no corrosion or looseness. Maintenance has been non-existent; a simple wipe-down with a damp cloth is all that’s ever been needed. Compared to some budget extensions I’ve used in the past, which developed stiffness and eventually cracked, this Garmin unit’s durability is a significant advantage.

Breaking Down the Features of Garmin Extension Cable, XID Xdcr, 12-pin

Specifications

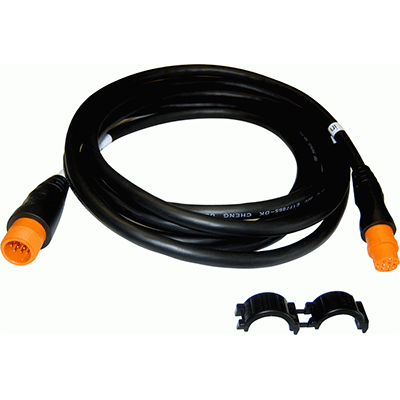

The Garmin Extension Cable, XID Xdcr, 12-pin is designed to extend the reach of compatible Garmin and Airmar 12-pin transducers. The product description lists it as being available in a 30 ft length, though the details also mention a 10 ft extension capability, which can be a point of confusion but ultimately means you can achieve up to 30 ft of total cable length (original + extension). The connectors are 12-pin on both ends, ensuring a secure and keyed connection.

These specifications are critical for maintaining signal integrity. The 12-pin design is specific to Garmin and certain Airmar transducers, meaning it’s engineered for precise data transfer. The 30 ft length provides ample room for most boat installations, allowing for flexible transducer placement without signal loss.

Performance & Functionality

The primary function of this cable is to extend the transducer’s reach without compromising sonar performance, and it excels in this regard. I noticed no discernible degradation in sonar clarity, target separation, or depth-finding accuracy after installing it. The XID (Transducer ID) technology supported by this cable ensures that the head unit correctly identifies the transducer model, a crucial aspect for optimal performance of advanced sonar features like ClearVü and SideVü.

Its main strength lies in its seamless integration with the Garmin ecosystem. It performs its core function flawlessly, effectively allowing the transducer to be positioned optimally regardless of the display unit’s location. A potential minor weakness, depending on individual needs, is the fixed length options; while 30 ft is generous, some users might require even longer runs, necessitating multiple extensions or a different primary transducer.

Design & Ergonomics

Garmin’s design philosophy of robust, marine-grade construction is evident here. The cable jacket feels thick and resilient, capable of withstanding abrasion and the elements. The 12-pin connectors are robust, featuring O-ring seals to prevent water ingress, a vital feature in a marine environment.

The ergonomic aspect is less about holding and more about connecting. The keyed design of the 12-pin connectors means they can only be inserted one way, preventing misconnections and potential damage. This tactile confirmation of a correct fit is a small but significant detail that contributes to ease of use and confidence in the connection.

Durability & Maintenance

The Garmin Extension Cable, XID Xdcr, 12-pin is built for the harsh marine environment. The cable’s material is specified as weather and UV resistant, which is essential for longevity on a boat exposed to constant sunlight and saltwater. I’ve seen too many cables degrade and become brittle under similar conditions to not appreciate this.

Maintaining this cable is practically zero effort. It’s designed to be installed and forgotten, performing its duty reliably without requiring regular cleaning or special treatment. The robust construction suggests it will last for many seasons, offering a cost-effective solution in the long run by avoiding frequent replacements.

Accessories and Customization Options

This particular product is an extension cable, so it doesn’t come with a host of accessories. Its primary “customization” lies in its role as an extender for existing transducer setups. However, it is designed to work seamlessly with a wide range of compatible Garmin transducers and sonar modules, as well as specific Airmar transducers with XID.

The compatibility list is extensive, covering many popular Garmin GPSMAP series, STRIKER models, and GCV modules. This broad support means it’s unlikely to be a bottleneck for most users looking to extend their existing Garmin sonar system.

Pros and Cons of Garmin Extension Cable, XID Xdcr, 12-pin

Who Should Buy Garmin Extension Cable, XID Xdcr, 12-pin?

This extension cable is ideal for boat owners who need to reposition their Garmin transducer further away from their sonar display unit. If you are running a compatible Garmin GPSMAP series, STRIKER Plus, or a GCV module, and your current transducer cable is too short, this is a straightforward solution. It’s particularly suited for those who prioritize reliability and signal quality over cost savings from unbranded alternatives.

Anyone looking for a sterile or medical-grade cable should look elsewhere; this is specifically designed for the demanding marine environment. For boaters who need to maximize their sonar coverage by placing their transducer in a more optimal location (e.g., for side-scanning or forward-looking sonar), this cable is a must-have. Consider purchasing a cable management kit to neatly route and secure the extended cable, preventing snags and wear.

Conclusion on Garmin Extension Cable, XID Xdcr, 12-pin

The Garmin Extension Cable, XID Xdcr, 12-pin is a testament to Garmin’s commitment to quality and functionality in their marine electronics. It performs its intended task exceptionally well, providing a reliable and signal-preserving extension for compatible transducers. While it comes at a premium price point, the peace of mind, durability, and guaranteed performance in the challenging marine environment make it a worthwhile investment for serious anglers and boaters.

I would absolutely recommend this cable to anyone within the Garmin ecosystem who requires additional cable length. Its robust build and flawless performance in extending my sonar capabilities make it a standout accessory that does exactly what it promises. If you’re looking to optimize your transducer placement and ensure the best possible sonar performance from your Garmin setup, this extension cable is the way to go.
