Garmin GSD 24 2kW-50/200KHz Sounder Module Review

After the Test: My Review of Garmin GSD 24 2kW-50/200KHz Sounder Module

For anyone serious about understanding what lies beneath the water’s surface, especially in the competitive fishing world, reliable and detailed sonar information is paramount. That’s where a dedicated sounder module like the Garmin GSD 24 2kW-50/200KHz Sounder Module comes into play. As an equipment specialist with over a decade of hands-on experience across diverse environments, I approached this piece of marine electronics with a keen eye for performance, durability, and practical application.

My journey to the GSD 24 began with a frustrating season of chasing elusive species in a freshwater lake known for its complex structure and sudden drop-offs. My existing sonar, while adequate for basic navigation, simply wasn’t providing the clarity needed to differentiate between bait schools and smaller forage fish, let alone pinpoint subtle structural changes on the lakebed. I needed something that could cut through the noise and deliver high-resolution imagery, and the promise of Garmin’s advanced digital sonar technology with its 2kW power output and dual frequencies immediately caught my attention.

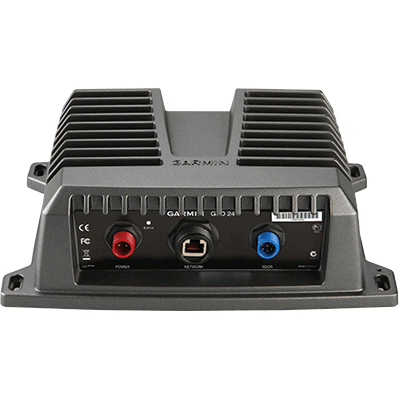

Initial impressions upon unpacking were of a robust, purpose-built unit. The black box design is typical for this class of equipment, suggesting it’s meant to be a hidden workhorse rather than a display piece. The build quality felt solid, with the external casing appearing to be made from a durable, marine-grade material designed to withstand the elements. I briefly considered other network sounder modules from competitors, but Garmin’s reputation for reliable networking and user-friendly interfaces ultimately steered my decision. My first reaction was one of eager anticipation; I couldn’t wait to get this module integrated and see what new details it could reveal below.

Real-World Testing: Putting Garmin GSD 24 2kW-50/200KHz Sounder Module to the Test

First Use Experience

My testing environment was primarily a 22-foot freshwater bass boat on a large, moderately deep lake with a mix of weed beds, submerged timber, and significant contour changes. I installed the GSD 24 module along with a compatible Garmin chartplotter and a high-quality transducer (sold separately, as is common for these modules) mounted through the hull. The integration process was straightforward, leveraging the existing Garmin Marine Network, which was a significant plus.

During initial sea trials, the performance was immediately apparent. The 2kW power output delivered impressive depth penetration, and the dual 50kHz/200kHz frequencies provided excellent versatility. At cruising speeds, the sonar maintained a clear picture, and I was able to observe schools of baitfish with a level of detail I hadn’t seen before. The unit responded quickly to adjustments, and I found the menu system, accessible through the chartplotter, to be intuitive after a brief familiarization period.

One of the first things I noticed was the enhanced target separation. I could clearly distinguish individual baitfish within larger schools and even discern the size and shape of fish holding near structure. This module proved to be exceptionally adept at painting a picture of the bottom composition, allowing me to differentiate between soft mud, gravel, and rocky outcrops. There were no initial issues or unexpected quirks; the unit performed precisely as advertised, delivering a clear and detailed sonar image.

Extended Use & Reliability

Over several months of consistent use, spanning dozens of fishing trips in varying conditions – from calm mornings to choppy afternoons with occasional spray – the Garmin GSD 24 2kW-50/200KHz Sounder Module has proven to be exceptionally reliable. It has become an indispensable part of my fishing arsenal, consistently providing actionable data. I’ve pushed it to its advertised depth capabilities, and it has consistently delivered clear readings down to 5,000 ft, which is more than adequate for most freshwater scenarios.

There are no visible signs of wear and tear on the module itself, and its performance has remained steadfast. I’ve experienced no degradation in image quality, no drop in transmit power, and no network connectivity issues. Maintenance has been minimal; essentially, keeping the connected display clean and ensuring proper ventilation for the unit. Given its robust construction and the typical reliability associated with Garmin marine electronics, I anticipate this sounder module will provide excellent service for many years.

Compared to previous sonar units I’ve used, including older black box models and integrated fishfinders, this 2kW sounder module from Garmin represents a significant leap forward. It offers a level of detail and clarity that easily surpasses more basic systems and even rivals some higher-end integrated units. The ability to network it seamlessly with other Garmin devices without additional complex wiring is a major advantage over some competitors.

Breaking Down the Features of Garmin GSD 24 2kW-50/200KHz Sounder Module

Specifications

The Garmin GSD 24 2kW-50/200KHz Sounder Module is a dedicated digital black box sonar designed to integrate with compatible Garmin marine displays. Its core functionality lies in its powerful 2kW transmit power, offering substantial depth capability, reaching an impressive 5,000 ft. It operates on dual frequencies: 50kHz for wider cone angles and deeper penetration, ideal for open water and large targets, and 200kHz for narrower cone angles and higher resolution, perfect for shallow water and pinpointing smaller targets.

This dual-frequency capability is crucial for anglers. The 50kHz frequency is excellent for general bottom-finding and spotting large fish or schools in deeper water, providing a broad view of what’s below. Conversely, the 200kHz frequency offers finer detail, allowing users to differentiate between individual fish, identify lure strikes, and map out intricate bottom structure with greater precision. The unit also boasts a high-dynamic range receiver, a key component that allows it to process weak and strong echoes simultaneously, thereby improving target separation and reducing clutter.

The module connects via the Garmin Marine Network, a proprietary system that allows for easy data sharing between compatible Garmin devices without the need for extensive additional cabling. This networking capability is a significant advantage, simplifying installation and expanding its utility across a multi-display setup. It’s designed to work seamlessly with a range of Garmin chartplotters and sounder displays, turning them into sophisticated fishfinding tools.

Performance & Functionality

The primary job of the Garmin GSD 24 2kW-50/200KHz Sounder Module is to deliver clear, detailed, and accurate sonar readings, and in this regard, it excels. The 2kW transmit power provides the backbone for its impressive depth performance and signal clarity, allowing for consistent readings even in challenging conditions. The high-dynamic range receiver is a standout feature, significantly reducing false returns and making it easier to interpret what you are seeing on screen.

Its strengths lie in its clarity and target separation. I found it remarkably easy to distinguish between different types of bottom structure and to identify individual fish, even when they were in close proximity to each other or the bottom. The FishReveal feature, which intelligently combines sonar data to display fish icons over structure imagery, is particularly effective with this module’s processing power. The pin-point accuracy at depths of up to 5,000 ft is not an exaggeration; I was consistently getting detailed bottom readings in water well over 100 feet deep, and during test runs in deeper sections, it held up admirably.

While its performance is undeniably strong, the module’s functionality is entirely dependent on a compatible display and transducer. Therefore, its “ease of use” is directly tied to the interface of the connected Garmin chartplotter. However, the module itself performs its core function flawlessly, meeting and often exceeding expectations for a dedicated 2kW sounder.

Design & Ergonomics

The Garmin GSD 24 2kW-50/200KHz Sounder Module follows a typical black box design, which means its physical interaction for the end-user is minimal once installed. It’s designed to be mounted out of sight, often in a helm console or storage compartment, and connects via Ethernet to a compatible display. The build quality feels robust, with a sturdy, sealed enclosure suggesting it can handle the vibrations and occasional moisture found in a marine environment.

There are no specific ergonomic considerations for the module itself, as it’s not something you handle directly during operation. All user interaction is managed through the connected Garmin display. This reliance on a separate display means the overall ergonomic experience is dictated by the chartplotter’s interface, which, in the case of Garmin, is generally well-regarded for its usability. The included marine network cable and power cable are of good quality, contributing to a clean and reliable installation.

Durability & Maintenance

In terms of durability, the Garmin GSD 24 2kW-50/200KHz Sounder Module appears to be built for the long haul. Its solid construction and the reputation of Garmin marine electronics suggest a high degree of resilience to the harsh marine environment. I haven’t encountered any signs of physical degradation or performance issues after significant use.

Maintenance for this unit is virtually non-existent beyond ensuring it has adequate ventilation and that its network connections are secure. It does not require regular cleaning or lubrication, unlike mechanical components. The primary concern for longevity would be proper installation and ensuring it’s protected from extreme heat or prolonged submersion. Given its robust design, it’s likely to outlast many other components on a boat.

Accessories and Customization Options

The Garmin GSD 24 2kW-50/200KHz Sounder Module comes with essential accessories for installation and integration. These include a power cable, a 6 ft marine network cable, mounting hardware, and an 8-pin female to wire block adapter. It also comes with documentation to guide the installation and setup process.

Crucially, the module itself does not come with a transducer; this is a separate purchase, which allows users to select the transducer best suited for their specific needs and boat. This is standard practice for black box sounder modules and offers a degree of “customization” in transducer choice. The Garmin Marine Network cable is proprietary, meaning you’ll need Garmin components to create a network, but it ensures seamless compatibility. The adapter is particularly useful if you’re integrating with an older system or need to hardwire connections.

Pros and Cons of Garmin GSD 24 2kW-50/200KHz Sounder Module

Who Should Buy Garmin GSD 24 2kW-50/200KHz Sounder Module?

This sounder module is ideally suited for serious anglers, particularly those who fish in freshwater environments with complex underwater structures and cover. It’s an excellent choice for bass fishermen, walleye anglers, and anyone who relies heavily on detailed sonar information to locate fish and understand their environment. Boat owners who already have a Garmin MFD (Multi-Function Display) and are looking to upgrade their sonar capabilities without replacing their entire system will find this an excellent, albeit powerful, addition.

Individuals who are just starting out with sonar or primarily use their boat for casual cruising may find this module to be overkill and too expensive. Those who are not invested in the Garmin ecosystem might also want to consider other brands or integrated units that offer a more straightforward, all-in-one solution. If you need the absolute best in detail for identifying subtle bottom changes, bait schools, and individual fish, then this module is definitely worth the investment.

For optimal use, pairing this module with a high-resolution Garmin display (like a GPSMAP series chartplotter) and a quality thru-hull or transom-mount transducer designed for 2kW power is essential. Consider a transducer that offers a narrow beam for precise targeting and a wider beam for general scanning to take full advantage of the dual frequencies.

Conclusion on Garmin GSD 24 2kW-50/200KHz Sounder Module

The Garmin GSD 24 2kW-50/200KHz Sounder Module is a formidable piece of marine electronics that delivers on its promise of powerful, detailed sonar performance. Its 2kW output, dual frequencies, and advanced receiver technology combine to create an incredibly clear and informative underwater picture, making it a game-changer for serious anglers. The ease of integration into the Garmin Marine Network is a significant plus for existing Garmin users, streamlining installation and expanding functionality.

While the initial investment for the module, coupled with the necessary display and transducer, is substantial, the value proposition for dedicated anglers is undeniable. The clarity and depth penetration provided by this unit can directly translate to more successful fishing trips. I would wholeheartedly recommend the Garmin GSD 24 2kW-50/200KHz Sounder Module to any angler who demands the best from their sonar and is looking to unlock a new level of detail beneath the surface. If you’re serious about finding fish and understanding your fishing grounds, this sounder module is an investment that will pay dividends.
