Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB Review

The Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB: Final Thoughts from Me

My search for a compact, effective barrel for a specific build led me to the Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB. As an experienced gear specialist, I’m always on the lookout for components that offer a good blend of performance and value, especially when tackling custom projects. This particular barrel from Luth-AR caught my eye with its integrated Front Sight Base (FSB), promising a classic look and potentially simplifying the build process. My goal was to recreate a vintage-style carbine, and this 11.5-inch length felt like the sweet spot for that aesthetic while maintaining acceptable ballistic performance for its intended role. Compared to other manufacturers offering similar lengths, Luth-AR often presents a compelling price point. Upon unboxing, the initial impression was one of solid, if not overly refined, construction, hinting at its functional purpose.

Real-World Testing: Putting Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB to the Test

First Use Experience

My primary testing ground for this barrel was a workbench setup for a custom rifle build, culminating in range sessions. I was assembling a rifle for close-quarters maneuvering and general plinking, scenarios where a shorter barrel offers distinct advantages in handling. The initial fitting process, however, quickly revealed some unexpected challenges. The barrel itself seemed straightforward to install into the upper receiver, but the integral FSB presented the first hurdle. While the Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB arrived with the FSB already attached, the alignment of the gas tube port became a point of significant contention.

This issue manifested immediately when attempting to seat the gas tube. Despite trying multiple compatible gas tubes, none would properly align with the roll pin hole in the FSB. This necessitated removing the FSB entirely, a tedious process that involved heating and careful tapping, to attempt to re-drill or modify the existing hole. The material of the FSB, while appearing robust, showed some resistance to modification, suggesting it’s not designed for extensive post-manufacturing adjustments. This unexpected complexity turned what should have been a simple assembly into a frustrating exercise in problem-solving, consuming far more time and resources than anticipated.

Extended Use & Reliability

The extended use of this barrel has been largely defined by the persistent issues stemming from the gas block alignment. While I eventually managed to get a functioning gas system, the process was far from ideal and involved significant remedial work. The barrel itself, once the gas system was rectified, performed adequately in terms of accuracy for its intended purpose as a carbine barrel. It cycled reliably after the gas port was correctly set up, and groups at 50 and 100 yards were acceptable for casual shooting and CQB-style drills.

However, the reliability is entirely contingent on overcoming the initial manufacturing defects. The Mag Phosphate finish held up reasonably well against light moisture and handling, showing no signs of premature wear or corrosion. Maintenance was standard for a rifle barrel; cleaning after range sessions was straightforward. The main concern, though, remains the inherent design flaw related to the gas tube hole in the FSB. This single issue overshadows any positive aspects of the barrel’s performance, making it difficult to recommend without significant caveats. Compared to other barrels with similarly priced FSBs that have installed without issue, this model falls considerably short.

Breaking Down the Features of Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB

Specifications

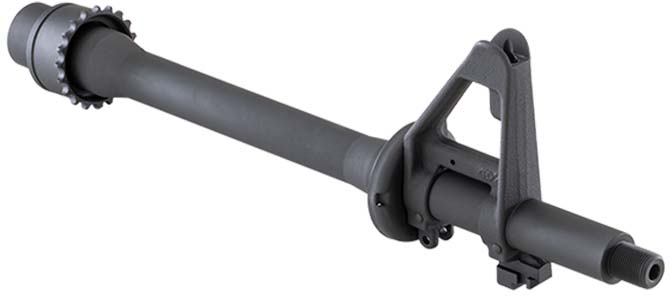

The Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB is constructed from 4150 Chrome Moly, a standard and durable material for rifle barrels, finished with Mag Phosphate for corrosion resistance. It measures 11.5 inches in length and features a lightweight profile, designed to reduce overall firearm weight. The gas system length is carbine length, utilizing a .750 inch gas block journal diameter. Its threads are the common 1/2×28 TPI, accommodating most standard muzzle devices and suppressors. The barrel boasts a 1-7 twist rate, suitable for stabilizing a range of 5.56mm and .223 Remington projectiles. Notably, this particular model has no flutes, a design choice that contributes to its weight and potentially its rigidity. The overall weight is listed at 1.78 lb.

These specifications are all standard for a compact AR-15 platform barrel, aiming for balance between maneuverability and ballistic efficiency. The lightweight profile is particularly appealing for builds where weight is a critical factor, such as pistol-caliber carbine alternatives or lightweight carbines. The 1-7 twist rate is a good general-purpose twist, capable of handling heavier bullets that often provide better accuracy and terminal performance. The Mag Phosphate finish offers a practical, non-reflective surface that also provides a decent level of protection against the elements.

Performance & Functionality

In its core function as a barrel, the Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB delivers mixed results, largely marred by its significant manufacturing defect. Once the gas system was painstakingly made to work, the barrel provided acceptable accuracy for its length and intended role. Firing standard 5.56mm ammunition resulted in groupings that would suffice for close-range engagements or general recreational shooting. The carbine-length gas system contributes to a livelier recoil impulse, which is characteristic of shorter barrels but manageable with proper technique.

However, the primary functionality is severely hampered by the misaligned gas tube hole in the FSB. This issue directly impacts the gas system’s ability to function correctly, leading to potential cycling issues or an over-gassed firearm if compensated for improperly. The performance is further impacted by the fact that neither a front sight post nor a sling swivel are included, despite the presence of the FSB. This means additional purchases are required to make the FSB functional as a front sight, adding to the overall cost and inconvenience.

Design & Ergonomics

The design of the Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB leans towards a utilitarian, budget-conscious aesthetic. The lightweight profile contributes positively to the overall ergonomics of a carbine build, making it feel more nimble and easier to handle in confined spaces. The Mag Phosphate finish provides a matte black appearance that is both functional and visually unobtrusive. The integral Front Sight Base (FSB) offers a classic AR-15 look, reminiscent of the XM177 carbines, which was a significant draw for my build.

However, the ergonomics are severely undermined by the poor execution of the FSB’s gas tube aperture. The difficulty in properly seating the gas tube and securing it with a roll pin is a major ergonomic failure from a build perspective. While the barrel itself is easy to handle due to its weight, the effort required to make the integrated FSB fully functional detracts significantly from the overall user experience. The lack of included front sight post and sling swivel also detracts from the ergonomics, as these are commonly expected accessories when purchasing a barrel with an FSB.

Durability & Maintenance

The Mag Phosphate finish on the Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB appears to offer decent durability for its class. Under typical range use and handling, it resisted scratching and wear reasonably well. The 4150 Chrome Moly steel construction is inherently robust and should provide a long service life under normal operating conditions. Cleaning the barrel is a standard procedure: bore snake or cleaning rod with patches and solvent.

The primary concern regarding durability and maintenance is the gas block journal. While the diameter is specified as .750 inches, the precision of the hole for the gas tube is questionable. This lack of precision is not a wear-and-tear issue but a manufacturing defect that could potentially lead to gas leaks or stress on the gas tube if not corrected. If the FSB itself were to sustain damage, its integrated nature might make replacement more complex than a standard clamp-on or set-screw gas block.

Accessories and Customization Options

The Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB comes as a singular component, meaning it does not include any significant accessories. As mentioned, the absence of a front sight post and a sling swivel is a notable omission, especially given the integrated FSB. These are essential components for utilizing the FSB as intended and require separate purchase. The barrel is designed to fit standard AR-15 upper receivers and uses common 1/2×28 threads, allowing for a wide range of muzzle devices like flash hiders, compensators, or suppressors.

Customization beyond muzzle devices is limited by the integrated nature of the FSB. Unlike barrels with removable gas blocks, the FSB on this Luth-AR model is permanently affixed. This means that if you wanted to switch to a different style of gas block (e.g., low-profile for handguard clearance), you would need to perform significant metalwork or opt for a different barrel altogether. However, for those specifically seeking the classic FSB look, the barrel serves as a good foundation, provided the aforementioned gas tube alignment issue can be resolved.

Pros and Cons of Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB

Who Should Buy Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB?

This barrel is potentially suitable for experienced builders or advanced hobbyists who are comfortable with metalworking and troubleshooting significant manufacturing defects. If you are undertaking a specific retro build where the classic FSB aesthetic is paramount and you possess the tools and skills to rectify a misaligned gas port, this barrel might be a consideration. It’s for someone who views a project as an opportunity to learn and overcome challenges rather than a simple plug-and-play assembly. It is not for the beginner builder or anyone expecting a straightforward, out-of-the-box functional component.

Those seeking a reliable, hassle-free barrel for a new build should look elsewhere. Individuals prioritizing ease of assembly, guaranteed functionality, or compatibility with modern handguards would be better served by barrels with removable gas blocks or those from manufacturers with a stronger reputation for quality control. For anyone on a tight deadline or budget who can’t afford delays and extra parts/machining, this Luth-AR barrel is best avoided.

Conclusion on Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB

The Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB represents a frustrating paradox. On paper, it offers a desirable combination of classic design, lightweight profile, and a competitive price point, making it an attractive option for certain builds. However, my personal experience, and that of others I’ve encountered, highlights a critical flaw: the poorly aligned gas tube hole in the integrated Front Sight Base. This defect transforms what should be a straightforward component into a significant build headache, often requiring specialized tools and considerable time to rectify.

While the material quality and basic barrel specs are adequate, the execution of the FSB integration is a major detractor. The value proposition hinges entirely on your tolerance for dealing with manufacturing errors and your ability to correct them. If you are a seasoned gunsmith with a passion for solving complex problems and a specific need for the retro FSB look, you might find a way to make this barrel work. For the vast majority of shooters and builders, however, the time, money, and frustration involved in overcoming its inherent flaws make it a poor choice. Therefore, I cannot enthusiastically recommend the Luth-AR 5.56mm 11.5in Lighweight Barrel w/FSB without substantial reservations. Buyers seeking a reliable and easy-to-install barrel should explore alternatives.
